Product Introduction

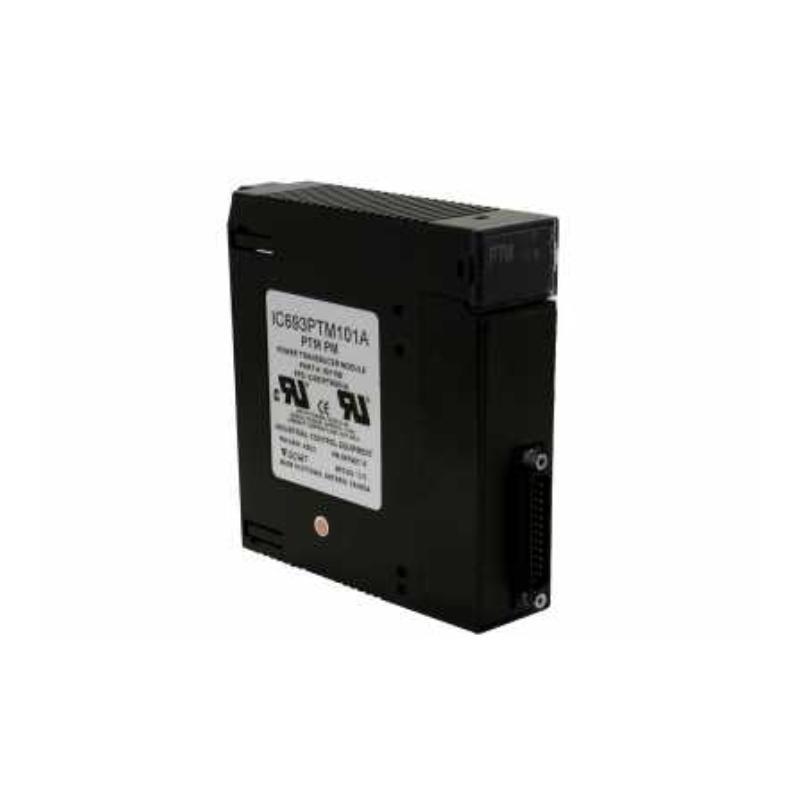

The GE IC693PTM101 is a high-performance Programmable Timer Module (PTM) designed for the GE Fanuc Series 90-30 PLC system. This module provides precise timing functions for industrial automation applications, offering reliable operation in harsh environments. It is commonly used in manufacturing, process control, and machinery automation where accurate timing sequences are critical.
Product Parameters
| Parameter | Specification |
|---|---|
| Module Type | Programmable Timer Module (PTM) |
| Series | GE Fanuc Series 90-30 |
| Input Voltage | 24V DC (Operating Range: 19.2V – 30V DC) |
| Number of Timers | 8 Independent Timers |
| Timer Resolution | 1ms |
| Timer Range | 1ms – 9999s (adjustable) |
| Communication | Backplane communication via Series 90-30 rack |
| Dimensions (W x H x D) | 190.5x 254x 127mm |
| Weight | 0.9 kg |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% (non-condensing) |
| Certifications | UL, CE, RoHS Compliant |
Product Applications
The GE IC693PTM101 is widely used in industrial automation systems requiring precise timing control. Key applications include:
-
Manufacturing Lines: Synchronizing conveyor belts, robotic arms, and assembly processes.
-
Process Control: Timing chemical dosing, mixing, and batch processing.
-
Packaging Machinery: Controlling fillers, sealers, and labeling machines.
-
Energy Management: Sequencing pumps, fans, and HVAC systems.
-
Safety Systems: Delayed shutdowns or alarms for emergency protocols.
Product Advantages
-
High Precision: 1ms resolution ensures accurate timing for critical processes.
-
Flexibility: 8 independent timers can be configured for diverse applications.
-
Robust Design: Built to withstand industrial environments with wide temperature and humidity ranges.
-
Easy Integration: Compatible with Series 90-30 PLCs for seamless system expansion.
-
Low Maintenance: Solid-state design reduces wear and tear.
-
Certified Safety: UL and CE certifications ensure compliance with industry standards.
Frequently Asked Questions (FAQ)
-
What is the maximum timer range of the IC693PTM101?
The timer range is adjustable from 1ms to 9999s. -
Can this module operate in high-vibration environments?
Yes, it is designed for industrial use with robust construction. -
How many timers are available on the IC693PTM101?
It provides 8 independent timers. -
What is the power supply requirement?
It operates on 24V DC (19.2V – 30V range). -
Is the module compatible with other GE PLC series?
No, it is specifically designed for the Series 90-30. -
What are the dimensions and weight of the module?
Dimensions: 190.5x 254x 127mm; Weight: 0.9 kg. -
Can the timers be reset remotely?
Yes, timers can be controlled via PLC logic. -
What certifications does the module have?
UL, CE, and RoHS certifications. -
Is the IC693PTM101 suitable for outdoor use?
Only if installed in a protected enclosure (IP rating not specified). -
How do I troubleshoot a faulty timer?
Check power supply, backplane connection, and PLC programming for errors.
