Product Introduction

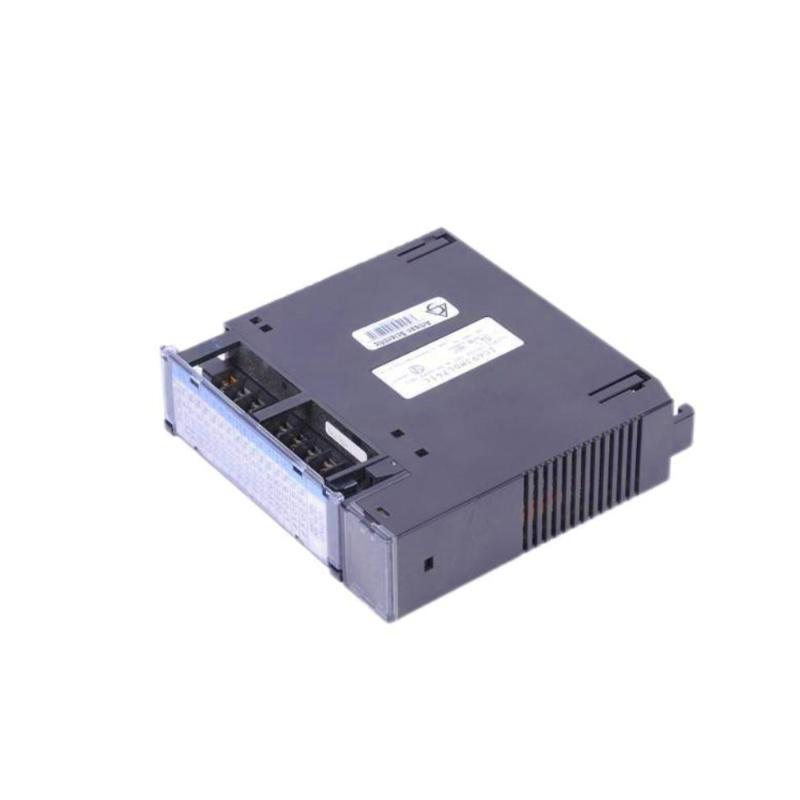

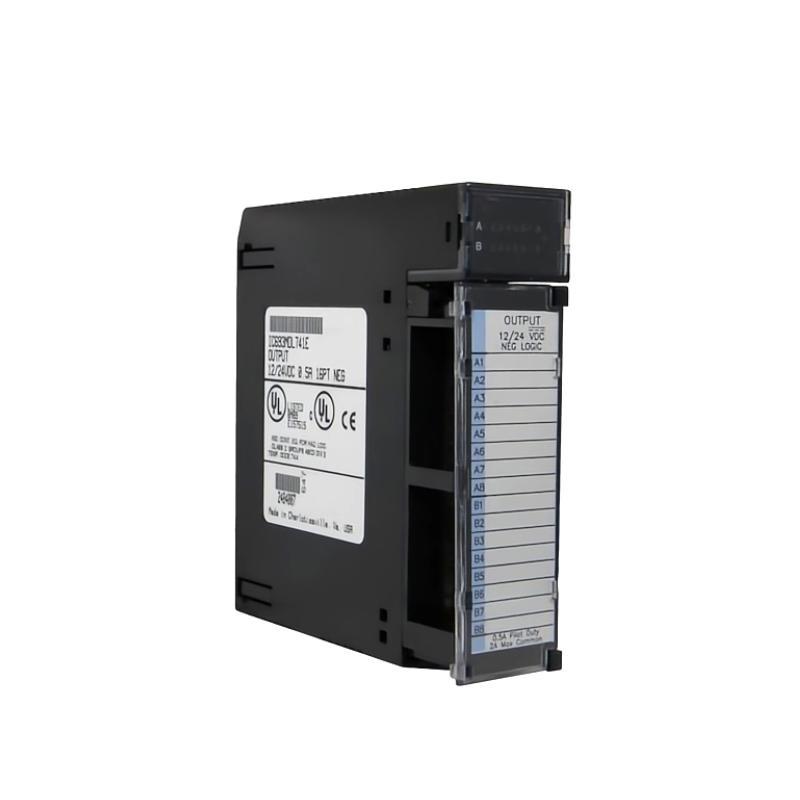

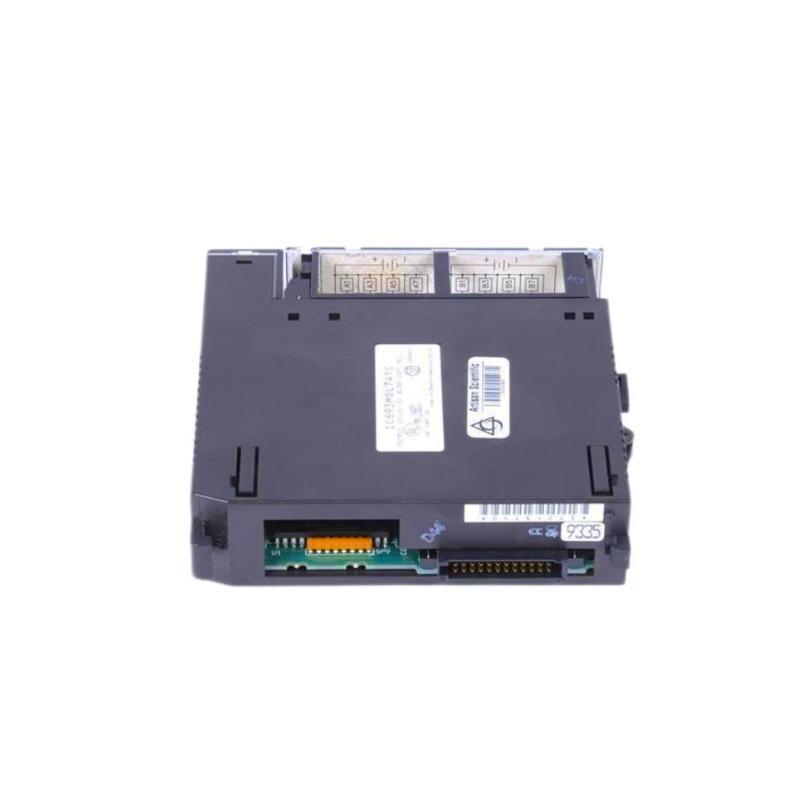

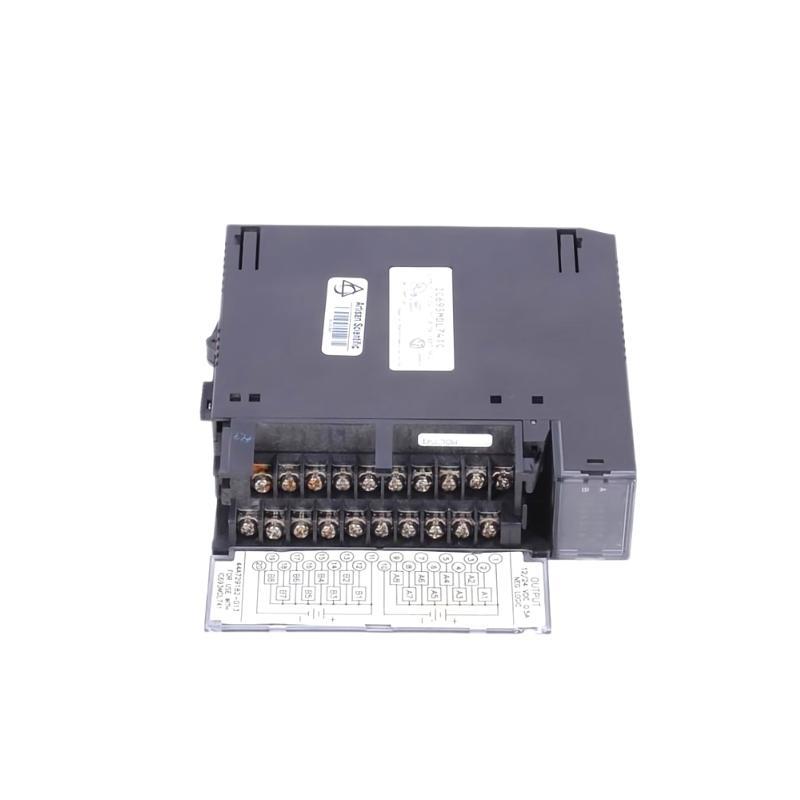

The GE IC693MDL741 is a 24VDC Negative Logic Output Module, designed to interface field output devices such as relays, contactors, indicator lamps, and solenoids with GE’s Series 90-30 Programmable Logic Controller (PLC) systems. This module functions by providing a current sink to the load, meaning it supplies a ground connection for the external DC power source to complete the circuit.
With a high-density 16-point output configuration, the IC693MDL741 is ideal for applications where compactness, reliability, and precision are required. It’s built to deliver dependable performance in a variety of discrete control processes in industries such as manufacturing, energy, water treatment, and transportation. Each output is electronically protected and isolated, making it suitable for industrial-grade environments.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | Negative Logic Output Module |
| Model Number | IC693MDL741 |
| Manufacturer | GE Fanuc / GE Automation |
| Series | Series 90-30 |
| Output Type | Digital (Discrete), Negative Logic (Sinking) |
| Number of Outputs | 16 Points |
| Voltage Range | 5 VDC to 30 VDC |
| Output Voltage | 24 VDC Nominal |
| Output Current (per point) | 0.5 A maximum |
| Total Output Current | 4.0 A maximum per module |
| Output Protection | Electronically Short Circuit Protected |
| Isolation | 1500 VAC from logic to field |
| Output Delay (ON/OFF) | Typically 0.1 ms |
| Indicators | Individual LED for each output point |
| Module Type | Single-slot module |
| Field Power Requirement | External 24 VDC power supply required |
| Mounting Style | Baseplate/DIN rail with backplane connection |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 150 × 100 × 70 mm |
| Weight | 0.4 kg |
Product Applications
-
Factory Automation: Used to control actuators, signal towers, and interlocks.
-
Packaging Systems: Drives solenoids and pneumatic valves for form, fill, seal lines.
-
Material Handling: Interfaces with motor starters and photoelectric sensor outputs.
-
Water/Wastewater Plants: Sends signals to pumps, valves, and remote telemetry units.
-
Transportation Infrastructure: Controls signals and switching logic for railway and traffic systems.
-
Energy Sector: Enables control of circuit breakers and feeder monitoring in substations.
Product Advantages
-
Compact 16-Point Design: Saves valuable panel space while maximizing control density.
-
Negative Logic (Sinking): Suits applications requiring common sourcing voltage with ground-side switching.
-
Fast Response Time: Minimal delay ensures real-time responsiveness for mission-critical outputs.
-
Overcurrent Protection: Protects module and devices from short circuits and overloads.
-
LED Status Indicators: Per-channel output indication facilitates quick diagnostics and commissioning.
-
Wide Compatibility: Seamlessly integrates with Series 90-30 CPUs and expansion racks.
-
Rugged Industrial Build: Withstands harsh industrial environments with electrical isolation and robust casing.
-
Ease of Maintenance: Modular design allows quick replacement and simplified troubleshooting.
Frequently Asked Questions (FAQ)
-
Q: What type of logic does the IC693MDL741 use?
A: It uses negative logic, also known as current sinking. -
Q: How many outputs does this module provide?
A: It offers 16 discrete output channels. -
Q: Is the module protected against short circuits?
A: Yes, each channel includes electronic short circuit protection. -
Q: Can this module be used in safety-critical applications?
A: It can be used in safety systems, but external safety relays or certified equipment are typically required. -
Q: What kind of output devices can I connect?
A: You can connect devices like relays, solenoids, indicator lamps, and other 24VDC load devices. -
Q: Does the module provide individual status feedback for each channel?
A: Yes, each channel has a dedicated LED output indicator. -
Q: Is this module compatible with the IC693CHS397 baseplate?
A: Yes, it is fully compatible with all Series 90-30 baseplates, including IC693CHS397. -
Q: What is the maximum current per output?
A: Each channel can deliver up to 0.5 A, with a total of 4 A per module. -
Q: What is the difference between sinking and sourcing output modules?
A: Sinking outputs connect the load to ground, whereas sourcing outputs connect the load to positive voltage. -
Q: Can I replace this module while the system is powered?
A: No, hot swapping is not supported—power must be turned off before replacement.
