Product Introduction:

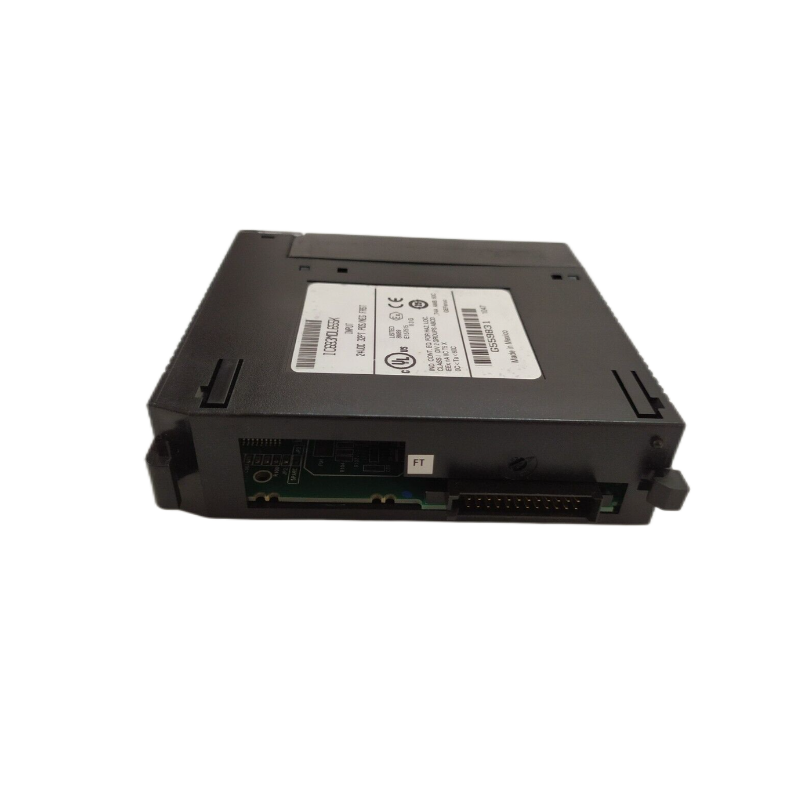

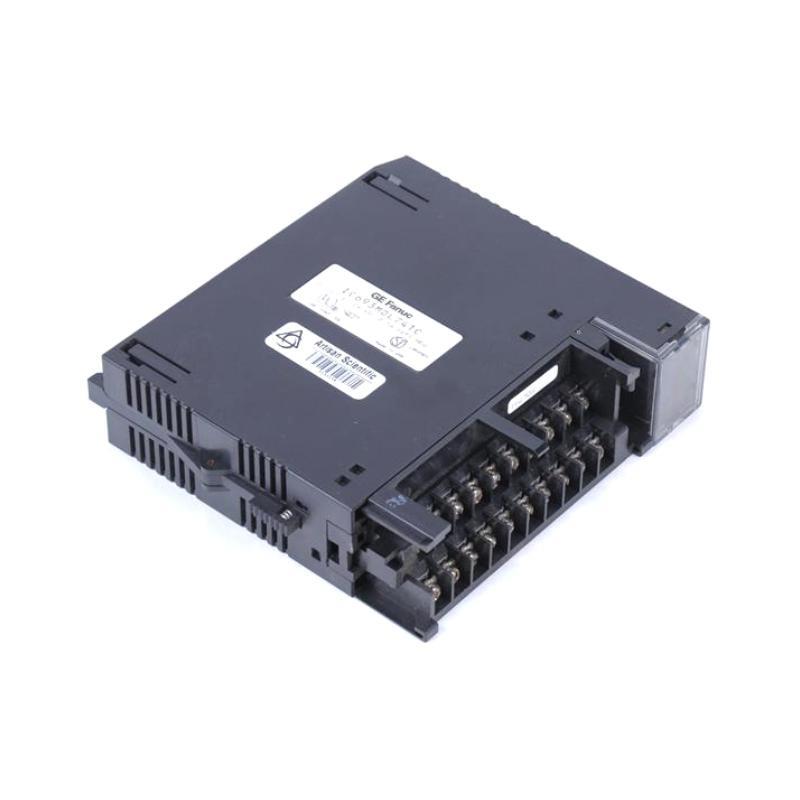

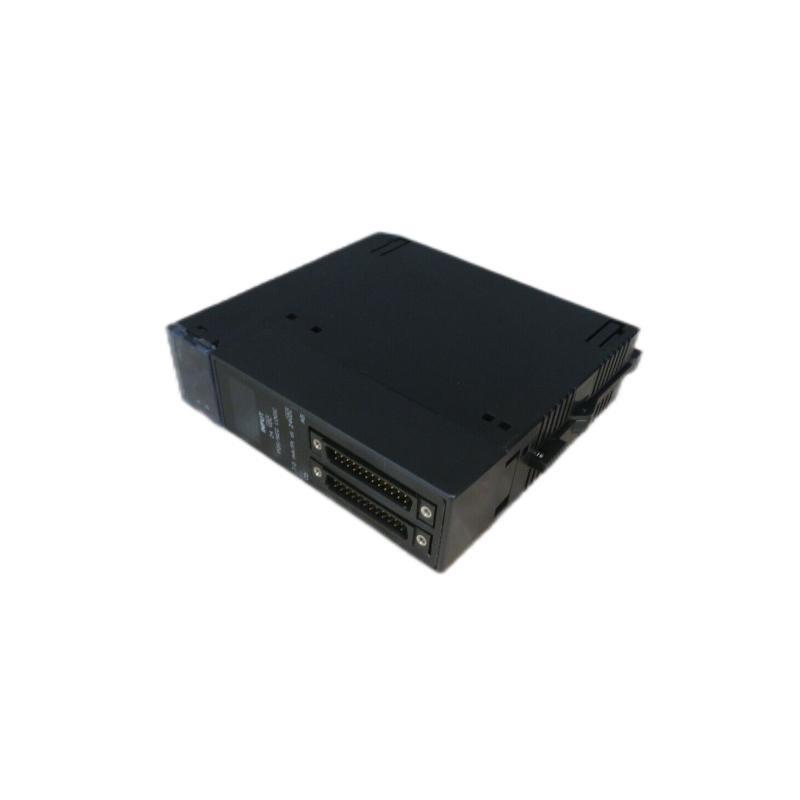

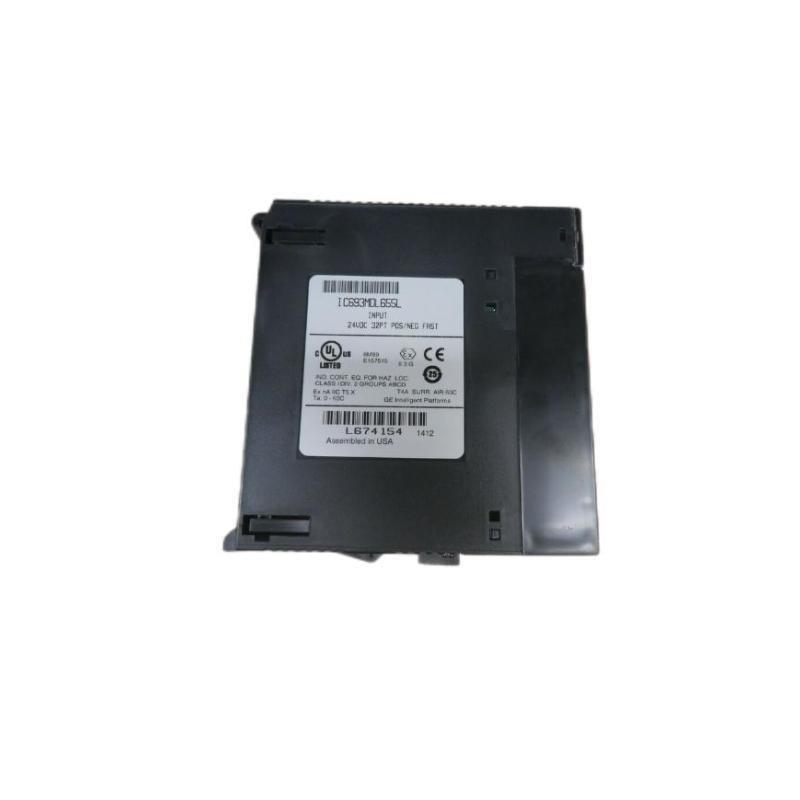

The GE IC693MDL655L is a highly reliable digital output module designed for use in the GE Series 90-30 programmable logic controllers (PLCs). This module is engineered to provide seamless integration with GE’s versatile PLC systems, offering flexible and precise control of industrial processes. With high-speed response times and robust design, the IC693MDL655L is suitable for a wide range of automation applications.
The IC693MDL655L module is particularly useful in systems that require reliable output control, such as manufacturing lines, packaging systems, and industrial machines. It features a combination of discrete digital outputs, making it an ideal choice for controlling relays, valves, motors, and other devices.
Product Specifications:
The GE IC693MDL655L is characterized by the following technical specifications:
| Specification | Details |
|---|---|
| Model Number | GE IC693MDL655L |
| Module Type | Digital Output Module |
| Input Voltage | 24 VDC |
| Number of Outputs | 16 |
| Output Type | Sinking (Current) |
| Output Voltage Range | 0 to 24 VDC |
| Output Current Rating | 0.5 A per output, 8 A per module |
| Dimensions | 128 x 55 x 105 mm |
| Weight | 0.281 kg |
| Mounting | Mounts to IC693 PLC base |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
Product Applications:
The IC693MDL655L digital output module is suitable for use in a wide range of industrial applications, including:
-
Manufacturing Automation: Ideal for controlling machinery, conveyor belts, and robotic arms.
-
Process Control: Used for controlling actuators, motors, and other devices in a process automation environment.
-
Material Handling: Effective in controlling sorting, packaging, and transportation systems.
-
HVAC Systems: Integrated into systems to control heating, ventilation, and air conditioning units.
-
Automated Testing: Used in test stations to control various outputs during the testing process.
Product Advantages:
-
High Reliability: The IC693MDL655L is designed for long-lasting performance, ensuring minimal downtime in industrial settings.
-
Easy Integration: It integrates seamlessly with the GE Series 90-30 PLCs, offering ease of installation and operation.
-
Flexible Output Control: Offers 16 individual digital outputs, each capable of handling up to 0.5A, providing versatile control in various applications.
-
Wide Operating Temperature Range: Designed to operate in a wide range of temperatures, making it suitable for both indoor and harsh industrial environments.
-
Compact Design: The module’s compact size makes it an ideal choice for applications with space constraints.
FAQs (Frequently Asked Questions):
-
Q: What is the voltage range for the GE IC693MDL655L outputs?
-
A: The output voltage range for this module is from 0 to 24 VDC.
-
-
Q: How many outputs does the GE IC693MDL655L module have?
-
A: It has 16 discrete digital outputs.
-
-
Q: What is the current rating for each output on the GE IC693MDL655L?
-
A: Each output can handle up to 0.5A of current, and the total current rating for the module is 8A.
-
-
Q: Can I use this module with any GE PLC system?
-
A: The IC693MDL655L is designed for use with the GE Series 90-30 PLC base.
-
-
Q: What are the mounting options for this module?
-
A: The module mounts directly to the IC693 PLC base.
-
-
Q: What is the operating temperature range of the module?
-
A: The operating temperature range is from 0°C to 60°C.
-
-
Q: Is this module suitable for use in outdoor environments?
-
A: The module is designed for indoor use and may not be suitable for extreme outdoor conditions without additional protective measures.
-
-
Q: Does this module support sinking outputs?
-
A: Yes, the GE IC693MDL655L supports sinking digital outputs.
-
-
Q: What is the weight of the GE IC693MDL655L module?
-
A: The weight of the module is 0.281 kg.
-
-
Q: Can I use this module to control motors directly?
-
A: Yes, it can be used to control motors, relays, and other devices that require discrete digital output control.
-
Recommended Models (Same Series/Related):
-
GE IC693MDL654L: 8-point relay output module, similar functionality for smaller systems.
-
GE IC693MDL645L: 16-point relay output module, offers a larger output handling capacity.
-
GE IC693MDL746L: 16-point transistor output module, for higher speed operations.
-
GE IC693MDL750L: 16-point triac output module, suited for AC load control.
-
GE IC693MDL740L: 8-point triac output module, specifically designed for AC outputs.
-
GE IC693MDL756L: 16-point high-speed relay output module, for fast switching applications.
Popular Models from GE (Same Brand):
| Model | Specification |
|---|---|
| GE IC693MDL655L | 16 digital outputs, 0.5A each |
| GE IC693MDL654L | 8-point relay output, 2A per point |
| GE IC693MDL745L | 16-point digital input module |
| GE IC693MDL740L | 8-point triac output module |
| GE IC693MDL746L | 16-point transistor output module |
| GE IC693MDL748L | 8-point digital input module |
| GE IC693MDL741L | 16-point relay output, 1A each |
| GE IC693MDL742L | 8-point AC relay output module |
