Product Overview

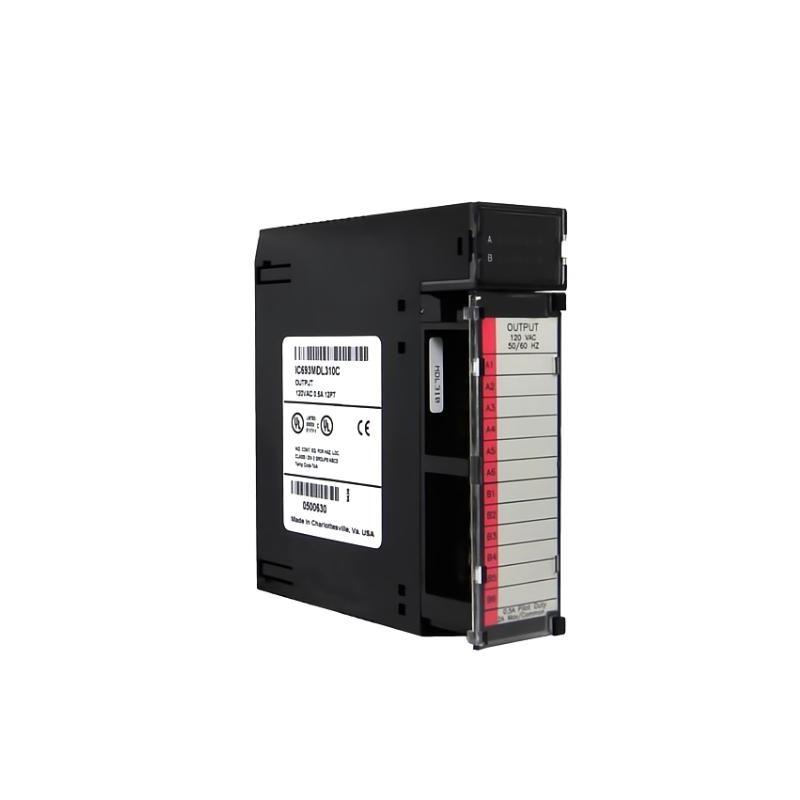

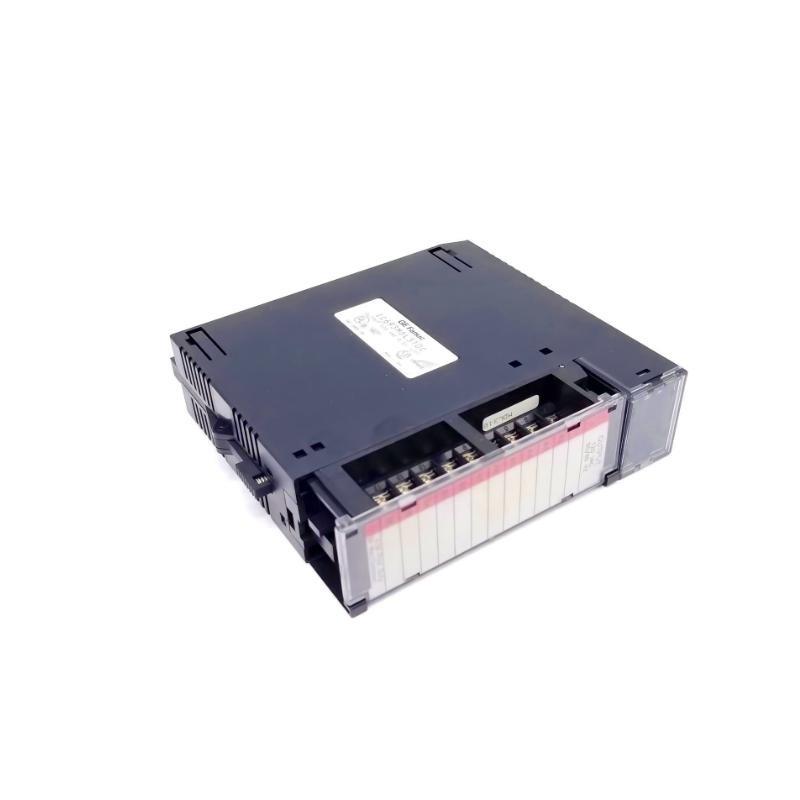

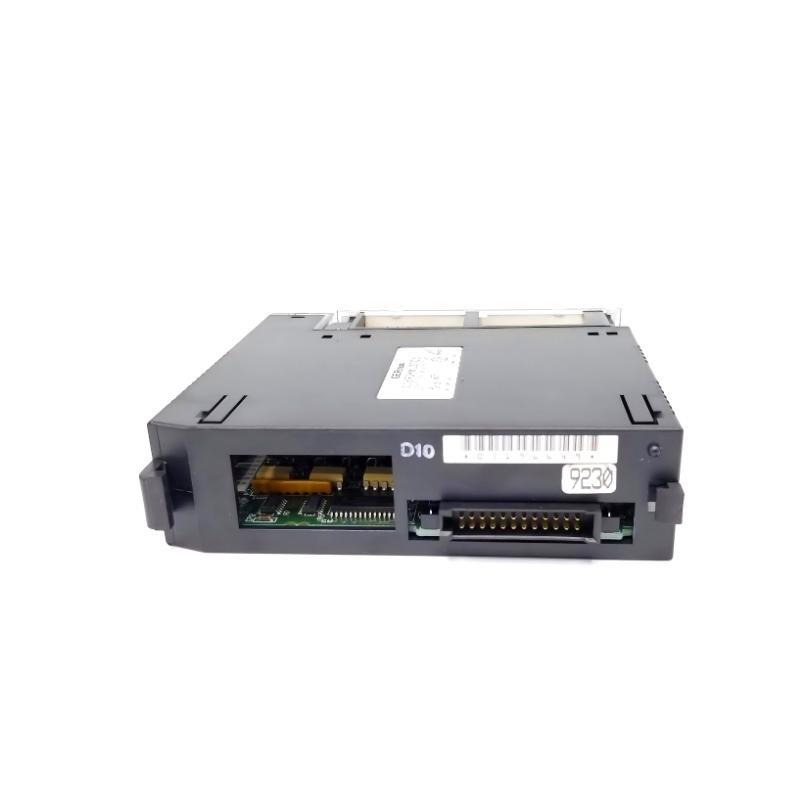

The GE IC693MDL310 is a high-performance 120 VAC discrete output module designed for use within the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This module features 8 output points, each capable of switching AC loads at a nominal voltage of 120 VAC. Engineered for industrial-grade performance, the IC693MDL310 is ideal for applications that require reliable, high-speed AC switching, such as activating solenoids, relays, indicators, or motor starters.
Each output is isolated and controlled individually, and the module provides full status feedback to the CPU, allowing precise control and diagnostics. The robust build quality and electrical isolation make it highly reliable in factory automation, process control, and infrastructure systems.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | IC693MDL310 |
| Manufacturer | GE Fanuc / General Electric |
| Series | Series 90-30 |
| Product Type | Discrete Output Module |
| Output Type | AC (Triac-based Switching) |
| Number of Outputs | 8 |
| Output Voltage Range | 85 – 132 VAC nominal @ 47 – 63 Hz |
| Nominal Voltage | 120 VAC |
| Output Current (per point) | 0.5 A maximum |
| Maximum Total Current | 4.0 A per module |
| Leakage Current (OFF state) | 2.0 mA maximum |
| ON-State Voltage Drop | 1.5 V maximum |
| Isolation | 1500 VAC (Field to Logic) |
| Switching Device | TRIAC |
| Status Indicators | One LED per output channel |
| Internal Power Consumption | 80 mA @ 5 VDC from backplane |
| Connector Type | Removable terminal block |
| Mounting Type | Panel or DIN Rail |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 5% to 95%, non-condensing |
| Dimensions (H x W x D) | 130 x 40 x 110 mm |
| Weight | 0.308 kg |
Applications
The GE IC693MDL310 module is suited for use in a wide range of industrial automation and control systems. Thanks to its standard 120 VAC output compatibility and reliable Triac-based switching, it is ideal for:
-
Factory Automation
-
Material Conveying Systems
-
Building Management Systems (BMS)
-
Motor Starter and Relay Control
-
Batch Processing Plants
-
Pump and Fan Systems
-
Lighting and Signal Control
-
Municipal Infrastructure (e.g., water/wastewater)
-
Food and Beverage Plants
-
Packaging and Labeling Lines
Its wide applicability ensures a stable AC output control interface across varying industrial demands.
Advantages
-
High Electrical Isolation: Each channel is protected with 1500 VAC isolation, reducing the risk of fault propagation.
-
Compact and Modular: Fits easily into Series 90-30 PLC racks, minimizing panel space.
-
Rugged Output Design: Triac-based switching supports inductive loads and is less prone to mechanical failure.
-
Reliable Feedback: Integrated LEDs offer real-time status per output for quick diagnostics.
-
Thermal Efficiency: Designed to handle multiple loads with safe heat dissipation and reliable switching.
-
Long Operating Life: Solid-state switching ensures minimal wear and tear, extending the module’s lifespan.
-
Field-Proven Design: Used globally in thousands of installations with a record of consistent performance.
Frequently Asked Questions (FAQ)
-
What voltage does the IC693MDL310 module support?
It supports 120 VAC nominal, with a voltage range of 85 to 132 VAC at 47–63 Hz. -
Can the outputs handle inductive loads like relays or solenoids?
Yes, the Triac output design allows switching of inductive loads with appropriate snubbing. -
Is there output channel isolation on this module?
The outputs are isolated from the logic circuit but not isolated individually from each other. -
Can the IC693MDL310 be used with DC loads?
No. This module is strictly for AC loads. Use a DC output module like IC693MDL740 for DC switching. -
What is the maximum output current per point?
Each output channel supports up to 0.5 A. -

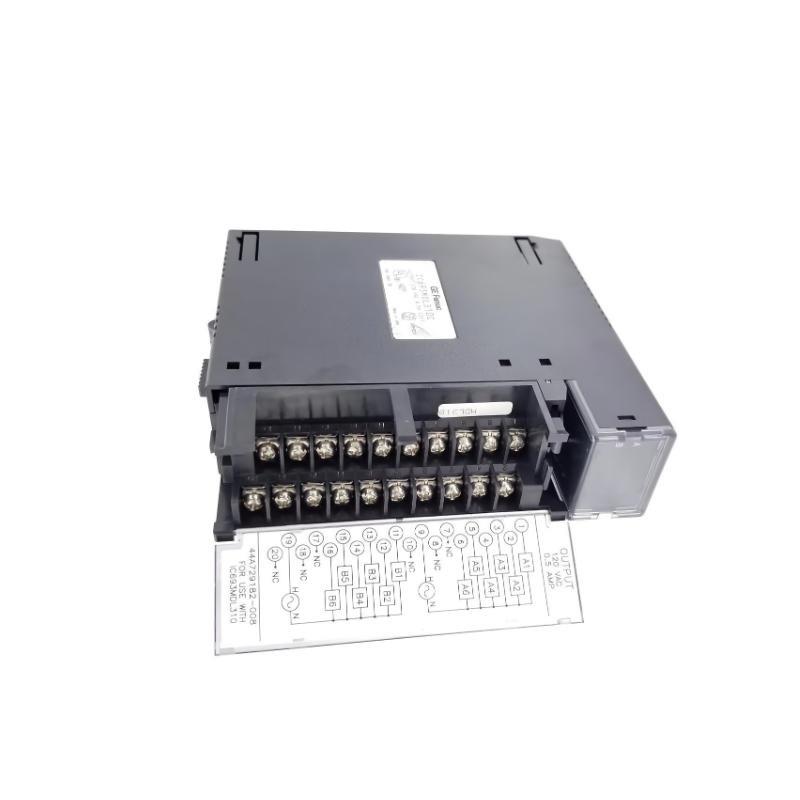

How do I connect field devices to the output points?
Through the removable terminal block provided on the front of the module. -
What happens if the load exceeds the current limit?
Overloading may cause the Triac to fail or the output to latch off. Always follow rated specifications. -
How can I check if an output is ON or OFF?
Each channel has an LED indicator that lights up when the output is ON. -
Is this module hot-swappable?
No, you must power down the PLC system before inserting or removing the module. -
What PLC platform is it compatible with?
It is designed for GE Fanuc Series 90-30 PLC systems.
