Product Overview

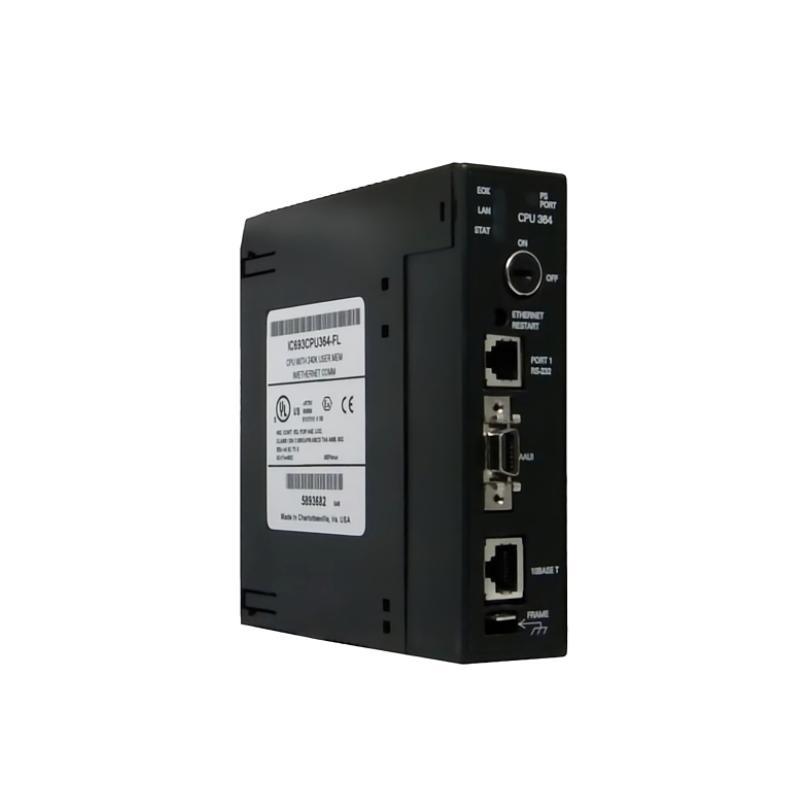

The GE IC693CPU364 is a high-performance CPU module from the Series 90-30 PLC family, manufactured by GE Fanuc (now part of Emerson). Designed for industrial automation systems that demand fast execution, integrated networking, and a compact footprint, the IC693CPU364 has become a go-to controller for medium-to-large scale applications.
This module features built-in Ethernet connectivity, a real-time clock, and expanded memory capacity, allowing engineers to execute complex control logic while simultaneously communicating with SCADA, HMI, and other networked devices. As a single-slot module, it fits easily into compact control panels, making it ideal for distributed control systems.
Product Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc (GE Automation & Controls) |
| Product Model | IC693CPU364 |
| Product Type | Single-Slot CPU Module |
| Processor Type | Embedded high-speed microprocessor |
| User Memory | 240 KB (Logic, Data, Config) |
| Program Memory | 240 KB |
| Real-Time Clock | Yes, battery-backed |
| Built-in Ethernet Port | Yes (10/100 Base-T) |
| Ethernet Protocols | SRTP, EGD, Modbus TCP/IP, SNMP |
| Serial Port | RS-232/RS-485, configurable |
| I/O Capacity (Local) | Up to 240 I/O points |
| I/O Expansion | Yes, with remote/expansion I/O racks |
| Number of Slots Used | 1 |
| Programming Software | Proficy Machine Edition (Logic Developer – PLC) |
| Programming Language | Relay Ladder Logic (RLL) |
| Power Requirements | +5 VDC @ 890 mA (typical) |
| Mounting | Rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (HxWxD) | 100 x 38 x 80 mm |
| Weight | 0.5 kg |
| Certifications | UL, CE, CSA |
Applications
The IC693CPU364 is widely deployed in various sectors where reliable control, network integration, and modular expansion are critical. Applications include:
-
Discrete Manufacturing: Managing assembly lines, motor starters, and robotic interfaces.
-
Water/Wastewater Treatment: Control of valves, pumps, monitoring stations, and telemetry units.
-
Food & Beverage: Sequencing, batching, and packaging systems.
-
Oil & Gas: SCADA-enabled pipeline monitoring and compressor control.
-
Material Handling: Conveyor systems, warehouse automation, and palletizers.
-
HVAC and Building Systems: Advanced control of heating, cooling, and lighting systems.
Thanks to the built-in Ethernet port, this CPU module is well-suited for networked automation environments and integrated control architectures.
Product Advantages
-
Integrated Ethernet Port: Enables remote programming, monitoring, and SCADA integration without the need for additional modules.
-
High Memory Capacity: Supports large-scale applications and complex logic execution.
-
Single-Slot Architecture: Saves panel space, ideal for compact installations.
-
Real-Time Clock: Ensures accurate time-stamping and logging of events.
-
Flexible Communication: Supports Modbus TCP/IP, SRTP, and other open protocols for seamless integration.
-
Reliable Design: Field-proven reliability in harsh and mission-critical environments.
-
Expandable System: Easily scalable using additional I/O and specialty modules in the Series 90-30 family.
-
Cost-Effective Solution: Combines performance, scalability, and connectivity at a competitive price point.
Frequently Asked Questions (FAQ)
-
Q: What is the main difference between IC693CPU364 and IC693CPU363?
A: The IC693CPU364 features built-in Ethernet and larger memory, whereas the 363 has basic Ethernet and less memory. -
Q: What software is required to program this module?
A: The module is programmed using Proficy Machine Edition – Logic Developer PLC. -
Q: Does this CPU support real-time clock functionalities?
A: Yes, it has an integrated battery-backed real-time clock. -
Q: What Ethernet protocols does the IC693CPU364 support?
A: It supports SRTP, Modbus TCP/IP, EGD, and SNMP. -
Q: Can I use this module in hazardous or outdoor environments?
A: It is designed for industrial settings, but additional enclosures or protective ratings may be required for extreme environments. -
Q: How many I/O points can be connected?
A: It supports up to 240 local I/O points, and more with remote I/O racks. -
Q: Is online editing supported during operation?
A: Yes, Proficy ME allows for online changes without halting the process. -
Q: Can I use structured text or function block programming?
A: No, the IC693CPU364 primarily supports Relay Ladder Logic (RLL). -
Q: Is this CPU module hot-swappable?
A: No, power must be turned off before removing or inserting the CPU module. -
Q: How long is this product expected to be supported?
A: GE has long-term lifecycle support for Series 90-30 products, often exceeding 10–15 years in service.
Related or Same-Series Models
| Model | Description | User Memory | Communication Support |
|---|---|---|---|
| IC693CPU311 | Entry-Level CPU, basic operations | 12 KB | RS-232 |
| IC693CPU313 | Low-memory mid-tier CPU | 24 KB | RS-232 |
| IC693CPU323 | Mid-range with advanced register addressing | 24 KB | RS-232/RS-485 |
| IC693CPU350 | Performance CPU for process and batch control | 48 KB | RS-232, Modbus |
| IC693CPU363 | Ethernet-enabled CPU with moderate memory | 240 KB | RS-232, Ethernet (basic) |
| IC693CPU374 | High-end CPU with expanded Ethernet capabilities | 1 MB | RS-232, High-speed Ethernet |
Popular GE Automation Models
| Model | Product Type | Key Features | Series |
|---|---|---|---|
| IC695CPU320 | RX3i CPU Module | High-performance controller for PACSystems | PACSystems RX3i |
| IC695CPE330 | Ethernet-enabled CPU | Compact, high-speed, secure communication | PACSystems RX3i |
| IC200CPUE05 | VersaMax Micro Controller | Low-cost CPU for compact automation | VersaMax |
| IC200UDR005 | Micro PLC with I/O | Built-in I/O, Modbus support | VersaMax |
| IC200ALG260 | Analog Input Module | 8-channel analog input with high resolution | VersaMax |
| IC693CHS392 | 10-Slot Expansion Baseplate | Expandable rack for Series 90-30 modules | Series 90-30 |
