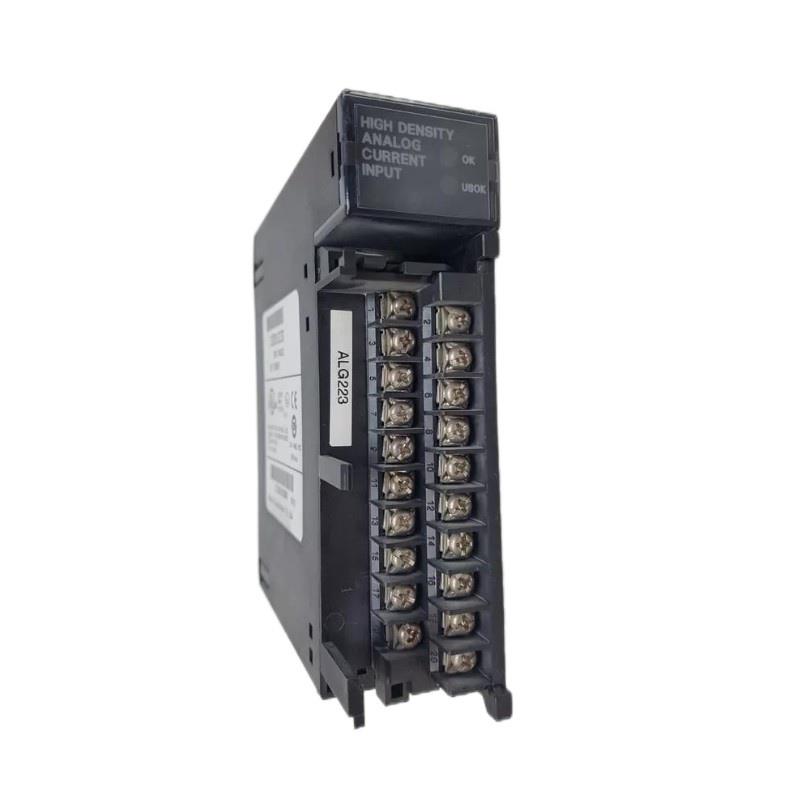

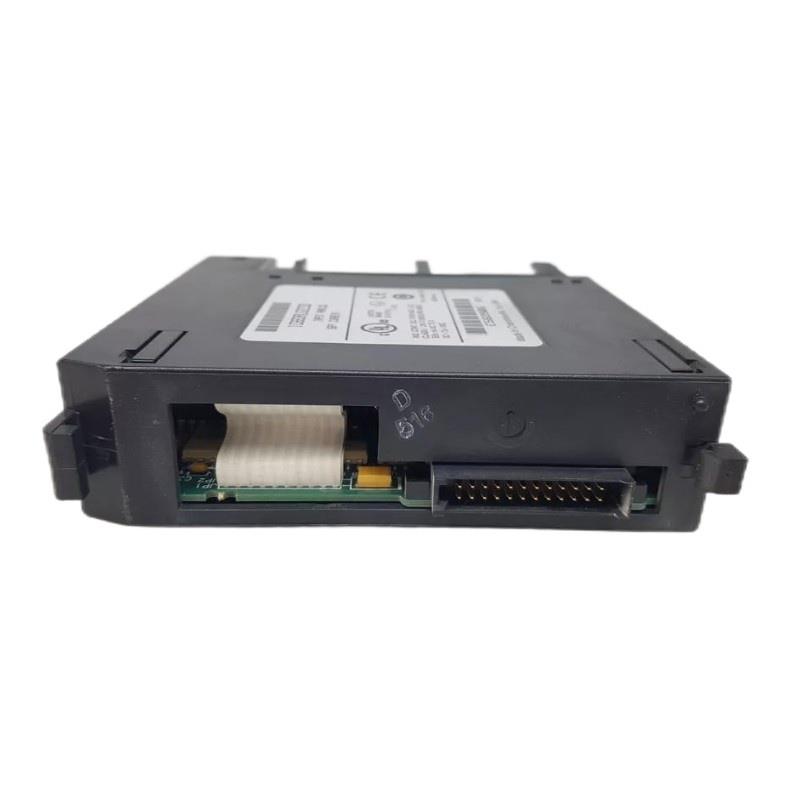

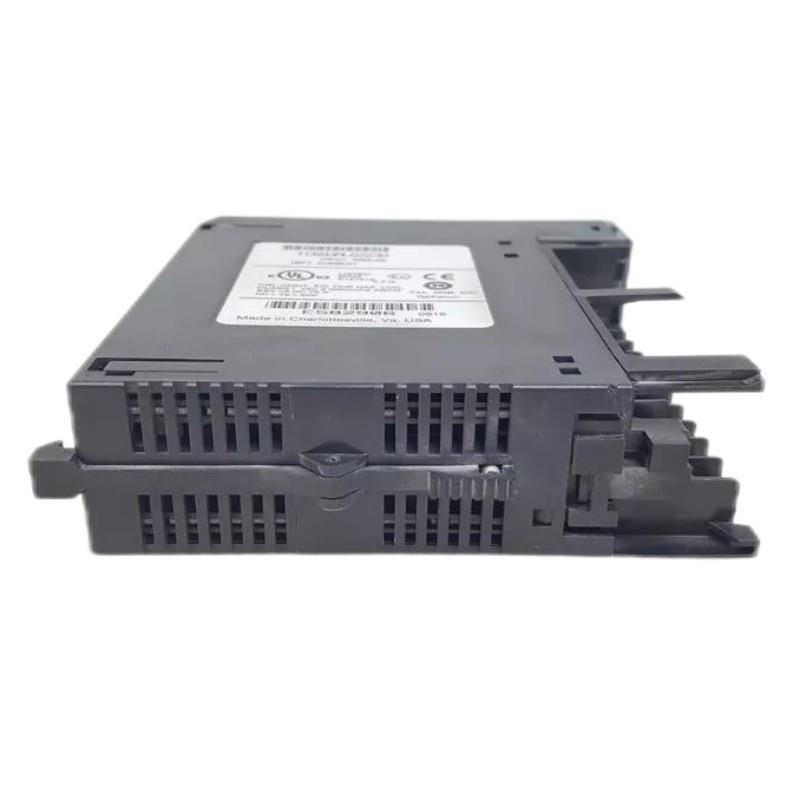

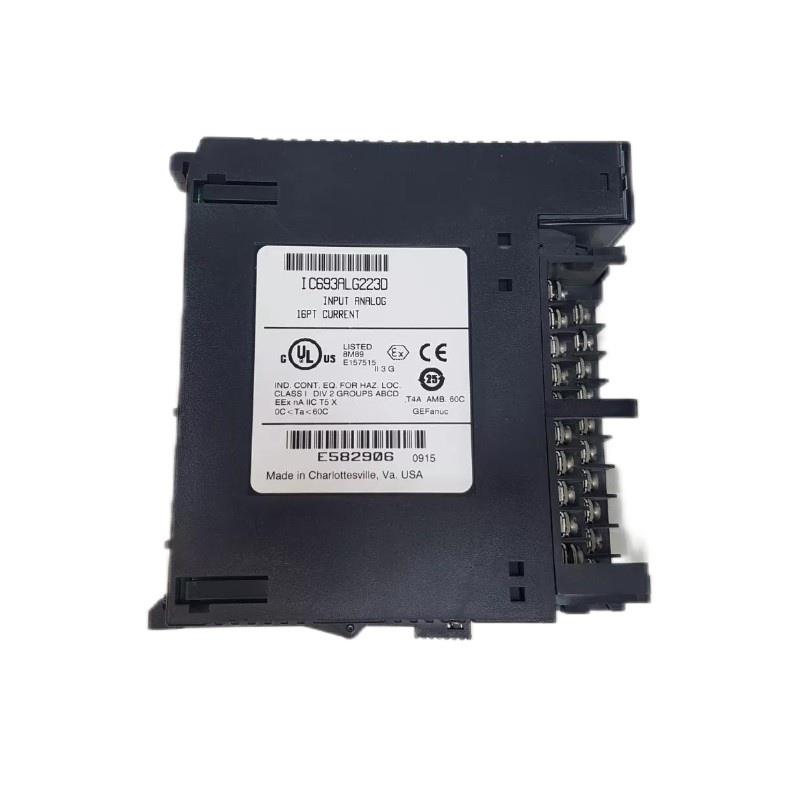

GE IC693ALG223D Product Overview
The GE IC693ALG223D is a high-performance analog input module designed for use in industrial automation and control systems. It is part of the GE Series 90-30 modular I/O family, providing a reliable and efficient solution for acquiring analog signals from field devices and transmitting them to a programmable logic controller (PLC). The module offers a high degree of flexibility, accuracy, and performance, making it suitable for a wide range of industrial applications.
This analog input module is designed for measuring and monitoring various types of process signals such as voltage, current, and resistance. It features a robust design, capable of operating in harsh industrial environments, ensuring long-lasting performance with minimal maintenance.
Product Specifications
Below are the technical specifications for the GE IC693ALG223D module:
| Parameter | Value |
|---|---|
| Model | GE IC693ALG223D |
| Type | Analog Input Module |
| Input Channels | 8 |
| Input Voltage Range | 0-10V DC, 0-20mA |
| Input Current Range | 0-20mA |
| Input Resistance | 10kΩ |
| Accuracy | ±0.1% of Full Scale |
| Input Impedance | > 10MΩ |
| Resolution | 12-bit |
| Power Consumption | 200mA at 5V DC |
| Dimension | 51 x 127 x 127 mm |
| Weight | 0.458 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Input Type | Differential |
Product Applications
The GE IC693ALG223D module is commonly used in various applications within industrial environments:
-
Process Control: It is used to acquire analog signals from sensors such as temperature, pressure, and flow sensors.
-
Manufacturing Automation: Used for controlling machines and equipment based on analog input signals, ensuring proper operation and monitoring.
-
Energy Management: Measures energy consumption and helps optimize power use in industrial plants.
-
HVAC Systems: Monitors and adjusts parameters in heating, ventilation, and air conditioning systems.
-
Water Treatment Plants: Collects data from various sensors to monitor water quality and optimize treatment processes.
-
Building Automation: Measures environmental factors such as temperature and humidity in smart buildings.
Product Advantages
The GE IC693ALG223D module offers several benefits for industrial control applications:
-
High Precision: Provides accurate analog readings with a resolution of 12 bits, ensuring precise control and monitoring.
-
Wide Input Range: Supports a broad range of voltage and current inputs (0-10V DC and 0-20mA), making it versatile for many industrial applications.
-
Durable Design: Built to withstand harsh environments with a wide operating temperature range (0°C to 60°C).
-
Easy Integration: Easily integrates with the GE Series 90-30 PLC systems, reducing setup time and complexity.
-
Cost-effective: Offers a high level of performance at a competitive price, providing great value for money.
-
Compact Size: Its small size allows for easy installation in tight spaces, ensuring flexibility in control panel layouts.
Frequently Asked Questions (FAQs)
-
What type of input signals can the GE IC693ALG223D module handle?
The IC693ALG223D module can handle both voltage (0-10V DC) and current (0-20mA) input signals. -
How many input channels does this module support?
This module supports 8 input channels, allowing for the acquisition of multiple analog signals. -
What is the accuracy of the IC693ALG223D module?
The accuracy is ±0.1% of full scale, providing high precision for analog signal measurements. -
Can the IC693ALG223D module be used in extreme temperatures?
Yes, it can operate in temperatures ranging from 0°C to 60°C and can be stored in temperatures between -20°C to 70°C. -
What is the size of the module?
The module measures 51 x 127 x 127 mm, making it compact and easy to install. -
How is the module powered?
The module consumes 200mA at 5V DC for operation. -
What is the resolution of the analog inputs?
The resolution of the analog inputs is 12 bits, providing high precision for data acquisition. -
Can the IC693ALG223D module be used with other GE PLCs?
While it is primarily designed for the GE Series 90-30 PLCs, it may be compatible with other GE PLC systems that support similar input modules. -
Is the module suitable for use in hazardous environments?
The module is designed for industrial use but does not specifically include certifications for hazardous environments such as ATEX. Check with GE for specific certifications if required. -
What is the weight of the GE IC693ALG223D module?
The module weighs 0.458 kg, which is lightweight and easy to handle during installation.
Recommended Models
6 Models from the Same Series/Related Models
| Model | Description | Input Channels | Input Type | Voltage Range | Current Range | Accuracy |
|---|---|---|---|---|---|---|
| GE IC693ALG223 | 8-Channel Analog Input Module | 8 | Differential | 0-10V DC | 0-20mA | ±0.1% F.S. |
| GE IC693ALG222 | 16-Channel Analog Input Module | 16 | Differential | 0-10V DC | 0-20mA | ±0.1% F.S. |
| GE IC693ALG431 | 8-Channel Thermocouple Input Module | 8 | Thermocouple | – | – | ±0.25% F.S. |
| GE IC693ALG433 | 4-Channel RTD Input Module | 4 | RTD | – | – | ±0.1% F.S. |
| GE IC693ALG444 | 8-Channel Analog Output Module | 8 | Differential | 0-10V DC | 0-20mA | ±0.1% F.S. |
| GE IC693ALG441 | 4-Channel Analog Output Module | 4 | Differential | 0-10V DC | 0-20mA | ±0.1% F.S. |
6 Popular Models from GE
| Model | Description | Size (L x W x H) | Weight | Voltage Range | Input Type |
|---|---|---|---|---|---|
| GE IC693PWR330 | Power Supply for GE 90-30 PLC | 4.4 x 2.0 x 4.0 in | 0.5 kg | 120/240V AC | – |
| GE IC693MDL240 | Digital Output Module | 4.9 x 2.9 x 3.7 in | 0.45 kg | 5-30V DC | Digital |
| GE IC693CPU331 | 90-30 CPU with Ethernet | 4.9 x 2.9 x 3.7 in | 0.5 kg | 5V DC | – |
| GE IC693ALG114 | 4-Channel Analog Input Module | 4.9 x 2.9 x 3.7 in | 0.45 kg | 0-10V DC | Differential |
| GE IC693APU300 | Advanced I/O Module | 4.9 x 2.9 x 3.7 in | 0.5 kg | 5V DC | – |
| GE IC693CHS391 | I/O Communication Server | 5.0 x 3.0 x 3.5 in | 0.6 kg | 5V DC | – |
