Product Introduction

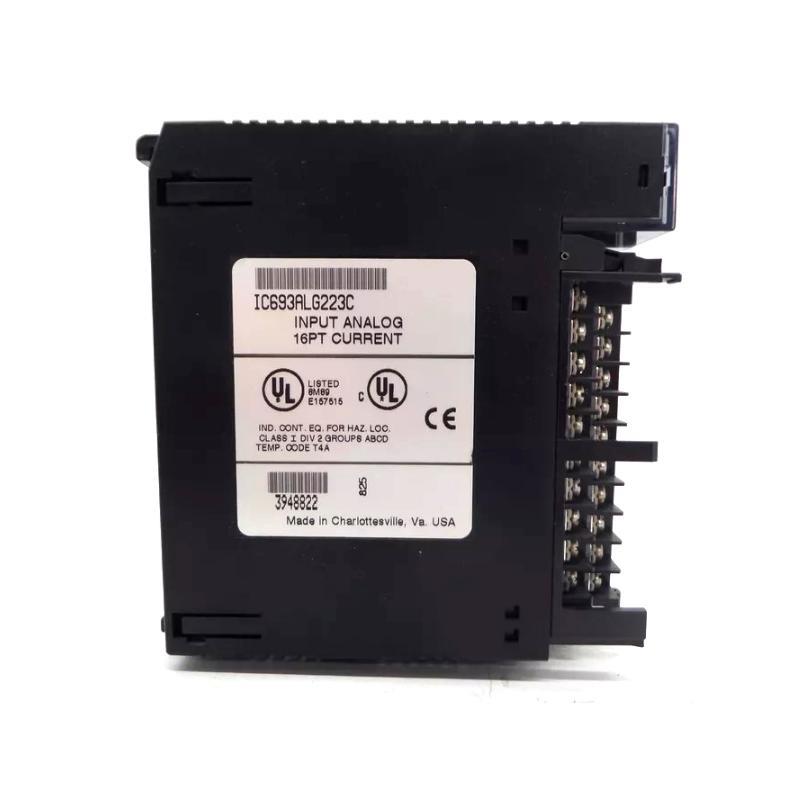

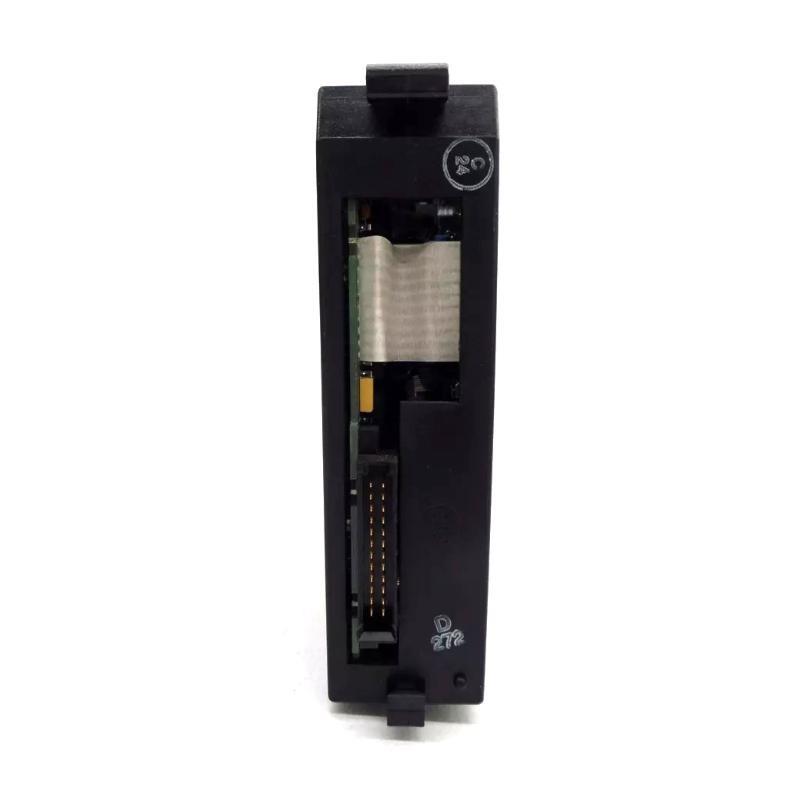

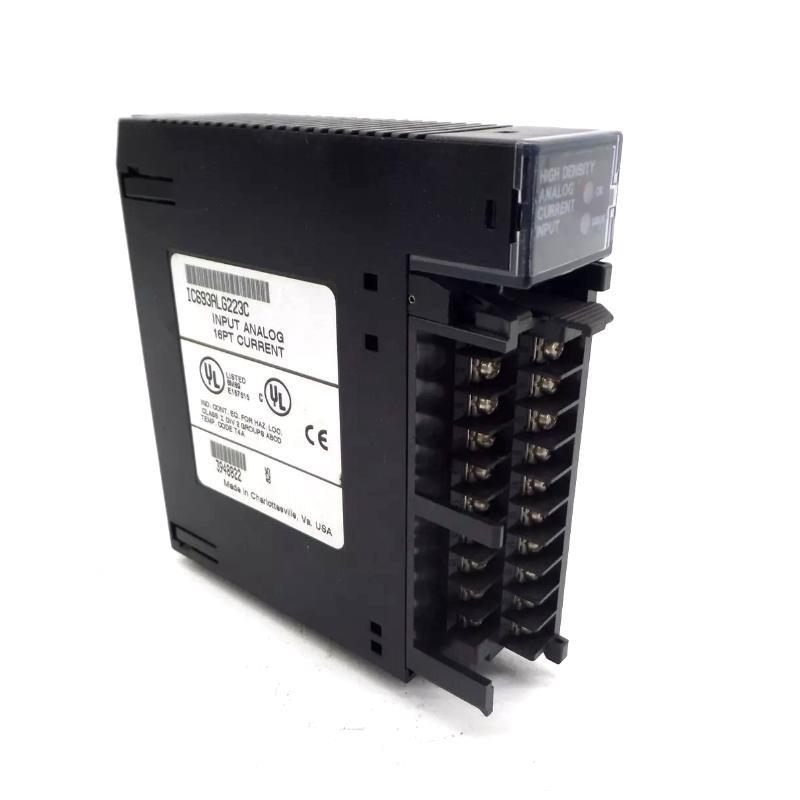

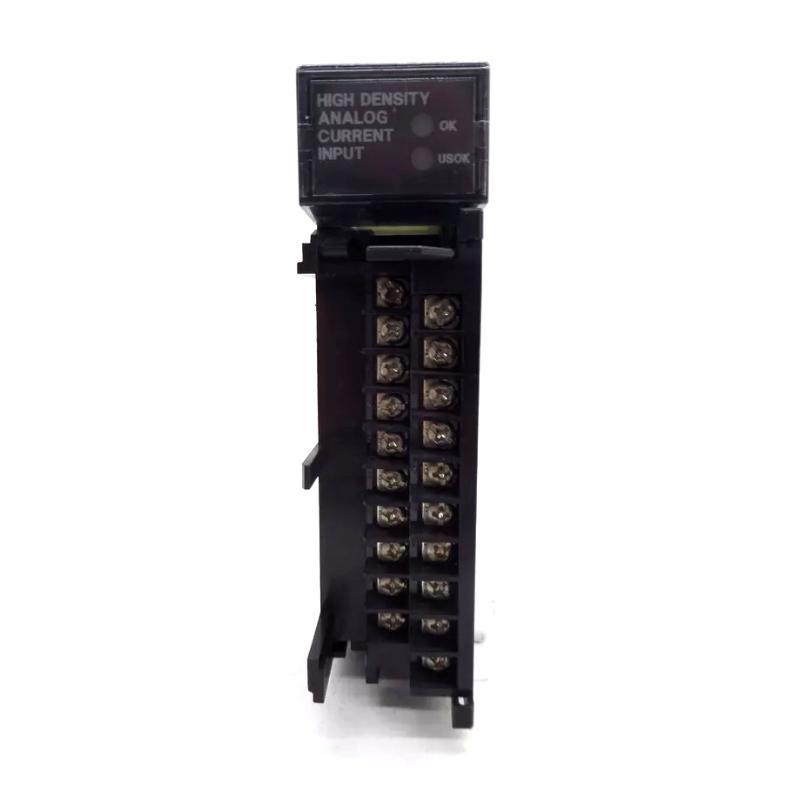

The GE IC693ALG223C is a high-performance analog input module designed for use with GE Fanuc Series 90-30 Programmable Logic Controllers (PLCs). This module provides precise analog signal acquisition, making it ideal for industrial automation and process control applications. It supports multiple input channels, ensuring flexibility in monitoring various sensors and transducers.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | IC693ALG223C |
| Manufacturer | GE Fanuc / Emerson |
| Module Type | Analog Input Module |
| Input Channels | 4 channels |
| Input Signal Type | Voltage (0-10V DC) or Current (0-20mA, 4-20mA) |
| Resolution | 12-bit (0.1% accuracy) |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Power Supply | 5V DC (from PLC backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions | 51 x 127 x 127 mm |
| Weight | 0.458 kg |
| Compatibility | GE Series 90-30 PLCs |
Product Applications
The GE IC693ALG223C is widely used in industrial automation and control systems, including:
-
Process Control: Monitoring pressure, temperature, flow, and level sensors.
-
Manufacturing Automation: Integrating with PLCs for real-time data acquisition.
-
Energy Management: Measuring voltage and current in power distribution systems.
-
Water & Wastewater Treatment: Controlling pumps and valves based on analog feedback.
-
HVAC Systems: Regulating environmental conditions via sensor inputs.
Product Advantages
-
High Accuracy: 12-bit resolution ensures precise signal measurement.
-
Versatile Inputs: Supports both voltage and current signals for flexibility.
-
Isolated Channels: Prevents signal interference and improves reliability.
-
Compact Design: Fits easily into Series 90-30 PLC racks.
-
Robust Construction: Designed for harsh industrial environments.
-
Easy Integration: Compatible with GE Fanuc Series 90-30 systems.
Frequently Asked Questions (FAQ)
-
What is the input signal range of the IC693ALG223C?
-
It supports 0-10V DC voltage and 0-20mA/4-20mA current inputs.
-
-
How many channels does this module have?
-
It has 4 isolated analog input channels.
-
-
Is this module compatible with other GE PLCs besides the Series 90-30?
-
No, it is specifically designed for the Series 90-30 PLCs.
-
-
What is the resolution of the analog inputs?
-
The module provides 12-bit resolution (0.1% accuracy).
-
-
Does it require external power?
-
No, it draws power from the PLC backplane (5V DC).
-
-
Can it handle high-voltage signals?
-
No, it is designed for low-voltage signals (max 10V DC).
-
-
What is the operating temperature range?
-
It operates between 0°C to 60°C (32°F to 140°F).
-
-
Is there software required for configuration?
-
Yes, it can be configured using GE Fanuc programming software (e.g., VersaPro, Proficy Machine Edition).
-
-
Are the channels individually isolated?
-
Yes, each channel is isolated from others and the system.
-
-
How long is the warranty period?
-
The standard warranty is 1 years, subject to proper usage and conditions.
-
