Product Introduction

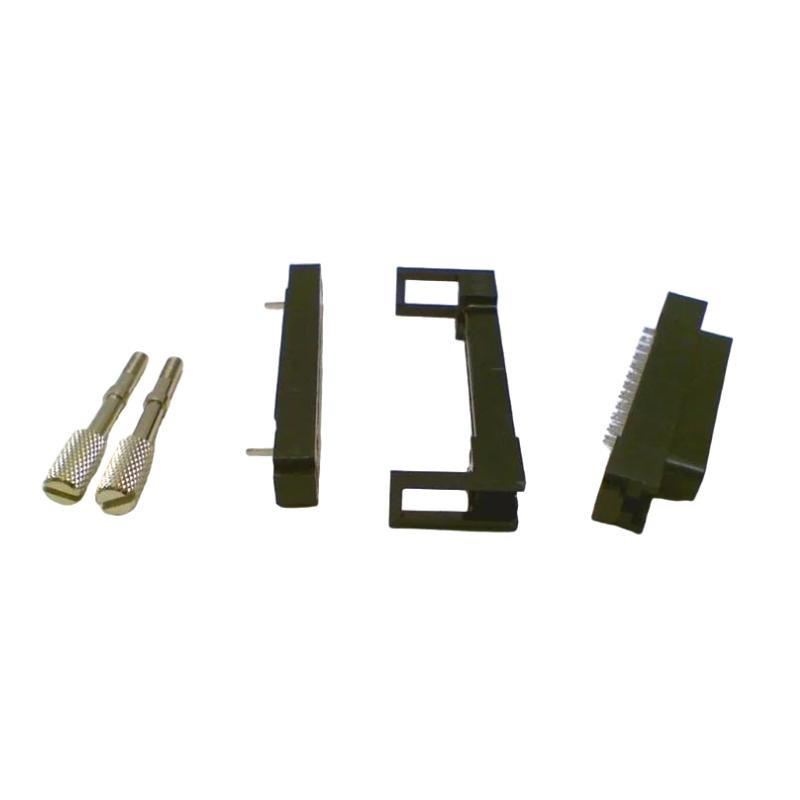

The GE IC693ACC318 Cable Connector Kit is a vital accessory in the GE Series 90-30 automation platform, specifically engineered to provide dependable electrical connections between discrete I/O modules and external field devices. This connector kit offers a complete, easy-to-install solution for secure cable termination, minimizing wiring errors and improving panel layout efficiency.
Designed for industrial use, the IC693ACC318 simplifies installation and servicing of I/O modules by offering a well-labeled, durable connection interface. It is commonly used in a variety of automated systems where reliable and clean signal transmission is essential.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | IC693ACC318 |
| Product Type | Cable Connector Kit |
| Compatible Series | GE Series 90-30 I/O Modules |
| Connector Type | Ribbon Cable (IDC) Connector |
| Number of Pins | 20-pin male header |
| Cable Type Supported | Flat ribbon cable |
| Material | Thermoplastic, flame-retardant |
| Mounting Method | Snap-in or screw-fastened to module housing |
| Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions (L×W×H) | 71 x 124 x 43 mm |
| Weight | 0.449 kg |
| Color | Black housing with silver contact pins |
| Certifications | UL Listed, CE Certified |
Product Applications
-
PLC I/O Connections: Acts as a reliable interface between GE Series 90-30 modules and field wiring.
-
Control Panels: Enables clean, modular cable management within industrial control cabinets.
-
Signal Distribution: Supports the distribution of analog or digital signals from PLCs to peripheral devices.
-
OEM Equipment: Often installed in automated machinery that requires fast field wiring.
-
Manufacturing Systems: Used in high-speed production lines where quick disconnect/reconnect is required.
-
Process Automation: Facilitates safe and standardized wiring in industries like oil & gas, pharmaceuticals, and utilities.
Product Advantages
-
Compact Design: Small footprint allows it to fit into tight control panels or crowded module racks.
-
Ease of Installation: Plug-and-play style connection reduces wiring time and simplifies maintenance.
-
Secure Connection: Ribbon cable interface ensures stable electrical contact in vibration-prone environments.
-
Standardized Interface: Compatible with commonly used ribbon cables and GE Series 90-30 architecture.
-
Durability: Constructed from high-grade thermoplastic materials for extended service life.
-
Improved Panel Organization: Helps reduce wiring clutter by bundling signal lines into a single interface.
-
Versatility: Supports both input and output module applications.
-
Field Proven: Trusted in thousands of industrial applications worldwide.
Frequently Asked Questions (FAQ)
-
What is the GE IC693ACC318 used for?
It is a cable connector kit used to interface GE Series 90-30 I/O modules with ribbon cables for easy wiring. -
Which cable type is compatible with this connector?
It is designed for flat ribbon cables, typically IDC type, with a 20-pin layout. -
Does the kit include mounting hardware?
Yes, the connector kit usually includes the necessary clips or screws for mounting. -
Can this connector be reused after disconnection?
Yes, it is reusable if handled properly during installation and removal. -
Is it compatible with both analog and digital I/O modules?
Yes, as long as the module supports a ribbon cable connection. -
What are the housing materials made from?
The connector uses flame-retardant thermoplastic materials with metallic pins. -
Does it require soldering?
No, it uses a clamp-style IDC mechanism that does not require soldering. -
Is the IC693ACC318 connector kit UL certified?
Yes, it holds UL and CE certifications for industrial use. -
Can I use this with a non-GE PLC?
It is designed specifically for GE Series 90-30 modules and may not fit non-GE hardware. -
How long is the expected service life of this connector?
With normal use in standard environments, the connector can last over 10 years without performance degradation.
