Product Introduction

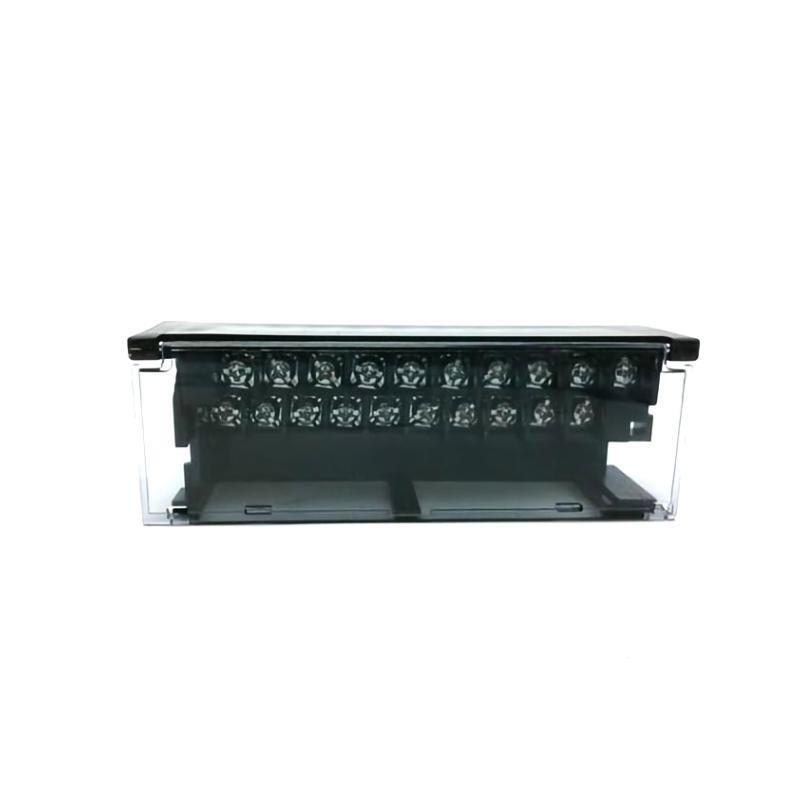

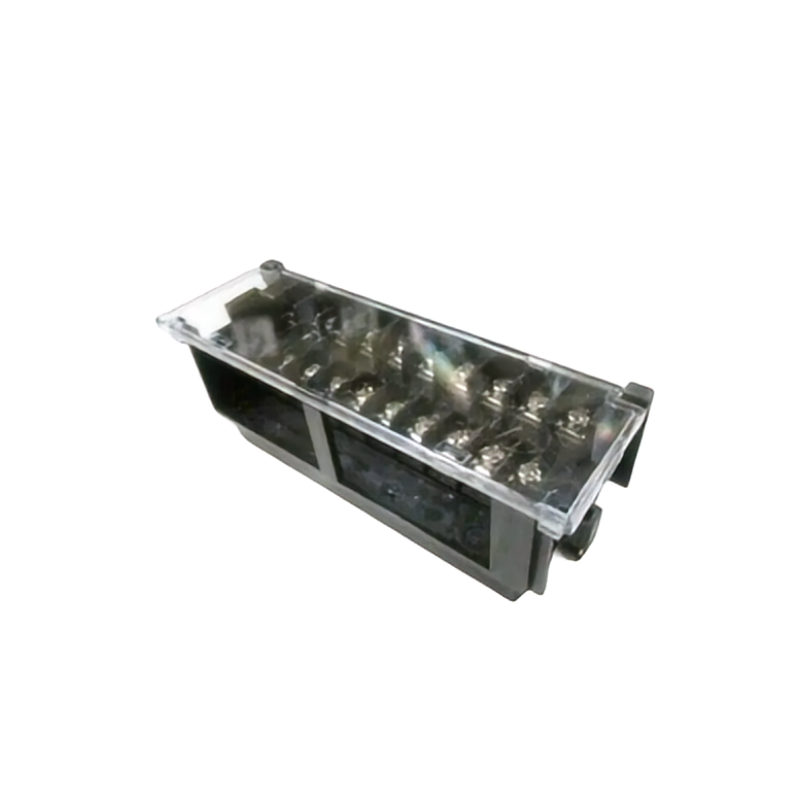

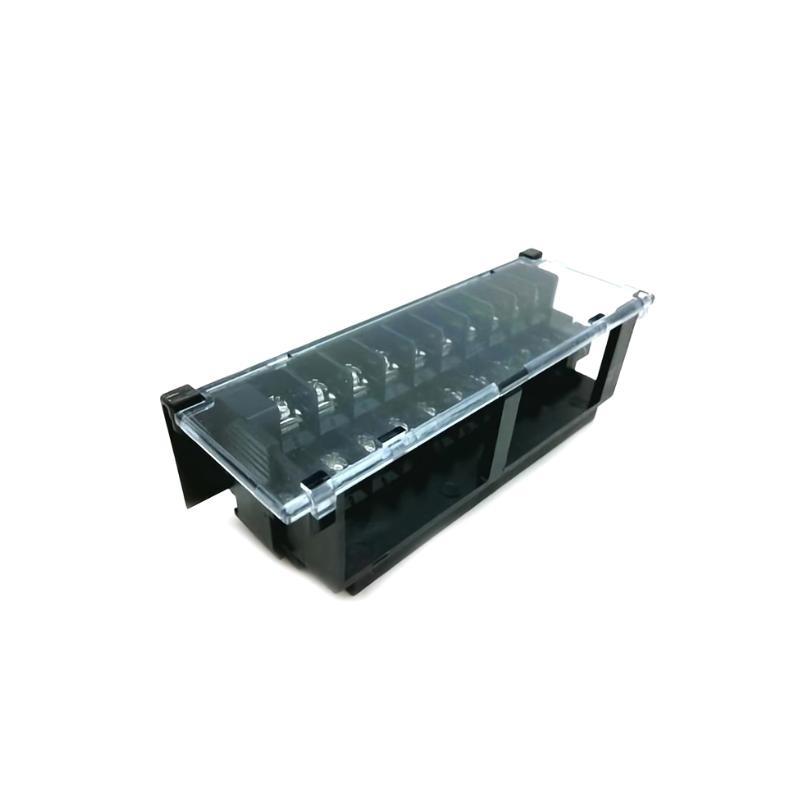

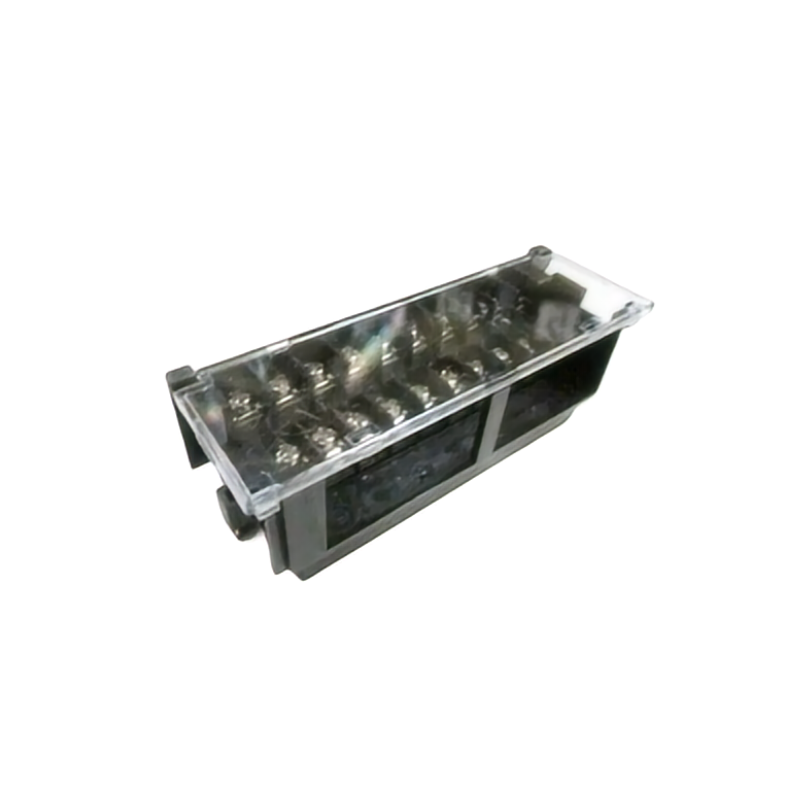

The GE IC693ACC311 I/O Terminal Blocks are precision-engineered accessories designed for use with the GE Series 90-30 Programmable Logic Controller (PLC) system. These terminal blocks provide a reliable, organized interface for connecting field wiring to discrete or analog I/O modules. Known for their simplicity, rugged design, and reliable electrical connections, the IC693ACC311 blocks ensure a secure link between control logic and real-world devices.
These terminal blocks reduce wiring complexity and save installation time by offering screw-type connections, modular compatibility, and standardized labeling. They support rapid troubleshooting and maintenance due to their clear layout and durable build, making them ideal for a variety of industrial applications.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | IC693ACC311 |
| Product Type | I/O Terminal Block |
| Application | Signal connection interface for Series 90-30 I/O modules |
| Connection Type | Screw-clamp terminals |
| Terminal Points | 20 points |
| Mounting Type | Direct mount to I/O module or DIN rail |
| Insulation Material | High-temperature thermoplastic |
| Operating Voltage | Up to 250 V AC/DC |
| Current Capacity | 6 A per point |
| Wire Range | 24 AWG to 12 AWG |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions (W×H×D) | 50 × 30 × 20 mm |
| Weight | 0.09 kg |
| Color | Gray |
| Certifications | UL Listed, CE Marked |
Product Applications
-
Factory Automation: Seamless wiring interface between sensors/actuators and I/O modules in assembly lines.
-
Process Control Systems: Efficiently routes process signals (temperature, pressure, etc.) in petrochemical and pharmaceutical industries.
-
Packaging Equipment: Ensures fast and reliable wiring for inputs and outputs in high-speed machinery.
-
Power Utilities: Used in SCADA and control cabinets for signal interfacing and load switching.
-
OEM Machinery Panels: Integrated in third-party control panel solutions using GE Series 90-30 PLCs.
-
Building Automation: Connects lighting, HVAC, and security systems to programmable control hardware.
Product Advantages
-
Modular and Compact: Saves space in densely wired control panels.
-
Quick Field Wiring: Reduces labor cost and installation time thanks to standardized screw terminals.
-
High Current Capacity: Rated for up to 6 A per point, suitable for many industrial loads.
-
Durable Insulation: Flame-retardant and heat-resistant thermoplastic ensures long life.
-
Ease of Maintenance: Clearly labeled terminals simplify diagnostics and wiring checks.
-
Flexible Mounting: Can be installed directly on modules or DIN rails, offering layout freedom.
-
Reliable Connection: Ensures secure and vibration-resistant electrical contact.
-
Proven Compatibility: Fully tested with Series 90-30 I/O modules across digital and analog formats.
Frequently Asked Questions (FAQ)
-
What modules are compatible with the IC693ACC311 terminal block?
It is compatible with most Series 90-30 discrete and analog I/O modules requiring 20-terminal interfaces. -
Is this terminal block field-replaceable?
Yes, it can be easily replaced during maintenance without removing the entire I/O module. -
How are wires secured to the terminal block?
Using standard screw-clamp connections, providing a firm and reliable hold. -
What wire sizes can be used with the IC693ACC311?
It supports wire gauges from 24 AWG to 12 AWG, both solid and stranded. -
Does the IC693ACC311 require special tools for installation?
No, only a flathead screwdriver is needed for terminal screw adjustments. -
Is there a risk of vibration loosening the terminal screws?
Minimal risk, as the screw clamps are designed to resist vibration and maintain secure contact. -
Can this terminal block be used with analog signals?
Yes, it can be used for both analog and discrete signals, depending on the connected I/O module. -
Is the terminal block UL and CE certified?
Yes, it meets industrial certification requirements for safety and compatibility. -
How many terminal points are included?
The block includes 20 screw terminals for easy field wiring. -
Can I mount it on a DIN rail?
Yes, it supports DIN rail mounting as well as direct module attachment.
Related or Compatible Models (Same Series)
| Model | Description | Function | Dimensions (mm) | Weight |
|---|---|---|---|---|
| IC693ACC312 | 20-Terminal Block with Shielding | Signal Interface + Shielding | 110×45×25 | 95 g |
| IC693ACC313 | 24-Point Terminal Block | High-Density Interface | 120×45×25 | 100 g |
| IC693MDL240 | 120V AC Input Module (16-Point) | Discrete Input | 130×100×40 | 450 g |
| IC693MDL930 | 8-Point Relay Output Module | Discrete Output | 130×100×40 | 400 g |
| IC693ALG221 | Analog Input Module (4-Channel) | Analog Input | 130×100×40 | 430 g |
| IC693ALG392 | Analog Output Module (4-Channel) | Analog Output | 130×100×40 | 430 g |
