Product Introduction

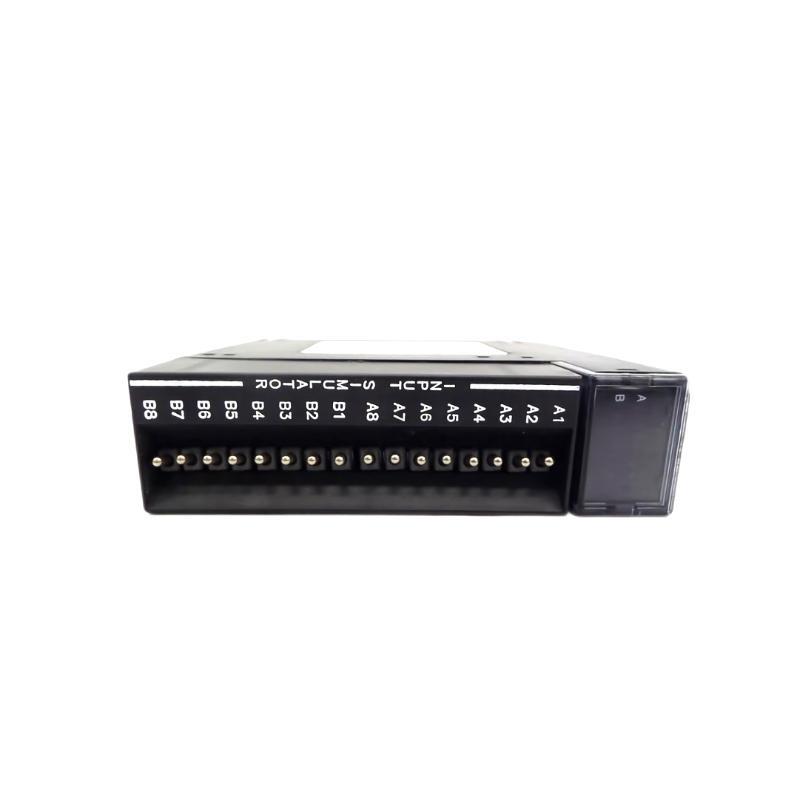

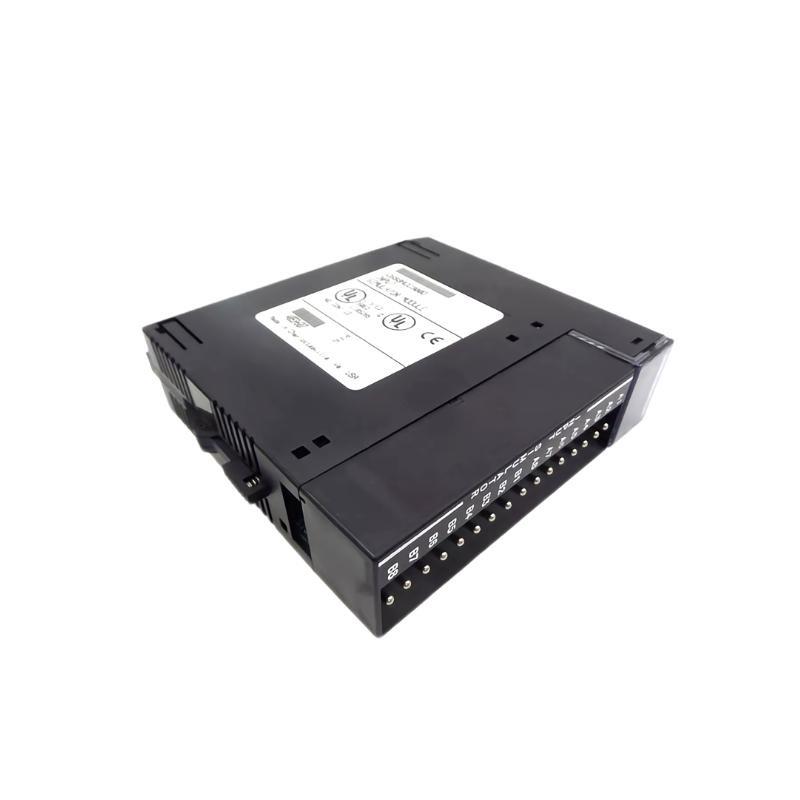

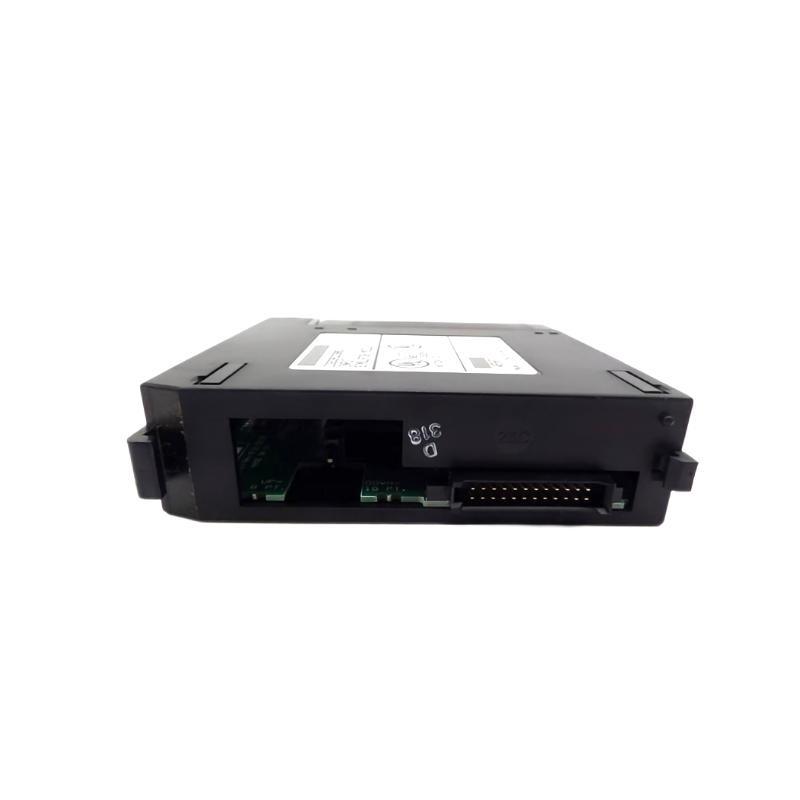

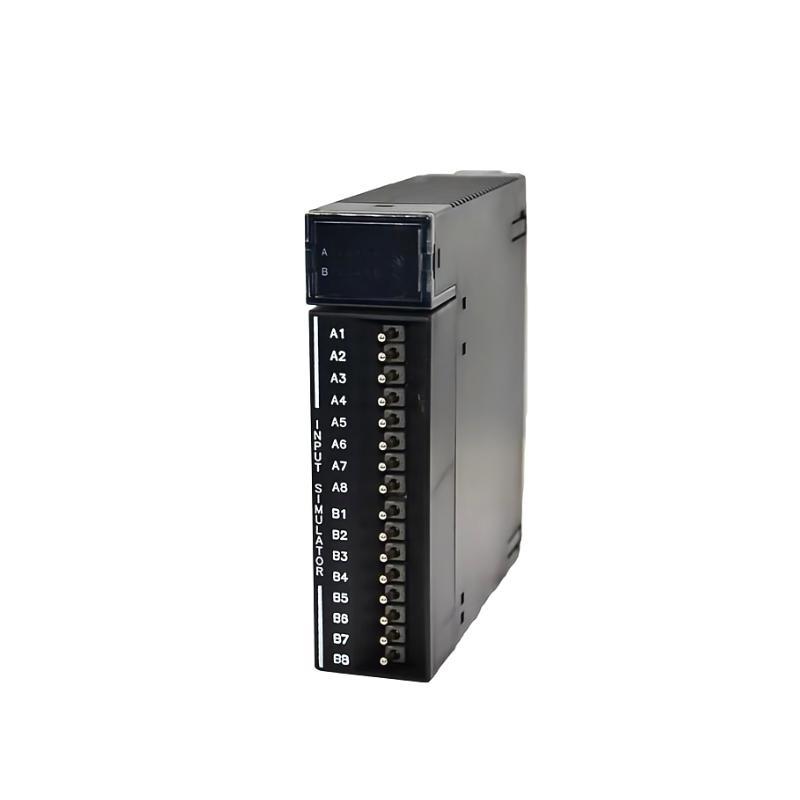

The GE IC693ACC300D is an input simulator module designed for use with the GE Fanuc Series 90-30 programmable logic controller (PLC) systems. This module provides the capability to simulate discrete input signals, enabling testing and validation of control systems without the need for actual field inputs. It serves as a valuable tool for developers, engineers, and maintenance personnel to verify logic, troubleshoot systems, and perform diagnostic checks in a controlled environment.
This simulator module simplifies the process of system commissioning and reduces downtime by enabling pre-validation of control sequences before actual hardware is connected. The IC693ACC300D is known for its reliability, ease of integration, and compatibility with a wide range of Series 90-30 I/O modules.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC693ACC300D |
| Module Type | Input Simulator Module |
| Compatible PLC Series | GE Fanuc Series 90-30 |
| Input Type | Discrete Input Simulation |
| Number of Channels | 16 Channels |
| Power Supply | Powered by backplane (5 V DC typical) |
| Communication | Direct backplane communication |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions (HxWxD) | 142 x 30 x 130 mm |
| Weight | 0.2 kg |
| Mounting | DIN rail or rack-mounted in Series 90-30 chassis |
| Certifications | CE compliant |
Applications
-
Control System Testing: Simulates input signals to test PLC program logic without physical input devices.
-
System Commissioning: Enables pre-commissioning verification of control systems prior to connection with field devices.
-
Troubleshooting: Assists maintenance teams by allowing input condition simulation for diagnostic purposes.
-
Training: Provides a safe environment for operators and engineers to learn system behavior without affecting live processes.
-
Software Development: Used by developers to validate and debug automation control software under simulated input conditions.
-
Backup and Validation: Useful for backup system verification to ensure redundancy works properly.
Advantages
-
Accurate Input Simulation: Provides reliable and precise simulation of discrete input signals, ensuring the PLC logic is thoroughly tested.
-
Ease of Integration: Compatible with existing Series 90-30 hardware racks and communicates seamlessly through the backplane.
-
Reduced Downtime: Allows offline testing and validation, which minimizes disruptions during maintenance or upgrades.
-
Durable Design: Built to withstand industrial environments with wide operating temperature and humidity tolerance.
-
Compact Form Factor: Takes up minimal space within control racks, allowing for easy installation and removal.
-
Cost-Effective: Eliminates the need for additional physical input devices for testing, reducing overall system commissioning costs.
-
Enhanced Safety: By simulating inputs, it reduces risk to operators and equipment during testing phases.
Frequently Asked Questions (FAQ)
-
Q: What PLC systems is the IC693ACC300D compatible with?
A: It is designed exclusively for the GE Fanuc Series 90-30 PLC platform. -
Q: How many discrete inputs can the IC693ACC300D simulate simultaneously?
A: The module can simulate up to 16 discrete input channels at the same time. -
Q: Can the module simulate analog or pulse inputs?
A: No, the IC693ACC300D only simulates discrete (digital) inputs, not analog or pulse signals. -
Q: What is the power supply requirement for the module?
A: It draws power directly from the Series 90-30 backplane, typically at 5 V DC. -
Q: Is it possible to hot-swap this module during operation?
A: No, the module should only be inserted or removed when the PLC rack power is off to avoid damage. -
Q: What environmental conditions can the IC693ACC300D operate under?
A: The module operates safely within 0°C to 60°C and 5% to 95% relative humidity (non-condensing). -
Q: How do I configure the module to simulate different input states?
A: Input states are controlled via the PLC program or external test equipment configured to drive the simulation signals. -
Q: Does the module provide any diagnostic feedback or status indicators?
A: The IC693ACC300D does not include onboard diagnostics but allows the PLC to monitor simulated inputs as if they were real. -
Q: Can this module be used for long-term continuous simulation?
A: While primarily intended for testing and validation, it can operate continuously if required, within specified environmental limits. -
Q: Are there any special maintenance requirements for the IC693ACC300D?
A: The module requires minimal maintenance; periodic visual inspections and ensuring clean rack connections are generally sufficient.
Related Models and Recommended Products
| Model Number | Description | Notes |
|---|---|---|
| IC693ACC300 | Input Simulator Module (original) | Predecessor model |
| IC693ACC302 | Output Simulator Module | For simulating discrete outputs |
| IC693ALG390 | Analog Input Simulator Module | For simulating analog inputs |
| IC693MDL740 | Digital Input Module | Standard digital input |
| IC693MDL740D | Digital Input Module with diagnostics | Enhanced diagnostics |
| IC693MDL740K | Keypad Input Module | Specialized user input |
Popular GE Fanuc Series 90-30 Modules
| Model Number | Description | Function |
|---|---|---|
| IC693CPU350 | Series 90-30 CPU Module | Main processor |
| IC693MDL240 | Discrete Output Module | 16-point relay outputs |
| IC693MDL230 | Discrete Input Module | 16-point inputs |
| IC693APU300 | Analog Input Module | 8-channel analog inputs |
| IC693DSM314 | High-Speed Counter Module | High-speed counting |
| IC693PWR321 | Power Supply Module | Provides power to rack |
