Product Introduction

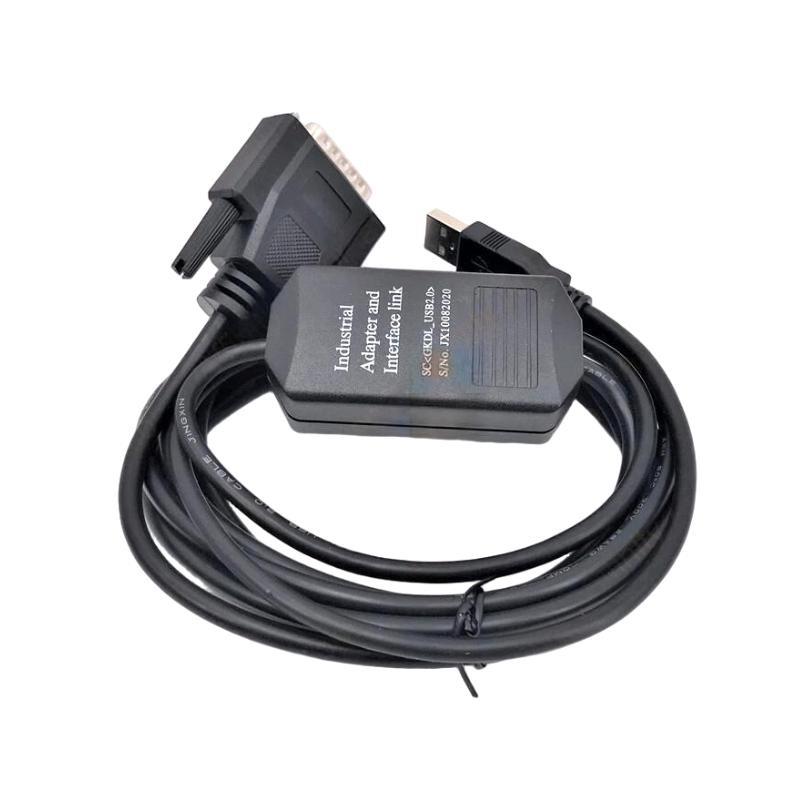

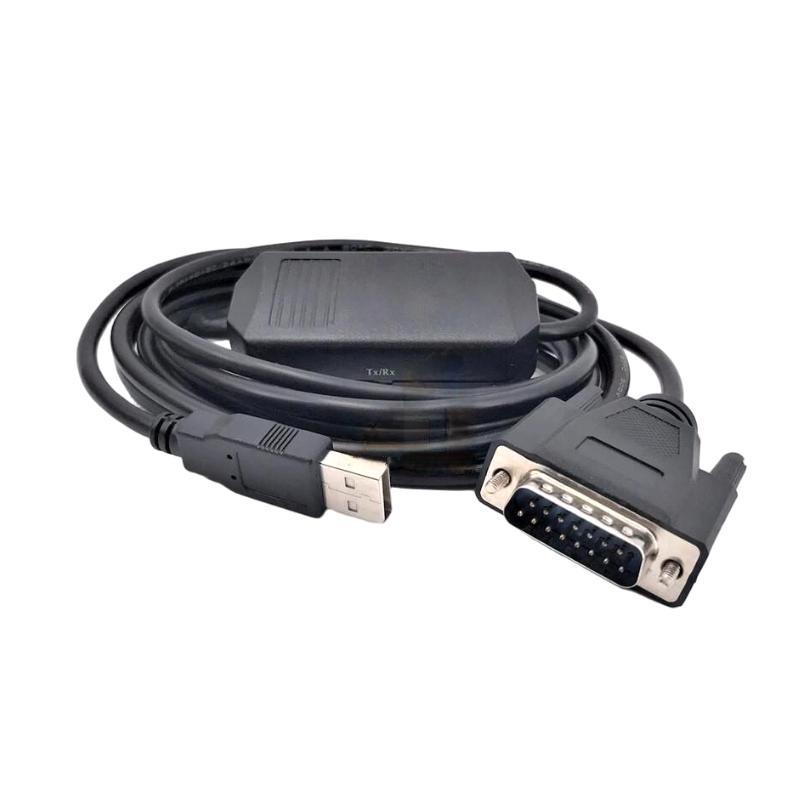

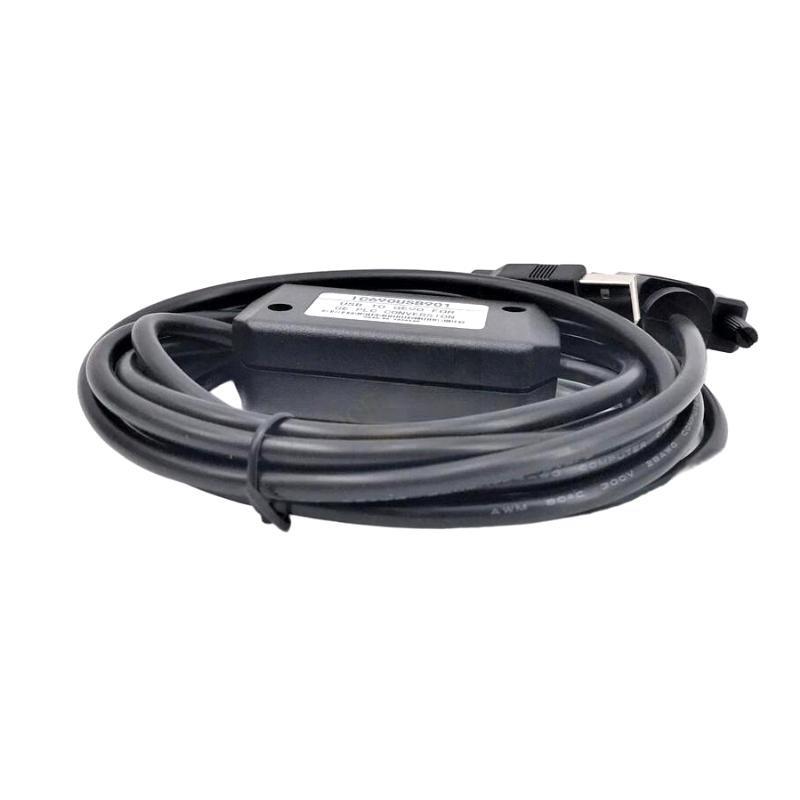

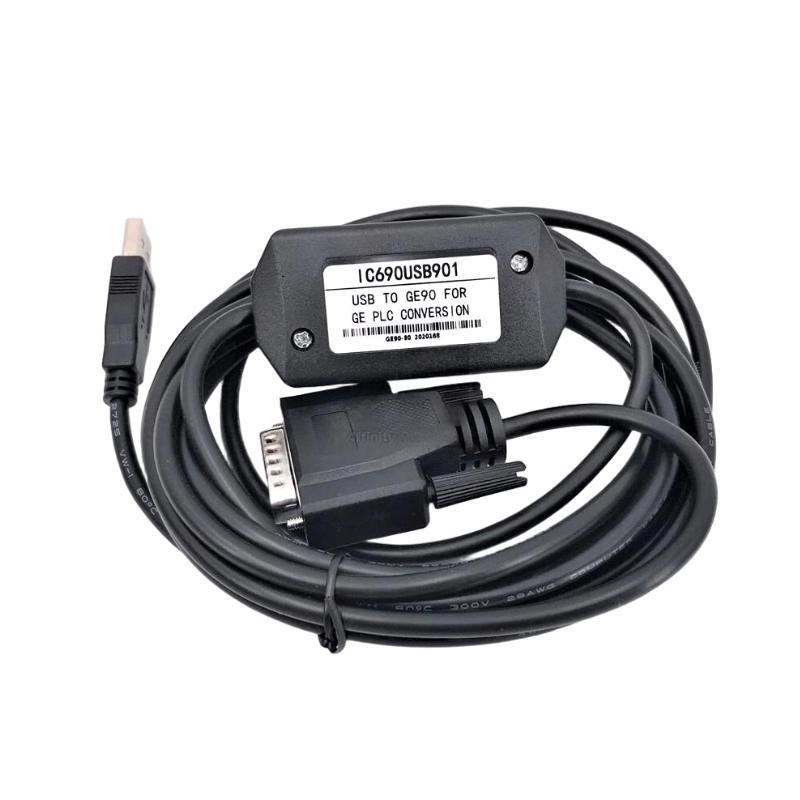

The GE IC690USB901 Programming Cable is a high-quality USB interface cable designed for efficient communication between personal computers and GE Fanuc PLCs. It allows users to program, configure, and troubleshoot PLC controllers with speed and reliability. By converting the USB interface of modern PCs to the RS-232 serial interface used by PLCs, this cable provides a seamless connection for data transfer.
The IC690USB901 is widely used in industrial automation environments where accurate programming and fast data access are critical. Its robust construction ensures reliable operation in factory conditions, supporting engineers and technicians in tasks such as firmware updates, system configuration, and offline testing of controllers.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | IC690USB901 |
| Type | USB to Serial Programming Cable |
| Compatible Controllers | GE Fanuc IC600, RX3i, RX7i PLCs |
| Interface Type | USB 2.0 to RS-232 |
| Data Transfer Rate | Up to 115,200 bps |
| Cable Length | 2.8 meters |
| Connector Type | USB Type A / DB9 |
| Supported Software | Proficy Machine Edition, VersaPro, and other GE PLC software |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –20 °C to 70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Power Requirements | Bus-powered via USB |
| Weight | 0.222 kg |
| Certification | CE, UL |
Applications
The IC690USB901 cable is used extensively in industrial automation for:
-
PLC Programming and Configuration: Enables direct programming of GE Fanuc PLCs from a PC.
-
Firmware Updates: Allows secure transfer of firmware to controllers.
-
Troubleshooting and Diagnostics: Facilitates online monitoring and troubleshooting of PLCs.
-
Field Maintenance: Supports technicians in maintaining and upgrading PLC systems.
-
Simulation and Testing: Connects PCs to PLCs for offline testing and simulation of programs.
Advantages
-
Plug-and-Play Connectivity: Easy installation without complex setup procedures.
-
Reliable Data Transfer: High-speed USB 2.0 interface ensures stable communication.
-
Wide Compatibility: Works with multiple GE PLC series including IC600, RX3i, and RX7i.
-
Robust Design: Durable construction for reliable operation in industrial environments.
-
Portable: 2.8 m cable length provides flexibility for field and factory work.
-
Low Power Consumption: Powered via USB without the need for external power.
-
Versatile Software Support: Compatible with major GE PLC programming software.
FAQ
1. What is the primary function of the IC690USB901 cable?
It provides a USB interface for programming and communication with GE Fanuc PLCs.
2. Which PLC series are compatible with this cable?
It supports IC600, RX3i, and RX7i series controllers.
3. What types of connections does the cable support?
The cable converts USB 2.0 on the PC to an RS-232 serial connection on the PLC.
4. Can it be used for firmware updates on PLCs?
Yes, it allows secure firmware transfer to supported controllers.
5. What is the maximum data transfer rate supported?
It supports up to 115,200 bps.
6. Does the cable require an external power supply?
No, it is powered directly through the USB interface.
7. Is it suitable for field maintenance?
Yes, the cable is portable and durable, suitable for on-site work.
8. What software packages can it be used with?
It is compatible with Proficy Machine Edition, VersaPro, and other GE PLC programming software.
9. Can the cable connect multiple PLCs simultaneously?
No, it is designed for one-to-one connection between a PC and a PLC.
10. How does the cable ensure stable data communication?
It features high-quality shielding and reliable connectors to minimize interference and maintain signal integrity.
