Product Introduction

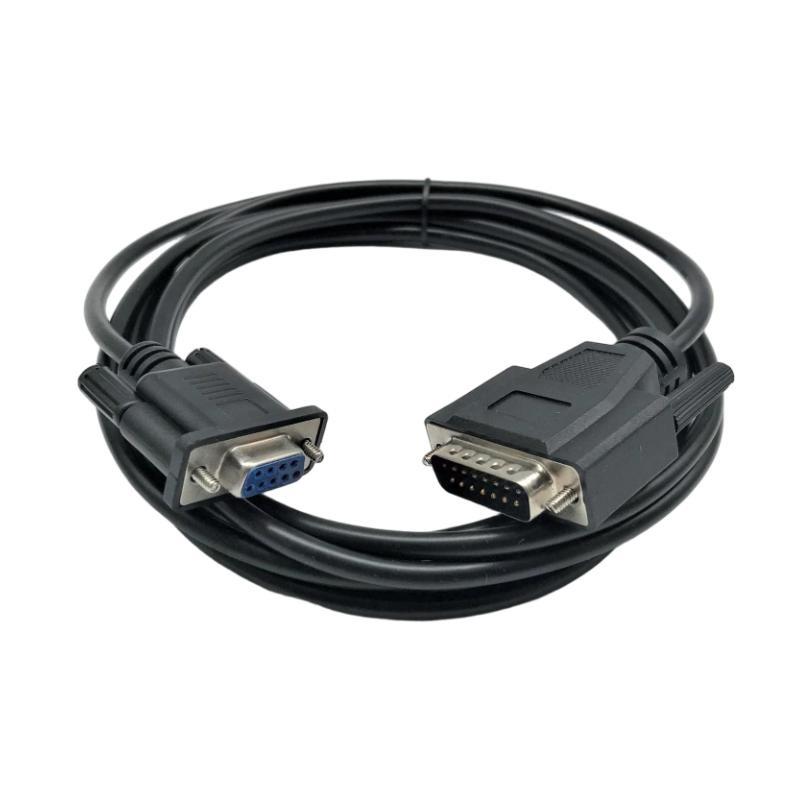

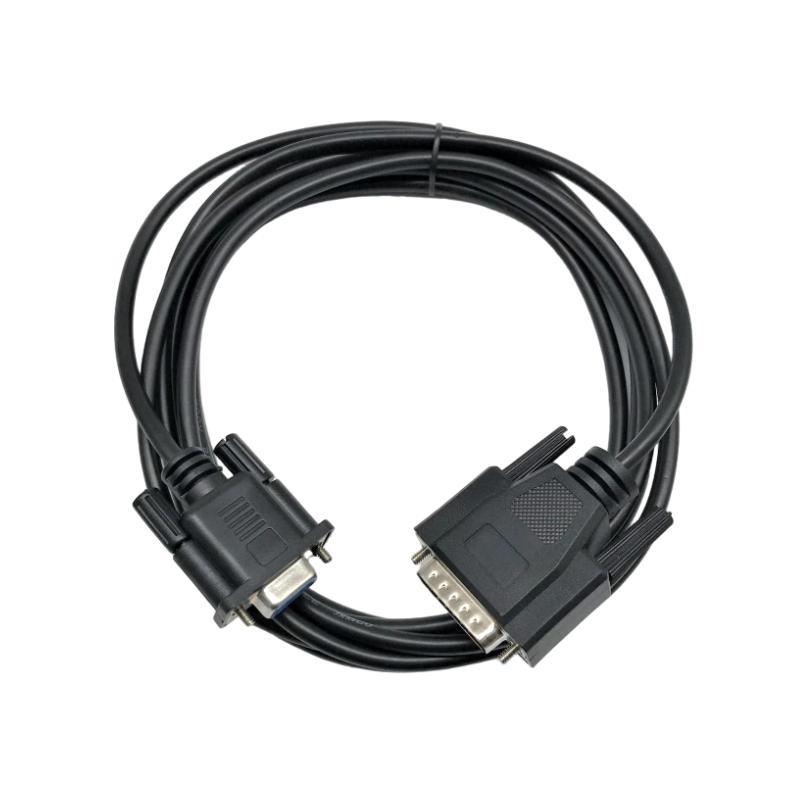

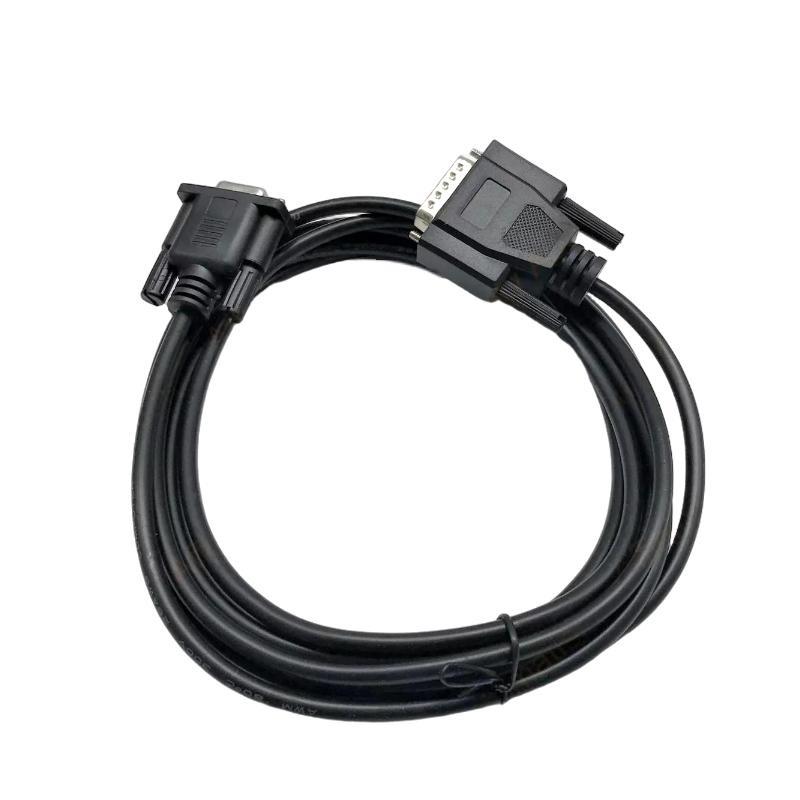

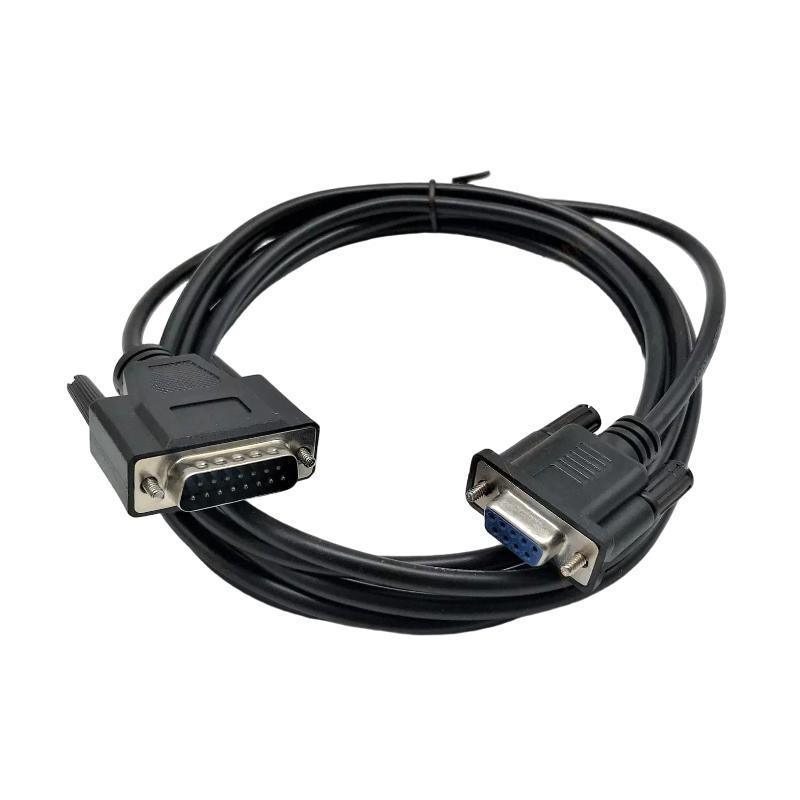

The GE IC690ACC901 Mini Converter Kit Programming Cable is a specialized interface device designed to facilitate reliable communication between GE Fanuc PLCs and personal computers. It enables seamless programming, configuration, and troubleshooting of automation controllers. The cable acts as a bridge between the RS-232 or USB ports of a PC and the PLC’s programming port, ensuring efficient data transfer and stable connectivity.
This Mini Converter Kit is particularly favored in industrial environments where space is limited, and precise, uninterrupted data communication is critical. Its compact design allows technicians to carry it easily for field maintenance or factory programming tasks. The IC690ACC901 is compatible with a wide range of GE Fanuc programmable logic controllers, making it an essential tool for industrial automation engineers.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | IC690ACC901 |
| Type | Mini Converter Kit / Programming Cable |
| Compatible Controllers | GE Fanuc PLC Series (IC600, RX3i, RX7i) |
| Interface Type | RS-232 / USB |
| Data Transfer Rate | Up to 115,200 bps |
| Cable Length | Optional |
| Connector Type | DB9 (RS-232) / USB Type A |
| Supported Software | Proficy Machine Edition, VersaPro, other GE PLC software |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –20 °C to 70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Power Requirements | Bus-powered via USB / RS-232 powered |
| Dimensions (L × W × H) | 47.5 × 43.2 mm |
| Weight | 0.24 kg |
| Certification | CE, UL recognized |
Applications
The IC690ACC901 Mini Converter Kit serves multiple applications across industrial automation:
-
PLC Programming and Configuration: Provides direct access to GE Fanuc PLCs for programming updates and parameter settings.
-
Firmware Updates: Enables safe transfer of firmware updates to controllers.
-
Field Maintenance: Used by technicians for troubleshooting and diagnostics in remote or factory environments.
-
Testing and Simulation: Supports PLC simulation and offline testing through PC interface.
-
Industrial Automation Training: Ideal for educational labs teaching GE PLC programming.
Advantages
-
Compact and Portable: Small form factor allows technicians to carry it conveniently.
-
Reliable Data Transfer: High-speed communication ensures accurate programming and diagnostics.
-
Universal Compatibility: Works with multiple GE PLC series including IC600, RX3i, and RX7i.
-
Plug-and-Play Installation: Easy setup without complex configuration.
-
Versatile Connectivity: Supports both RS-232 and USB interfaces, adapting to various PC hardware.
-
Durable Design: Engineered for industrial environments with stable performance under variable conditions.
FAQ
1. What is the primary function of the IC690ACC901 cable?
It provides a programming and communication interface between GE Fanuc PLCs and a personal computer.
2. Which PLC models are compatible with this cable?
The cable is compatible with GE Fanuc IC600, RX3i, and RX7i series controllers.
3. What types of connections does the cable support?
It supports RS-232 and USB Type A connections.
4. Can it be used for firmware updates on GE PLCs?
Yes, the cable allows secure firmware transfers to supported controllers.
5. What is the maximum data transfer rate supported by this cable?
The cable supports data transfer rates up to 115,200 bps.
6. Does the cable require an external power supply?
No, it is bus-powered via USB or RS-232 interface.
7. Is it suitable for field maintenance in industrial environments?
Yes, it is durable and designed for reliable operation in factory and field conditions.
8. What software packages can it be used with?
It is compatible with Proficy Machine Edition, VersaPro, and other GE PLC programming software.
9. Can the cable support simultaneous connection to multiple PLCs?
No, it is designed for one-to-one connection between a PC and a PLC at a time.
10. How does the cable ensure stable data communication?
It uses high-quality shielding and reliable connectors to prevent data loss or interference during programming and diagnostics.
