Product Introduction

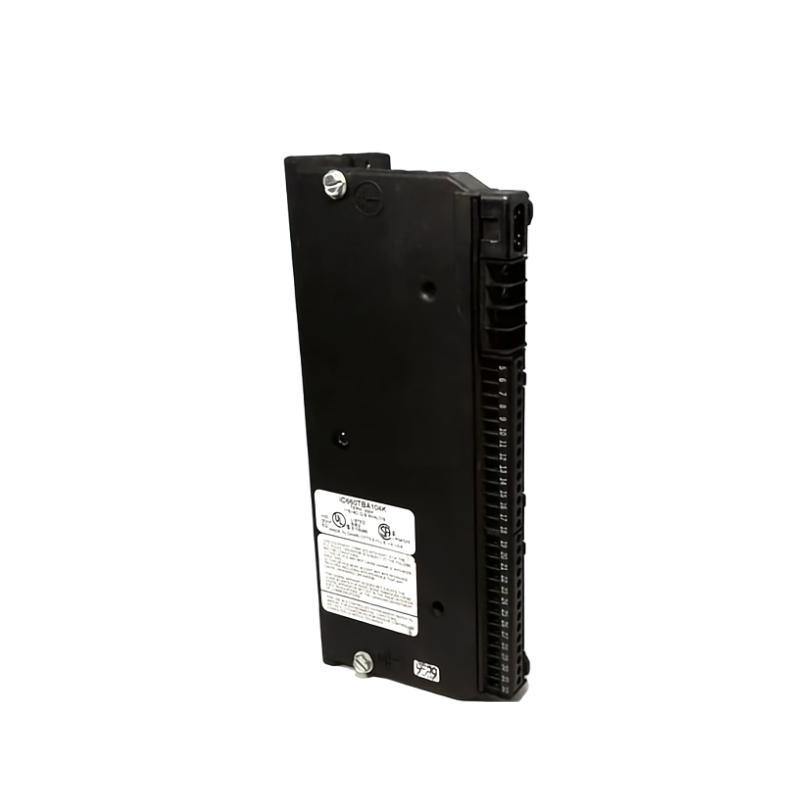

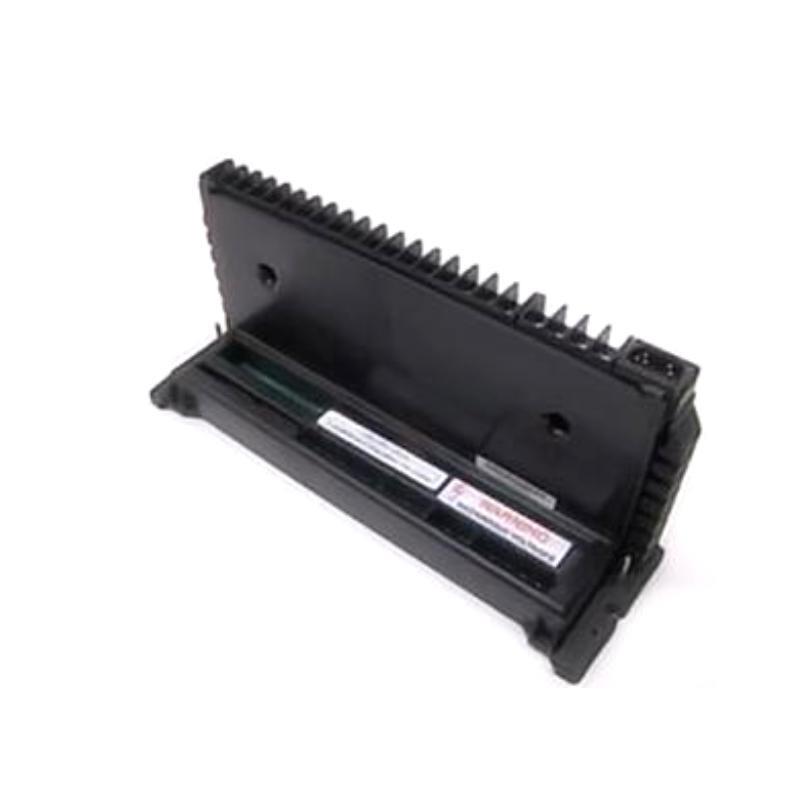

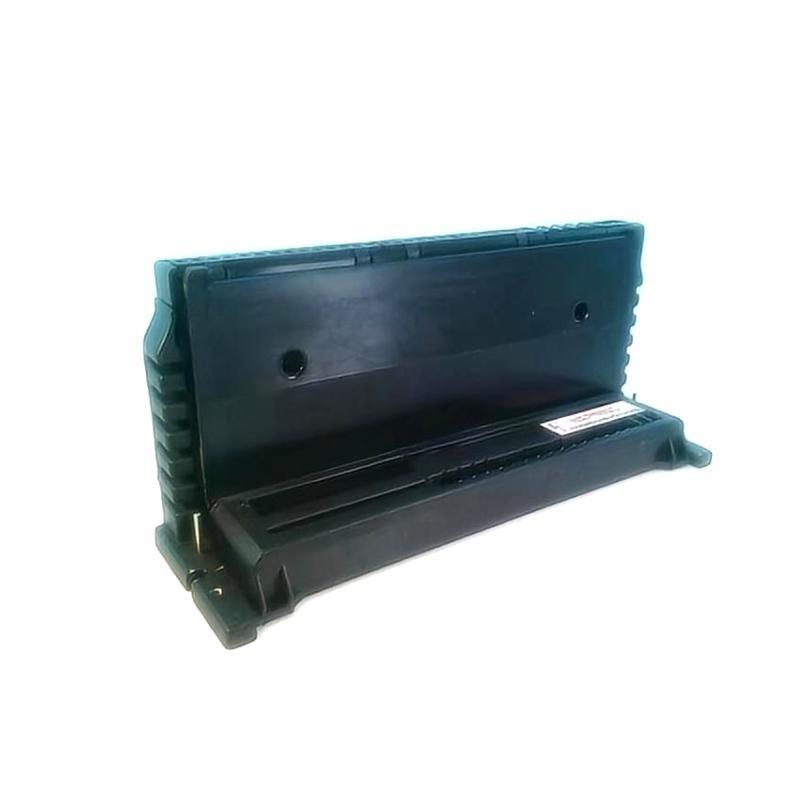

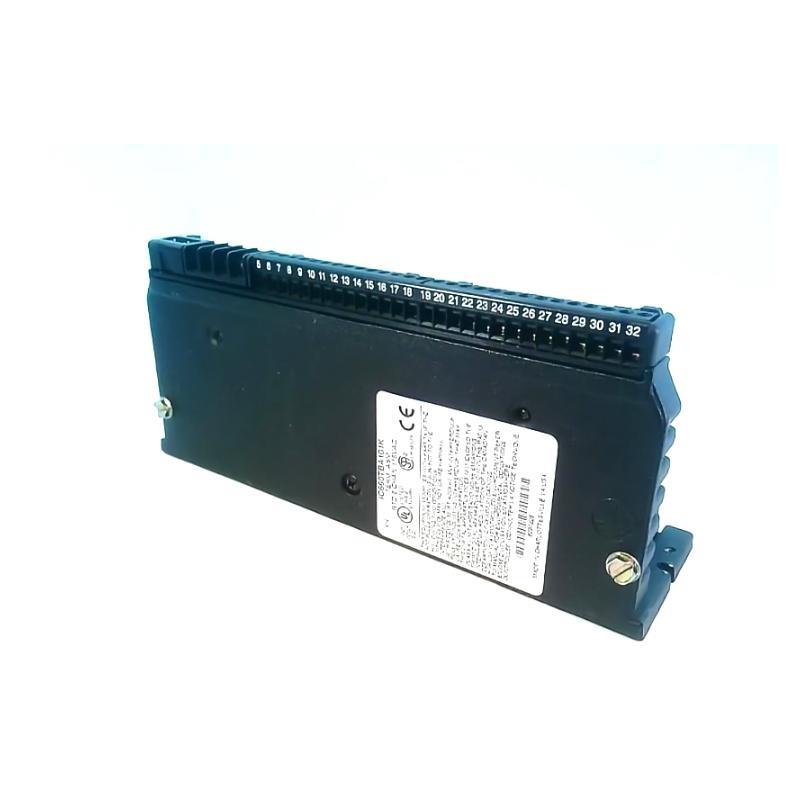

The GE IC660TBA101 Terminal Assembly is a robust and reliable terminal base designed for use with GE Genius I/O modules. It acts as a critical interface between field wiring and the control system’s I/O modules, ensuring secure and efficient electrical connections. The IC660TBA101 supports multiple wiring channels and allows for convenient maintenance by enabling module replacement without disconnecting the wiring.
Manufactured with high-quality materials and engineered for industrial environments, this terminal assembly is an essential component in distributed control systems and automation architectures. It is particularly valued for its durability, ease of installation, and versatility across a range of industrial applications.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | IC660TBA101 |
| Manufacturer | General Electric (GE) |
| Product Type | Terminal Assembly Base |
| Compatibility | GE Genius I/O Blocks and Modules |
| Terminal Type | Screw-type removable terminal block |
| Number of Terminals | 32 terminals (supporting 16 channels) |
| Mounting Options | Panel mount or DIN rail mount |
| Material | Industrial-grade thermoplastic and metal contacts |
| Voltage Rating | Up to 250 VAC |
| Current Rating | Up to 2 Amps per channel |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Shock and Vibration | IEC 68-2-6 compliant |
| Dimensions (W×H×D) | 222.4 x 88.9 x 100 mm |
| Weight | 1.8 kg |
Product Applications
-
Industrial Automation: Facilitates secure wiring connections for input/output modules within automated machinery and production lines.
-
Distributed Control Systems (DCS): Acts as a reliable field wiring termination point for GE Genius I/O systems used in distributed control setups.
-
Process Control Industries: Widely used in sectors like chemical, oil & gas, water treatment, and power generation for robust signal interface.
-
OEM Equipment: Integrated into custom industrial equipment for efficient wiring and easy maintenance.
-
Substation Automation: Provides dependable connectivity in electrical substations and power distribution control systems.
-
Factory Floor Panels: Used in control cabinets and panels to organize and streamline wiring from sensors, relays, and actuators.
Product Advantages
-
Ease of Maintenance: Modules can be swapped without disconnecting field wiring, minimizing downtime and simplifying repairs.
-
Clear Terminal Identification: Terminals are numbered and labeled for accurate and error-free wiring.
-
Durability: Constructed from materials that withstand industrial environments including vibration, temperature fluctuations, and humidity.
-
Versatility: Compatible with a wide range of GE Genius I/O modules, reducing the need for multiple terminal base types.
-
Secure Electrical Connection: Screw terminals ensure firm contact and reliable conductivity for the duration of service.
-
Installation Flexibility: Supports both DIN rail and panel mounting to fit various installation setups.
-
Compact Size: Designed to fit efficiently within control cabinets, saving space while offering full functionality.
Frequently Asked Questions (FAQ)
-
What is the primary purpose of the IC660TBA101?
It serves as a terminal assembly base for connecting field wiring to GE Genius I/O modules. -
Can the IC660TBA101 be used with all GE Genius I/O modules?
It is compatible with most Genius I/O blocks, but it is recommended to verify compatibility with specific modules. -
Is it possible to replace modules without removing the terminal base?
Yes, the design allows hot-swapping modules without disturbing field wiring. -
What type of wiring connections does it support?
It uses screw-type terminals suitable for solid or stranded wire, typically up to 14 AWG. -
Can this assembly handle high voltage signals?
It is rated for voltages up to 250 VAC. -
What mounting options are available?
The terminal assembly supports both DIN rail and panel mounting. -
What environmental conditions can this assembly withstand?
It operates reliably in temperatures from 0°C to 60°C and tolerates humidity from 5% to 95% (non-condensing). -
Is it suitable for use in hazardous locations?
Not directly; additional protective equipment or certified modules are required for hazardous areas. -
How many wiring channels does it support?
It supports 16 channels with dual terminals per channel. -
How do I ensure correct wiring during installation?
The terminal assembly is clearly labeled and numbered for ease of accurate wiring.
