Product Introduction

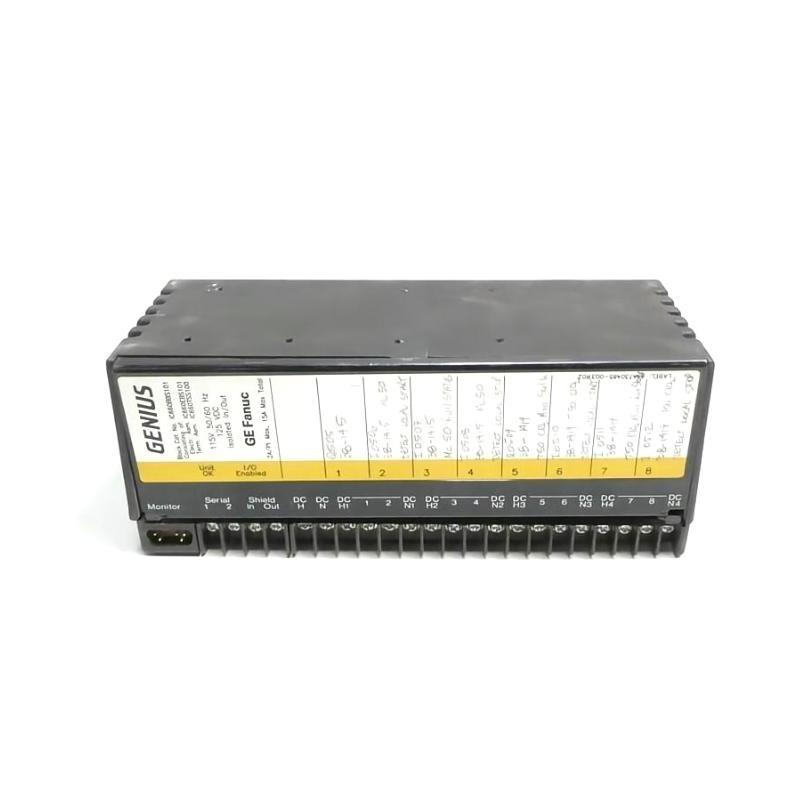

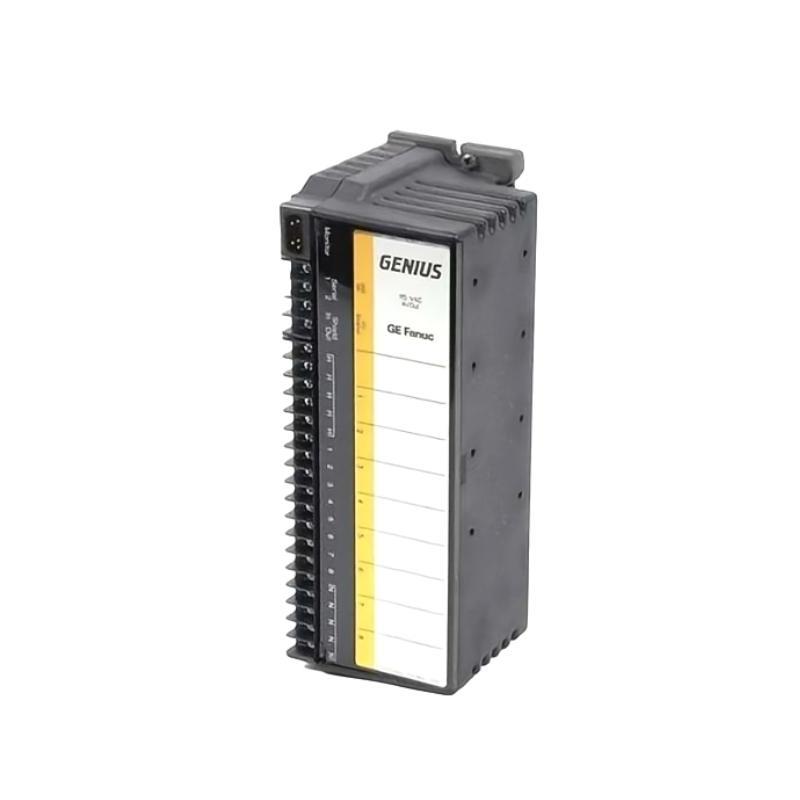

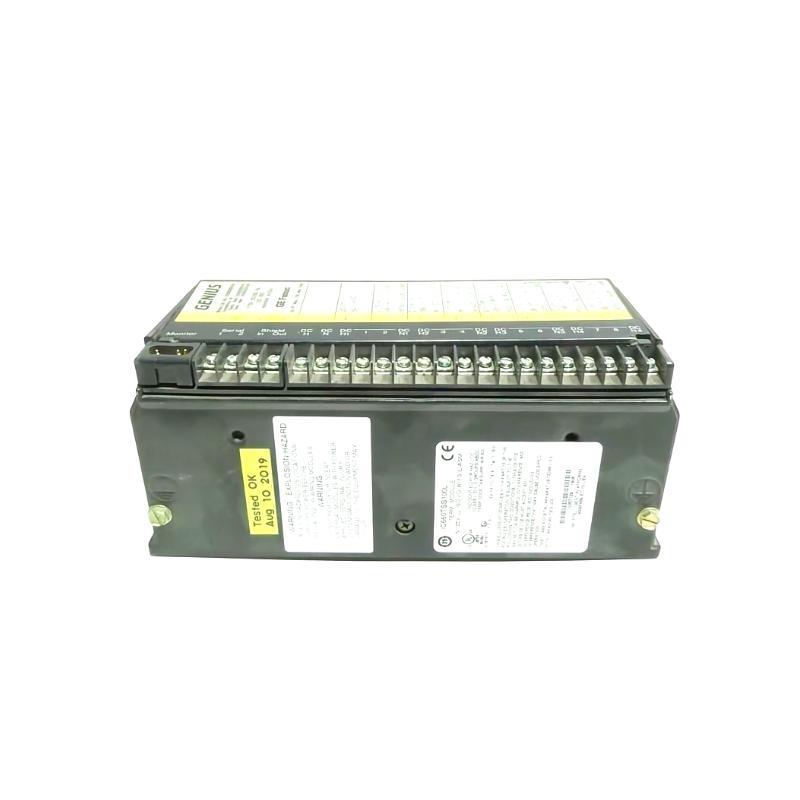

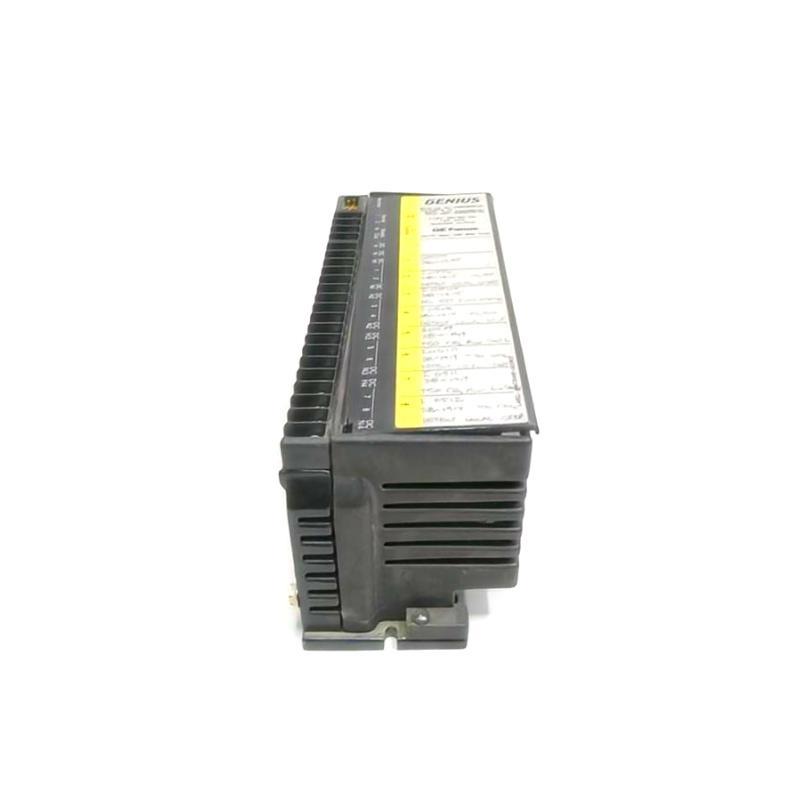

The GE IC660BBS101 is a rugged, field-mountable Isolated I/O Block designed to provide safe, electrically isolated connections between field devices and a control system. As part of GE’s Genius I/O system, this module supports both input and output channels, offering high flexibility and enhanced safety in distributed control architectures.
With galvanic isolation between the control side and field wiring, the IC660BBS101 is ideal for environments where electrical interference, ground potential differences, or transient voltages are a concern. Whether you’re working in a refinery, power station, or high-speed manufacturing line, this module provides the robust, reliable interface needed for mission-critical operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC660BBS101 |
| Manufacturer | GE Fanuc |
| Product Type | Isolated I/O Block |
| I/O Configuration | 16 I/O circuits (user-configurable) |
| Isolation | Opto-isolated and transformer isolation between channels and logic |
| Input Voltage Range | 0 – 30 VDC (typical) |
| Output Voltage Range | 5 – 30 VDC (sourcing/sinking, depending on config) |
| Maximum Output Current | 0.5 A per channel |
| Total Module Output Current | 4 A maximum |
| Diagnostics | Per-point diagnostics with LED indicators |
| Field Power Requirement | 125 VDC or 115/230 VAC (user dependent) |
| LED Indicators | Individual status LEDs for each I/O point |
| Backplane Compatibility | Genius I/O Bus |
| Response Time | <10 milliseconds |
| Mounting | Panel Mount or DIN Rail Mount |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Shock/Vibration Resistance | Industrial-grade, tested per GE standards |
| Certifications | CE, UL, CSA |
| Dimensions (H x W x D) | 224.4 x 88.9 x 100 mm |
| Weight | 1.52 kg |
Product Applications
The IC660BBS101 module is widely deployed across industrial sectors where electrical isolation is essential for system reliability and safety. Common use cases include:
-
Oil & Gas Facilities – To protect control systems from field voltage spikes and ground faults.
-
Power Generation Plants – Where isolated I/O improves safety and regulatory compliance.
-
Pharmaceutical and Food Processing – Ensuring safe, clean, and electrically stable environments.
-
Automated Manufacturing Lines – For distributed control systems interfacing with sensors and actuators.
-
Water/Wastewater Management – Protects sensitive PLC hardware in electrically noisy pump stations.
-
Mining Operations – Withstand high EMI/RFI conditions and mechanical vibration.
Product Advantages
-
Enhanced Electrical Isolation: Galvanic isolation protects sensitive control systems from electrical noise and surges.
-
Flexible I/O Configuration: Supports both digital inputs and outputs, configurable per application.
-
Rugged Industrial Design: Engineered to operate reliably in high-temperature, high-vibration industrial zones.
-
Comprehensive Diagnostics: Onboard LED indicators and self-monitoring simplify maintenance and troubleshooting.
-
Reduced Grounding Issues: Isolation mitigates ground loop problems in complex systems.
-
Compact and Modular: Fits easily into distributed I/O setups with limited space.
-
Field Configurable: Can be tailored for sourcing or sinking output configurations.
-
Long Lifecycle Support: Backed by GE’s long-term industrial automation product roadmap.
-
Fail-safe Operation: Designed to maintain predictable behavior during fault conditions.
-
Easy Integration: Works seamlessly with GE’s Genius I/O bus and compatible PLCs.
Frequently Asked Questions (FAQ)
-
What does “isolated I/O” mean in this module?
It means each I/O channel is electrically isolated from the control system to prevent ground loops and protect against surges. -
Can I configure the I/O channels individually?
Yes, all 16 channels are user-configurable as either input or output. -
Is the module compatible with both AC and DC signals?
The field power supports both AC and DC, but I/O typically operates in DC voltage ranges. -
How is the module mounted?
It supports both DIN rail and panel mounting for flexible installation. -
What protections are built in for harsh environments?
The unit is designed with EMI/RFI shielding, thermal stability, and vibration resistance. -
What is the max current per output?
Each output channel supports up to 0.5 A. -
What diagnostics are available on the module?
Each I/O point has an LED for status indication and error diagnostics. -
What systems can it connect to?
It is designed for GE Genius I/O systems and compatible controllers. -
What’s the response time for switching I/O states?
Less than 10 ms in typical applications. -
Is the module hot-swappable?
While Genius I/O systems support hot swapping under certain conditions, always refer to GE’s safety manual for guidance.
Related Models from the Same Series
| Model Number | Description | I/O Type | Channel Count | Notable Feature |
|---|---|---|---|---|
| IC660BBD110 | Relay Output Block (N.O.) | Digital Output | 16 | Normally Open contacts |
| IC660TBD024 | DC Input Block | Digital Input | 16 | 24V DC input module |
| IC660TBA100 | Analog Input Block | Analog Input | 8 | 4-20mA input support |
| IC660BBA100 | Analog Output Block | Analog Output | 8 | Configurable signal ranges |
| IC660BBS103 | Isolated I/O Block (Extended Temp) | Digital Isolated I/O | 16 | Extended environmental limits |
| IC660BRD025 | Isolated Relay Output Block | Relay Output | 16 | High-isolation relay block |
Popular Models from GE (Same Brand)
| Model Number | Description | Function | Key Feature |
|---|---|---|---|
| IC693CPU363 | Series 90-30 CPU | PLC Controller | Built-in Ethernet & RS-232 |
| IC695ALG600 | RX3i Analog Input Module | Analog Input | High-speed 16-bit inputs |
| IC693MDL645 | 24VDC Output Module | Digital Output | 32 points, sink/source type |
| IC200UDR005 | VersaMax Micro Controller | PLC Controller | 14 I/O points, compact design |
| IC694MDL930 | Mixed Input/Output Module | Digital I/O | 16 Input / 16 Output |
| IC697BEM731 | Genius Bus Controller | Network Interface | Interfaces Genius bus to PLC |
