Product Introduction

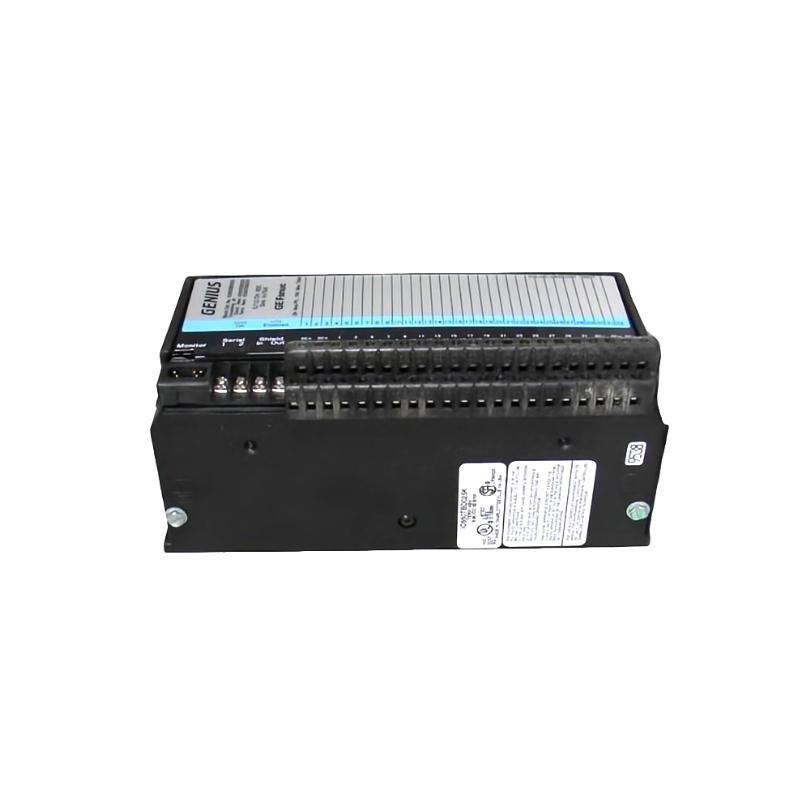

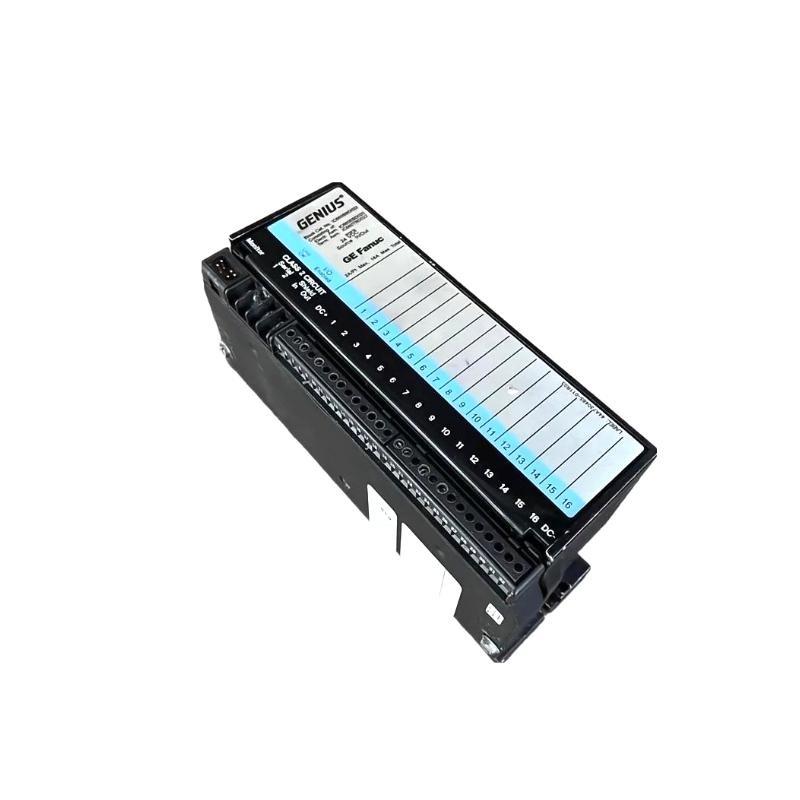

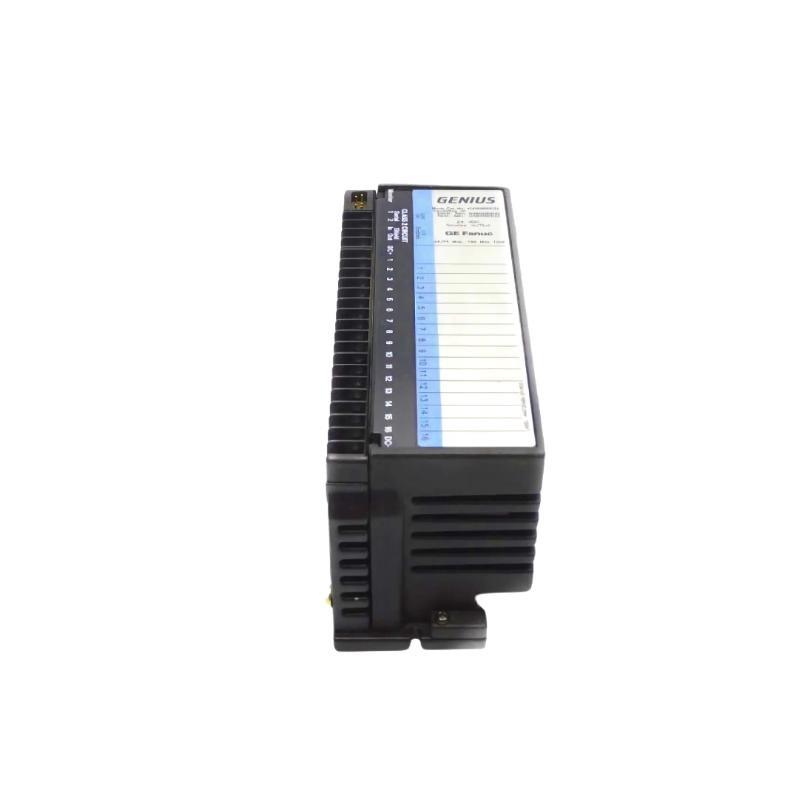

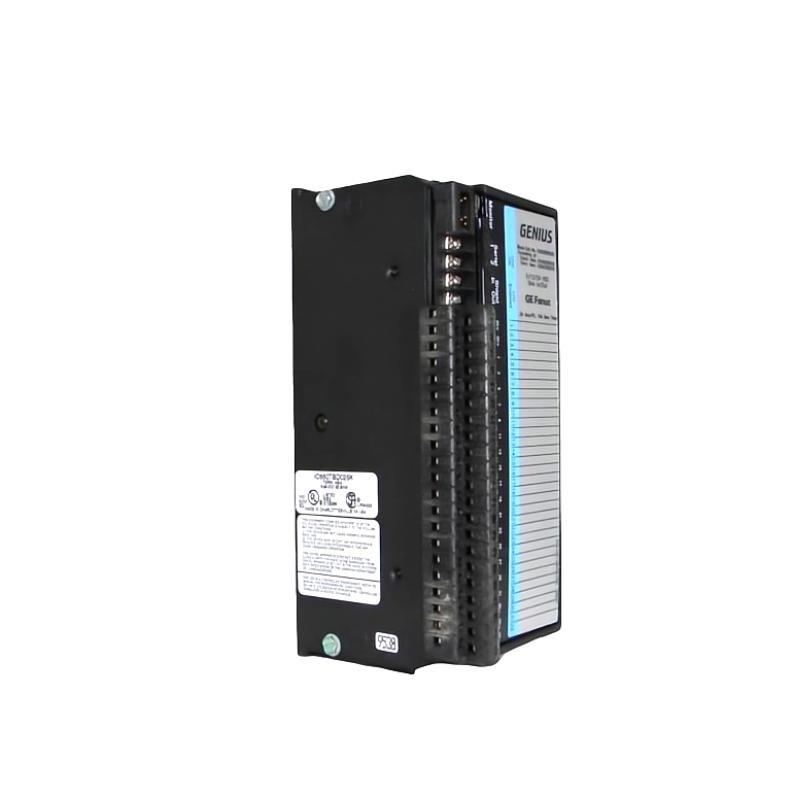

The GE IC660BBD022 is a discrete input/output (I/O) module from the Genius I/O family by General Electric (GE). Designed for demanding industrial automation applications, this block-type module provides 16 discrete I/O circuits that can be flexibly configured for input or output, delivering exceptional versatility for control systems.
This module connects seamlessly with Genius Bus-compatible controllers, including GE Series 90-30 and Series 90-70 PLCs. Its field-hardened design ensures robust performance in electrically noisy environments, while comprehensive diagnostics and flexible configuration options make it an ideal choice for real-time control of machinery, process automation, and safety-critical operations.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC660BBD022 |
| Product Type | Discrete I/O Module (Block Type) |
| Number of I/O Points | 16 (configurable as input or output) |
| Power Supply Voltage | 115/230 VAC |
| Logic Voltage | 115 VAC |
| Input Type | Discrete (AC Input) |
| Output Type | Discrete (AC Output) |
| Output Load | 0.5 A per circuit (max), 8 A total per block |
| Input Threshold | ON > 74 VAC, OFF < 20 VAC |
| Response Time | <15 ms (typical) |
| Diagnostics | Internal self-test, overload, open wire detection |
| Isolation | 2500 V RMS optical isolation |
| Bus Compatibility | Genius Bus, GE Fanuc PLCs |
| LED Indicators | Yes (per channel) |
| Mounting Type | Panel Mount |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (L x W x H) | 205 x 80 x 120 mm |
| Weight | 1.35 kg |
Product Applications
The GE IC660BBD022 Discrete I/O Module is highly adaptable across a range of industrial sectors and applications:
-
Manufacturing Systems: For controlling actuators, sensors, relays, and interlocks in discrete manufacturing.
-
Material Handling: Integration with conveyors, motors, and logic-driven systems in warehouses or distribution centers.
-
Water Treatment Plants: Monitoring and controlling pumps, valves, and alarms.
-
Building Automation: Used in lighting control systems, HVAC equipment switching, and access systems.
-
Energy Sector: Substation monitoring, generator start/stop control, and auxiliary device management.
-
Automotive Industry: Line automation, robotic interface, and status signal processing.
Product Advantages
-
Flexible Configuration: Each of the 16 I/O points can be configured individually as either input or output.
-
High Signal Integrity: Optical isolation ensures protection from high-voltage spikes and electrical interference.
-
Diagnostics-Rich: Built-in status LEDs and error reporting make maintenance and troubleshooting faster and more effective.
-
Robust Design: Rugged enclosure and industrial-grade components allow for deployment in demanding environments.
-
Simplified Wiring: Block-style layout with easy terminal access reduces installation time and errors.
-
Integration Ready: Fully compatible with GE Genius Bus and programmable control systems like Series 90-30.
-
High Channel Density: Reduces overall system footprint with 16 I/O in a single compact module.
-
Energy Efficiency: Low power consumption and heat dissipation ensure reliable long-term use.
-
Wide Voltage Support: Compatible with both 115 VAC and 230 VAC power sources.
-
Field Proven Reliability: Backed by GE’s reputation in industrial automation and control hardware.
Frequently Asked Questions (FAQ)
-
How many channels are available on the IC660BBD022 module?
It provides 16 configurable discrete channels. -
Can the I/O channels be mixed on a single module?
Yes, each channel can be independently set as input or output. -
What voltage levels does this module support?
The module operates on 115/230 VAC with a logic threshold of 115 VAC. -
Is the module compatible with modern GE PLCs?
Yes, it integrates with GE Series 90-30 and 90-70 via Genius Bus. -
Does the module have diagnostic features?
Yes, including short circuit detection, open wire diagnostics, and LED status indicators. -
What is the isolation rating?
The module provides 2500 V RMS of optical isolation between channels and logic. -
What are the mounting options?
It supports secure panel mounting in standard industrial enclosures. -
Can it be used in outdoor environments?
The module is suitable for protected industrial environments; outdoor use requires enclosure. -
What is the power consumption?
The module draws low power and is designed for energy efficiency, but exact values depend on configuration. -
Is hot swapping supported?
No, the IC660BBD022 does not support hot swapping; power must be removed before maintenance.
Related Models (Same Series or Functional Equivalents)
| Model Number | Description | Channels | Voltage | Mounting |
|---|---|---|---|---|
| IC660BBD020 | 24/48 VDC Discrete I/O Module | 16 | 24/48 VDC | Panel Mount |
| IC660BBD100 | 120 VAC Discrete Input Block | 16 Inputs | 120 VAC | Block Mount |
| IC660BBD101 | 120 VAC Discrete Output Block | 16 Outputs | 120 VAC | Block Mount |
| IC660BBD110 | 24 VDC Source I/O Block | 16 I/O | 24 VDC | Panel Mount |
| IC660BBD120 | 24 VDC Sink I/O Block | 16 I/O | 24 VDC | Panel Mount |
| IC660BBD025 | Discrete I/O Module with Pulse Timer | 16 | 115/230 VAC | Panel Mount |
Popular GE I/O Modules (Same Brand)
| Model Number | Description | Type | Voltage | Channels |
|---|---|---|---|---|
| IC693MDL645 | GE Series 90-30 24 VDC Input Module | Input | 24 VDC | 16 |
| IC693MDL940 | GE 120 VAC Output Module | Output | 120 VAC | 8 |
| IC695ALG600 | GE RX3i Analog Input Module (Current) | Analog Input | 4–20 mA | 8 |
| IC694MDL754 | RX3i High-Speed Output Module | Output | 24 VDC | 32 |
| IC693ALG392 | 4-Channel Analog Output Module | Analog Output | 4–20 mA / 0–10V | 4 |
| IC695ACC402 | RX3i Genius Bus Interface Module | Comm Module | N/A | N/A |
