Product Introduction

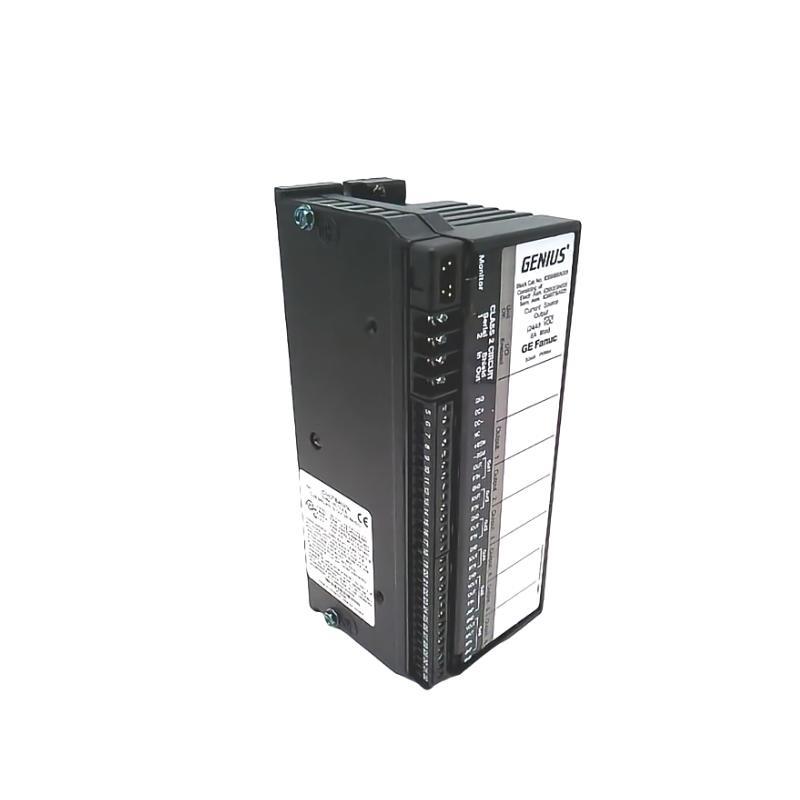

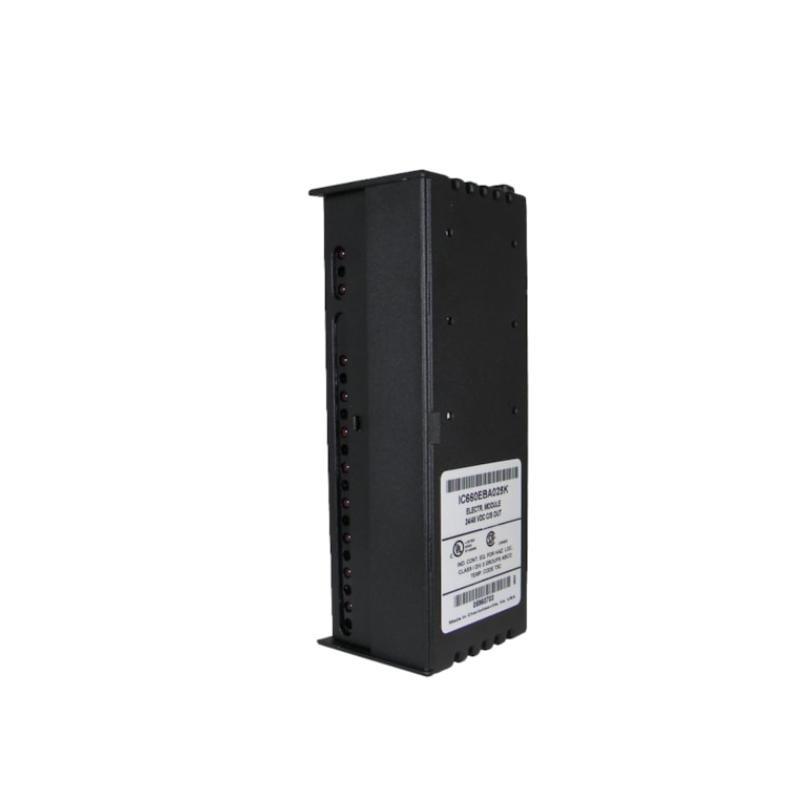

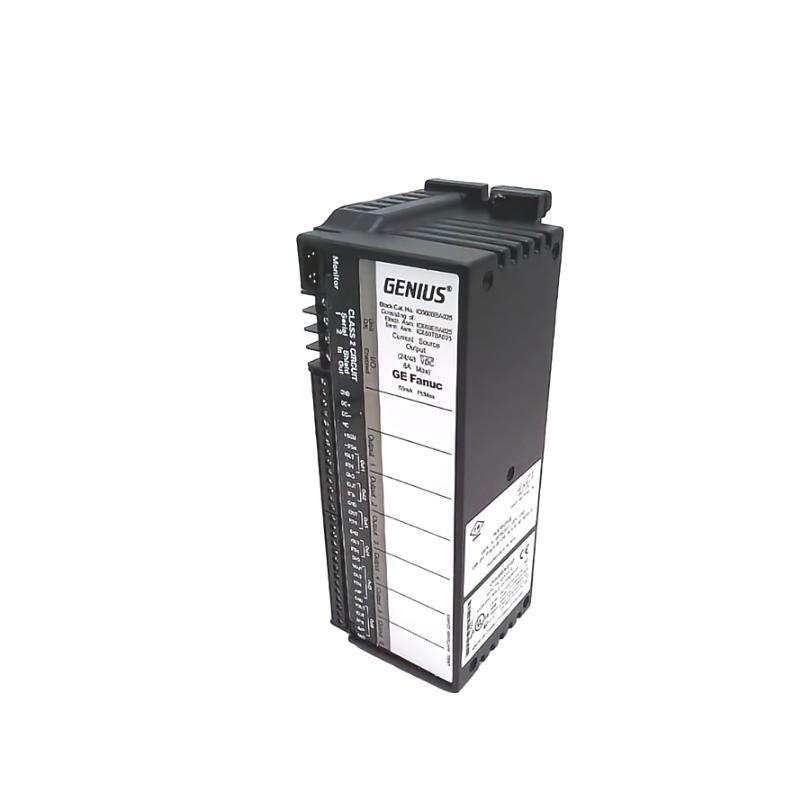

The GE IC660BBA025 Current Source Analog Output Module is an advanced, industrial-grade analog output module designed for controlling analog signals in automated processes and systems. As part of GE’s Genius I/O series, this module is engineered to provide precise and reliable current-source output for various control and measurement applications. The IC660BBA025 is ideal for use in industries such as power generation, oil and gas, chemical processing, and manufacturing automation, where high-performance and fault-free operation are critical.
The module allows for easy integration into existing systems, offering scalable solutions for controlling analog devices. It features current-source outputs with exceptional noise immunity and high precision, making it an excellent choice for applications that require strict control of output signals.
With its durable design and robust performance, the IC660BBA025 ensures reliable operation in harsh environments, meeting industrial standards for quality and safety.
Product Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE (General Electric) |
| Part Number | IC660BBA025 |
| Product Type | Current Source Analog Output Module |
| Output Channels | 4 Analog Current Source Outputs |
| Signal Type | Current (4–20 mA) |
| Output Range | 4–20 mA |
| Resolution | 16 bits |
| Accuracy | ±0.5% of Full Scale |
| Update Time | ≤250 ms |
| Power Supply | 24 VDC (nominal 20–30 VDC) |
| Mounting | DIN Rail Mounting |
| Isolation | Optical Isolation between channels and logic |
| Environmental Rating | IP20 (Indoor use) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Shock and Vibration Resistance | Designed to withstand industrial shock and vibration levels |
| Dimensions (H x W x D) | 228 x 109 x 86 mm |
| Weight | 2.17 kg |
| Agency Approvals | CE, UL, CSA, FM Class 1 Div 2 |
Product Applications
The GE IC660BBA025 Current Source Analog Output Module is versatile and widely used in various industrial automation systems. Here are some key applications:
-
Power Generation: Used for controlling current sources in turbine control systems, power distribution networks, and generator regulation.
-
Process Control: Ideal for process industries such as chemical, pharmaceutical, and food processing, where precise control of output signals is necessary.
-
Manufacturing Automation: The module supports machine control and environmental regulation, such as temperature, pressure, and humidity control, in automated manufacturing lines.
-
Oil and Gas: Provides precise current outputs for controlling and monitoring parameters like pressure, temperature, and flow in oil and gas processing plants.
-
HVAC Systems: Ensures reliable control of HVAC components, such as fans, actuators, and heating elements, within commercial and industrial systems.
-
Test and Measurement Systems: Perfect for automated test equipment (ATE) setups that require the simulation of current-source signals for sensors and instruments.
Product Advantages
-
High Precision and Accuracy: The IC660BBA025 ensures highly accurate current-source outputs with a 16-bit resolution and ±0.5% full-scale accuracy, making it suitable for applications where precise control is critical.
-
Noise Immunity: The module’s design provides excellent noise immunity, ensuring clean and stable signals even in electrically noisy industrial environments.
-
Flexible and Scalable: With four current-source output channels, the IC660BBA025 offers flexibility in terms of the number of devices it can control, and its modular design allows for easy expansion.
-
Reliability in Harsh Conditions: The robust design and wide operating temperature range (from -20°C to +60°C) make the module ideal for use in tough industrial settings, including high-vibration environments and extreme temperatures.
-
Simple Integration: Compatible with GE’s Genius I/O network, it can easily be integrated into existing control systems, reducing the time and cost required for installation.
-
Reduced Downtime: The built-in diagnostic features detect faults such as over-range and under-range conditions, enabling quick identification and resolution of problems, thus reducing downtime.
-
Compact and Efficient: The compact form factor of the module saves space in control panels and reduces overall system size while providing high-performance output control.
-
Certified for Safety: The module carries certifications such as CE, UL, CSA, and FM Class 1 Div 2, ensuring its safety and compliance with industry standards.
-
Low Power Consumption: Designed to operate efficiently, the IC660BBA025 helps reduce operational costs by consuming minimal power.
Frequently Asked Questions (FAQ)
-
Q: What is the output range for the IC660BBA025?
A: The IC660BBA025 provides current-source outputs with a range of 4–20 mA. -
Q: How many output channels does the IC660BBA025 have?
A: The module has 4 analog current-source output channels. -
Q: Can the IC660BBA025 be used in high-temperature environments?
A: Yes, the module operates in a temperature range of -20°C to +60°C, making it suitable for use in both cold and hot environments. -
Q: What is the power supply requirement for this module?
A: The IC660BBA025 requires a 24 VDC power supply, with an operating range of 20-30 VDC. -
Q: How accurate is the current output of the IC660BBA025?
A: The module provides an accuracy of ±0.5% of full scale for current-source outputs. -
Q: How is the IC660BBA025 mounted?
A: The module is designed for DIN rail mounting, making installation simple and secure. -
Q: Does the IC660BBA025 have built-in diagnostic features?
A: Yes, the module includes diagnostics to detect faults such as over-range, under-range, and open circuits, improving system reliability. -
Q: Is this module suitable for hazardous environments?
A: Yes, the IC660BBA025 is FM Class 1 Div 2 certified, allowing it to be used in hazardous environments. -
Q: What certifications does the IC660BBA025 have?
A: The module is certified with CE, UL, CSA, and FM Class 1 Div 2 for safety and compliance. -
Q: Can this module be integrated with other GE I/O modules?
A: Yes, the IC660BBA025 is compatible with other modules in the Genius I/O series and can be integrated into existing systems seamlessly.
Related Models (Same Series / Function)
| Model Number | Description | Output Type | Channels | Special Features |
|---|---|---|---|---|
| IC660BBA020 | Analog Input Module | Voltage / Current | 4 | Basic input module, no output |
| IC660BBA024 | Current Source Analog I/O Module | Voltage / Current | 4 In / 4 Out | Combination of input and output |
| IC660BBA026 | Advanced Analog Input/Output Module | Voltage / Current | 8 In / 8 Out | Higher resolution, more input/output |
| IC660TBA030 | Temperature Input Module | Thermocouple | 4 | Precision temperature measurement |
| IC660TBA020 | Digital Output Module | Discrete | 16 | Digital outputs for control signals |
| IC660TBD020 | Digital Input Module | Discrete | 16 | Digital inputs for on/off signals |
Popular GE Industrial Automation Models
| Model Number | Description | Function | Compatibility | Notes |
|---|---|---|---|---|
| IC200CPU001 | VersaMax Micro PLC | Control Unit | GE VersaMax Series | Compact PLC for small applications |
| IC695CPE330 | RX3i PAC System CPU | CPU Module | GE RX3i Series | High-speed, multi-protocol support |
| IC670GBI002 | Bus Interface Unit | I/O Network Interface | Genius I/O | Remote I/O communications |
| IC693MDL930 | Relay Output Module | Digital Outputs | GE Series 90-30 | Relay outputs for industrial applications |
| IC695PSA140 | Power Supply Module | Power Supply | RX3i Series | Redundant power supply for reliability |
| IC660RMX128 | Rack Extension Module | Rack Extension | Genius I/O | Expands I/O system capacity |
