Product Introduction

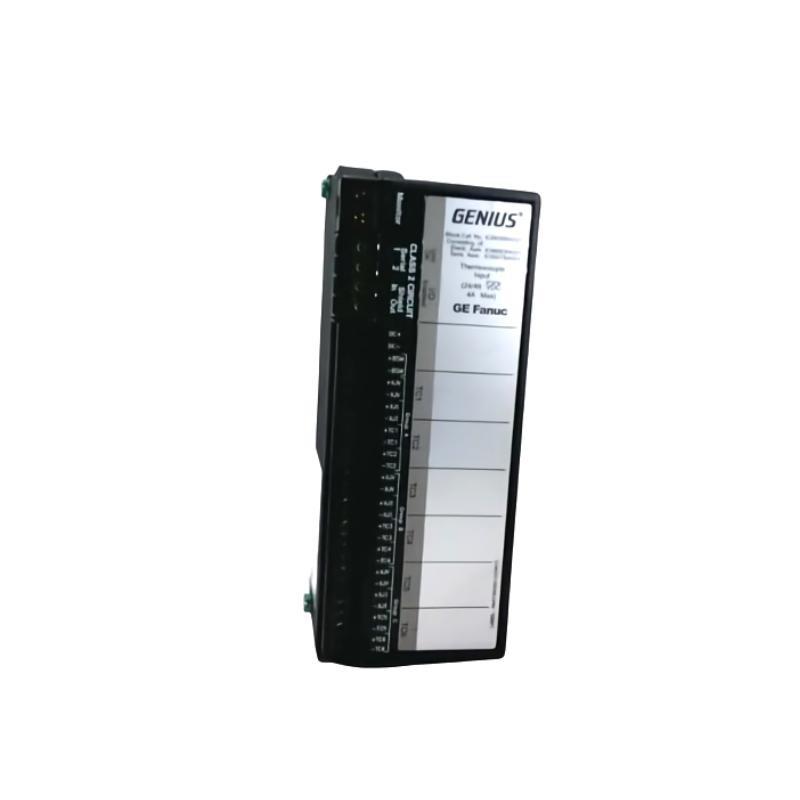

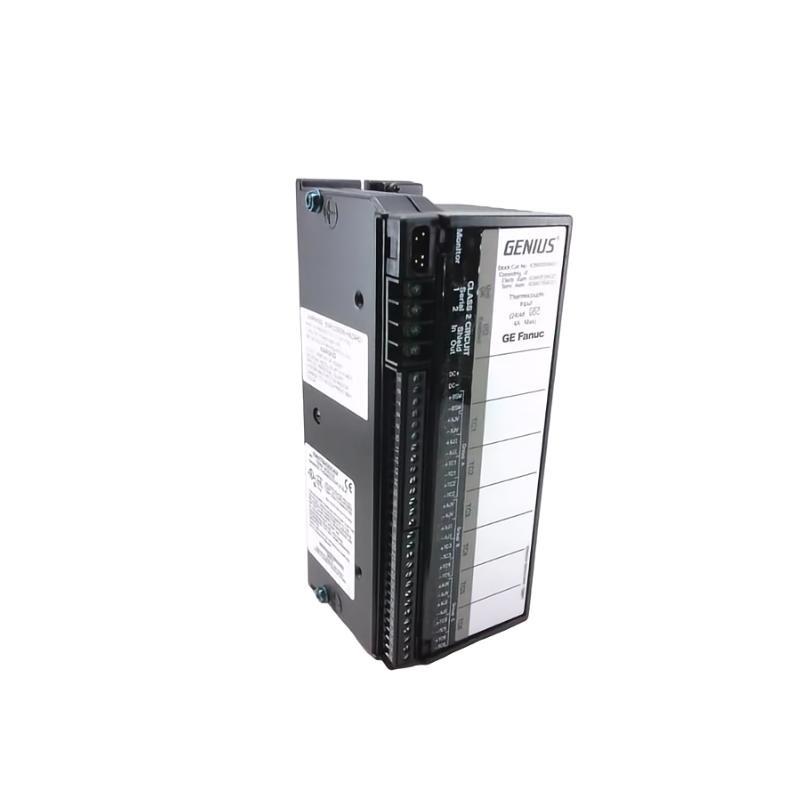

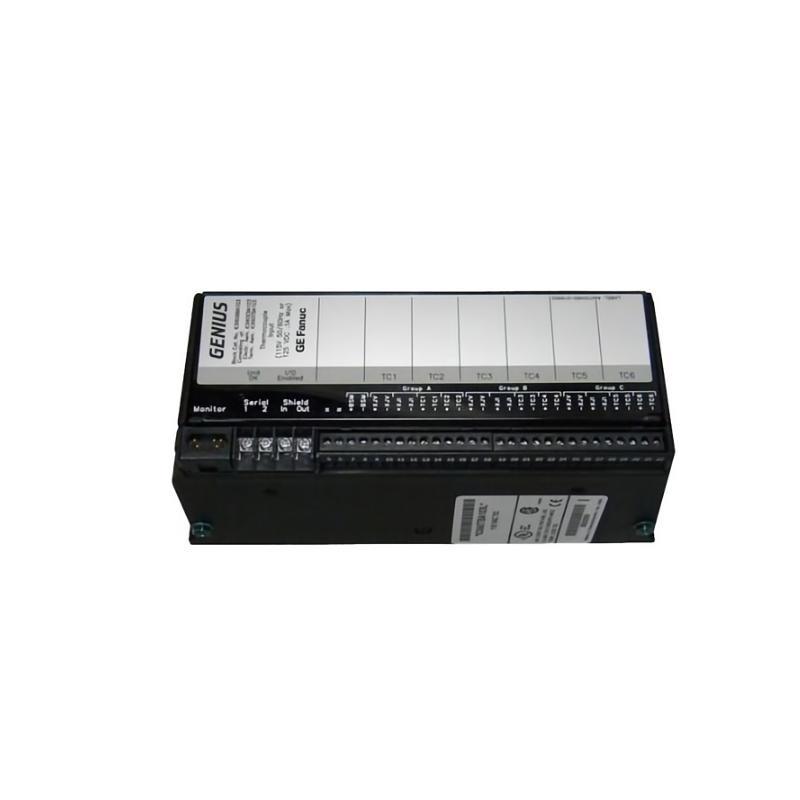

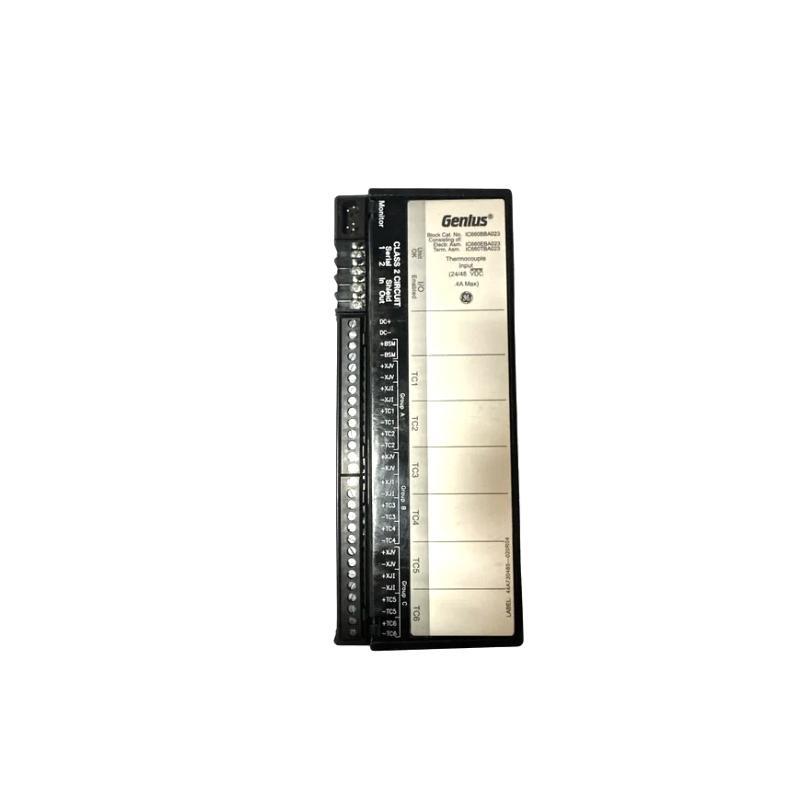

The GE IC660BBA023 Thermocouple Input Module is a high-performance, industrial-grade thermocouple input block designed for temperature monitoring and control in automated systems. Part of the Genius I/O series by GE Fanuc (now GE Automation & Controls), this module provides precise analog input readings for various types of thermocouples, ensuring compatibility with a wide range of industrial processes.
Designed for robust environments, it integrates seamlessly with other Genius I/O blocks and PLCs, offering durability, scalability, and reliability in harsh operating conditions. It’s widely used in industries such as power generation, oil and gas, food processing, chemical manufacturing, and more.
The IC660BBA023 is recognized for its compact design, easy installation, and advanced diagnostic features, making it an ideal choice for mission-critical applications where temperature accuracy is paramount.
Product Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE (General Electric) |
| Part Number | IC660BBA023 |
| Product Type | Thermocouple Input Block |
| Input Channels | 6 Analog Thermocouple Inputs |
| Compatible Thermocouple Types | Types J, K, T, E, R, S, B, N |
| Input Range | -270°C to +1800°C (depends on thermocouple type) |
| Resolution | 0.1°C |
| Update Time | ≤500 ms |
| Isolation | Optical Isolation between channels and logic |
| Diagnostic Features | Open sensor detection, over-range, under-range, short detection |
| Power Supply | 24 VDC nominal (operating range 20–30 VDC) |
| Mounting | DIN Rail or Panel Mounting |
| Communications Interface | Genius I/O bus |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Shock and Vibration Resistance | Designed to withstand industrial environments |
| Dimensions (H x W x D) | 60 x 120 x 30 mm |
| Weight | 0.15 kg |
| Agency Approvals | CE, UL, CSA, FM Class 1 Div 2 |
Product Applications
The IC660BBA023 is commonly deployed in:
-
Process Control Systems in oil & gas, petrochemical, and power plants
-
Temperature Monitoring in food and beverage industries
-
Furnace and Kiln Management in metal processing
-
Pharmaceutical Manufacturing where strict temperature control is critical
-
Energy Sector for turbine exhaust and boiler monitoring
-
Pulp & Paper Industry for consistent paper quality and safe drying processes
-
Automated Test Equipment for temperature-dependent performance tests
-
Environmental Chambers to log and control ambient conditions
Its versatility, modular architecture, and precision make it suitable for both standalone and distributed automation systems.
Product Advantages
-
High Accuracy and Stability: Provides precise temperature readings even in environments with fluctuating ambient conditions.
-
Multi-Thermocouple Compatibility: Supports all major thermocouple types, simplifying system design.
-
Advanced Diagnostics: Offers real-time error reporting and channel fault detection, minimizing downtime.
-
Durable Design: Rugged construction suitable for harsh environments including high EMI and industrial vibrations.
-
Flexible Integration: Easily integrates with Genius Bus and GE PLCs like the Series 90-30/90-70 and RX3i.
-
Compact Footprint: Saves panel space while delivering high functionality.
-
Low Power Consumption: Efficient design for reduced operational costs.
-
Future-Proof: Still supported in many legacy systems with a long operational lifecycle.
Frequently Asked Questions (FAQ)
-
Q: What thermocouple types are supported by the IC660BBA023?
A: It supports Types J, K, T, E, R, S, B, and N thermocouples. -
Q: Can this module be used in high-vibration environments?
A: Yes, it is built to withstand industrial shock and vibration levels. -
Q: How many input channels does it offer?
A: It provides 6 individual thermocouple input channels. -
Q: Does the module support open sensor detection?
A: Yes, it includes diagnostics for open sensor and wiring faults. -
Q: What is the input resolution?
A: The input resolution is typically 0.1°C, depending on thermocouple type. -
Q: Is it compatible with modern PLC systems?
A: Yes, especially those supporting the Genius Bus like GE Series 90-30, 90-70, and RX3i. -
Q: What are the power requirements for the IC660BBA023?
A: It operates on a 24 VDC nominal power supply. -
Q: Can it be panel-mounted or only DIN rail mounted?
A: It supports both panel and DIN rail mounting options. -
Q: Is there a built-in cold junction compensation?
A: Yes, the module provides cold junction compensation for thermocouple accuracy. -
Q: What certifications does it have?
A: It is certified by CE, UL, CSA, and FM for industrial use.
Related Models (Same Series / Function)
| Model Number | Description | Input Type | Channels | Special Features |
|---|---|---|---|---|
| IC660BBA020 | Thermocouple Input Block (Older version) | Thermocouple | 6 | Basic diagnostics |
| IC660BBD024 | Analog Voltage/Current Input Block | Analog | 8 | Voltage or current input selection |
| IC660TBD020 | Digital Input Block | Discrete (Digital) | 16 | Sink/Source logic supported |
| IC660TBA020 | Digital Output Block | Discrete (Digital) | 16 | High-current outputs |
| IC660EBA026 | Analog Input/Output Block | Analog | 4 In / 2 Out | Dual functionality |
| IC660BBA026 | Advanced Thermocouple Input Block | Thermocouple | 6 | Higher resolution and enhanced filtering |
Popular GE Industrial Automation Models
| Model Number | Description | Function | Compatibility | Notes |
|---|---|---|---|---|
| IC200CPU001 | VersaMax Micro PLC | Control Unit | GE VersaMax Series | Compact PLC for small applications |
| IC695CPE330 | RX3i PAC System CPU | CPU Module | GE RX3i Series | High-speed, multi-protocol support |
| IC670GBI002 | Bus Interface Unit | I/O Network Interface | Genius I/O | Remote I/O communications |
| IC693MDL930 | Relay Output Module | Digital Output | Series 90-30 | 8-point relay output |
| IC200ALG320 | Analog Input Module | Analog Voltage Input | VersaMax Series | 4-channel voltage input |
| IC693ALG392 | Analog Combination Module | Analog I/O | Series 90-30 | 4 In / 2 Out Analog Combo |
