Product Introduction

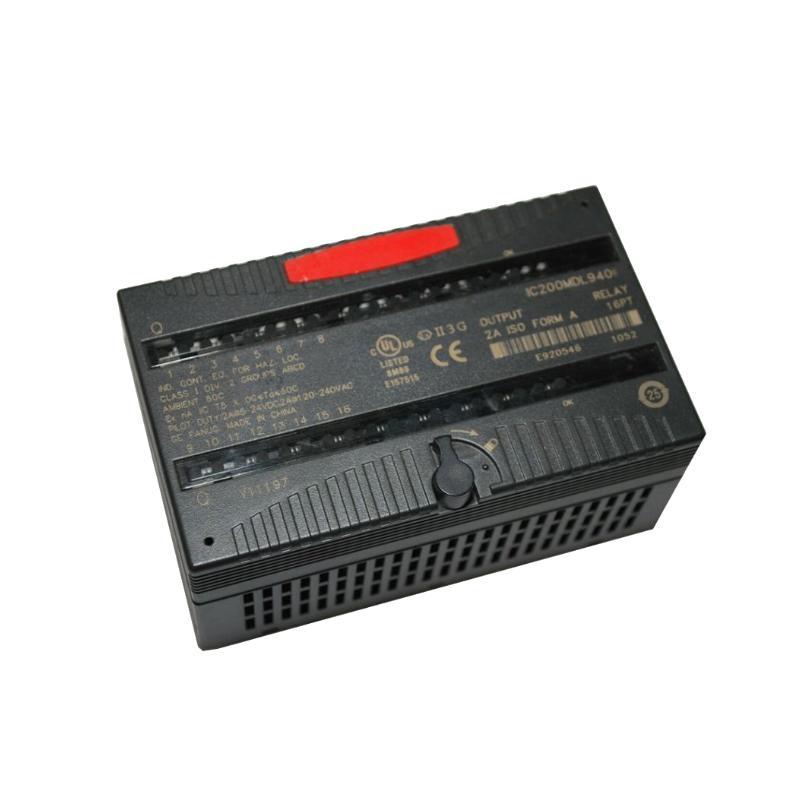

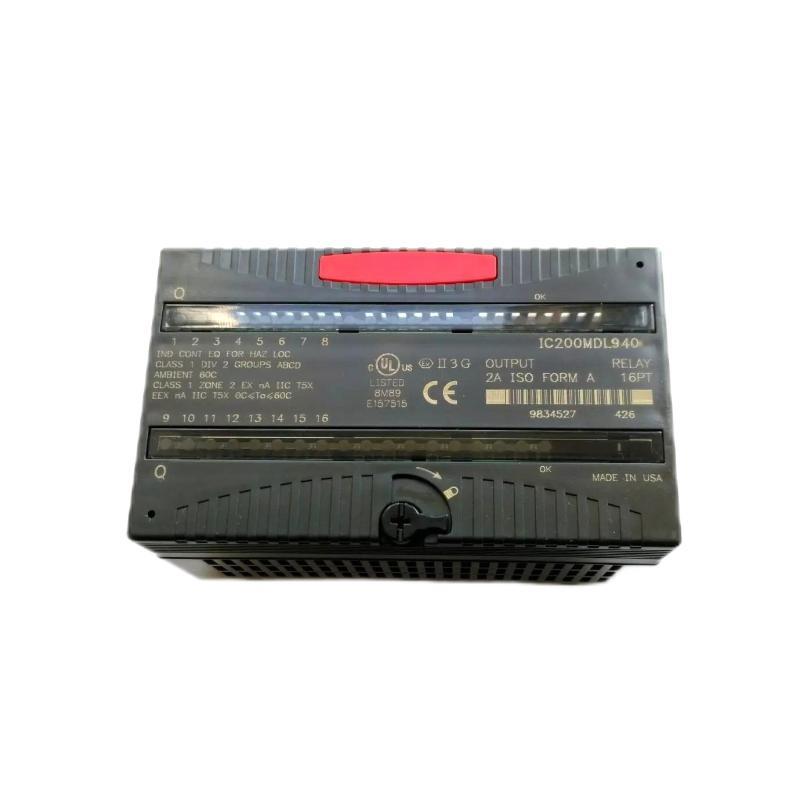

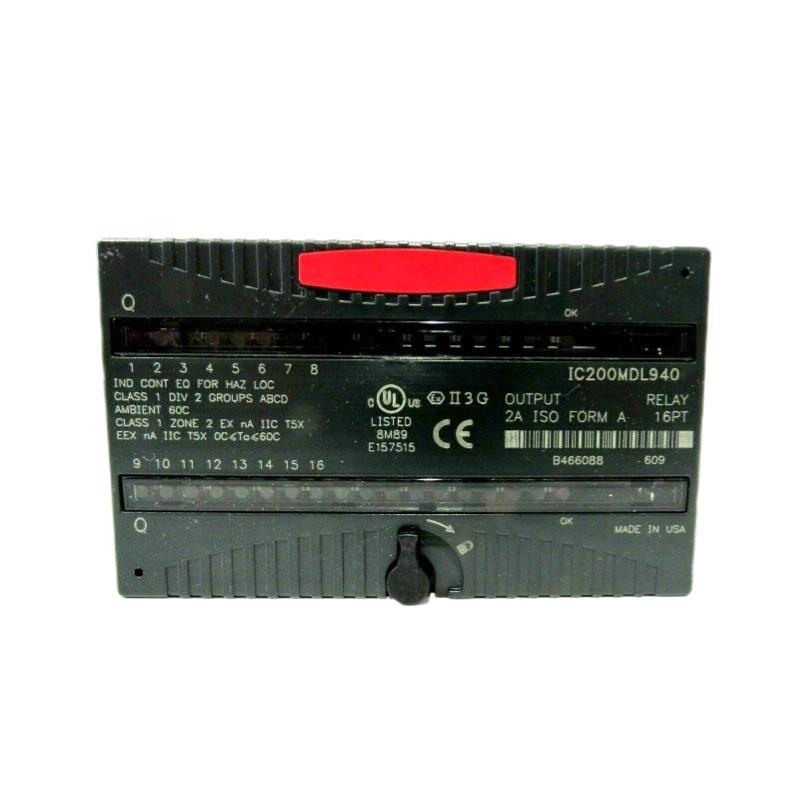

The GE IC200MDL940 is a 16-point relay output module that belongs to the VersaMax I/O family, designed for industrial automation applications. This module is equipped with electromechanical relays, allowing it to control a wide range of AC and DC loads. It is suitable for interfacing with high-power devices such as solenoids, motors, lamps, and relays. The IC200MDL940 provides isolated outputs and features both normally open (NO) and normally closed (NC) relay contacts, ensuring versatility in control applications.
With its rugged construction, wide voltage compatibility, and flexible installation options, the IC200MDL940 is ideal for demanding industrial environments. The module integrates seamlessly into VersaMax PLC systems, making it an essential component in factory automation, process control, and machine monitoring applications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Series | VersaMax |
| Model | IC200MDL940 |
| Type | Relay Output Module |
| Number of Outputs | 16 (Electromechanical Relays) |
| Output Type | Normally Open (NO) and Normally Closed (NC) |
| Operating Voltage | 5 to 30 VDC, 5 to 250 VAC |
| Maximum Output Current | 2A per point (Resistive Load) |
| Response Time | 10 ms (ON), 10 ms (OFF) |
| Isolation | 1500V between outputs and logic ground |
| Status Indicators | Individual LED indicators per output |
| Terminal Type | Spring clamp or screw-type terminal block |
| Module Dimensions | 110 × 66.8 × 50 mm |
| Weight | 0.508 kg |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL, CE, CSA, RoHS |
Applications
The IC200MDL940 is used in a variety of industrial automation and control systems, including:
-
Manufacturing automation – Controlling motors, solenoids, and actuators.
-
Process control – Interfacing with high-voltage equipment in industries such as oil & gas, chemical processing, and food production.
-
Building management – Controlling lighting, HVAC systems, and access control mechanisms.
-
Power distribution – Switching high-power electrical circuits in energy management applications.
-
Material handling systems – Used in conveyor systems, robotic arms, and automated sorting machines.
Advantages of IC200MDL940
-
Wide Voltage Range – Supports both AC and DC loads, making it versatile for different applications.
-
High Load Capacity – Can handle up to 2A per point, making it suitable for industrial-grade equipment.
-
Reliable Relay Switching – Uses electromechanical relays for robust performance and long operational life.
-
Built-in Status Indicators – Individual LED indicators for each output help in quick troubleshooting and monitoring.
-
Strong Electrical Isolation – Provides 1500V isolation between outputs and logic for enhanced safety.
-
Easy Integration – Fully compatible with VersaMax PLC systems, enabling seamless system expansion.
-
Compact and Durable – Rugged design ensures high durability in harsh industrial environments.
-
Multiple Mounting Options – Can be mounted using DIN rail or panel mounting, allowing flexible installation.
Latest News and Updates
-
“GE Enhances VersaMax Series with New High-Reliability Modules” – Industrial Automation Journal
-
“VersaMax IC200MDL940: A Reliable Relay Output Solution for Modern Factories” – Engineering Insights
-
“GE Fanuc Introduces Next-Gen VersaMax I/O Modules with Enhanced Safety Features” – Automation Today
-
“How VersaMax Relay Output Modules Improve Manufacturing Efficiency” – Industrial Tech Review
Frequently Asked Questions (FAQ)
-
What type of loads can the IC200MDL940 control?
-
The module can control AC and DC loads such as solenoids, lamps, motors, and other electrical devices.
-
-
What is the maximum switching capacity of the relays?
-
The maximum output current is 2A per output with a resistive load.
-
-
Can this module be used for both AC and DC applications?
-
Yes, it supports 5-30VDC and 5-250VAC, making it suitable for a wide range of applications.
-
-
What is the response time of the module?
-
The ON response time is 10 ms, and the OFF response time is also 10 ms.
-
-
Does the IC200MDL940 offer electrical isolation?
-
Yes, it provides 1500V isolation between outputs and logic ground.
-
-
What type of terminals does the module use?
-
It supports spring clamp or screw-type terminal blocks for secure connections.
-
-
How does the module indicate output status?
-
Each output has an LED indicator that shows its operational status.
-
-
What are the installation options for the module?
-
The module can be mounted using DIN rail or panel mounting.
-
-
What safety certifications does the IC200MDL940 have?
-
The module is UL listed, CE marked, CSA certified, and RoHS compliant.
-
-
Can the IC200MDL940 be integrated with other VersaMax modules?
-
Yes, it is fully compatible with the VersaMax I/O system.
-
Related VersaMax Models
| Model | Number of Outputs | Voltage Range | Max Current per Output | Features |
|---|---|---|---|---|
| IC200MDL940C | 16 | 5-250 VAC, 5-30 VDC | 2A | Relay output with NO/NC contacts |
| IC200MDL750D | 32 | 10.2-30 VDC | 0.5A | High-density discrete output |
| IC200MDL740D | 16 | 10.2-30 VDC | 0.5A | Compact digital output module |
| IC200MDL755D | 32 | 10.2-30 VDC | 1A | High current output module |
| IC200MDL741D | 16 | 5-30 VDC | 0.5A | DC discrete output module |
| IC200MDL650 | 32 | 12/24 VDC | 0.5A | Output module with diagnostic features |
| IC200MDL930D | 16 | 5-250 VAC, 5-30 VDC | 2A | Relay output module with increased durability |
| IC200MDL931E | 16 | 5-250 VAC, 5-30 VDC | 2A | Enhanced relay output module |
Popular GE Fanuc Models
| Model | Type | Voltage Range | Features |
|---|---|---|---|
| IC200ALG620 | Analog Input Module | 12/24 VDC | High-precision analog input |
| IC200MDL640 | Discrete Output Module | 10.2-30 VDC | Compact and efficient design |
| IC200PNS001 | Network Interface | 12/24 VDC | VersaMax communication module |
| IC200CPU001 | CPU Module | 10.2-30 VDC | Central processing unit |
| IC200PWR101 | Power Supply | 10.2-30 VDC | Power module for VersaMax system |
| IC200MDL740D | Discrete Output Module | 10.2-30 VDC | Compact digital output module |
| IC200MDL755D | Discrete Output Module | 10.2-30 VDC | High current industrial output |
| IC200MDL930D | Relay Output Module | 5-250 VAC, 5-30 VDC | Electromechanical relay output |
