Introduction / Engineer’s Insight

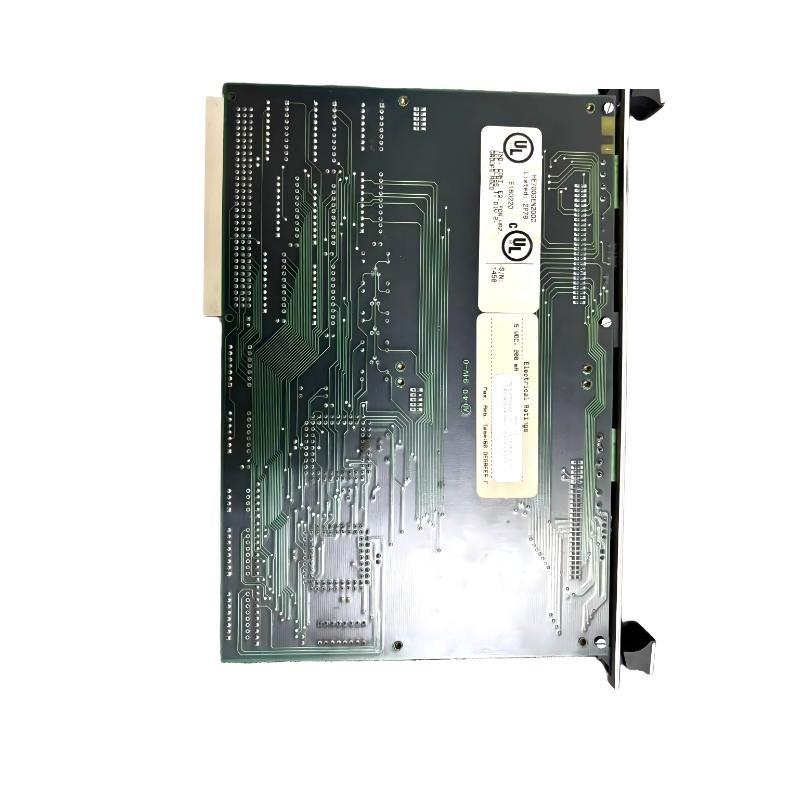

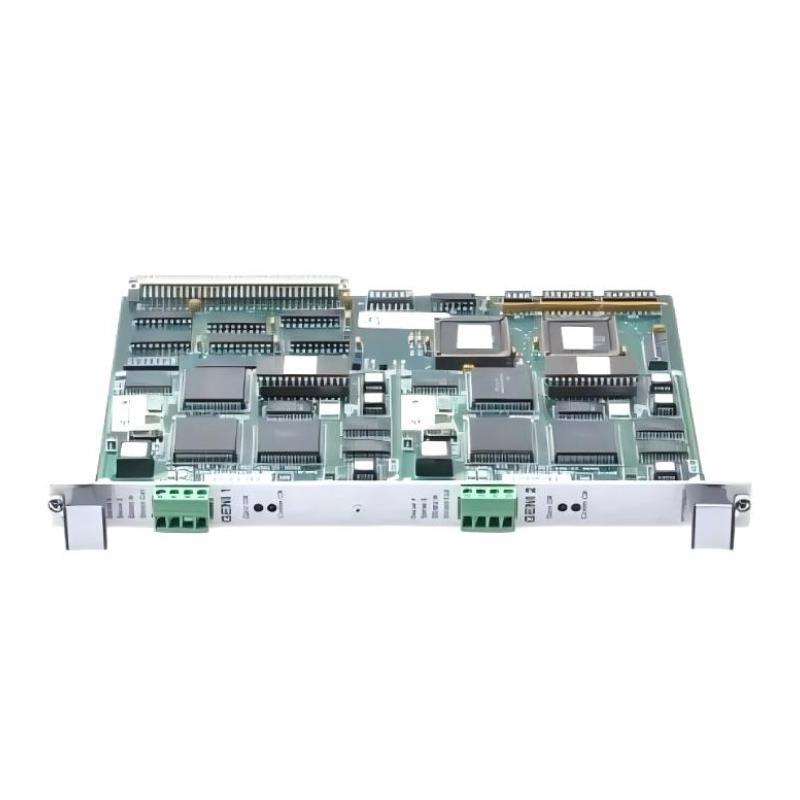

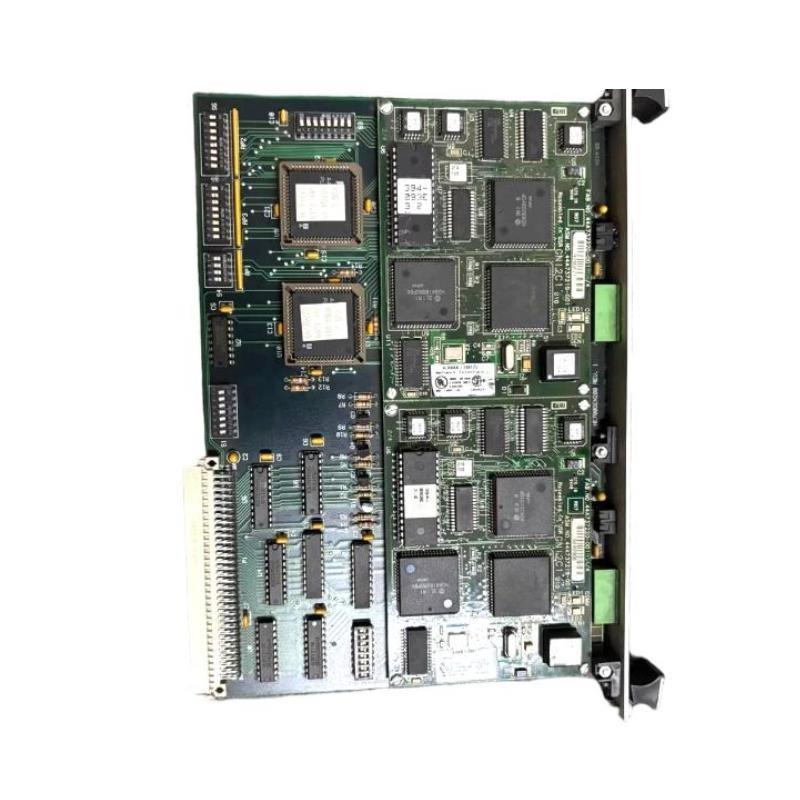

The HE700GEN200 is a dual-channel Genius bus interface module designed for GE Fanuc VME-based automation systems. It provides a bridge between a VME rack and Genius I/O devices, enabling distributed control and seamless I/O expansion. For engineers working on legacy or embedded systems, this module is valued for its configurability, reliable communication, and compatibility with GE’s Genius architecture.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | HE700GEN200 |
| Module Type | Dual-Channel Genius Interface Module |
| Platform Compatibility | GE Fanuc VME + Genius I/O |
| Bus / Protocol | Genius Bus |
| Power Supply | +5 V DC |
| Supply Current | ~200 mA |
| Configuration Method | DIP switches for addressing and mode |

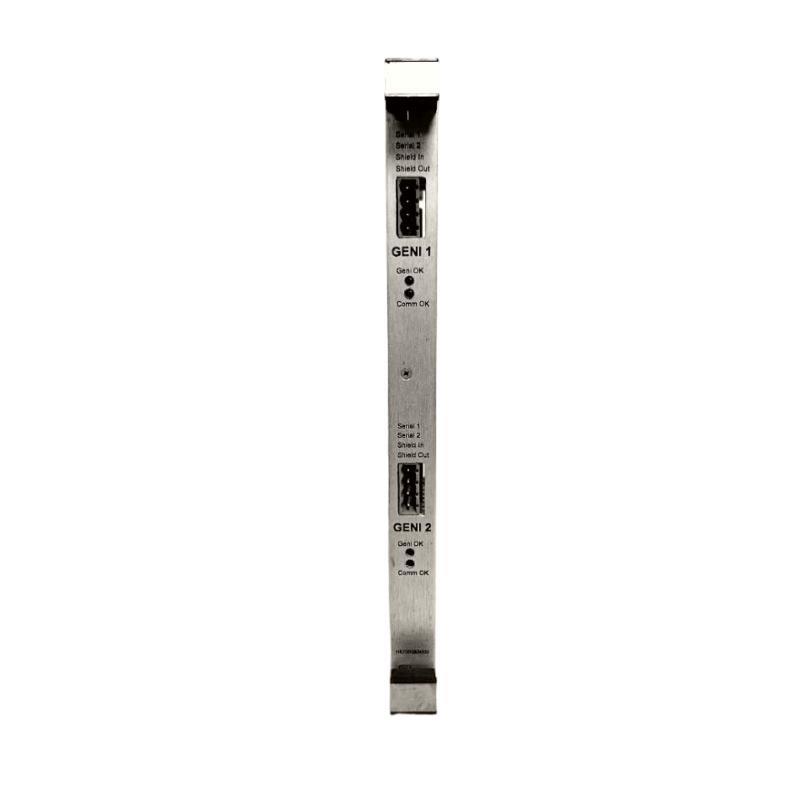

| Connector Type | Screw-type terminal connector on front panel |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Isolation | Isolation between logic and field (via designed interface) |
| Typical Dimensions | ≈ 120 mm × 80 mm × 40 mm (module body) |
| Weight | ≈ 0.21 kg |
Applications / Use Cases
-
Interfacing VME-based PLC or controller systems with Genius I/O modules
-
Distributed control in industrial applications where remote I/O needs to be bridged to central automation logic
-
Legacy system maintenance and modernization where Genius I/O remains deployed
-
Automated machinery running on embedded or VME-based control that requires deterministic I/O communications
-
Process applications requiring robust backplane communication and signal expansion
Advantages / Key Features
-
Dual-Channel Capability: Supports two independent Genius bus channels to manage multiple I/O segments.
-
Stable Communication: DIP switch configuration allows flexible addressing and bus management.
-
Robust Build: Screw-type connectors and solid mechanical design ensure reliable installation in harsh environments.
-
Low Power Consumption: Requires only +5 V DC with modest current, minimizing power draw on the rack.
-
Modular Integration: Fits directly into GE Fanuc VME backplane, making it suitable for systems using VME racks and Genius I/O.
-
Legacy Support: Enables continued use of Genius I/O architecture without changing controllers.
