Product Overview

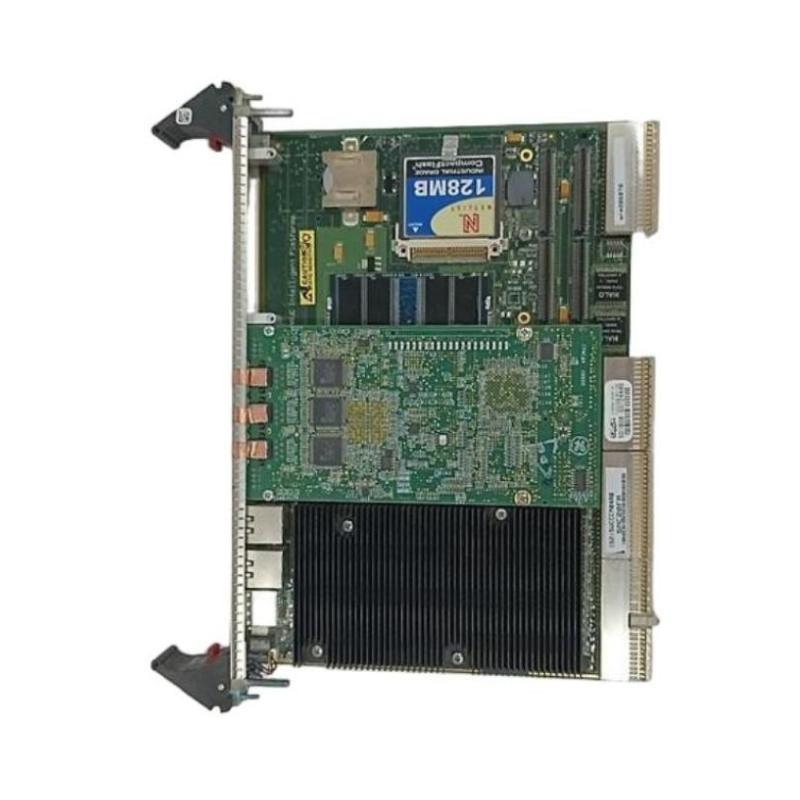

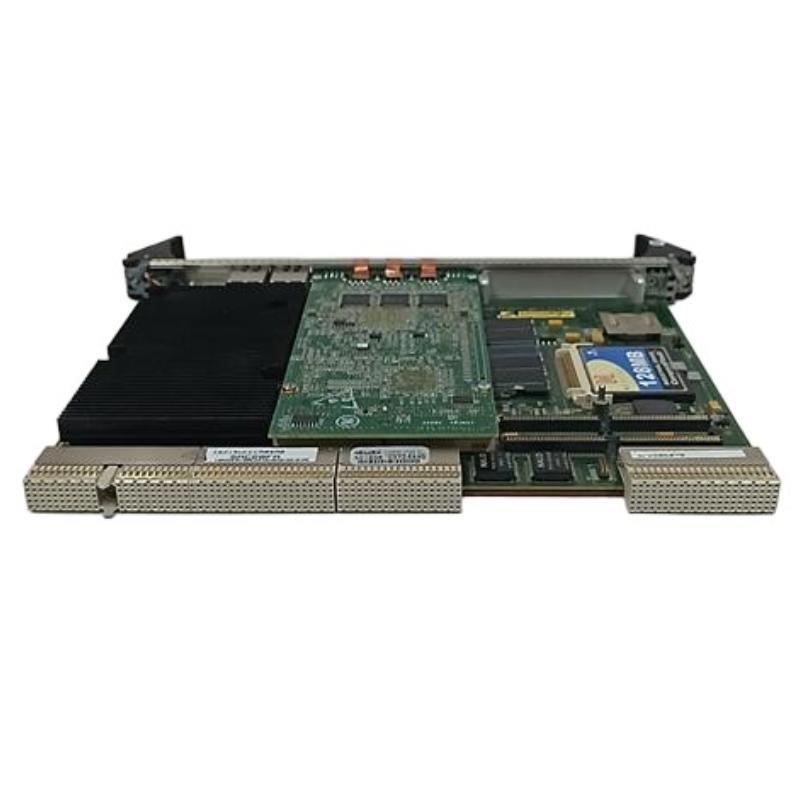

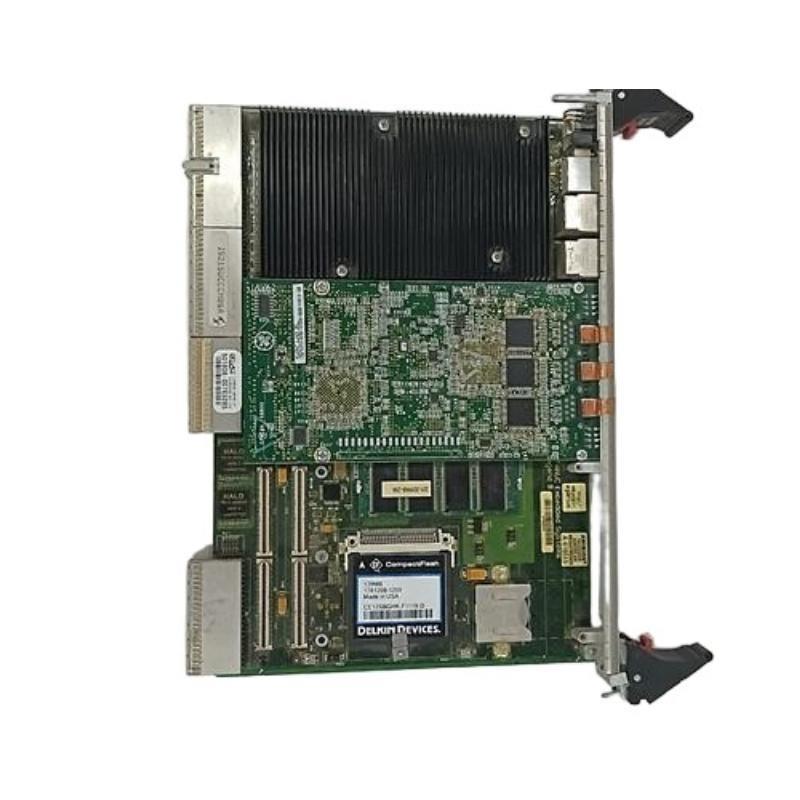

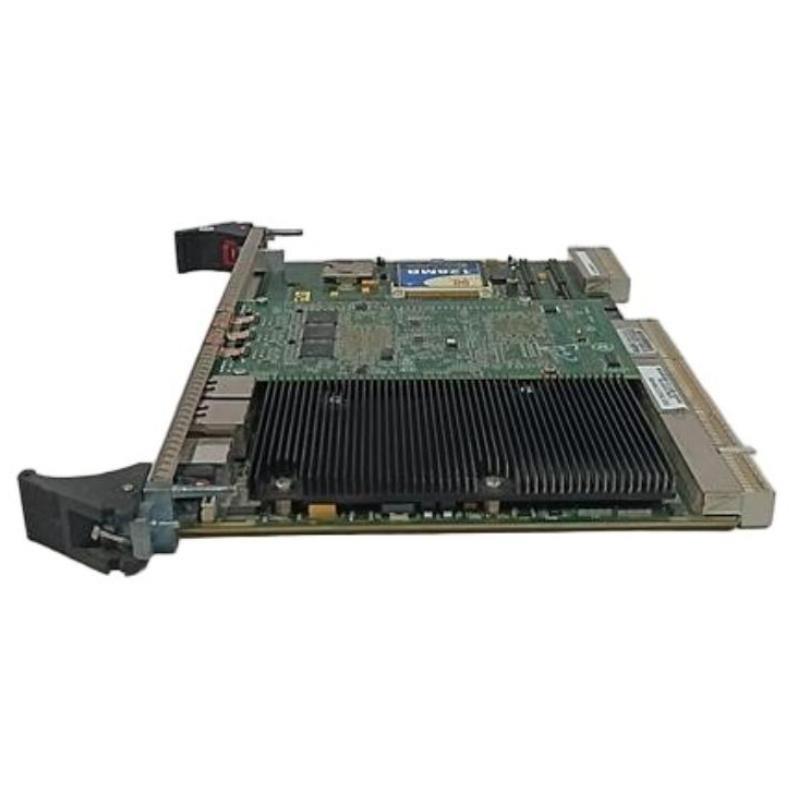

The GE Fanuc IS215UCCCM04A is a Compact PCI (cPCI) Controller Board designed for use within the GE Mark VIe turbine control system. It acts as the central processing and communication controller, enabling high-speed data handling, system coordination, and interface with I/O modules.
Key Features
-
CompactPCI-based controller for GE Mark VIe control systems
-
Provides high-speed data processing and communication
-
Interfaces seamlessly with GE turbine I/O modules
-
Rugged and reliable design for industrial use
-
Supports system redundancy for improved reliability
-
Hot-swappable in supported cPCI racks
-
Advanced diagnostics and event logging
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | IS215UCCCM04A |
| Type | Compact PCI Controller Board |
| System Compatibility | GE Mark VIe turbine control systems |
| Processor | Intel-based embedded CPU (optimized for control) |
| Memory | Onboard SDRAM and flash memory |
| Communication Interfaces | Ethernet, serial, CompactPCI backplane |
| Redundancy | Supported in redundant configurations |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 175 × 105 × 20 mm |
| Weight | 0.45 kg |
| Compliance | CE, UL, RoHS |
Industry Applications
-
Power Generation – gas and steam turbine control
-
Oil & Gas – compressor and turbine-driven equipment control
-
Petrochemical & Chemical – process control and turbine automation
-
Industrial Utilities – combined cycle and cogeneration plants
-
Marine & Transportation – propulsion and auxiliary turbine systems
Advantages
-
Provides centralized control and communication for GE Mark VIe systems
-
CompactPCI design ensures modularity and scalability
-
Supports hot-swap capability for minimal downtime
-
Rugged construction for harsh industrial environments
-
Enhances system reliability with redundancy support
-
Advanced diagnostics reduce maintenance time and costs
Frequently Asked Questions (FAQ)
Q1: What is the function of the IS215UCCCM04A?
It acts as a CompactPCI controller board for processing and communication in GE Mark VIe turbine control systems.
Q2: Which systems is it compatible with?
It is designed for GE Mark VIe control platforms.
Q3: Does it support redundancy?
Yes, it can be used in redundant controller configurations.
Q4: What communication interfaces are available?
Ethernet, serial ports, and CompactPCI backplane connections.
Q5: What is the operating temperature range?
0 °C to +60 °C.
Q6: Can it be hot-swapped?
Yes, in supported cPCI racks, it supports hot-swap replacement.
Q7: What is the processor type?
An Intel-based embedded CPU optimized for real-time control.
Q8: What are the physical dimensions?
Approx. 175 mm × 105 mm × 20 mm.
Q9: What is the weight?
Approx. 0.4 kg.
Q10: Which industries use this module?
Power Generation, Oil & Gas, Petrochemical, Industrial Utilities, and Marine.
Related GE Fanuc Modules
| Model Number | Description |
|---|---|
| IS215VCMIH2CA | Communication Interface Board |
| IS220PAICH2B | Analog Input/Output Module |
| IS220PAOCH1A | Analog Output Module |
| IS215AEPAH1C | Turbine Control Panel |
| IS200TRPGH1BCC | Terminal Relay Board |
Popular GE Fanuc Modules
| Model Number | Description |
|---|---|
| IC200MDL740 | Digital Output Module |
| IC200ALG223 | Analog Input Module |
| IC200PWR002 | Power Supply Module |
| IC200CHS002 | I/O Chassis |
| IC752SPL013-BA | Excitation Control Interface Panel |
