Product Overview

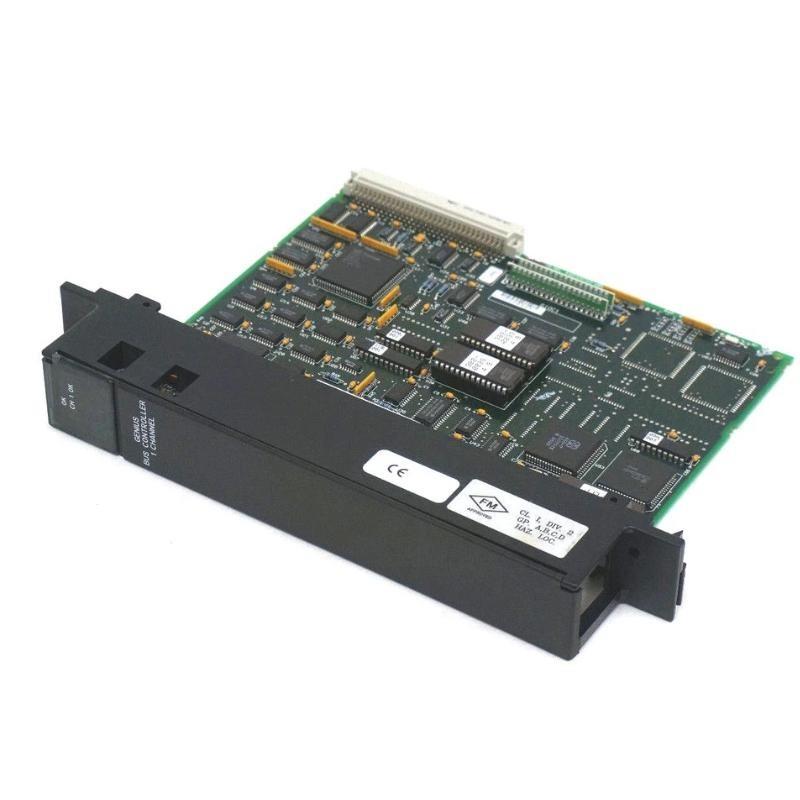

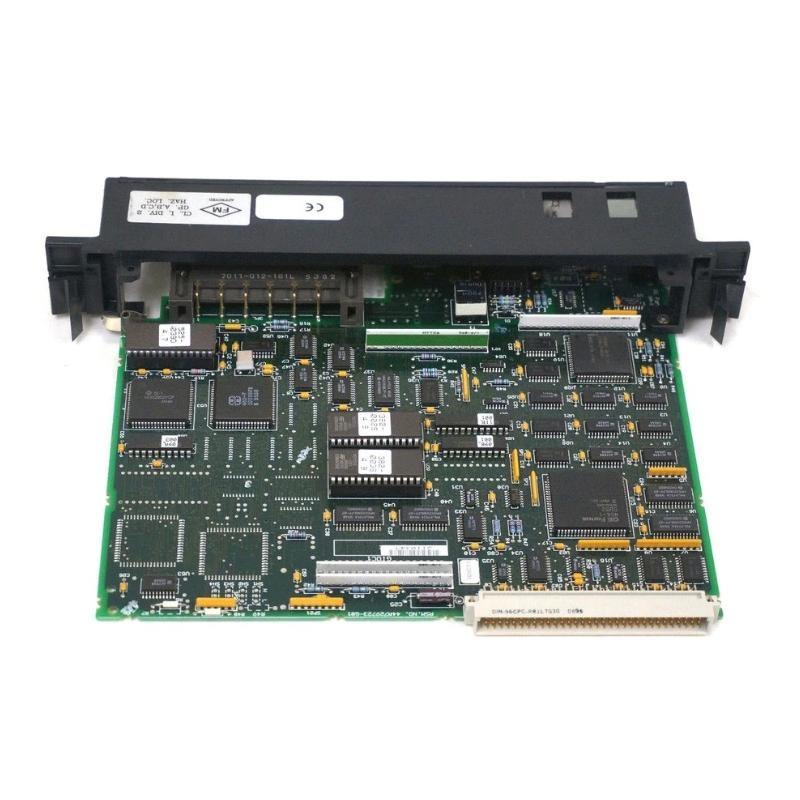

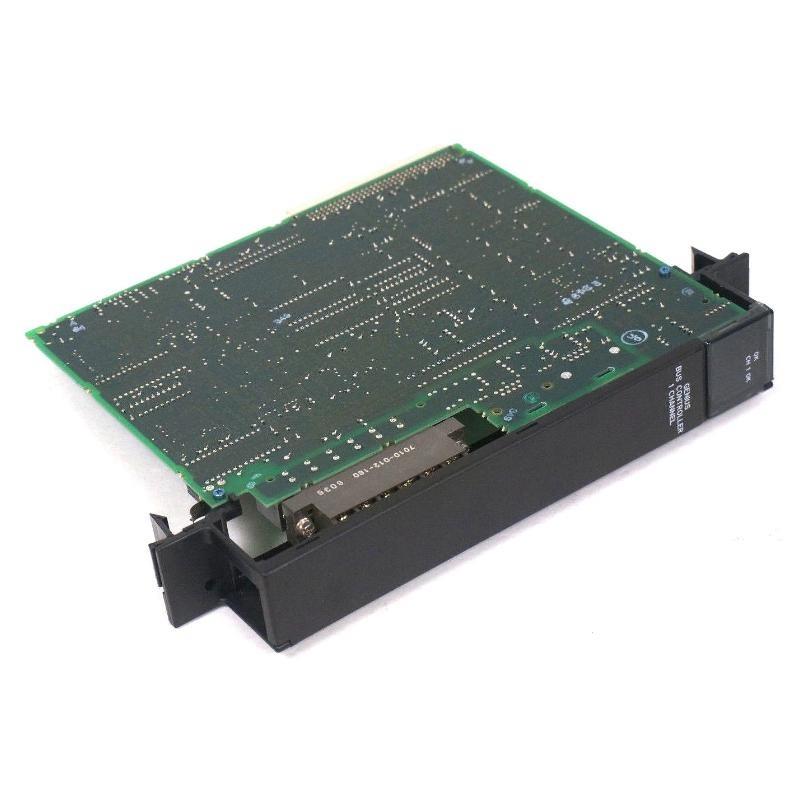

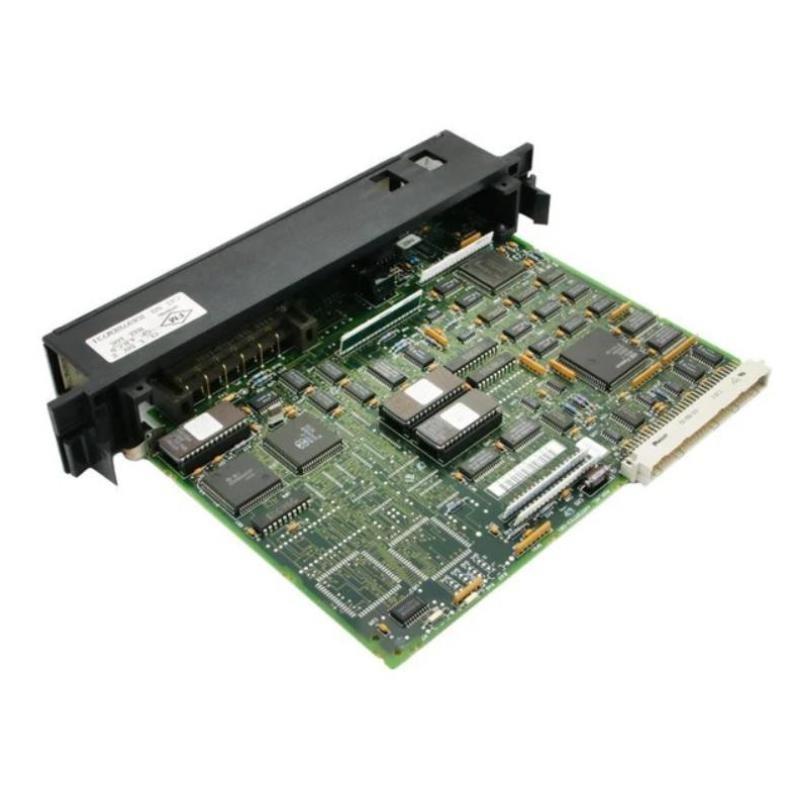

The GE Fanuc IC697BEM731 Bus Controller Module is a high-performance communication module designed for use with the GE Series 90-70 PLC systems. It enables efficient and reliable data exchange between the PLC and remote I/O devices through a Genius I/O bus network.
Key Features
-
Fully compatible with GE Series 90-70 PLC systems
-
Provides communication over the Genius I/O bus network
-
Supports connection of multiple remote I/O nodes
-
Built-in diagnostic LEDs for link, fault, and status indication
-
High-speed data communication and error detection
-
Reduces wiring complexity in large automation systems
-
Compact, rack-mounted design for easy integration
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC697BEM731 |
| Type | Bus Controller Module |
| Supported System | GE Fanuc Series 90-70 PLC |
| Communication Protocol | Genius I/O Network |
| Number of Channels | 1 main communication bus |
| Communication Speed | Up to 153.6 kbps |
| Bus Length | Up to 750 meters (depending on cable type) |
| Power Requirements | +5 VDC, 1.5 A (typical) |
| Indicators | Module OK, Bus Active, Fault, and Data LEDs |
| Mounting | Standard rack mount (Series 90-70 base) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 206.4 × 49.8 × 158.5 mm |
| Weight | 1.5 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the IC697BEM731 module?
It serves as a bus controller, enabling communication between the Series 90-70 PLC and remote I/O devices through the Genius I/O network.
2. Which GE PLC systems is this module compatible with?
It is designed specifically for GE Fanuc Series 90-70 PLC systems.
3. What communication protocol does the module use?
The IC697BEM731 uses the Genius I/O network communication protocol.
4. How many I/O devices can be connected to one module?
It supports multiple remote I/O nodes, depending on the network configuration and bus length.
5. What is the typical power consumption?
The module typically consumes +5 VDC at approximately 1.5 A.
6. What diagnostic features are available?
It includes LEDs for module status, bus activity, fault indication, and data transfer monitoring.
7. What is the operating temperature range?
It operates reliably between 0 °C and +60 °C.
8. How is this module installed?
It mounts directly into a Series 90-70 PLC rack using standard backplane connectors.
Related GE Fanuc Models
| Model | Description |
|---|---|
| IC697BEM711 | Bus Receiver Module for GE 90-70 PLC |
| IC697BEM713 | Genius Bus Controller Module |
| IC697BEM721 | I/O Link Interface Module |
| IC697BEM733 | Redundant I/O Communication Module |
| IC697BEM735 | Extended Communication Interface Module |
| IC697BEM750 | Fiber Optic Communication Interface Module |
Popular GE Fanuc Models
| Model | Description |
|---|---|
| IC697CPU772 | Series 90-70 CPU Module |
| IC697ALG230 | Analog Input Basic Converter Module |
| IC697ALG321 | Analog Input Module |
| IC697BEM711 | Bus Receiver Module |
| IC697MDL340 | 32-Point Discrete Input Module |
| IC697MDL940 | 32-Point Discrete Output Module |
