Product Overview

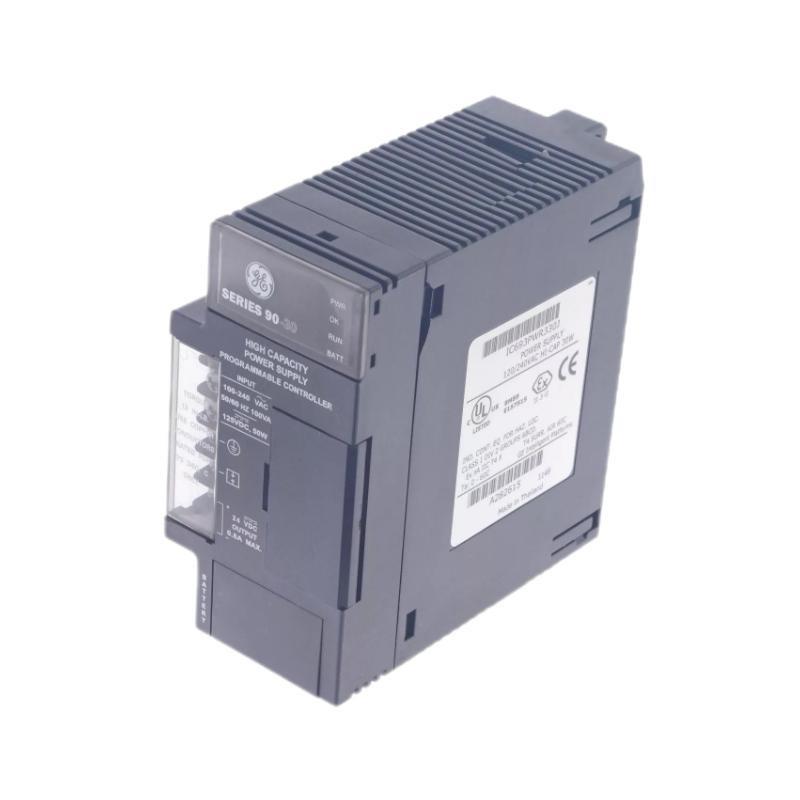

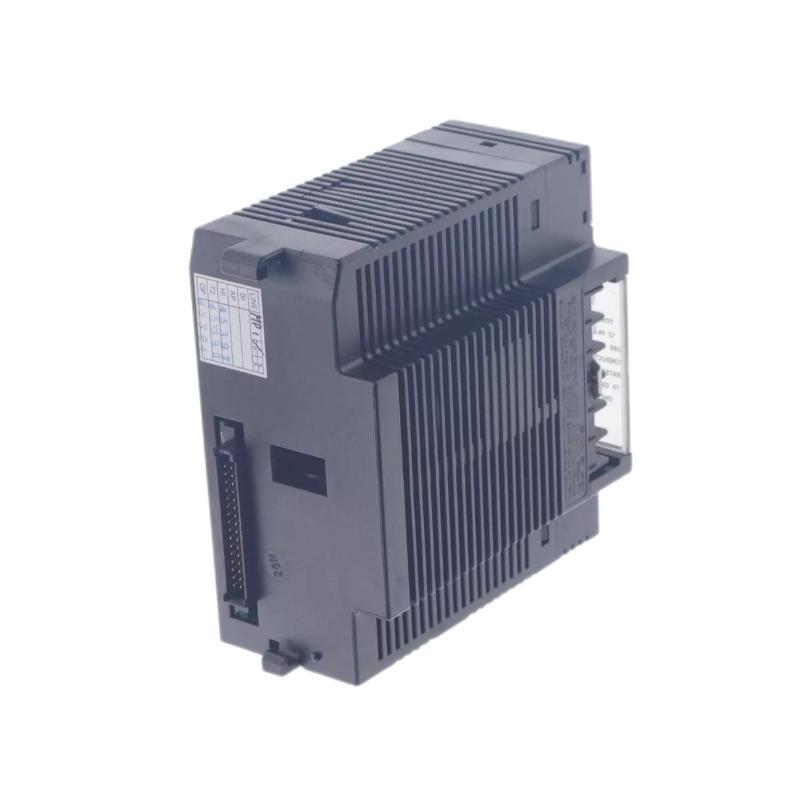

The GE Fanuc IC693PWR330J Power Supply Module is a high-capacity power supply specifically designed for use with the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This reliable module provides stable and regulated power for the PLC CPU, I/O modules, communication interfaces, and other devices mounted within the Series 90-30 rack system.
The IC693PWR330J offers enhanced output current capacity compared to standard power supplies, making it ideal for large-scale or high-load control systems requiring consistent and dependable power. Its robust construction and built-in protection features ensure long-term reliability in demanding industrial environments such as manufacturing, utilities, energy, and infrastructure.
Key Features
-
High-Output Power Supply: Provides increased output current for larger PLC systems
-
Wide Input Voltage Range: Supports both AC and DC input power sources
-
Multiple Regulated Outputs: Supplies both 5 VDC and 24 VDC power for system components
-
Overload and Short-Circuit Protection: Built-in safety mechanisms protect connected devices
-
Diagnostic LEDs: Visual indicators for monitoring power status and system faults
-
Full Series 90-30 Compatibility: Seamless integration with GE Fanuc Series 90-30 baseplates and modules
-
Durable Industrial Design: Built to withstand harsh operating conditions
-
Global Certifications: Compliant with international safety and performance standards
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | High-Capacity Power Supply Module |
| Brand | GE Fanuc |
| Model Number | IC693PWR330J |
| Compatible PLC Series | GE Fanuc Series 90-30 |
| Input Voltage Range | 85 to 264 VAC or 125 VDC |
| Input Frequency | 47 to 63 Hz (AC operation) |
| Output Voltage | 5 VDC and 24 VDC regulated outputs |
| Output Current Capacity | 5 VDC @ 4 A, 24 VDC @ 0.4 A |
| Power Consumption | Up to 32 W maximum |
| Isolation | 1500 V RMS input-to-output isolation |
| Protection Features | Overvoltage, overload, and short circuit protection |
| Diagnostics | LED indicators for power status and fault conditions |
| Operating Temperature Range | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA compliant |
| Dimensions | 129 x 52 x 117 mm |
| Weight | 0.544 kg |
| Mounting | Rack-mounted in Series 90-30 baseplates |
Industry Applications
The IC693PWR330J Power Supply Module is widely used across industries where stable, high-output power is critical:
-
Manufacturing Automation: Supports power requirements for complex production and assembly lines
-
Energy and Power Generation: Supplies reliable power to control systems for turbines, generators, and substations
-
Oil & Gas Industry: Provides power to large-scale field control systems, including monitoring and safety devices
-
Water & Wastewater Treatment: Ensures stable power for pump control, valve operation, and environmental monitoring
-
Transportation and Infrastructure: Delivers consistent power for traffic control, railway systems, and tunnel monitoring
-
Chemical Processing: Supports continuous operation of process control equipment and instrumentation
Product Advantages
-
High Output Capacity: Meets the power demands of large or heavily loaded PLC systems
-
Dual Output Voltages: Supplies both 5 VDC for logic circuits and 24 VDC for peripheral devices
-
Wide Input Voltage Support: Operates on a broad range of AC or DC power sources
-
Comprehensive Protection: Safeguards against overload, short circuits, and overvoltage conditions
-
Space-Efficient Modular Design: Compact form factor optimizes rack space usage
-
Easy System Integration: Fully compatible with GE Fanuc Series 90-30 PLC baseplates and modules
-
Visual Diagnostics: LED status indicators simplify system monitoring and fault detection
-
Robust Industrial Durability: Reliable performance in harsh operating environments
-
Global Compliance: Certified to international safety standards (CE, UL, CSA)
-
Long Service Life: Engineered for extended operation with minimal maintenance requirements
Frequently Asked Questions (FAQ)
-
What is the primary function of the IC693PWR330J module?
It provides regulated power to GE Fanuc Series 90-30 PLC CPUs, I/O modules, and other system components. -
What are the input power requirements?
The module accepts 85 to 264 VAC or 125 VDC input voltage. -
What output currents does the IC693PWR330J provide?
It supplies 5 VDC at 4 A and 24 VDC at 0.4 A. -
Is the module protected against electrical faults?
Yes, it includes overvoltage, overload, and short-circuit protection. -
Does the module offer diagnostic functions?
Yes, LED indicators display power status and fault conditions. -
Can it be used with other Series 90-30 modules?
Yes, it is fully compatible with all GE Fanuc Series 90-30 PLC components. -
What industries commonly use the IC693PWR330J?
Industries include manufacturing, energy, oil & gas, water treatment, and infrastructure. -
What environmental conditions can the module operate in?
It operates within 0°C to +60°C and 5% to 95% humidity, non-condensing. -
Is the power supply certified for international use?
Yes, it meets CE, UL, and CSA standards. -
Is the installation process complex?
No, the rack-mounted design allows for easy and secure integration.
Recommended Related Models
| Model Number | Description |
|---|---|
| IC693PWR321Y | Standard Power Supply Module for Series 90-30 |
| IC693PWR322 | Extended Output Power Supply for Specialized Applications |
| IC693CPU374 | High-Performance CPU Module with Ethernet Port |
| IC693MDL645 | 16-Point AC Digital Output Module |
| IC693MDL734 | 32-Point DC Digital Input Module |
| IC693ALG222E | 8-Channel Analog Input Module for Voltage/Current Signals |
Popular GE Fanuc Models
| Model Number | Description |
|---|---|
| IC693ALG223 | 4-Channel Analog Output Module for Process Control |
| IC693CPU350-EJ | Mid-Range Single Slot CPU Module |
| IC693APU300 | High-Speed Counter Module for Precision Applications |
| IC693PCM301 | Communication Coprocessor Module |
| IC693ALG392 | High-Resolution Analog Output Module |
| IC693CPU364 | CPU Module with Integrated Ethernet Capability |
