Product Overview

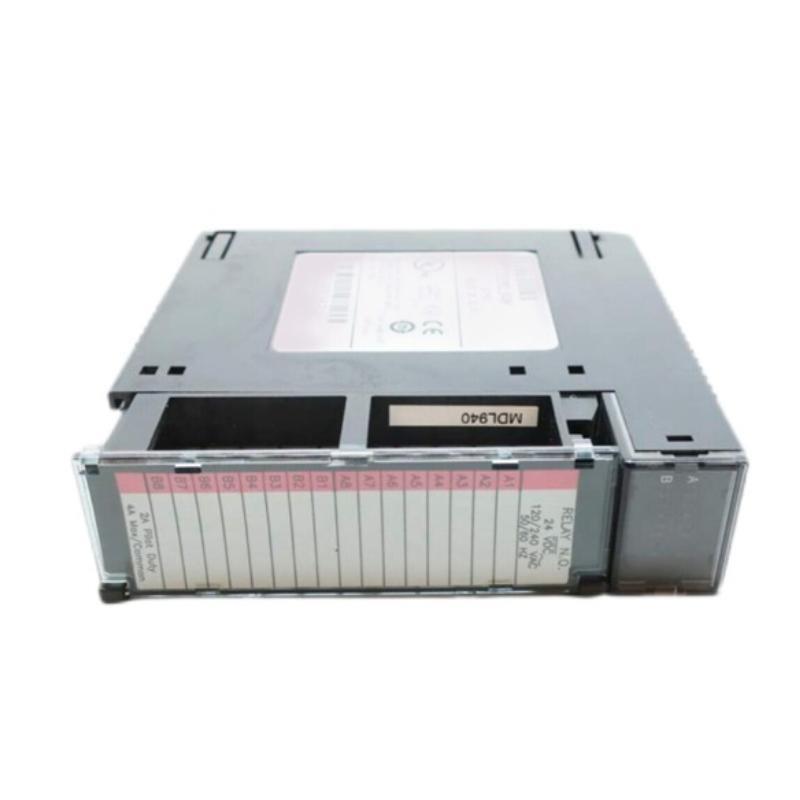

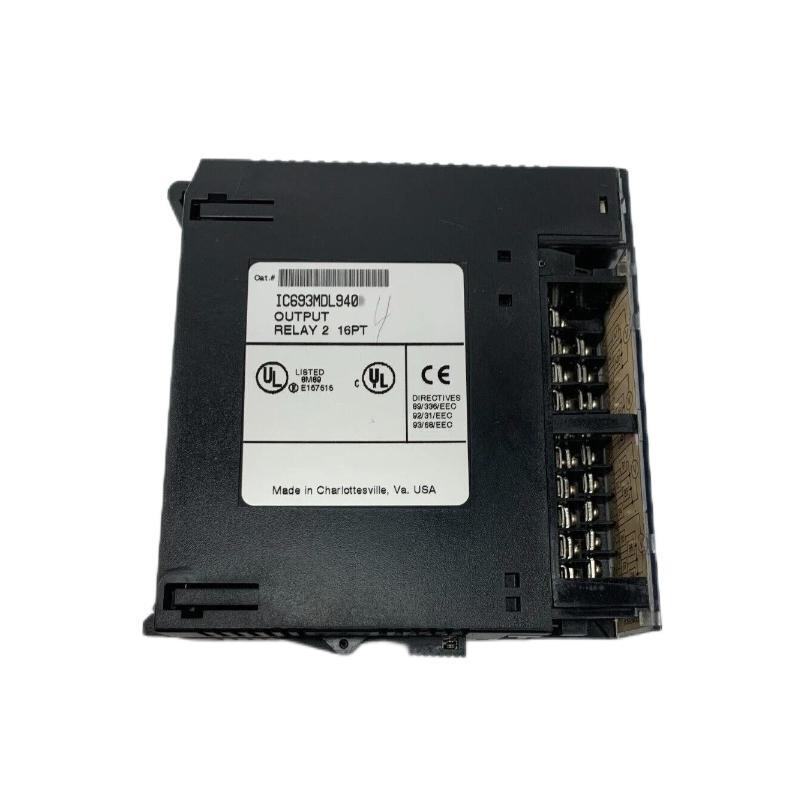

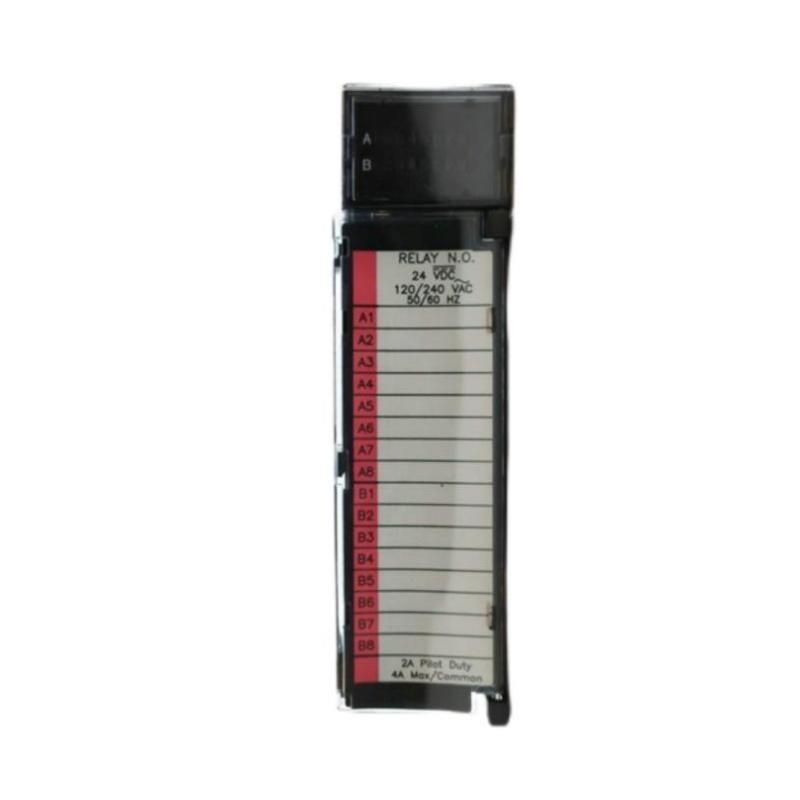

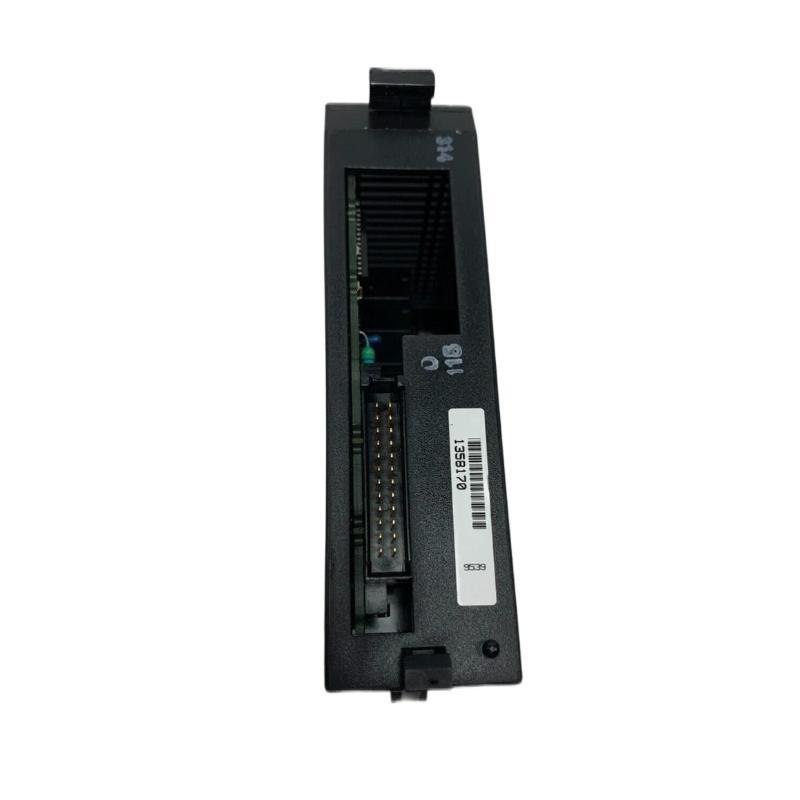

The GE Fanuc IC693MDL940 is a Relay Output Module designed for use with the GE Fanuc Series 90-30 PLC system. This module provides 16 relay output channels, which can be used for controlling various types of equipment, such as motors, lights, and alarms, in industrial automation applications. The module supports dry contact relay outputs, which are capable of switching both AC and DC loads, offering a flexible and reliable solution for field control in a wide range of industries.
The IC693MDL940 provides comprehensive individual relay diagnostics, allowing users to monitor the operational status of each output. It is designed for easy installation within a GE Fanuc PLC system and is equipped with optical isolation to protect the system from external electrical noise and surges. The module can be used in both sourcing and sinking applications, providing versatility for diverse automation systems.
Key Features
-
16 Relay Output Points: Capable of switching both AC and DC loads, providing versatility for various field control applications.
-
Dry Contact Outputs: Each relay output provides dry contact closure, suitable for controlling a variety of field devices, including motors, solenoids, and alarms.
-
Optical Isolation: Provides electrical isolation to protect against voltage spikes and electrical noise, ensuring safe operation in industrial environments.
-
Diagnostic LEDs: Each relay is equipped with diagnostic LEDs for real-time monitoring and troubleshooting, improving system uptime.
-
Compact Design: The module is designed for easy installation in the GE Fanuc Series 90-30 PLC system, saving valuable space in control panels.
-
Flexible Operation: Compatible with both AC and DC field devices, making it ideal for a wide range of industrial applications.
-
Rated for Harsh Environments: The IC693MDL940 is built to perform reliably in challenging industrial conditions, providing robust control for automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IC693MDL940 |
| Product Type | Relay Output Module |
| Number of Outputs | 16 Points |
| Relay Type | Dry Contact, SPDT (Single Pole Double Throw) |
| Relay Contact Rating | 5 A at 240 VAC / 5 A at 30 VDC |
| Output Voltage | 5 to 240 VDC or VAC (AC/DC loads) |
| Backplane Current Draw | 100 mA maximum |
| Relay Isolation | Optical Isolation between relay contacts and PLC |
| LED Indicators | 16 individual status LEDs for each output |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | 92 x 118 x 22 mm |
| Weight | 0.2 kg |
| Wiring Method | Screw terminal block |
| Response Time | <10 ms |
| Protection | Overcurrent and short-circuit protection for each relay |
Industry Applications
The GE Fanuc IC693MDL940 Relay Output Module is suitable for a variety of industrial applications, including:
-
Manufacturing Automation: Ideal for controlling motors, actuators, conveyors, and other industrial machines in production lines.
-
Energy Management: Controls relays in energy distribution systems, providing reliable switching for generators, transformers, and circuit breakers.
-
Water and Wastewater Treatment: Manages pumps, solenoids, and valves for water treatment plants and wastewater management systems.
-
Building Automation: Used in lighting systems, HVAC control, and security alarms within building management systems.
-
Oil & Gas: Controls relays for pumps, valves, and safety equipment in remote oil drilling operations.
-
Transportation Systems: Provides control for traffic lights, signals, and gate operations in transportation applications.
Product Advantages
-
High Switching Capacity: With a 5 A contact rating at 240 VAC, the IC693MDL940 can handle a wide range of field devices.
-
Dry Contact Operation: The relay outputs provide dry contact closures, suitable for switching both AC and DC loads.
-
Optical Isolation: Protects the PLC system from electrical noise and voltage surges, ensuring reliable operation in harsh environments.
-
Real-Time Monitoring: The individual status LEDs for each relay output provide instant feedback for troubleshooting, reducing downtime.
-
Easy Integration: The compact design makes it easy to integrate into a GE Fanuc Series 90-30 PLC system, requiring minimal space.
-
Flexible Field Control: Supports both AC and DC devices, making it suitable for a wide range of industrial automation applications.
Frequently Asked Questions (FAQ)
-
Q: How many relay outputs are available on this module?
A: The IC693MDL940 module provides 16 relay outputs. -
Q: Can the relays handle both AC and DC loads?
A: Yes, the relays can handle both AC and DC field devices. -
Q: What is the maximum current rating for each relay?
A: Each relay contact is rated for 5 A at 240 VAC or 5 A at 30 VDC. -
Q: What type of protection does this module provide?
A: The module provides overcurrent and short-circuit protection for each relay output. -
Q: How is the module wired?
A: The module uses screw terminal blocks for wiring, making installation simple. -
Q: What is the response time of the relay outputs?
A: The relay outputs have a response time of less than 10 ms. -
Q: Can the IC693MDL940 module be used in high-temperature environments?
A: Yes, the operating temperature range is 0°C to 60°C (32°F to 140°F), and it can be stored between -40°C and 85°C (-40°F to 185°F). -
Q: Is the module isolated from the PLC?
A: Yes, the module provides optical isolation between the relay contacts and the PLC, protecting the system from external electrical noise. -
Q: How do I troubleshoot this module?
A: The module features individual diagnostic LEDs for each relay, allowing easy monitoring and troubleshooting. -
Q: Can the IC693MDL940 module be used with GE Fanuc Series 90-30 PLC?
A: Yes, the IC693MDL940 is fully compatible with the GE Fanuc Series 90-30 PLC.
