System Integration Overview – Precision Analog Control for PLC Networks

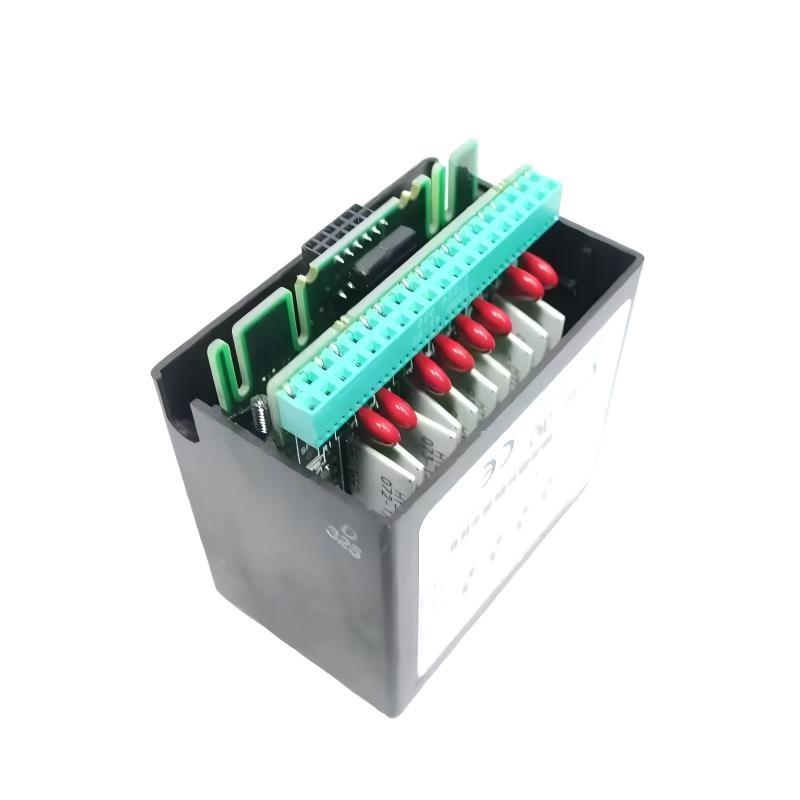

The GE Fanuc IC670ALG620 is a high-performance analog output module engineered for Series 90-70 / RX3i PLC systems. Designed for precise voltage and current outputs, this module is ideal for industrial automation systems requiring fine-grained control of actuators, valves, and instrumentation devices.
From a system integrator’s perspective, the IC670ALG620 provides reliable analog output channels with configurable ranges, seamless integration with GE PLC racks, and fast, deterministic response—making it a core component for distributed control networks.
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Series | Series 90-70 / RX3i |
| Module Type | Analog Output Module |
| Catalog Number | IC670ALG620 |
| Number of Channels | 4 isolated analog outputs |
| Output Types | Voltage (0–10 V) / Current (0–20 mA or 4–20 mA) |
| Resolution | 16-bit D/A conversion |
| Update Rate | 5 ms per channel |
| Accuracy | ±0.1% FS typical |
| Load Impedance | 0–500 Ω for current output, >2 kΩ for voltage output |
| Isolation | Galvanic isolation between channels and backplane |
| Power Supply | 5 V DC from PLC backplane |
| LED Indicators | Channel status and fault |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions (H × W × D) | 130 mm × 35 mm × 110 mm (5.12 in × 1.38 in × 4.33 in) |
| Weight | 0.52 kg (1.15 lb) |
| Mounting Type | PLC rack mount |
| Certifications | CE, UL, cUL, RoHS compliant |
Applications – Industrial Control Networks
The IC670ALG620 is suitable for precise analog control in demanding environments:
-
Process Control Plants – modulating control valves and actuators in chemical, oil & gas, and water treatment facilities.
-
Motion Control – controlling variable speed drives and servo actuators.
-
Energy Management Systems – providing analog signals for distributed monitoring and control.
-
HVAC Systems – regulating temperature and airflow via analog actuators.
-
Instrumentation & Test Benches – precision control for laboratory and industrial test setups.
Its isolated channels and high-resolution outputs ensure reliable performance across distributed PLC architectures.
Advantages – System Integration Perspective
-
Isolated Outputs: Minimizes cross-channel interference and improves signal integrity.
-
High Accuracy: ±0.1% full-scale resolution supports precise analog control.
-
Flexible Output Ranges: Configurable for voltage or current applications.
-
Fast Update Rate: 5 ms per channel supports responsive process control.
-
LED Diagnostics: Real-time channel status and fault monitoring.
-
Compact Design: Saves rack space while supporting four independent analog outputs.
-
Seamless PLC Integration: Works directly with Series 90-70 and RX3i PLC racks.
-
Reliable Industrial Build: Resistant to temperature and humidity variations common in industrial environments.
