Product Introduction

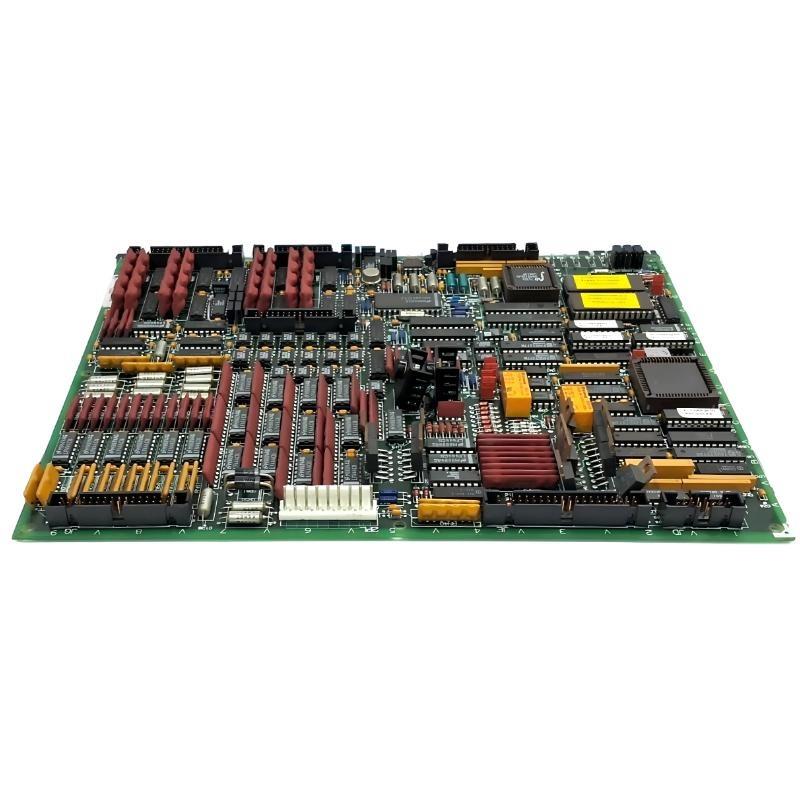

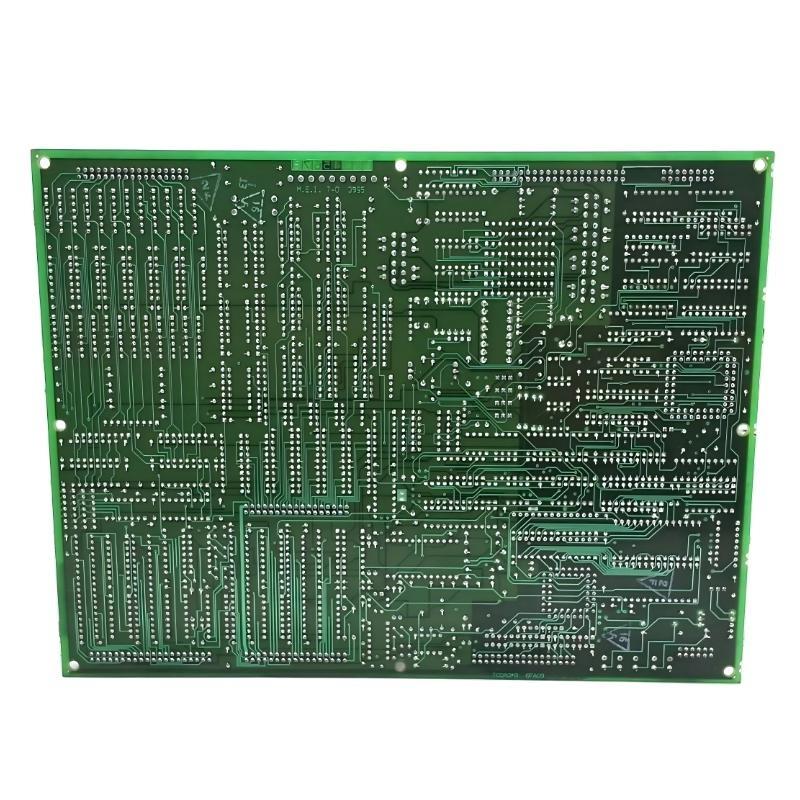

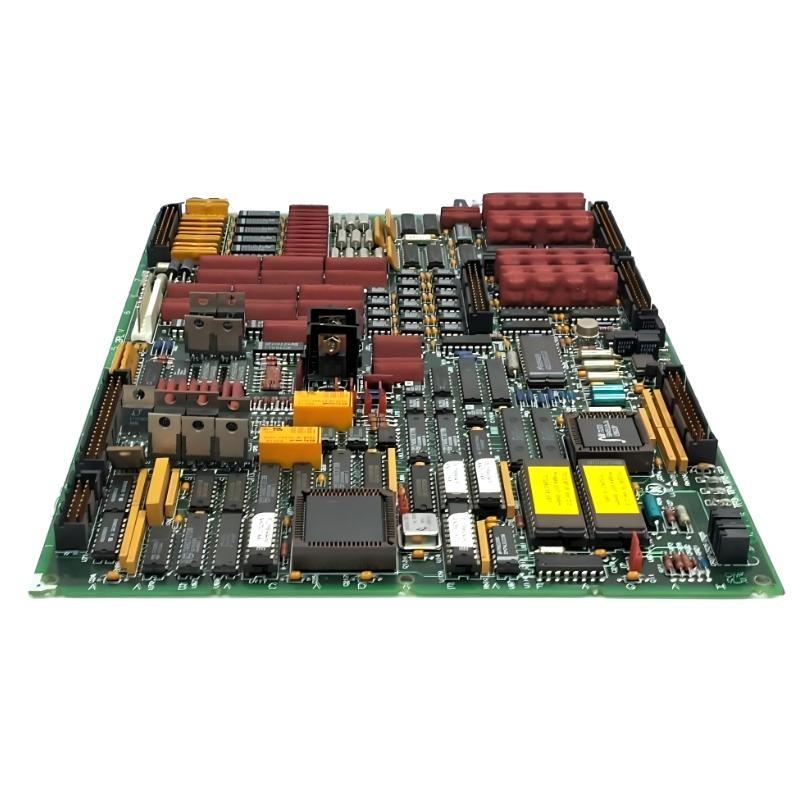

The GE DS215TCQFG1AZZ01A / DS200TCQAG1BGD Analog I/O Board is a high-performance input/output module designed for GE DS200 turbine control systems. It provides analog signal acquisition and output capabilities, enabling precise monitoring and control of turbine and auxiliary process parameters.
This board supports integration with GE DS200 control systems, allowing reliable communication with sensors, actuators, and other field devices. With robust design and industrial-grade components, the DS215TCQFG1AZZ01A ensures accurate and stable analog I/O performance, essential for safe and efficient turbine operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Module Type | Analog I/O Board |
| Compatible Systems | GE DS200 Turbine Control Systems |
| Resolution | High-resolution analog signal processing |
| Response Time | Fast analog response for control loops |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Signal Conditioning | Supports filtering, scaling, and isolation |
| Diagnostics Support | Input/output status monitoring, fault detection |
| Installation Type | Rack-mounted / integrated into DS200 system |
| Compliance | Meets GE turbine safety and control standards |
| Dimensions | 220 × 160 × 25 mm |
| Weight | 0.65 kg |
Applications
• Analog Signal Acquisition: Collects turbine and process signals from sensors such as temperature, pressure, and flow transmitters.
• Analog Control Outputs: Provides precise analog control signals to actuators, valves, or auxiliary devices.
• Integration with DS200 Systems: Seamlessly integrates with GE DS200 turbine control systems for process automation.
• Process Monitoring: Enables continuous monitoring of turbine parameters and process variables.
• Industrial Automation: Supports closed-loop control applications requiring accurate analog I/O.
• Fault Detection and Diagnostics: Facilitates monitoring of I/O channels for safe turbine operation.
Advantages
• High Accuracy: Provides precise analog signal acquisition and output.
• Reliable Industrial Performance: Designed for continuous operation in turbine control environments.
• Flexible I/O Configuration: Supports configurable analog input and output channels.
• Rapid Response: Fast analog processing ensures effective control and monitoring.
• Seamless Integration: Fully compatible with GE DS200 control systems.
• Diagnostics Support: Monitors I/O status and provides fault detection capabilities.
