Product Introduction

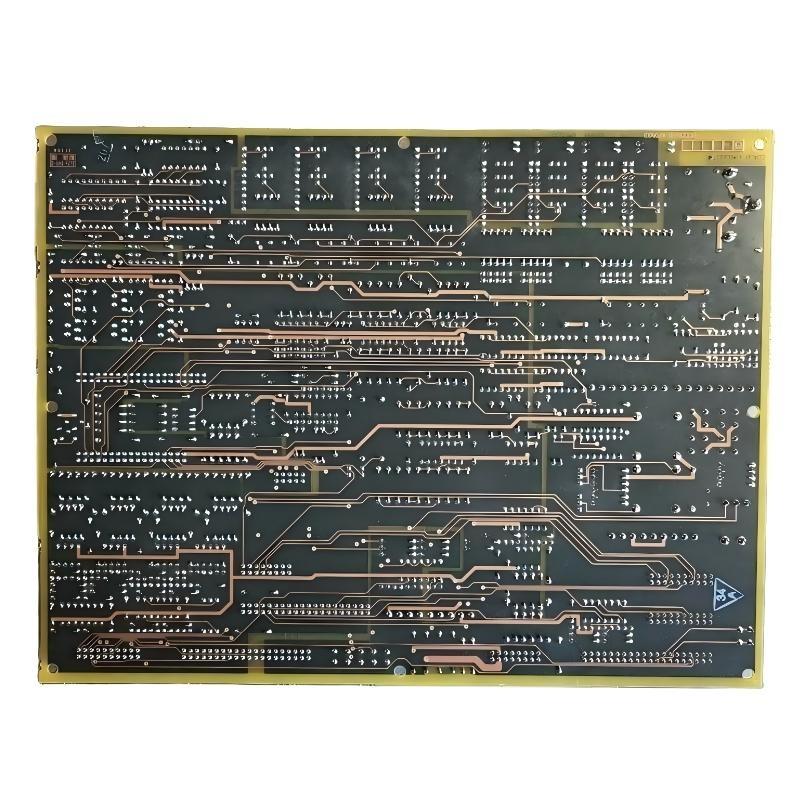

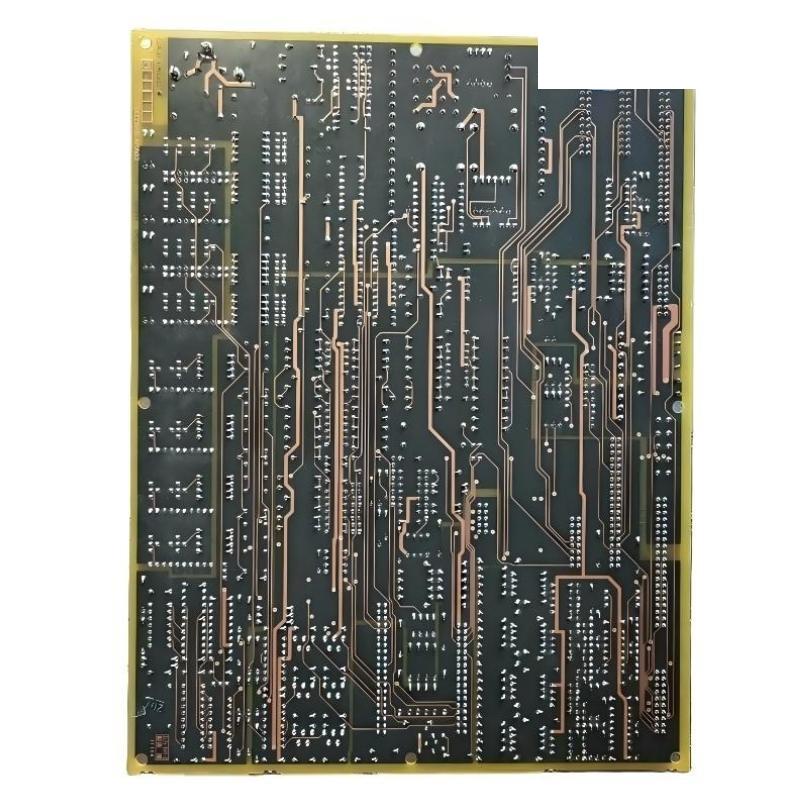

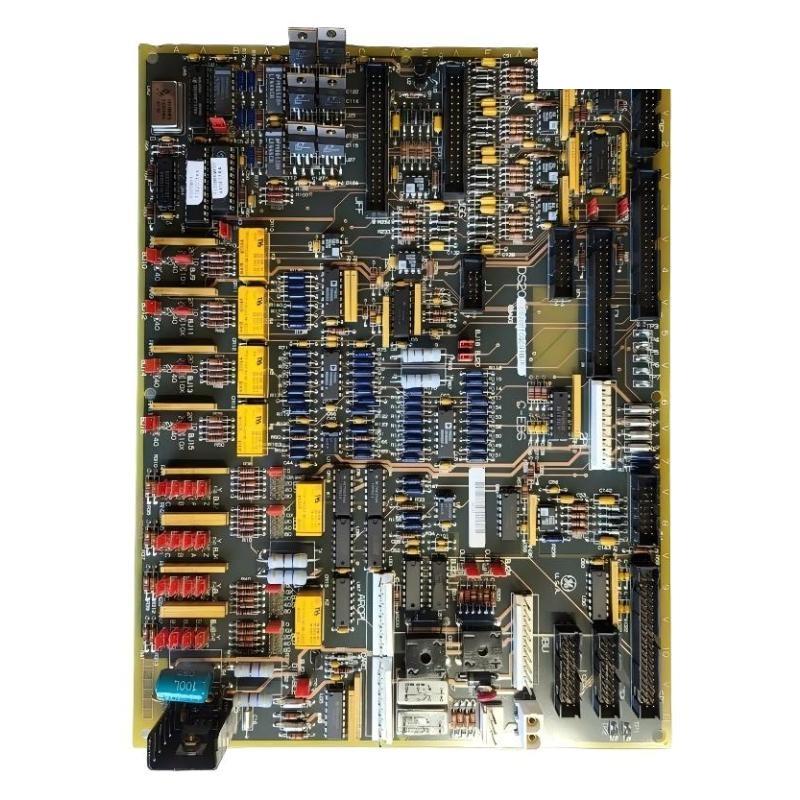

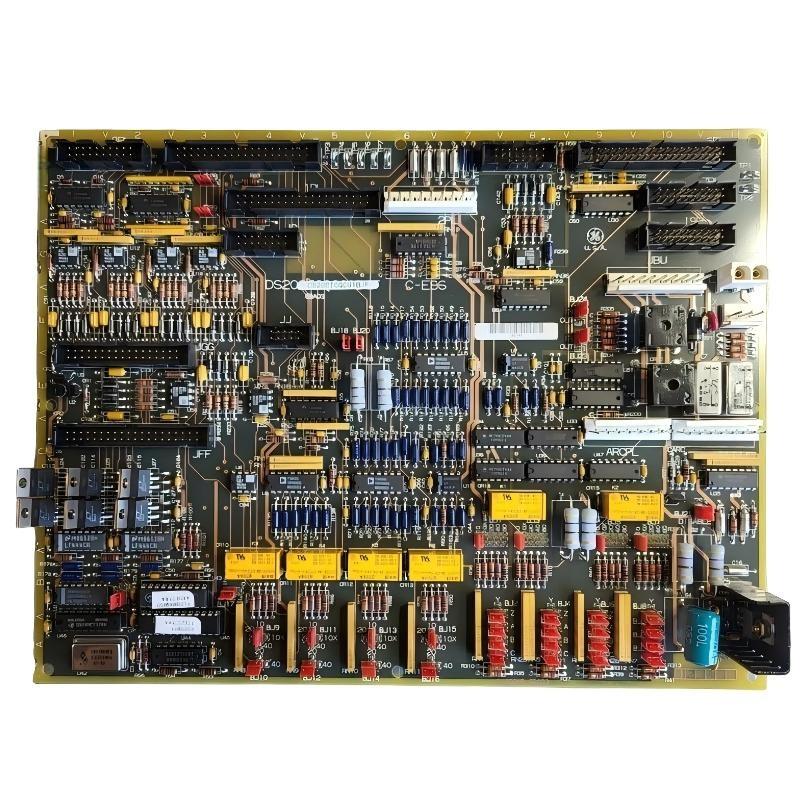

The GE DS200TCQCG1BJF Mark V RST Overflow Board is a specialized industrial control module designed to manage overflow protection and signal supervision within GE Mark V turbine and drive control systems. It plays a critical role in monitoring RST-related analog signal conditions and preventing abnormal signal levels from adversely affecting system stability and control accuracy.
This board operates as a protective and supervisory layer within the control architecture, ensuring that signal thresholds remain within defined operating limits. By detecting overflow or out-of-range conditions, it supports safe control execution and helps preserve the integrity of downstream processing modules.
Engineered for high-reliability industrial environments, the DS200TCQCG1BJF contributes to stable long-term system operation. Its robust design and deterministic behavior make it well suited for mission-critical turbine and drive applications where signal validity and protection logic are essential.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | RST Overflow Board |
| System Series | GE Mark V Control System |
| Primary Function | Analog signal overflow monitoring and protection |
| Signal Category | RST analog signal supervision |
| Protection Logic | Threshold-based overflow detection |
| System Interface | Backplane connection to control rack |
| Electrical Isolation | Isolation between monitored signals and control logic |
| Operating Environment | Industrial-grade temperature and vibration tolerance |
| Installation Method | Rack-mounted control cabinet installation |
| Diagnostics Capability | Overflow status and fault indication |
| Dimensions | 330 × 280 × 25 mm |
| Weight | 0.363 kg |
Applications
• Mark V turbine control systems, providing overflow protection for critical analog feedback signals used in turbine regulation.
• Industrial drive monitoring, ensuring analog signal limits are maintained to protect control logic and hardware.
• Protection and supervision layers, supporting safe system operation by identifying abnormal signal conditions.
• Critical control loops, where signal integrity is essential for stable closed-loop performance.
• Control system refurbishment, enabling reliable replacement of legacy overflow supervision modules.
Advantages
• Effective overflow protection, preventing abnormal signal levels from propagating through the control system.
• Enhanced signal integrity, ensuring analog data remains within acceptable operating ranges.
• Deterministic supervisory behavior, supporting predictable system response under fault or limit conditions.
• High system compatibility, designed specifically for GE Mark V control architectures.
• Industrial-grade reliability, suitable for continuous-duty operation in demanding environments.
• Improved overall system safety, contributing to stable and controlled operation of critical processes.
