Product Introduction

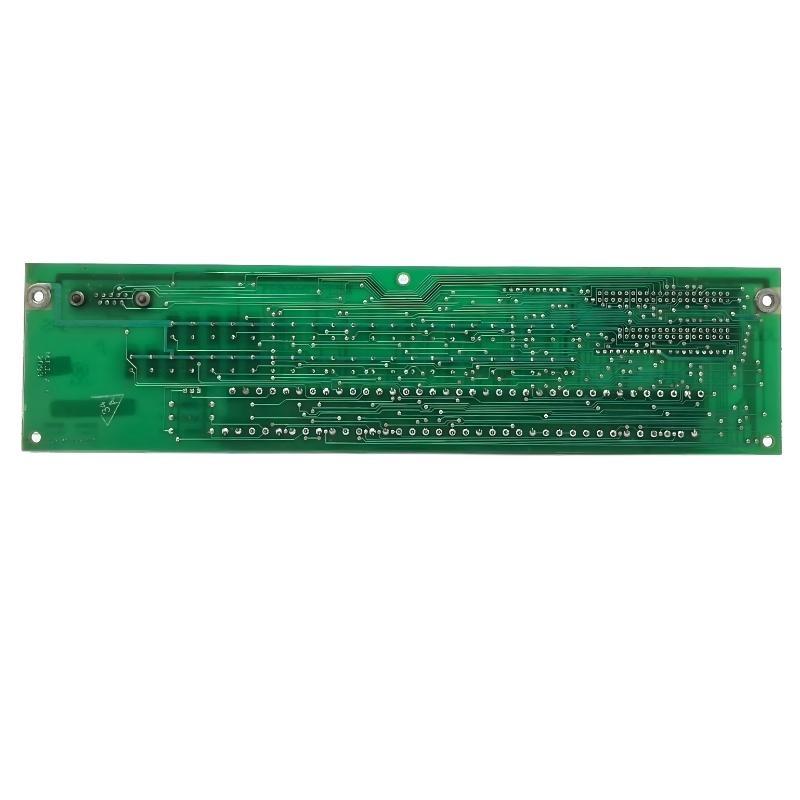

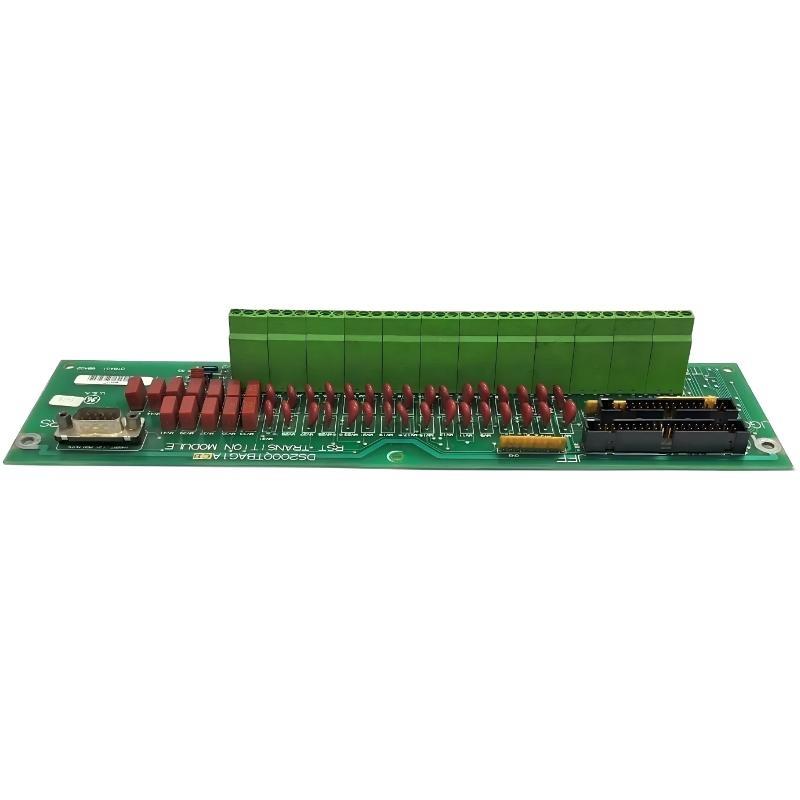

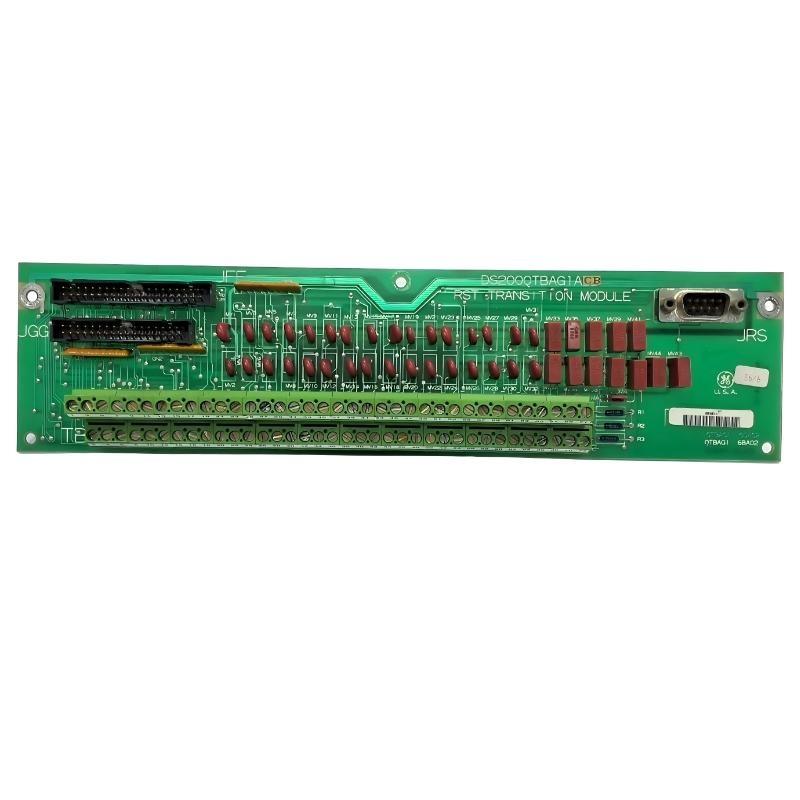

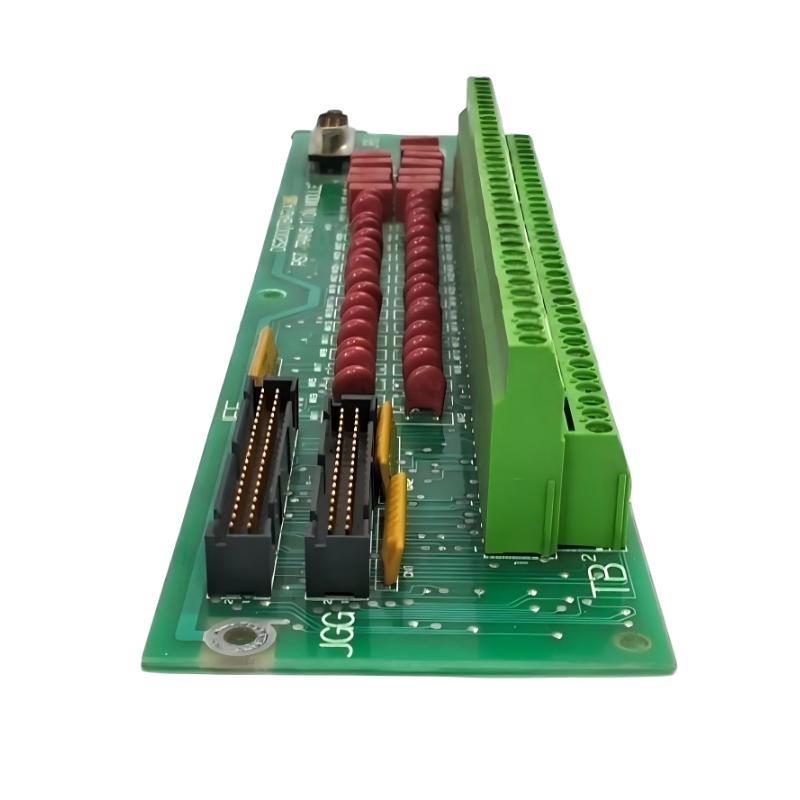

The GE DS200QTBAG1ACB Relay Terminal Board is a multifunction terminal and interface board designed for GE Mark V turbine control systems. It serves as a critical connection point between field devices and control electronics, supporting multiple input and output signals while providing reliable relay-based signal handling.
This board integrates relay circuitry with onboard memory resources, allowing it to manage signal routing, isolation, and buffering within turbine control architectures. The inclusion of on-board RAM enhances data handling capability and supports stable signal processing in complex control environments.
Designed for continuous industrial operation, the DS200QTBAG1ACB is widely used in turbine control cabinets where reliability, signal integrity, and structured I/O management are essential.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Relay Terminal Board |
| Model Number | DS200QTBAG1ACB |
| Manufacturer | General Electric (GE) |
| Series | DS200 |
| Control Platform | Mark V |
| Primary Function | Relay-based signal termination and I/O interface |
| I/O Capability | Multi input / multi output |
| Memory Type | On-board RAM |
| Application Area | Turbine control systems |
| Signal Handling | Field signal routing and isolation |
| Mounting Method | Control cabinet mounting |
| Operating Mode | Continuous operation |
| Dimensions | 212 × 150 × 35 mm |
| Weight | 0.567 kg |
Applications
• Mark V turbine control systems
• Relay-based signal interfacing between field devices and controllers
• Multi I/O signal termination in turbine control cabinets
• Industrial turbine monitoring and control applications
• Power generation systems requiring structured signal management
Advantages
• Supports multi input and output configurations for flexible system design
• Integrated relay circuitry improves signal isolation and reliability
• On-board RAM enhances signal handling and data stability
• Designed specifically for Mark V platforms, ensuring compatibility
• Improves overall control system robustness
• Suitable for continuous-duty industrial environments
