Product Introduction

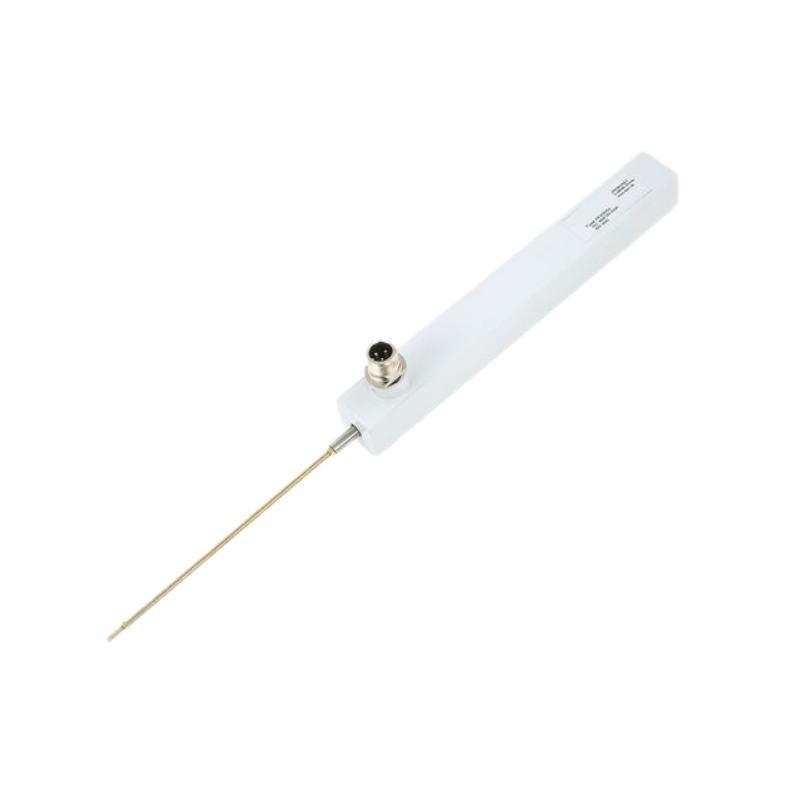

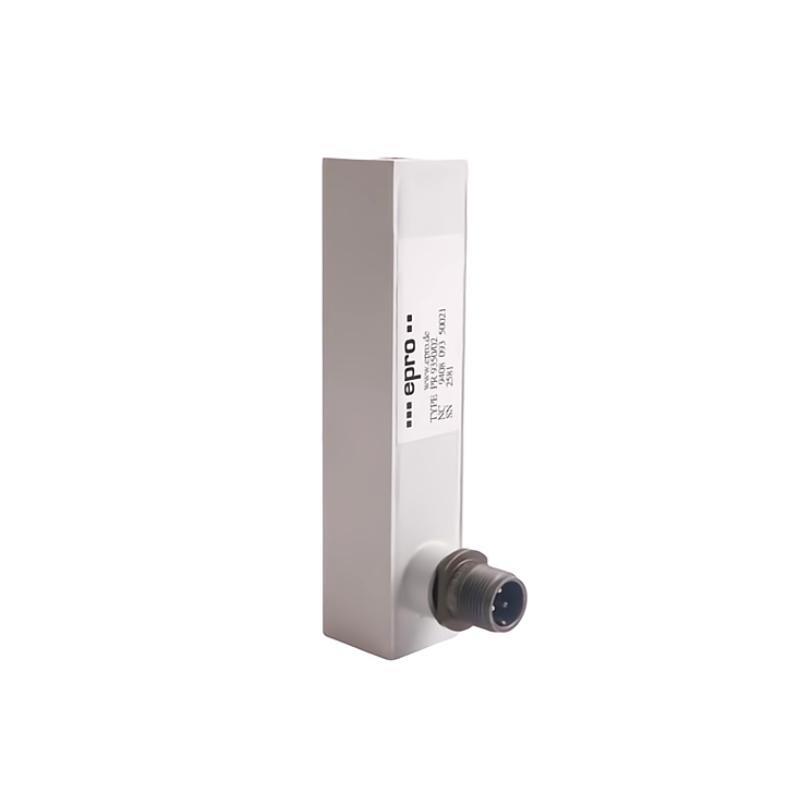

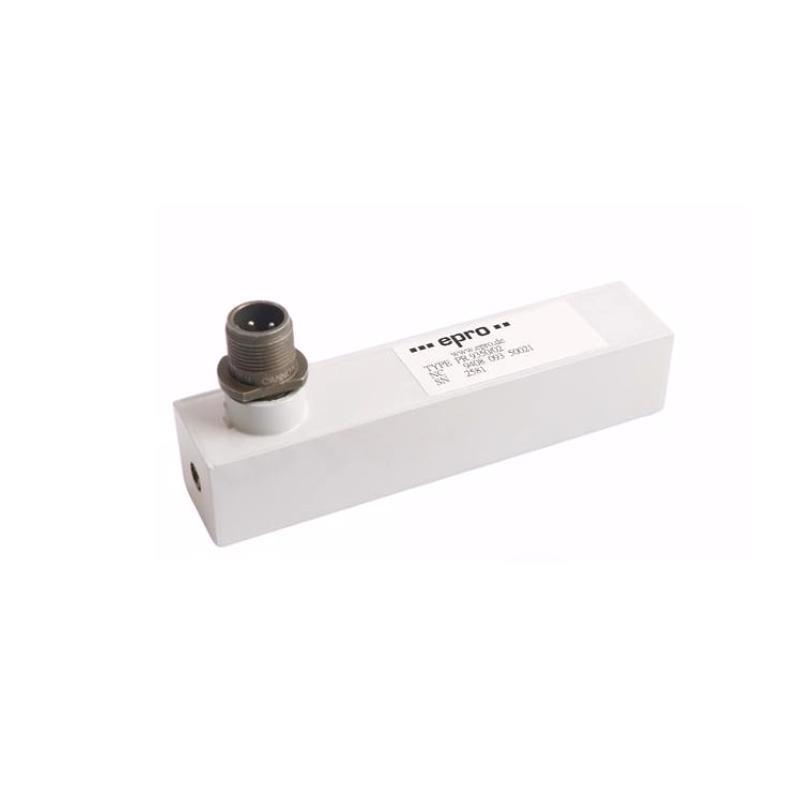

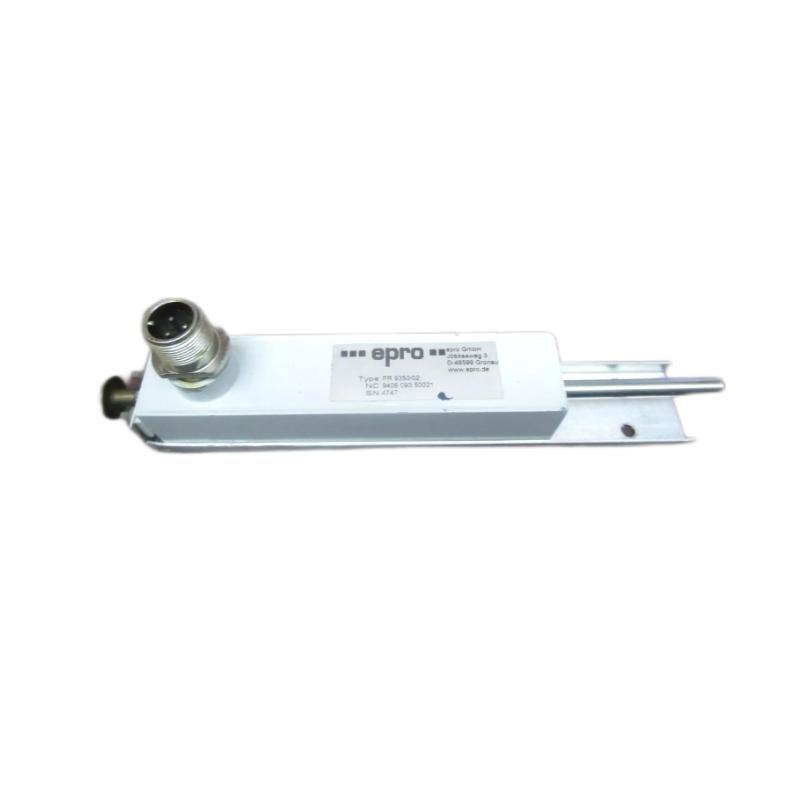

The Epro PR9350/02-S2 is a high-performance inductive sensor designed for precise non-contact position and displacement measurement in industrial applications. The sensor utilizes the principle of electromagnetic induction to detect the position of metallic objects without direct contact. This allows it to measure small displacements with high accuracy and speed, making it ideal for use in dynamic environments where traditional contact-based sensors would wear out or cause damage.
The PR9350/02-S2 offers excellent versatility, operating effectively in environments with high vibration, moisture, or contamination. With its compact design, the sensor is ideal for integration into tight spaces within automated production lines, machinery monitoring systems, and various other industrial applications.
With a maximum sensing diameter of 25 mm and a weight of 0.255 kg, the PR9350/02-S2 is a reliable choice for precision measurement applications where high-speed performance and accurate data acquisition are critical.
Product Parameters
| Parameter | Value |
|---|---|
| Maximum Sensing Diameter | 25 mm |
| Weight | 0.255 kg |
| Output Type | Analog (Voltage or Current) |
| Measurement Range | Up to 10 mm |
| Operating Frequency | High-frequency operation |
| Signal Conditioning | Built-in signal conditioning |
| Temperature Range | -25°C to +85°C |
| Protection Class | IP67 |
| Mounting | Flush mounting or threaded |
| Power Supply | 24 V DC |
| Response Time | < 1 ms |
Product Applications
The Epro PR9350/02-S2 inductive sensor is designed for a wide range of applications that require precise, non-contact position measurements. Some common applications include:
-
Automated Production Lines: The sensor is used to detect the position of metallic objects in automation systems, ensuring accurate positioning and smooth operation in high-speed manufacturing environments.
-
Machine Condition Monitoring: Integrated into monitoring systems to measure the position of moving machine parts like shafts, gears, and bearings, helping to prevent mechanical failure by detecting early signs of wear.
-
Precision Engineering: Used in high-precision engineering applications such as measuring the position of components in robotics, CNC machines, and other automated systems.
-
Vibration Monitoring: The sensor detects small changes in position or vibration in rotating machinery, helping to identify unbalanced loads or misalignments before they lead to equipment failure.
-
Quality Control Systems: Employed in automated inspection systems to measure small displacements of manufactured parts, ensuring they meet quality standards.
-
Automated Material Handling: In robotic arms or conveyors, the sensor helps to accurately position and handle parts in a range of industries including automotive and electronics manufacturing.
Product Advantages
-
Non-contact Measurement: By using inductive technology, the sensor provides a wear-free, non-contact measurement solution, reducing maintenance and increasing reliability.
-
High Accuracy and Sensitivity: The PR9350/02-S2 provides high-resolution measurements, detecting minute displacements with exceptional accuracy.
-
Fast Response Time: With a response time of less than 1 millisecond, the sensor provides real-time data, ideal for high-speed applications where immediate feedback is critical.
-
Robust and Durable: With an IP67 rating, the sensor is resistant to dust, moisture, and environmental contaminants, making it suitable for industrial applications where harsh conditions prevail.
-
Wide Temperature Range: The sensor operates in temperatures ranging from -25°C to +85°C, making it suitable for both cold and hot environments.
-
Flexible Output Options: The PR9350/02-S2 supports both voltage and current output types, providing compatibility with a wide variety of control systems.
-
Compact Size: The sensor’s small size, with a maximum diameter of 25 mm, makes it easy to integrate into tight spaces without sacrificing performance.
-
Easy Integration: The sensor’s simple design and standard mounting options allow for quick integration into existing systems with minimal setup.
-
Low Power Consumption: The sensor requires a 24 V DC power supply, making it energy-efficient and cost-effective for long-term use.
-
Long Service Life: The inductive sensing principle ensures that the sensor remains reliable over long periods of use without the wear and tear that typically affects contact-based sensors.
FAQ
-
What is the maximum sensing diameter of the Epro PR9350/02-S2 sensor?
The maximum sensing diameter is 25 mm. -
What type of output does the PR9350/02-S2 sensor provide?
The sensor provides analog output, available in both voltage and current formats. -
What is the operating frequency of the PR9350/02-S2 sensor?
The sensor operates at high frequencies, suitable for fast response and high-speed applications. -
What is the temperature range for the PR9350/02-S2 sensor?
The sensor operates within a temperature range of -25°C to +85°C. -
What protection class does the PR9350/02-S2 sensor have?
The sensor has an IP67 protection class, making it resistant to dust and water ingress. -
How fast is the response time of the PR9350/02-S2 sensor?
The response time is less than 1 millisecond, providing real-time data for fast feedback. -
What is the power supply requirement for the PR9350/02-S2 sensor?
The sensor requires a 24 V DC power supply. -
What industries can benefit from using the PR9350/02-S2 sensor?
The sensor is ideal for industries such as automotive, machine monitoring, robotics, and automated manufacturing. -
Can the sensor be used in high-vibration environments?
Yes, the sensor is designed to withstand high vibrations, making it suitable for industrial machinery and automotive applications. -
How is the PR9350/02-S2 sensor mounted in industrial systems?
The sensor can be flush-mounted or threaded into place, offering flexibility for installation.
Related Models
| Model | Description |
|---|---|
| PR9350/02-S3 | A version with enhanced frequency range and better accuracy for more demanding applications. |
| PR9350/02-S4 | Designed for harsh environments, this model features enhanced protection and durability. |
| PR9350/02-S5 | A high-speed version of the sensor for use in rapid data acquisition applications. |
| PR9350/02-S6 | Features an extended measurement range for large displacement applications. |
| PR9350/02-S7 | A variant designed for use in high-temperature environments with enhanced heat resistance. |
| PR9350/02-S8 | A custom version with programmable output for specific customer requirements. |
Popular Epro Models
| Model | Description |
|---|---|
| PR6423/010-010-CN | Signal conditioner for inductive sensors, providing optimal signal processing. |
| CON021/914-100 | A high-resolution eddy current sensor for precise displacement measurement. |
| PR6423/020-020-CN | Signal conditioner with advanced diagnostic features for system monitoring. |
| CON021/914-150 | A rugged version of the eddy current sensor designed for high-durability environments. |
| PR6423/030-030-CN | Signal conditioner module for high-frequency inductive sensors in precision applications. |
| PR9350/02-S1 | An entry-level sensor for general industrial applications with a standard measurement range. |
