Product Overview

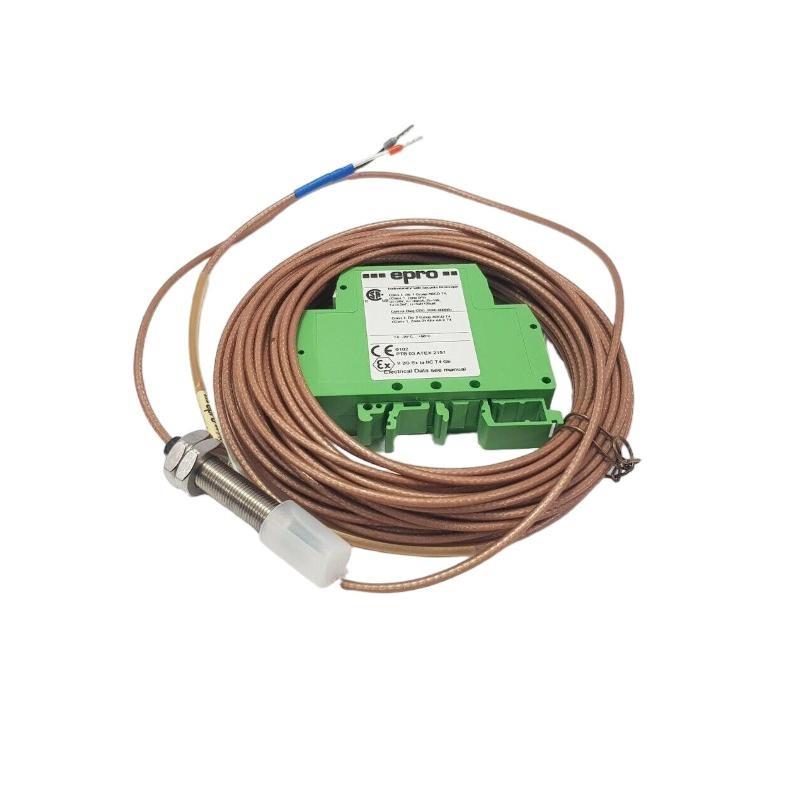

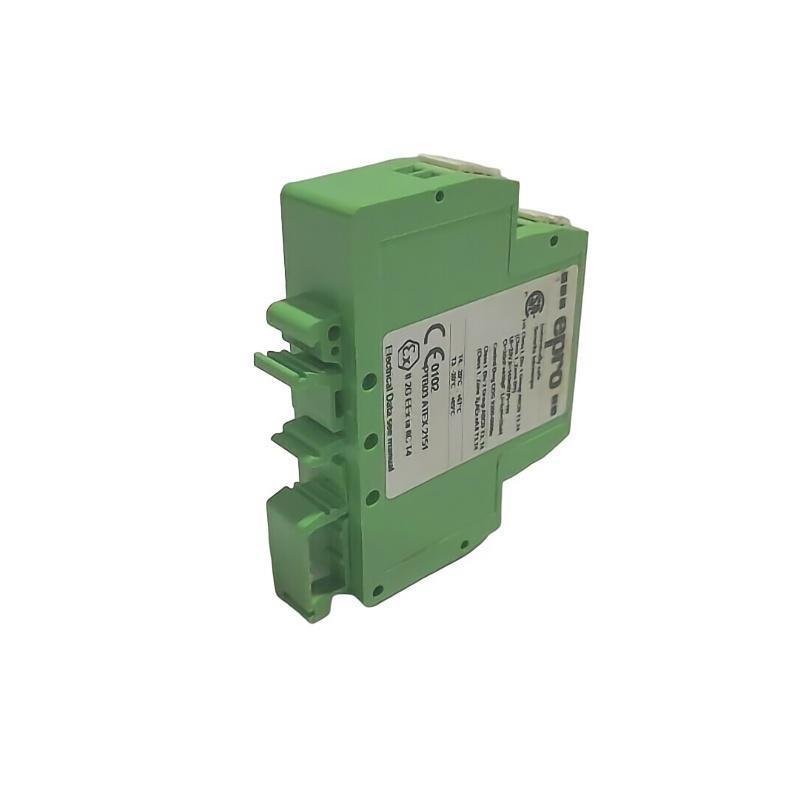

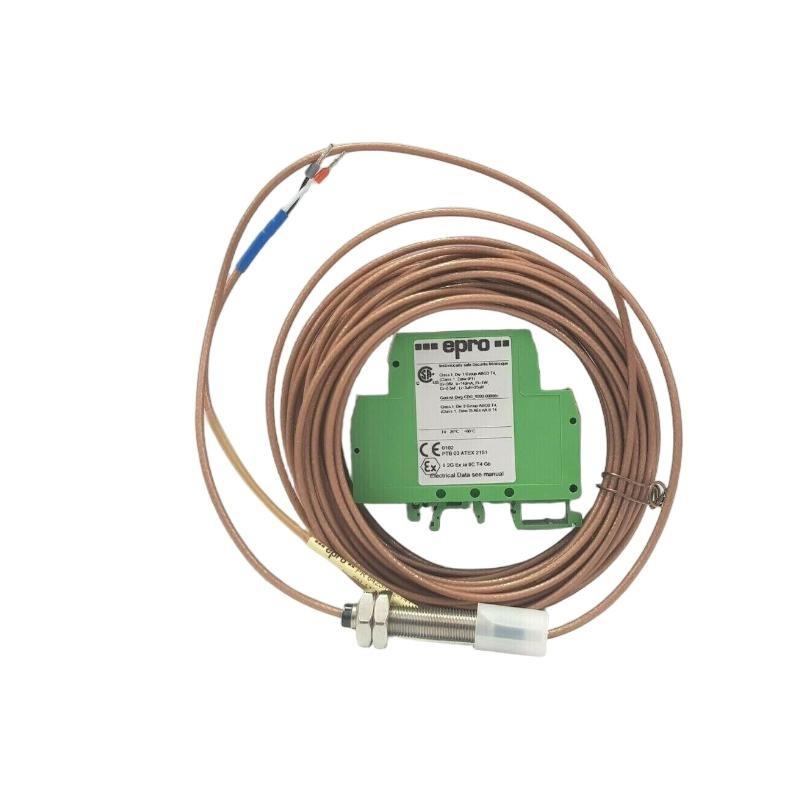

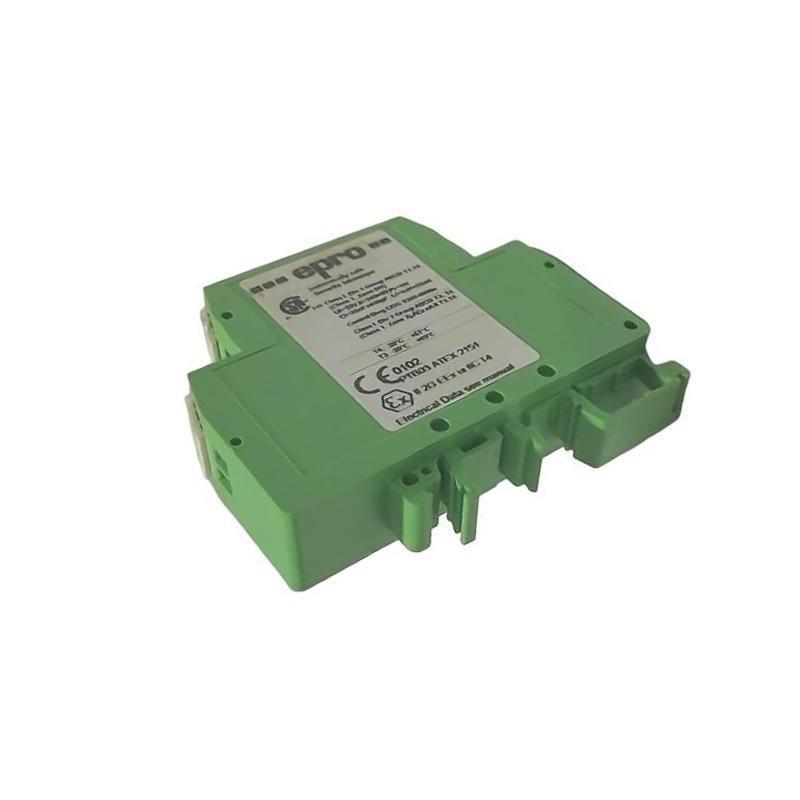

The Epro PR6480/0A1-000 Eddy-Current Sensor is a high-precision, non-contact vibration and displacement sensor designed for industrial machinery condition monitoring. It utilizes the eddy-current principle to accurately measure shaft vibration, axial position, and dynamic movement in rotating equipment.
Key Features
-
Non-contact measurement of vibration and displacement
-
Excellent temperature stability for continuous industrial use
-
High linearity and repeatability in a compact form
-
Durable stainless-steel housing for long operational life
-
Compatible with CON0xx driver modules
-
Ideal for harsh industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Epro GmbH (Ametek) |
| Model Number | PR6480/0A1-000 |
| Product Type | Eddy-Current Sensor |
| Measurement Principle | Eddy-current displacement measurement |
| Probe Diameter | 32 mm |
| Nominal Measurement Range | 0–4 mm |
| Sensitivity | 4 mV/µm (Typical) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature Range | –35 °C to +180 °C |
| Storage Temperature Range | –40 °C to +200 °C |
| Material | Stainless steel |
| Compatible Driver | CON011, CON021, CON031 |
| Output Signal Range | 0–10 V DC |
| Mounting Type | Threaded sleeve |
| Protection Class | IP65 (with connector) |
| Dimensions | Sensor head diameter Optional |
| Weight | Shipping weight 3kg |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Generators and electric motors
-
Pumps and gearboxes
-
Oil and gas production machinery
-
Predictive maintenance and vibration monitoring systems
Frequently Asked Questions (FAQ)
Q1: What is the main function of the Epro PR6480/0A1-000 sensor?
It measures shaft vibration and displacement using the eddy-current principle.
Q2: Which driver modules are compatible with this sensor?
It works with Epro CON011, CON021, and CON031 driver modules.
Q3: What is the probe diameter?
The sensor has a 32 mm probe diameter.
Q4: What is the measurement range?
It provides a 0–4 mm nominal measurement range.
Q5: What is the output voltage range?
The output signal ranges from 0–10 V DC.
Q6: Can it operate in high-temperature environments?
Yes, it operates reliably from –35 °C to +180 °C.
Q7: What is the housing material?
The housing is made of stainless steel for durability.
Q8: What level of ingress protection does it have?
It provides IP65 protection when properly connected.
