Product Overview

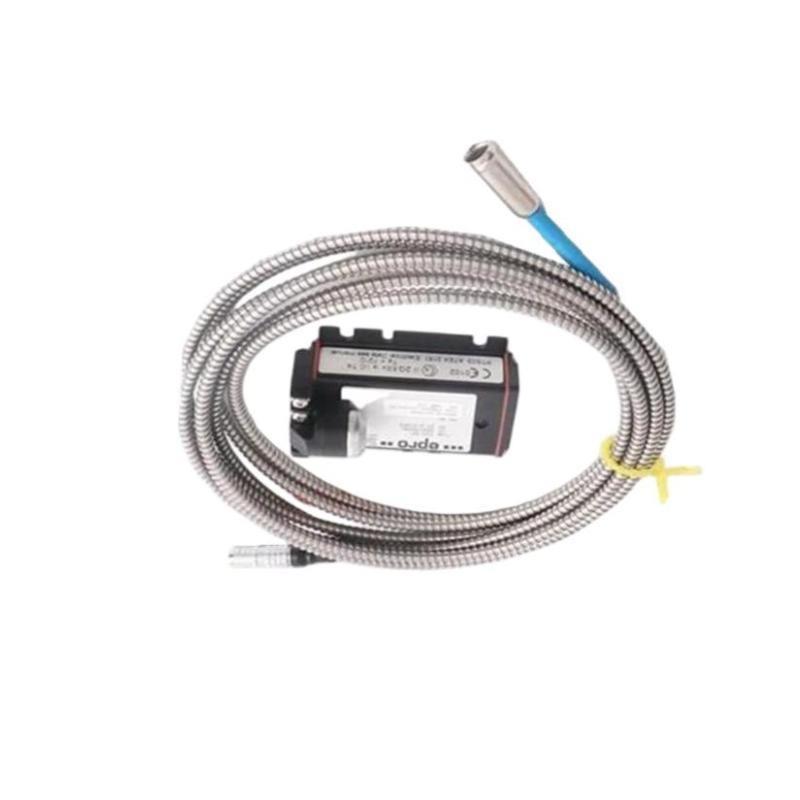

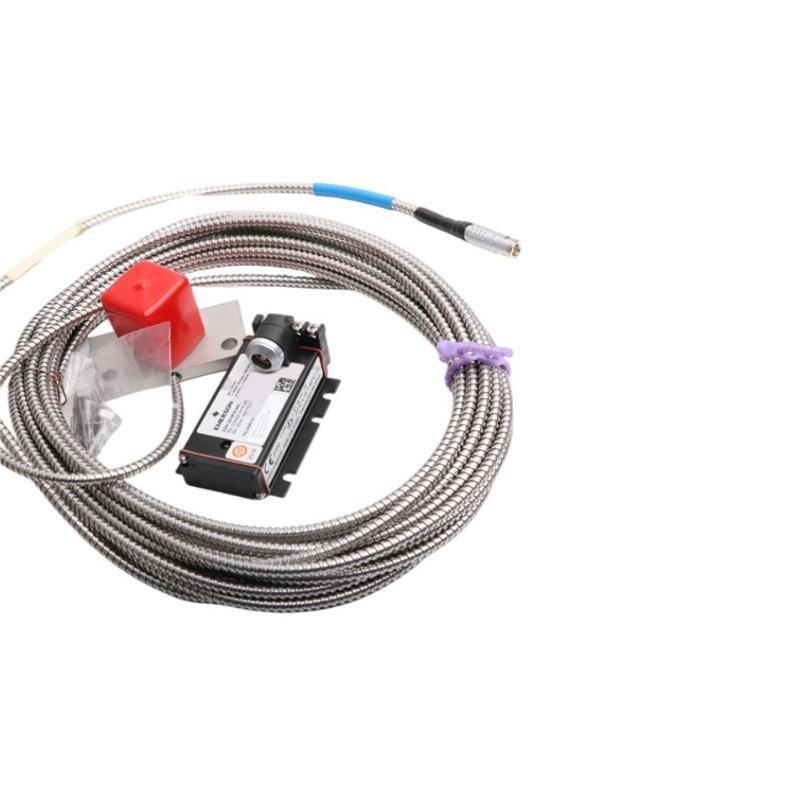

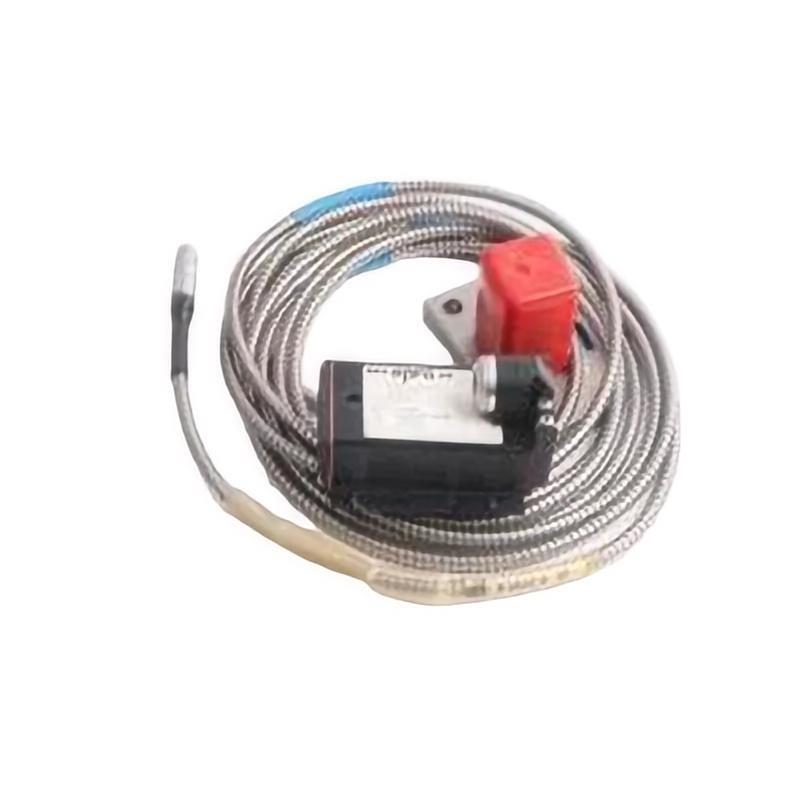

The Epro PR6426/010-140+CON021 32 mm Eddy-Current Sensor is a high-precision system designed for non-contact shaft vibration and position measurement in large rotating machinery. Combining the PR6426/010-140 sensor with the CON021 signal converter, this system ensures accurate, stable, and reliable monitoring for turbines, compressors, generators, and other heavy-duty industrial equipment. Its 32 mm probe diameter makes it ideal for large shaft applications requiring a wide measurement range.
Key Features
-
Complete 32 mm eddy-current sensor system (sensor + converter)
-
High-precision non-contact measurement of vibration and position
-
Durable and resistant to oil, dust, and industrial contaminants
-
Fully compatible with Epro CON021 signal converter
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Epro (Emerson) |
| Part Number | PR6426/010-140+CON021 |
| Product Type | Eddy-Current Sensor System |
| Probe Type | PR6426 32 mm Proximity Probe |
| Converter Type | CON021 |
| Measurement Range | 0–4.0 mm (0–160 mils) |
| Sensitivity | 4 mV/μm (100 mV/mil) |
| Frequency Response | DC to 10 kHz |
| Power Supply | ±15 V DC |
| Output Signal | -2 V to -18 V (proportional to gap) |
| Operating Temperature | –35 °C to +180 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Dimensions | Sensor head diameter 32mm |
| Weight | 0.92 kg |
| Applications | Shaft vibration and position monitoring |
Industry Applications
-
Steam and gas turbines
-
Large compressors and pumps
-
Electric motors and generators
-
Gearboxes and rotating machinery
-
Oil, gas, and petrochemical industries
-
Power generation and condition monitoring systems
Frequently Asked Questions (FAQ)
Q1: What does the PR6426/010-140+CON021 system measure?
It measures shaft vibration and position using non-contact eddy-current technology.
Q2: What is included in this model?
The system includes the PR6426/010-140 32 mm sensor and CON021 converter.
Q3: What is the probe diameter?
The probe has a 32 mm diameter.
Q4: What type of signal output does the converter provide?
It provides a linear voltage output proportional to shaft displacement.
Q5: What is the operating temperature range?
It operates between –35 °C and +180 °C.
Q6: What is the measurement range?
The range is 0–4.0 mm (0–160 mils).
Q7: Is the system suitable for harsh industrial environments?
Yes, it is oil, dust, and contaminant resistant.
Q8: What is the frequency response?
The system supports DC to 10 kHz.
