Product Introduction

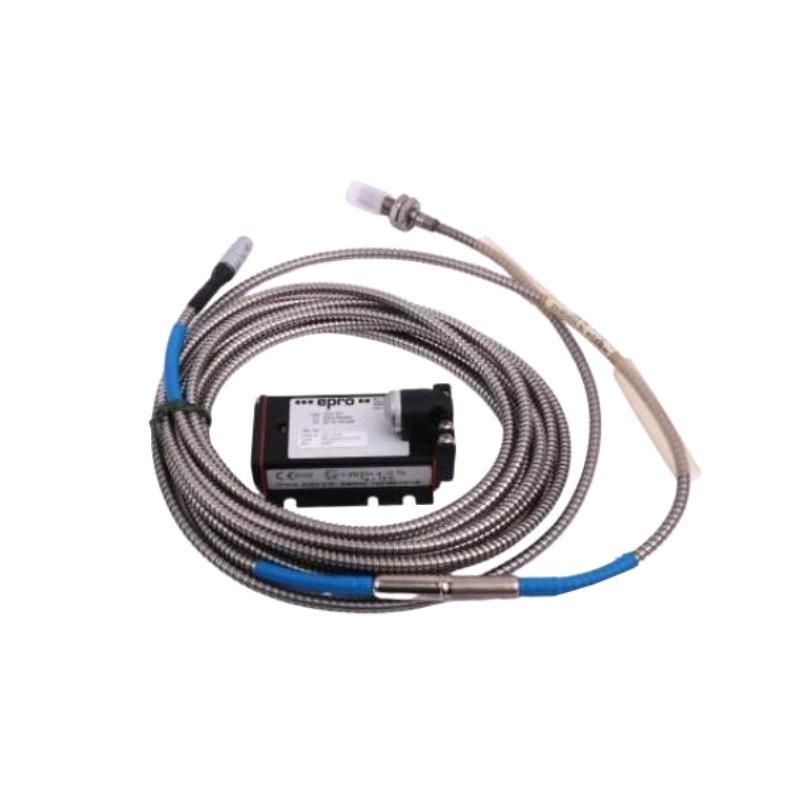

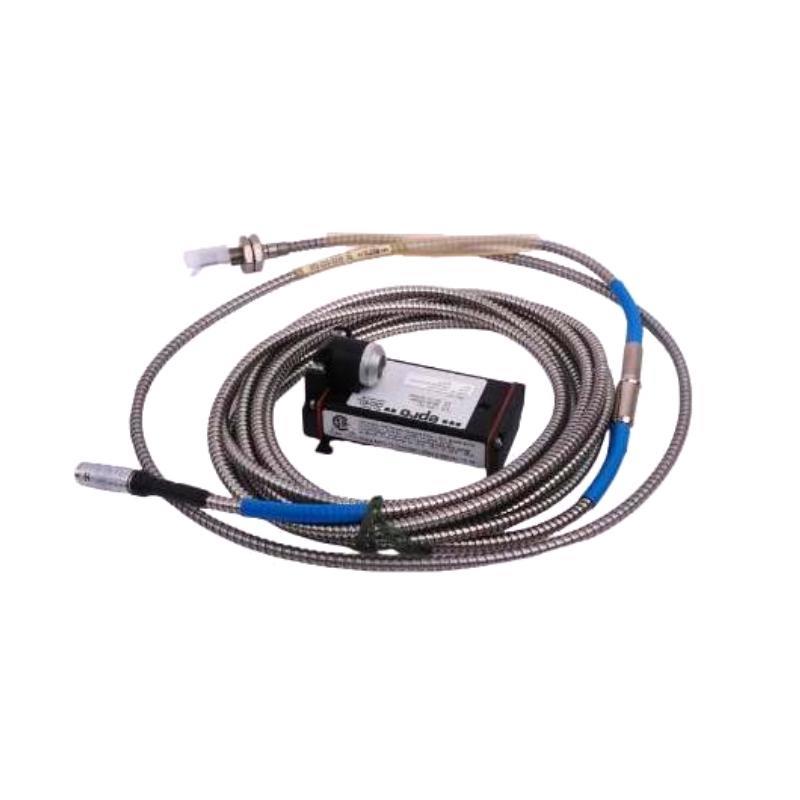

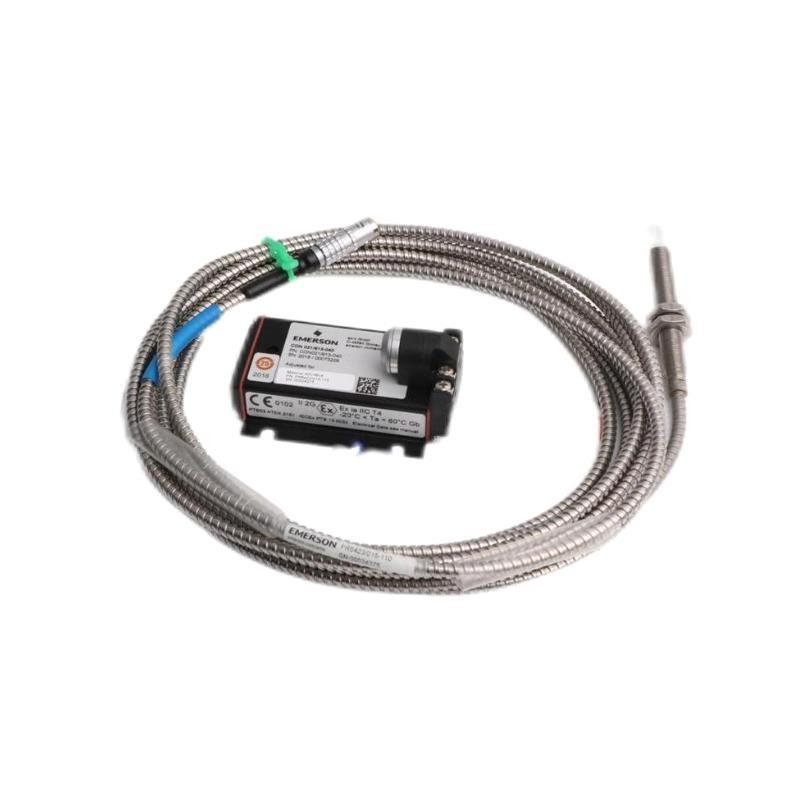

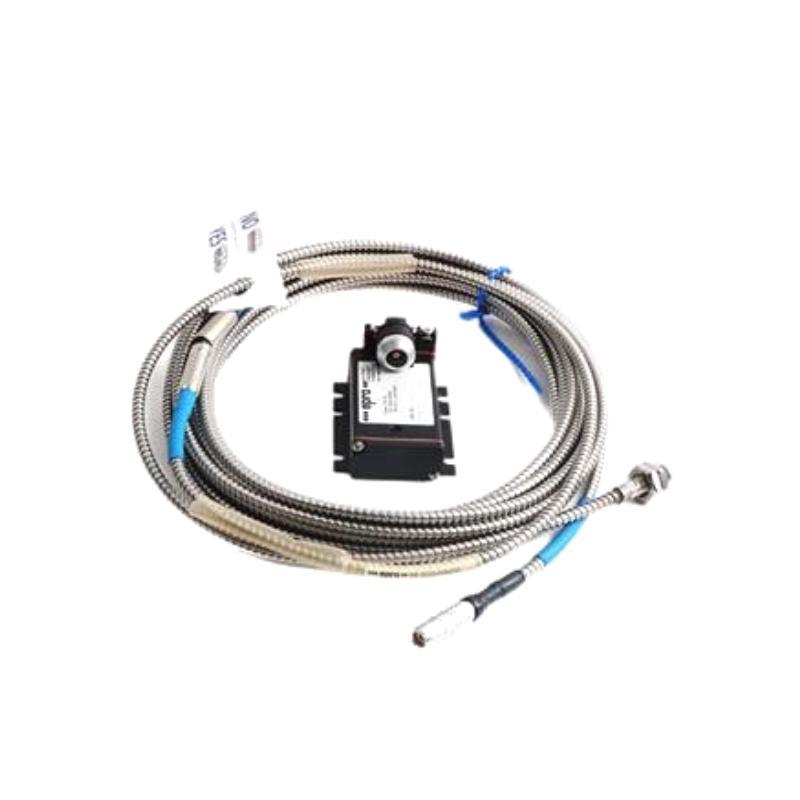

The Epro PR6424/013-030+CON021 Eddy Current Sensor is a high-performance non-contact displacement and vibration sensor designed for precise monitoring of rotating machinery. With a 16 mm sensor head diameter and paired with the CON021 converter, this sensor ensures stable, linear, and interference-resistant signal processing.
This model belongs to the PR6424 series, known for its durability, accuracy, and adaptability in industrial monitoring systems. Its design enables continuous measurement of shaft displacement, rotor dynamics, and bearing performance, making it an essential part of predictive maintenance and protection systems. The robust stainless-steel housing and advanced electronics allow reliable operation even under harsh environmental conditions such as high temperature, vibration, and electromagnetic interference.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | Epro PR6424/013-030+CON021 |
| Sensor Type | Eddy Current / Proximity Probe |
| Sensor Head Diameter | 16 mm |
| Measuring Range | Typically up to 2 mm (depending on target) |
| Frequency Response | DC to 20 kHz |
| Linearity | ≤ ±1% of full scale |
| Compatible Converter | CON021 |
| Output Signal | Voltage proportional to displacement |
| Operating Temperature Range | -35 °C to +180 °C (sensor tip) |
| Storage Temperature Range | -40 °C to +200 °C |
| Housing Material | Stainless steel, corrosion-resistant |
| Cable Type | Integrated coaxial cable |
| Mounting Thread | Metric or UNF options |
| Protection Class | IP65 or higher (depending on installation) |
| Sensor Head Diameter | 16 mm |
| Weight | 0.32 kg |
Product Applications
The Epro PR6424/013-030+CON021 sensor is widely used in machinery monitoring and protection systems across industrial environments. Applications include:
-
Gas and steam turbines: Shaft vibration and rotor position monitoring.
-
Compressors and pumps: Real-time detection of imbalance, misalignment, and bearing wear.
-
Motors and generators: Continuous tracking of displacement and vibration signals.
-
Bearing condition monitoring: Early detection of bearing oil film instabilities.
-
Turbomachinery protection systems: Integration with Epro MMS6000 or similar systems.
-
Predictive maintenance: Provides reliable input for condition-based maintenance strategies.
Product Advantages
-
Non-contact operation: No mechanical wear, ensuring long-term stability.
-
High measurement accuracy: Linearity error ≤ ±1% enables precise monitoring.
-
Wide frequency range: Suitable for slow and high-speed machinery.
-
Rugged design: Stainless-steel body ensures resistance to corrosion and mechanical stress.
-
High-temperature tolerance: Operates reliably up to +180 °C.
-
Seamless integration: Fully compatible with the CON021 converter for optimal signal conditioning.
-
Flexible mounting options: Metric or UNF thread types for installation versatility.
-
Proven reliability: Widely adopted in safety-critical monitoring applications worldwide.
FAQ
-
What measuring principle does the PR6424/013-030+CON021 operate on?
It uses the eddy current principle, generating an electromagnetic field that varies with conductive target displacement. -
What role does the CON021 converter play in this setup?
The CON021 conditions the raw sensor signal, linearizes it, and provides a standardized voltage output for monitoring systems. -
What is the typical frequency response of this sensor?
The frequency range is DC to 20 kHz, covering both static and dynamic displacement signals. -
How does the sensor achieve linearity across its measuring range?
The probe is factory-calibrated with the converter, ensuring linear response within ±1% error. -
Can this sensor monitor both radial and axial vibrations?
Yes, depending on installation, it can measure both radial shaft vibration and axial displacement. -
How does the sensor handle electromagnetic interference in industrial environments?
It uses shielded coaxial cables and optimized electronics to ensure high immunity against EMI and RFI. -
What kind of materials can this sensor measure effectively?
It is optimized for conductive materials such as steel shafts commonly found in rotating machinery. -
Is the sensor suitable for integration with third-party monitoring systems?
Yes, once conditioned by the CON021, the output signal is standardized and can be integrated into multiple monitoring platforms. -
What happens if the sensor operates outside its temperature limits?
Exceeding rated limits can lead to reduced accuracy or potential sensor degradation, so proper thermal management is recommended. -
Can the sensor detect transient vibration events in machinery?
Yes, with its wide frequency response, it is capable of capturing both steady-state and transient dynamic events.
Recommended Related Models (Same Series / Family)
| Model | Description |
|---|---|
| PR6424/000-000 | 16 mm Eddy Current Sensor, standard version |
| PR6424/001-010 | Extended cable length variant |
| PR6424/002-030 | High-temperature resistant version |
| PR6424/004-040 | Extended measuring range model |
| PR6424/006-100 | Special design for turbine monitoring |
| PR6424/014-040 | General-purpose vibration monitoring sensor |
