Product Introduction

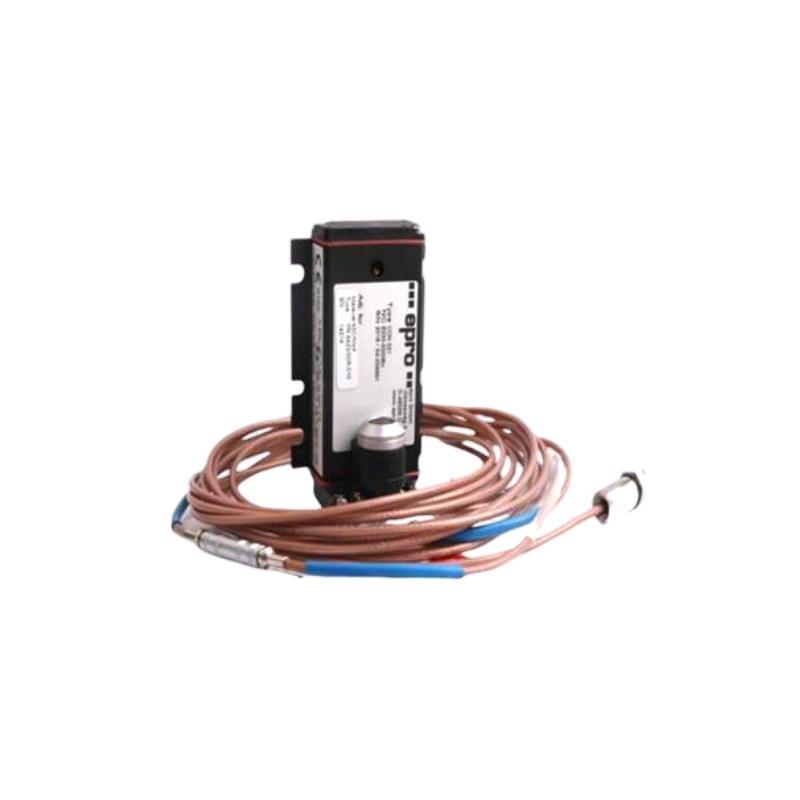

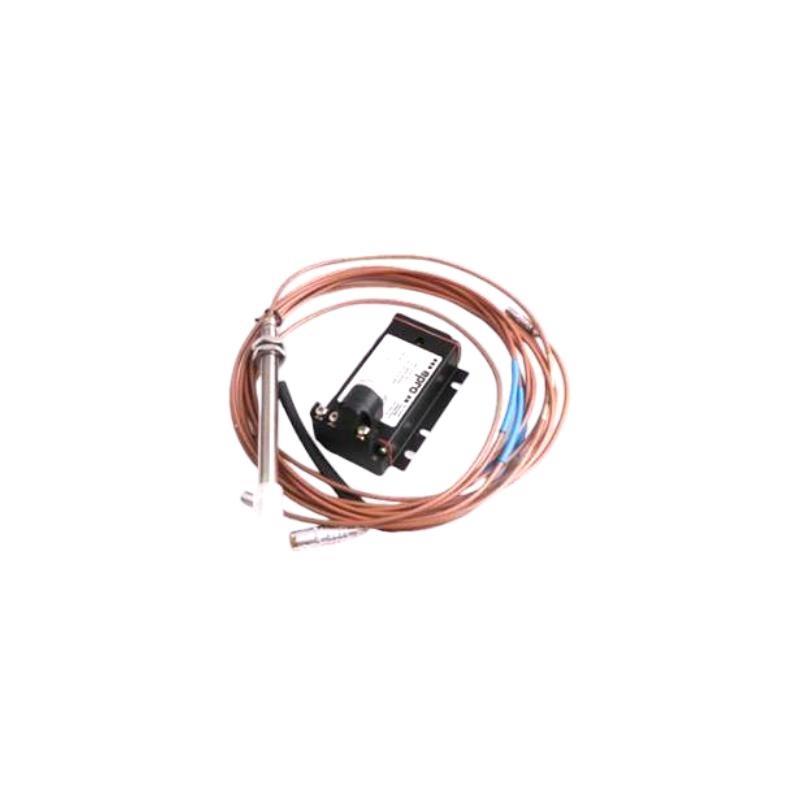

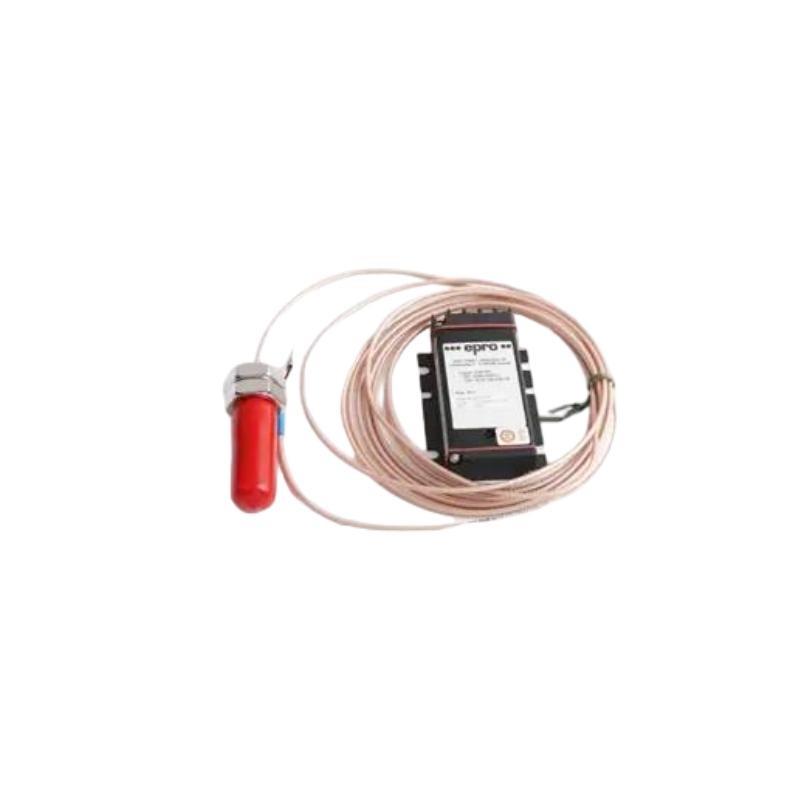

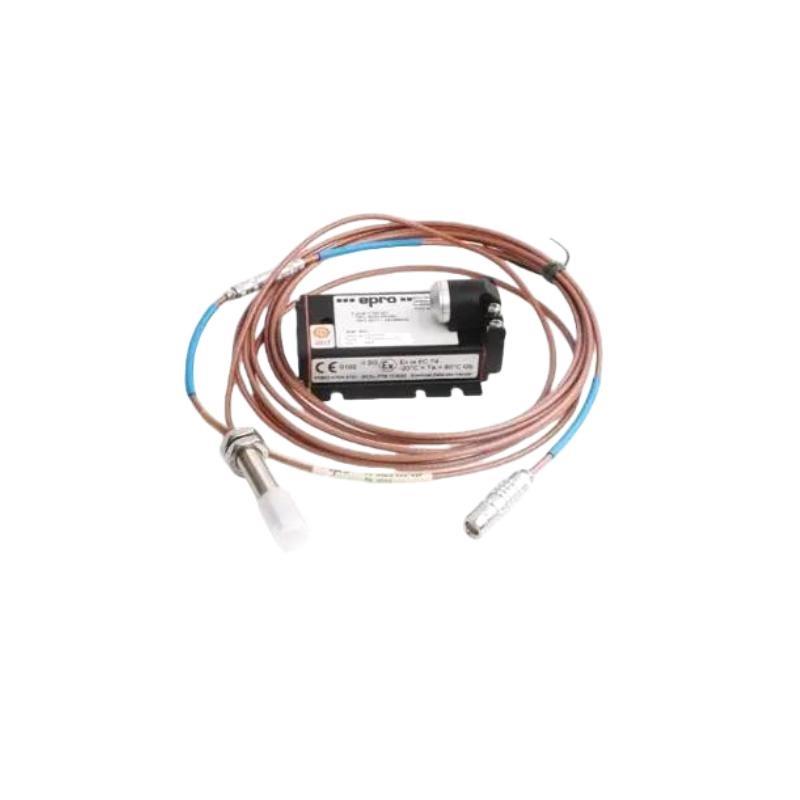

The Epro PR6423/011-100 is a highly precise 8mm eddy current sensor designed to provide non-contact displacement, vibration, and position measurements. This sensor is engineered for use in demanding industrial applications, offering excellent performance even in harsh environments. It is particularly suitable for applications requiring accurate monitoring of rotating equipment, machinery, and mechanical components.
Operating on the principle of electromagnetic induction, the PR6423/011-100 generates an eddy current in the target material and measures the resulting changes due to displacement. This non-contact measurement method minimizes wear and tear on both the sensor and the machinery it monitors, offering higher reliability and longer service life.
With a range of output signals and high-frequency response, this sensor can be easily integrated into control systems for real-time monitoring. It is commonly used in industries such as automotive, aerospace, power generation, and manufacturing, where precise monitoring and fault detection are critical.
Parameters
| Parameter | Description |
|---|---|
| Sensor Type | Eddy Current Sensor |
| Sensor Head Diameter | 8 mm |
| Weight | 0.1 kg |
| Measuring Range | 10 mm |
| Frequency Response | Up to 1 MHz |
| Supply Voltage | 10-30 V DC |
| Output Signal | 4-20 mA / 0-10 V |
| Operating Temperature | -40 to +100 °C |
| Housing Material | Stainless Steel |
| Cable Length | 3 meters |
Applications
The Epro PR6423/011-100 sensor is highly versatile and can be applied in a wide range of industrial sectors that require precise non-contact measurements. Key applications include:
-
Rotating Machinery Monitoring: Used for real-time monitoring of displacement and vibrations in motors, turbines, and other rotating equipment, ensuring early detection of faults and reducing downtime.
-
Proximity Sensing: Measures the distance between the sensor and metal surfaces in automated systems, robotics, and assembly lines for accurate positioning.
-
Quality Control: Ensures the proper alignment and positioning of parts in automated manufacturing, contributing to higher precision and product quality.
-
Vibration Monitoring: Detects irregular vibrations in machinery, which helps in predictive maintenance and reduces the risk of sudden breakdowns.
-
Displacement Measurement: Accurately measures displacement in components such as pistons, shafts, and other mechanical systems in automotive, aerospace, and industrial applications.
Advantages
-
Non-contact Measurement: Prevents wear on both the sensor and the target material, offering a longer lifespan and reducing maintenance costs.
-
High Sensitivity: Detects even the smallest changes in position and vibration, providing highly accurate readings.
-
Wide Operating Temperature Range: Operates effectively in extreme temperatures, from -40°C to +100°C, making it suitable for challenging industrial environments.
-
Fast Response Time: With a frequency response of up to 1 MHz, the sensor can capture fast-moving targets and dynamic processes.
-
Durability: The sensor’s stainless-steel housing ensures robustness, corrosion resistance, and stability in harsh industrial conditions.
-
Versatile Output Options: The 4-20 mA and 0-10 V analog outputs make it easy to integrate into various industrial control systems.
FAQ
1. How does the Epro PR6423/011-100 eddy current sensor operate?
The sensor works by generating an electromagnetic field that induces eddy currents in the target material. As the target moves, the eddy current changes, which is measured by the sensor to calculate displacement, vibration, or position.
2. What is the measuring range of the sensor?
The Epro PR6423/011-100 has a measuring range of up to 10mm, allowing it to accurately measure displacement within this distance from the target surface.
3. How is the sensor output data to a control system?
The sensor provides analog output signals, either 4-20 mA or 0-10 V, which can be easily integrated into control systems such as PLCs or SCADA systems for real-time data monitoring.
4. Can the sensor be used for high-speed vibration monitoring?
Yes, the Epro PR6423/011-100 sensor supports a frequency response of up to 1 MHz, making it suitable for monitoring high-speed vibrations and dynamic systems.
5. Is the sensor resistant to electromagnetic interference (EMI)?
Yes, the sensor is designed with EMI shielding, ensuring stable performance even in environments with high electromagnetic interference.
6. What is the temperature tolerance of the Epro PR6423/011-100 sensor?
The sensor can operate in extreme temperatures ranging from -40°C to +100°C, making it suitable for use in various industrial applications.
7. Can the sensor measure displacement in both ferrous and non-ferrous materials?
Yes, the sensor is capable of measuring displacement in both ferrous and non-ferrous materials, as long as the target material is conductive enough to induce eddy currents.
8. How do I mount the Epro PR6423/011-100 sensor?
The sensor can be mounted using standard industrial brackets or directly to the machinery using its threaded base. This provides flexibility in installation.
9. Can the sensor be used in automated manufacturing systems?
Yes, the Epro PR6423/011-100 sensor is ideal for integration into automated systems for quality control, precision positioning, and monitoring of moving parts in production lines.
10. Is the sensor suitable for detecting small vibrations in rotating machinery?
Yes, the sensor’s high sensitivity and fast response time make it ideal for detecting small vibrations in rotating machinery, contributing to predictive maintenance and reducing equipment failure risk.
Recommended Related Models
| Model | Description |
|---|---|
| PR6423/00R-111-100 | 8mm sensor with an extended measuring range and high-frequency response |
| PR6424/00R-111-100 | 8mm sensor with improved temperature tolerance for extreme environments |
| PR6423/01R-100 | 8mm sensor with higher sensitivity and faster response times |
| PR6423/00R-101-100 | 8mm sensor designed for high-speed dynamic measurements |
| PR6425/00R-110-100 | 10mm sensor offering longer range and enhanced precision |
| PR6426/00R-111-100 | 8mm sensor with advanced EMI shielding and corrosion resistance |
Popular Models
| Model | Description |
|---|---|
| PR6423/00R-111 | Compact 8mm sensor with high-frequency response for precise measurements |
| PR6421/00R-100 | 6mm sensor designed for space-constrained applications requiring high precision |
| PR6430/00R-120 | 10mm sensor with enhanced durability for tough industrial environments |
| PR6440/00R-121 | 12mm sensor ideal for applications requiring extended measurement ranges |
| PR6450/00R-130 | Versatile 6mm sensor for monitoring both ferrous and non-ferrous materials |
| PR6410/00R-111 | Robust 8mm sensor for high-vibration environments requiring precise measurements |
