Product Introduction

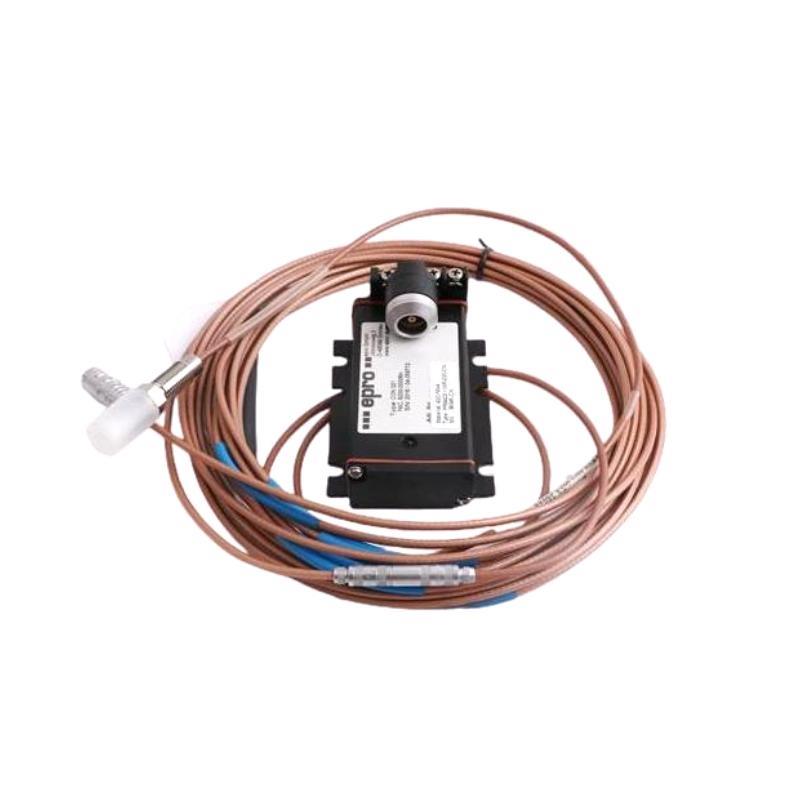

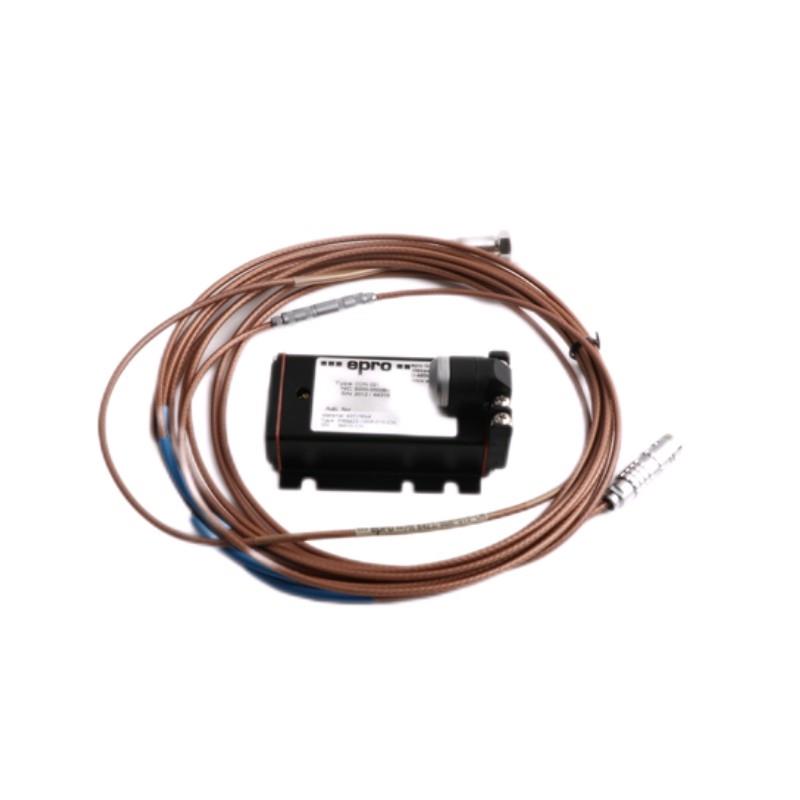

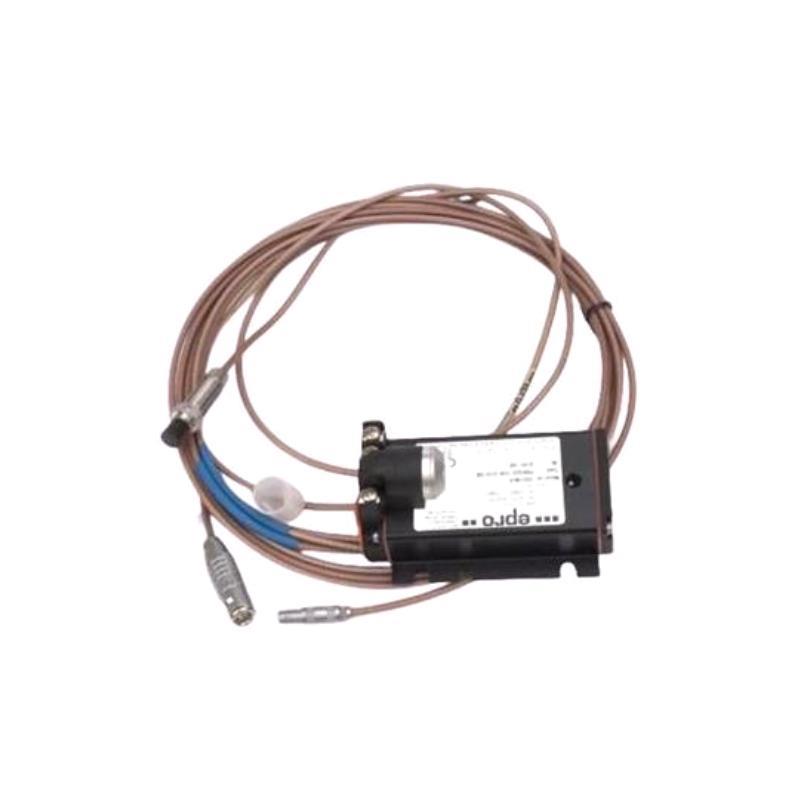

The Epro PR6423/00R-010-CN is a high-precision 8mm eddy current sensor designed for shaft displacement, vibration, and position measurement in industrial rotating machinery. This sensor is part of the PR6423 series and is widely used in turbomachinery, compressors, gearboxes, and pumps. Its robust design, high accuracy, and wide frequency response make it an essential component for condition monitoring and predictive maintenance systems.
The “00R” in the model number signifies a reinforced housing, ensuring improved durability in harsh industrial environments. The “-010” represents a 10m cable length, making it suitable for applications requiring extended sensor reach.
Product Specifications
| Specification | Details |
|---|---|
| Sensor Model | PR6423/00R-010-CN |
| Measurement Principle | Eddy Current Displacement Sensor |
| Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor | 8 V/mm (203.2 mV/mil) ± 5% |
| Frequency Range (-3 dB) | 0 to 20,000 Hz |
| Rise Time | <15 µs |
| Operating Temperature | -40°C to +85°C |
| Power Supply | DC 12V to 24V |
| Output Signal | 0.5 to 4.5 V |
| Sensor Head Diameter | 8 mm |
| Housing Type | Reinforced, industrial-grade casing |
| Weight | 0.1 kg |
Product Applications
The Epro PR6423/00R-010-CN is designed for applications requiring precise and reliable shaft movement detection. It is commonly used in the following industries:
- Turbomachinery Monitoring – Used in gas and steam turbines to measure shaft displacement and detect early signs of wear or misalignment.
- Compressor Condition Monitoring – Ensures safe operation by detecting vibration anomalies and shaft position changes.
- Gearbox Health Analysis – Helps in identifying misalignment and excessive wear in industrial gear systems.
- Pump Performance Monitoring – Provides early detection of potential failures by tracking shaft motion and vibration.
- Industrial Fans and Blowers – Ensures balanced operation by continuously monitoring rotor position.
Product Advantages
- Reinforced Housing: The 00R variant features a more durable casing, enhancing longevity in harsh environments.
- Extended Cable Length: The 10m cable offers greater flexibility in installation and system integration.
- High Sensitivity: Provides accurate displacement measurement with an incremental scale factor of 8 V/mm.
- Wide Frequency Response: Operates effectively up to 20,000 Hz, ensuring compatibility with high-speed machinery.
- Rapid Response Time: Less than 15 µs rise time, allowing for real-time monitoring and quick fault detection.
- Broad Operating Temperature Range: Designed to function reliably in temperatures from -40°C to +85°C.
- Easy Integration: Compatible with Epro CON021 signal converters and various condition monitoring systems.
Latest News Headlines
- “Epro PR6423/00R-010-CN: Advancing Eddy Current Sensor Technology in Turbomachinery Monitoring”
- “How Epro PR6423 Series Sensors Enhance Industrial Predictive Maintenance”
- “Innovations in Non-Contact Shaft Displacement Monitoring: The Role of PR6423 Sensors”
- “Epro’s Latest PR6423/00R-010-CN Offers Superior Durability for Harsh Industrial Environments”
- “Boosting Rotating Machinery Reliability with Epro PR6423/00R-010-CN”
Frequently Asked Questions (FAQ)
-
What does the “00R” designation mean in the sensor model?
- It indicates a reinforced housing for increased durability in industrial environments.
-
What is the main application of the Epro PR6423/00R-010-CN sensor?
- It is used for shaft displacement, vibration, and position monitoring in industrial rotating machinery.
-
Can this sensor be used in high-temperature environments?
- Yes, it operates within a wide temperature range of -40°C to +85°C.
-
What is the cable length of this sensor model?
- It comes with a 10-meter cable, making it suitable for applications requiring long-distance signal transmission.
-
What is the output signal of the PR6423/00R-010-CN?
- The sensor provides an output of 0.5V to 4.5V, proportional to the measured displacement.
-
Does the sensor require an external converter?
- Yes, it is designed to be used with Epro CON021 signal converters.
-
What is the weight of the complete sensor system?
- The sensor weighs 0.1 kg.
-
Is the PR6423/00R-010-CN suitable for monitoring high-speed rotating equipment?
- Yes, its wide frequency range (up to 20,000 Hz) makes it ideal for high-speed machinery.
-
Can the sensor be mounted in different orientations?
- Yes, it can be mounted in various orientations depending on the application requirements.
-
How does this sensor help in predictive maintenance?
- By providing real-time displacement and vibration data, it helps detect early signs of wear, misalignment, and potential failures.
Related Models in the Same Series
| Model | Description |
|---|---|
| PR6423/002-010-CN | 8mm Eddy Current Sensor with standard housing and 10m cable. |
| PR6423/003-010-CN | 8mm Eddy Current Sensor with alternative cable length. |
| PR6423/010-010-CN | 8mm Eddy Current Sensor with extended cable length. |
| PR6423/00M-010-CN | 8mm Eddy Current Sensor with modified connector type. |
| PR6423/00C-010-CN | 8mm Eddy Current Sensor with a different calibration setting. |
| PR6423/00R-020-CN | 8mm Eddy Current Sensor with reinforced housing and 20m cable. |
| PR6423/00R-030-CN | 8mm Eddy Current Sensor with reinforced housing and 30m cable. |
| PR6423/00R-050-CN | 8mm Eddy Current Sensor with reinforced housing and 50m cable. |
Popular Models from Epro
| Model | Description |
|---|---|
| PR6424/000-010-CN | 5mm Eddy Current Sensor for compact installations. |
| PR6425/010-010-CN | 11mm Eddy Current Sensor for larger shaft applications. |
| PR6426/000-010-CN | 14mm Eddy Current Sensor for heavy-duty industrial applications. |
| PR9268/017-100 | Vibration Sensor designed for high-precision industrial monitoring. |
| MMS3120/022-100 | Monitoring Module for comprehensive machine condition monitoring. |
| MMS6120 | Advanced Signal Processing Unit for vibration analysis. |
| CON041 | Signal Converter compatible with various eddy current sensors. |
| CON011 | Universal Converter for PR6423 series eddy current sensors. |
