Product Introduction

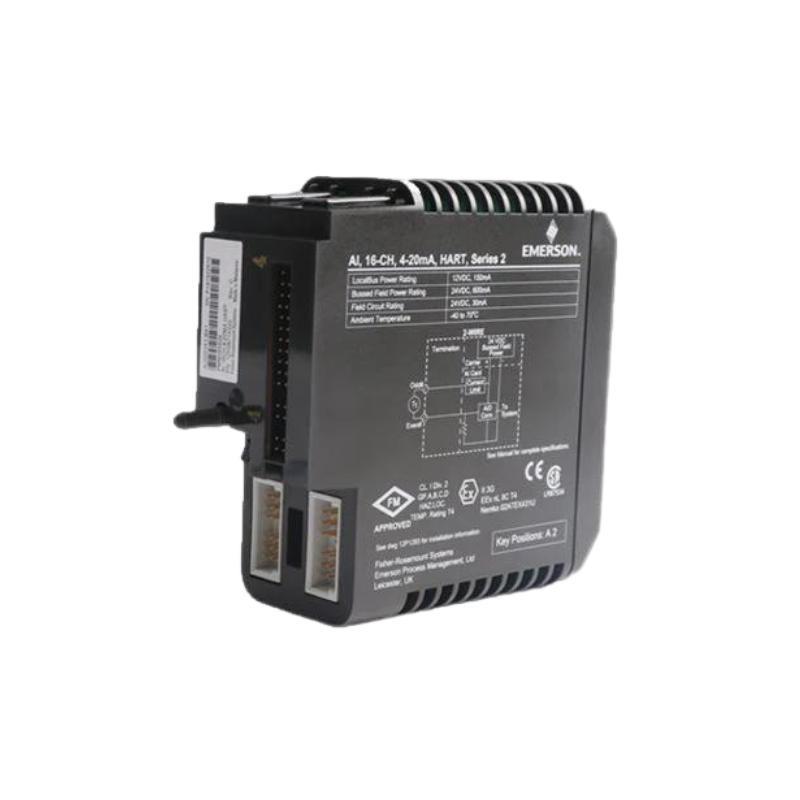

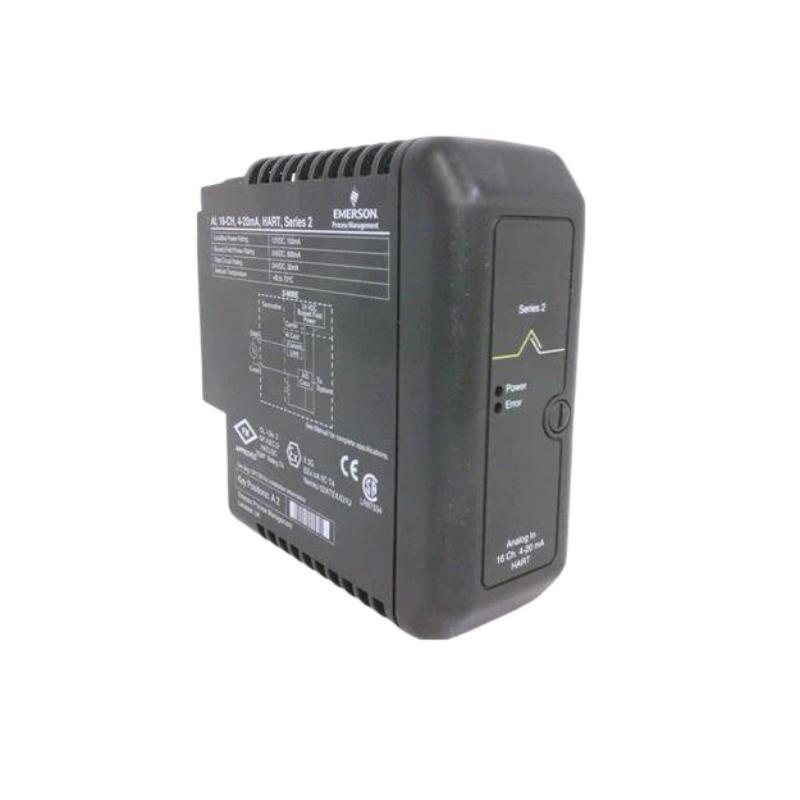

The Emerson VE4003S2B9 KJ3223X1-BA1 + KJ3223X1-EA1 input module is designed to deliver high-precision signal acquisition and processing for industrial control and automation systems. This module is an ideal choice for industries that require reliable integration with analog sensors and field devices.
With multi-channel inputs and advanced signal processing, the module enables seamless communication with DeltaV control systems. The KJ3223X1-BA1 part offers superior data conversion for both 0-10 V DC and 4-20 mA input signals, while the KJ3223X1-EA1 part ensures compatibility with Foundation Fieldbus communication protocols.

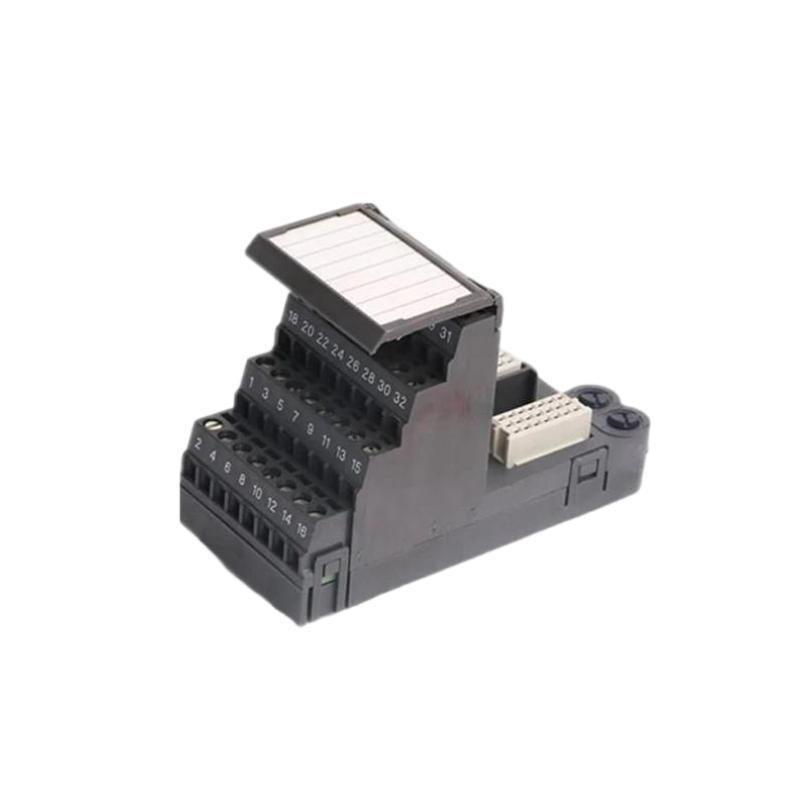

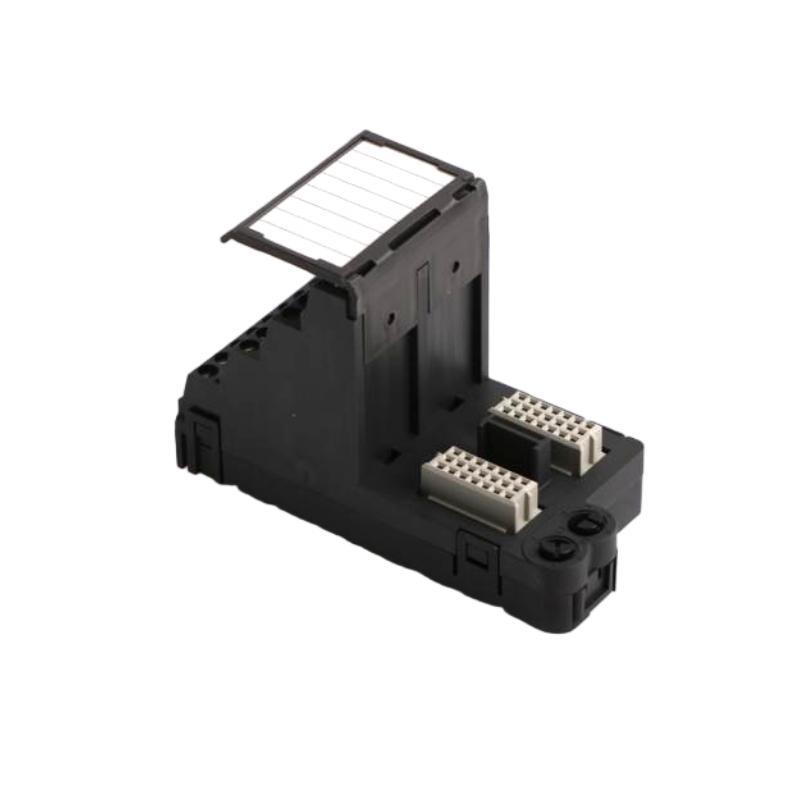

The Emerson VE4003S2B9 KJ3223X1-BA1 + KJ3223X1-EA1 comes with an easy-to-use terminal block design, which simplifies installation and maintenance in industrial applications. The module’s ability to handle high-speed data and high-accuracy signal conditioning makes it suitable for real-time control systems across various industries.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | VE4003S2B9 KJ3223X1-BA1 + KJ3223X1-EA1 |
| Packaging Dimensions | 250 x 150 x 125 mm |
| Packaging Weight | 2 kg |
| Input Type | Analog Input (0-10 V DC, 4-20 mA) |
| Number of Channels | 8 Channels (per module) |
| Signal Processing | Digital Signal Processing (DSP) |
| Fieldbus Compatibility | Foundation Fieldbus, Profibus, Modbus |
| Power Supply | 24 VDC (Nominal) |
| Operating Temperature Range | -20°C to +60°C |
| Mounting Type | Panel Mount (with terminal block) |
| Protection Rating | IP20 |
Product Applications
The Emerson VE4003S2B9 KJ3223X1-BA1 + KJ3223X1-EA1 Input Module is versatile and widely used in various industries. Its primary applications include:
-
Process Automation: It is ideal for use in chemical, petrochemical, and oil & gas industries where accurate analog signal acquisition is crucial for monitoring process variables such as pressure, temperature, and flow rate.
-
Energy Management: This module can be integrated into energy monitoring systems for monitoring and controlling energy consumption in utilities and industrial plants.
-
Data Acquisition: It is perfect for data acquisition applications, where precise real-time signal capture and analysis are needed for decision-making.
-
Manufacturing: In factory automation, it can handle sensor inputs from various sources like vibration, speed sensors, and temperature measurement devices to ensure smooth and optimized production processes.
-
Environmental Control: It is used in systems that monitor environmental parameters like air quality, water quality, and emissions in industries like water treatment and environmental monitoring.
-
Industrial Automation: This input module supports the integration of various field devices into control systems, enabling automation for better control of industrial processes.
Product Advantages
-
High-Precision Signal Acquisition: The module supports both 0-10 V DC and 4-20 mA input signals, ensuring compatibility with a wide variety of industrial sensors and field devices.
-
Flexible Integration: It can integrate seamlessly into various industrial control systems, supporting Foundation Fieldbus, Modbus, and Profibus protocols.
-
Easy Installation: With terminal block connections, this module simplifies installation, reducing the complexity of wiring and setup in control panels.
-
Space-Efficient: Its compact design makes it ideal for use in space-constrained environments, providing high functionality without occupying excessive space.
-
Reliable Data Processing: The digital signal processing (DSP) ensures high-quality signal conversion and accurate data transfer, making it suitable for real-time control applications.
-
Wide Operating Temperature Range: The module operates effectively in harsh environments with an operating temperature range of -20°C to +60°C, making it suitable for various industrial settings.
-
Energy Efficient: It operates on a 24 VDC power supply, ensuring low energy consumption, which contributes to reduced operational costs.
-
Multiple Input Channels: With 8 channels per module, the device can handle multiple signals simultaneously, making it perfect for large systems.
-
Versatile Fieldbus Compatibility: The module’s support for multiple fieldbus protocols enhances its versatility and makes it suitable for a wide range of industrial applications.
-
Robust Design: It features an IP20 protection rating, ensuring that it can be used safely in indoor industrial environments.
FAQ
1. What type of input signals can the Emerson VE4003S2B9 module accept?
The Emerson VE4003S2B9 module accepts analog input signals, including 0-10 V DC and 4-20 mA.
2. How many input channels are supported by the Emerson VE4003S2B9 module?
The module supports 8 input channels per unit.
3. What fieldbus protocols are compatible with this module?
The Emerson VE4003S2B9 supports Foundation Fieldbus, Modbus, and Profibus protocols for seamless integration.
4. What is the power supply requirement for the Emerson VE4003S2B9 module?
The module requires a 24 VDC nominal power supply for operation.
5. What is the operating temperature range of the Emerson VE4003S2B9 module?
The module operates within an ambient temperature range of -20°C to +60°C.
6. Is the Emerson VE4003S2B9 module easy to install?
Yes, the module features terminal block connections that simplify wiring and installation in industrial control panels.
7. Can this module be used for energy management?
Yes, the Emerson VE4003S2B9 is ideal for energy monitoring systems, collecting data from energy meters and enabling real-time analysis.
8. Does the Emerson VE4003S2B9 support high-speed data acquisition?
Yes, the module supports high-speed data acquisition, making it suitable for real-time monitoring applications.
9. What industries can benefit from using this input module?
Industries such as oil & gas, chemical processing, manufacturing, and energy management can benefit from the Emerson VE4003S2B9 module.
10. What is the protection rating of the Emerson VE4003S2B9 module?
The module has an IP20 protection rating, meaning it is suitable for use in indoor, non-hazardous environments.
