Product Introduction

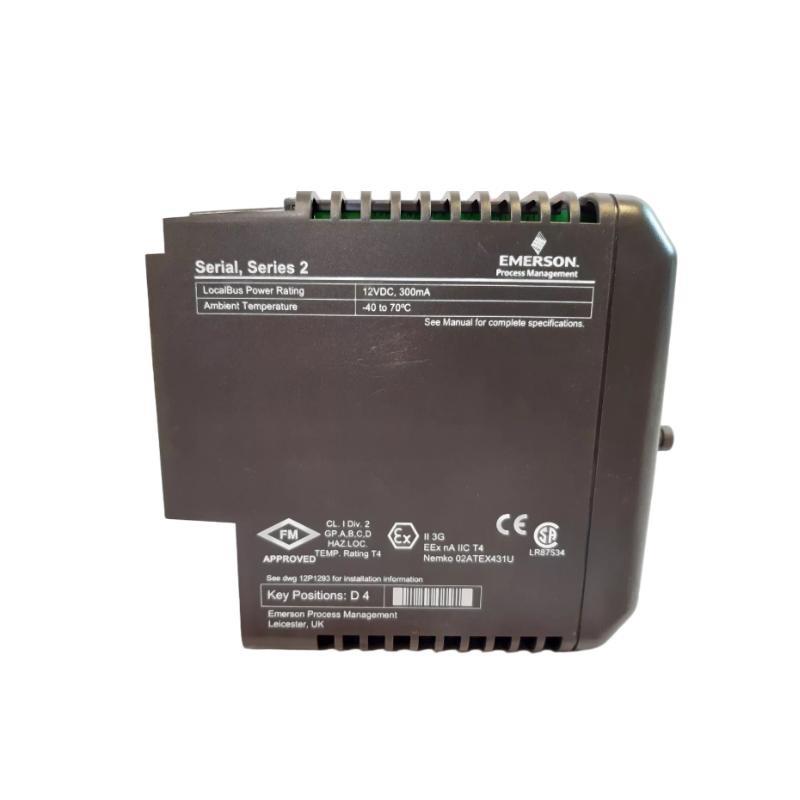

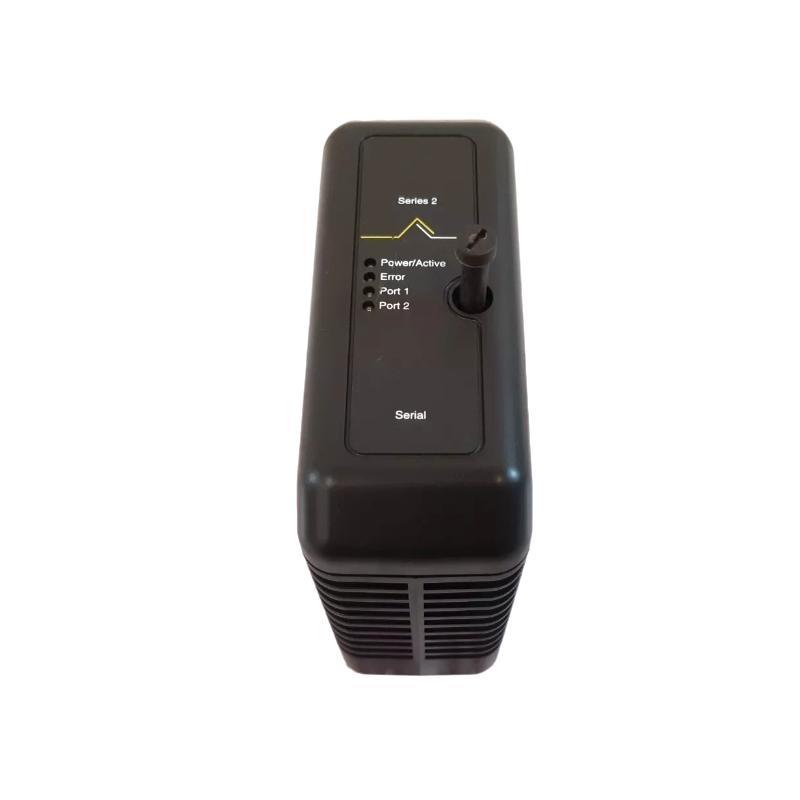

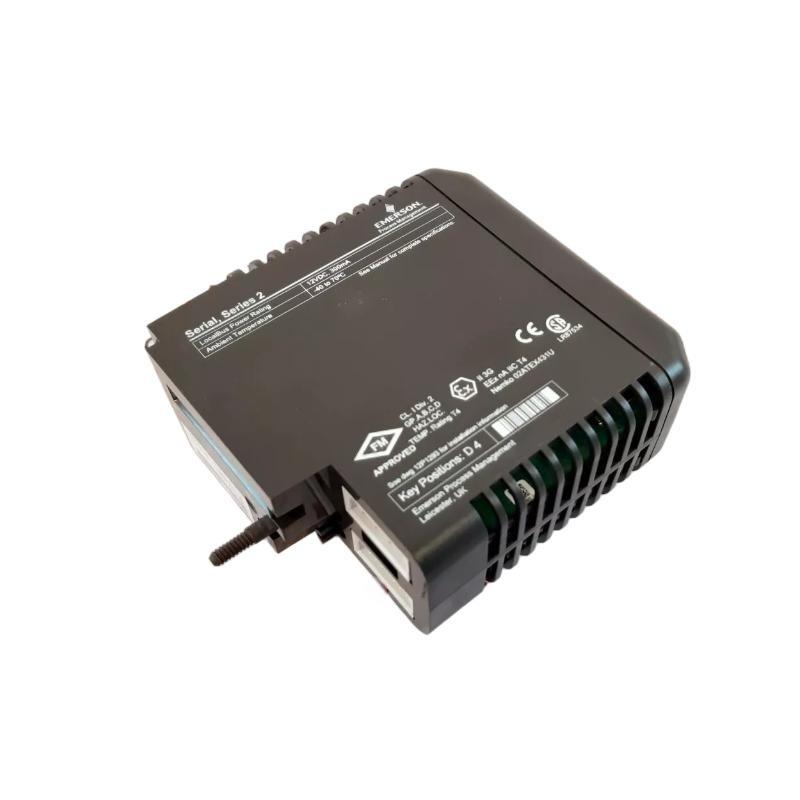

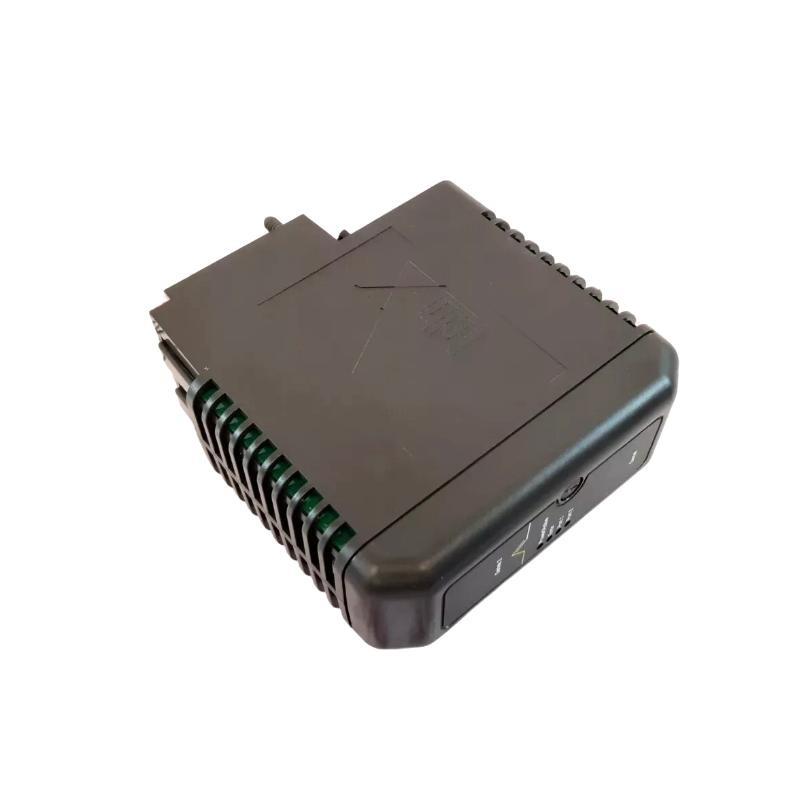

The Emerson VE4001S2B3 Serial Interface Module is a high-performance communication module designed for Emerson’s DeltaV™ and Ovation™ distributed control systems. This card provides a reliable and flexible bridge for integrating serial devices—such as analyzers, intelligent field instruments, and third-party controllers—directly into process automation networks.
By supporting multiple serial communication standards and advanced error-checking protocols, the VE4001S2B3 ensures robust data exchange even in electrically noisy industrial environments. Its modular design allows easy installation and seamless scaling, enabling engineers to expand system capabilities without major infrastructure changes. Rugged construction, wide operating temperature tolerance, and industrial-grade components make it ideal for continuous operation in power generation, oil & gas, chemical processing, and other mission-critical applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | VE4001S2B3 |
| Product Type | Serial Interface Module |
| Supported Protocols | RS-232, RS-485, Modbus RTU/ASCII |
| Data Rate | Up to 115.2 kbps |
| Power Requirement | 24 VDC nominal (18–30 VDC range) |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5 %–95 % non-condensing |
| Dimensions (W × H × D) | 200 ×120 x 60 mm |
| Weight | 0.2 kg |
| Mounting | DeltaV or Ovation controller backplane slot |
| Compliance | CE, RoHS, UL, FCC Class A |
| Diagnostic Indicators | Front-panel status LEDs for power, communication, and faults |
Applications
The VE4001S2B3 is used wherever reliable serial communication is required between Emerson control systems and intelligent field devices:
-
Power Generation: Integration of turbine monitoring equipment, generator controllers, and protective relays.
-
Oil & Gas: Connection to pipeline analyzers, gas chromatographs, and compressor control panels.
-
Chemical & Petrochemical: Interface for process analyzers, dosing systems, and third-party PLCs.
-
Water & Wastewater Treatment: Linking flow meters, pump controllers, and SCADA equipment.
-
Industrial Manufacturing: Communication with robotic controllers and production line instrumentation.
Its multi-protocol support allows a single card to handle diverse equipment types, reducing hardware investment and simplifying system design.
Advantages
-
Multi-Protocol Flexibility: Supports RS-232, RS-485, and Modbus standards, enabling broad equipment compatibility.
-
High Data Integrity: Advanced error detection and shielding minimize noise interference.
-
Easy Integration: Hot-swappable design for quick installation or replacement without system downtime.
-
Compact Footprint: Space-saving form factor optimizes control cabinet layout.
-
Industrial Durability: Withstands extreme temperatures and vibration for 24/7 critical operations.
-
Seamless DeltaV & Ovation Compatibility: Certified for direct use in Emerson’s DCS platforms.
FAQ
-
What serial protocols are natively supported by the VE4001S2B3?
It supports RS-232, RS-485, and Modbus RTU/ASCII, allowing communication with a wide range of industrial devices. -
Can multiple devices share a single card?
Yes, RS-485 multidrop capability enables multiple field devices to communicate on the same serial bus. -
How is the card configured within a DeltaV system?
Configuration is performed through DeltaV Explorer software, where baud rate, parity, and address parameters are set. -
Is hot-swapping possible without shutting down the controller?
Yes, the card is hot-swappable; proper safety procedures ensure uninterrupted system operation during replacement. -
Does it provide diagnostic feedback?
Front-panel LEDs display power, transmit/receive activity, and fault conditions for rapid troubleshooting. -
What is the maximum communication distance on RS-485?
The card supports RS-485 communication up to 1,200 meters (4,000 ft) using twisted-pair cable. -
Can firmware updates be applied in the field?
Yes, firmware upgrades can be performed via Emerson’s DeltaV maintenance utilities. -
How does the card handle electrical noise in harsh environments?
Built-in surge protection and optical isolation reduce susceptibility to EMI/RFI interference. -
Is redundant configuration supported for critical applications?
Yes, dual redundant cards can be installed for failover protection in high-availability systems. -
What diagnostics are available for communication errors?
The DeltaV diagnostics suite logs parity errors, timeouts, and protocol violations for maintenance analysis.
