Product Introduction

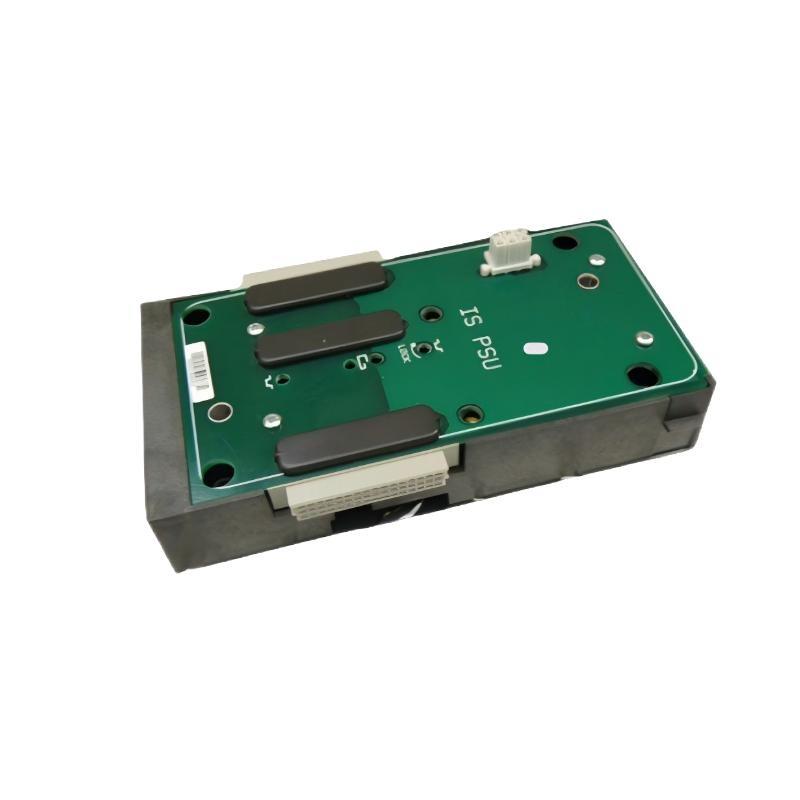

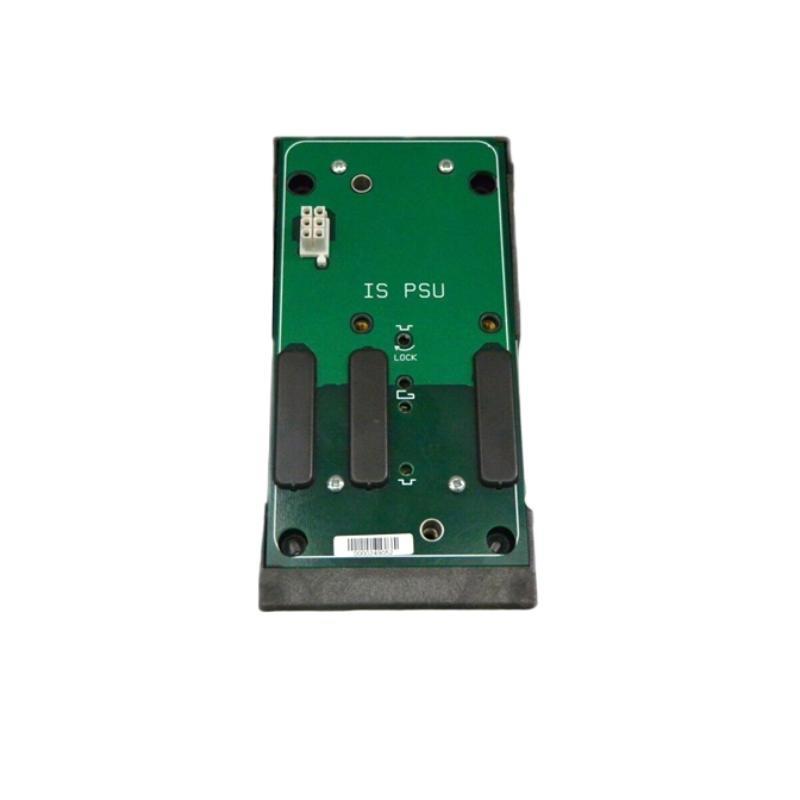

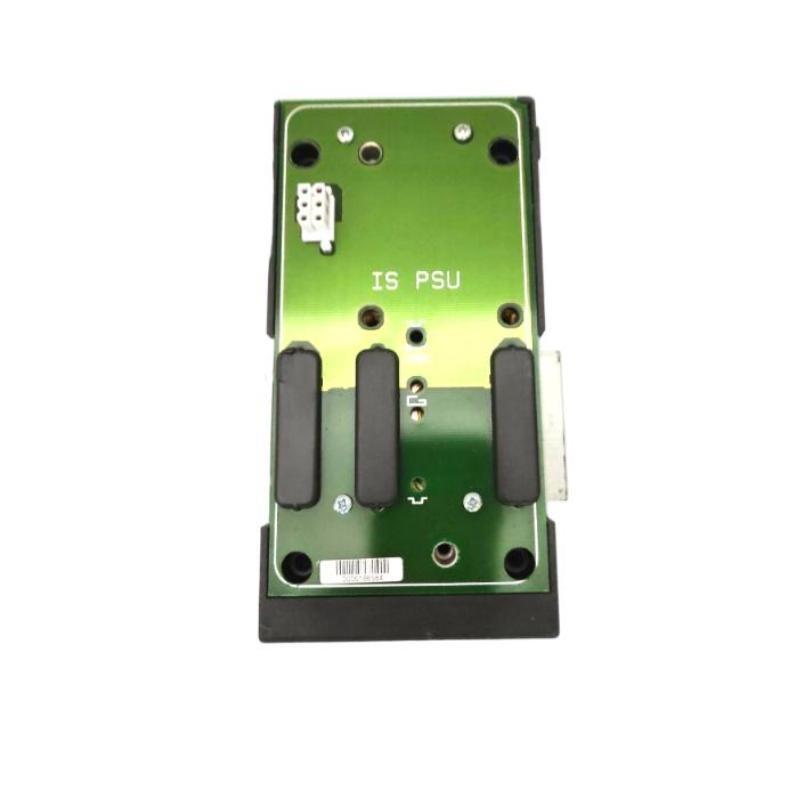

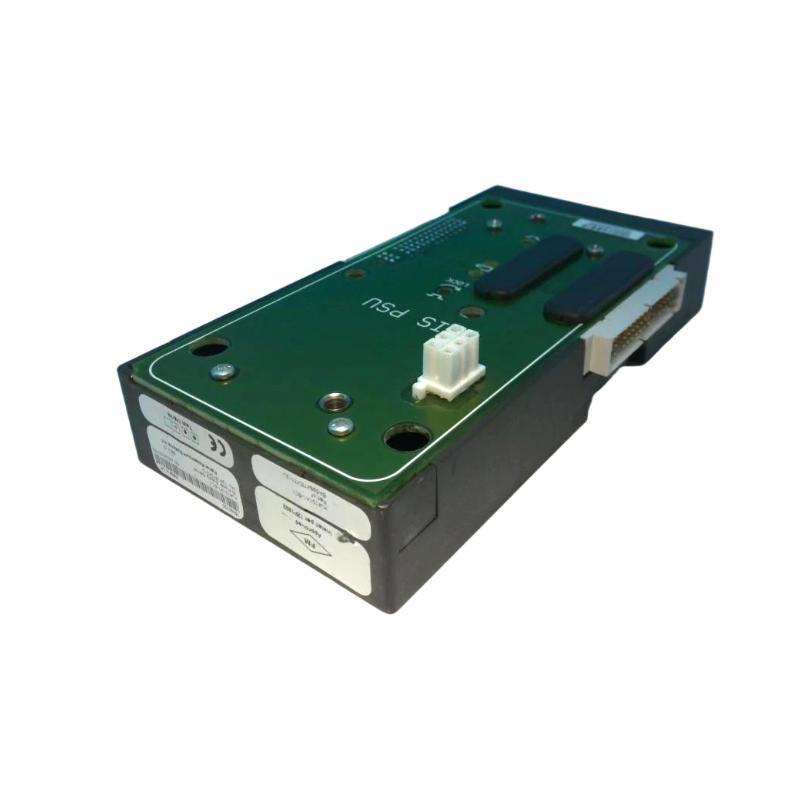

The Emerson KJ4101X1-BC1 Power Carrier is a robust and compact mounting solution designed for Emerson’s DeltaV™ distributed control system (DCS). This power carrier serves as a reliable platform to supply, manage, and distribute power to connected I/O modules and system components. Its optimized design ensures stable power transmission, easy module integration, and maximum space efficiency in complex control environments.
Built with industrial-grade materials and high-quality internal circuitry, the KJ4101X1-BC1 guarantees consistent performance, even in challenging environments where reliability and uptime are critical. Its compatibility with multiple DeltaV™ modules makes it a vital component for power management in industrial automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | KJ4101X1-BC1 |
| Type | Power carrier for DeltaV™ systems |
| Dimensions | 102 × 56 × 30 mm |
| Weight | 0.159 kg |
| Power Rating | 24 VDC nominal input (system supplied) |
| Load Capacity | Optimized for supporting multiple modules |
| Material | High-durability, industrial-grade construction |
| Operating Temperature | –20 °C to +70 °C |
| Humidity Tolerance | Up to 95% non-condensing |
| Mounting | DIN-rail or panel-mount installation |
| Certifications | CE, UL, RoHS compliant |
| Connectivity | Integrated power distribution bus |
| Maintenance | Easy module removal and replacement, tool-free setup |
| Compatibility | Fully compatible with all standard Emerson DeltaV™ modules |
Applications
-
Process Automation Systems – Delivers stable and consistent power to critical control modules.
-
Oil and Gas Industry – Supports mission-critical power distribution in drilling and refining facilities.
-
Power Generation Plants – Ensures uninterrupted power flow for turbine and generator monitoring modules.
-
Chemical and Petrochemical Facilities – Provides dependable power management in hazardous and high-demand environments.
-
Manufacturing Automation – Simplifies power integration for high-density control panels in production systems.
-
Water and Wastewater Treatment Plants – Supports continuous operation of automated control and monitoring systems.
Advantages
-
Compact Design – Small footprint (102 × 56 × 30 mm) enables installation in space-limited cabinets.
-
Lightweight Construction – Weighing only 0.159 kg, it simplifies mounting and reduces strain on enclosures.
-
Robust Durability – Engineered with high-quality materials for long-lasting operation in harsh conditions.
-
Efficient Power Distribution – Provides reliable and consistent power to all connected DeltaV™ modules.
-
Flexible Mounting Options – Supports both DIN-rail and panel-mount installations.
-
Simplified Maintenance – Tool-free design for easy replacement or service during operations.
-
High Compatibility – Fully supports Emerson’s standard DeltaV™ I/O and communication modules.
-
Wide Environmental Tolerance – Operates effectively across a broad temperature and humidity range.
-
Proven Reliability – Tested for consistent performance in industrial automation systems worldwide.
-
Enhanced System Uptime – Reduces the risk of power interruptions, improving operational efficiency.
FAQ
Q1: What is the primary role of the KJ4101X1-BC1 in a DeltaV™ system?
A1: It acts as the central platform to deliver and distribute power to various connected modules within the DeltaV™ DCS system.
Q2: Is the KJ4101X1-BC1 compatible with legacy DeltaV™ modules?
A2: Yes, it is fully backward-compatible with most legacy DeltaV™ modules, ensuring seamless integration.
Q3: Can the power carrier handle redundant power setups?
A3: Yes, it supports redundant configurations to enhance reliability and ensure uninterrupted power distribution.
Q4: What type of connections does the KJ4101X1-BC1 use?
A4: It features a high-integrity integrated bus for power and signal distribution to connected modules.
Q5: How does it maintain system stability under variable loads?
A5: The internal design ensures stable power regulation even during fluctuating load conditions in automation systems.
Q6: Is hot-swapping supported with the KJ4101X1-BC1?
A6: Yes, connected modules can often be hot-swapped when the system is properly configured for such operations.
Q7: What is the recommended operating temperature range?
A7: The carrier operates reliably between –20 °C and +70 °C, suitable for diverse industrial environments.
Q8: Does the unit provide surge protection for modules?
A8: While it maintains stable power delivery, external surge protection devices are recommended for added system safety.
Q9: Can it be used in high-vibration industrial settings?
A9: Yes, its rugged construction ensures reliable performance even under high vibration or mechanical stress.
Q10: How easy is it to integrate into existing DeltaV™ systems?
A10: Integration is straightforward due to its universal compatibility and tool-free installation process.
