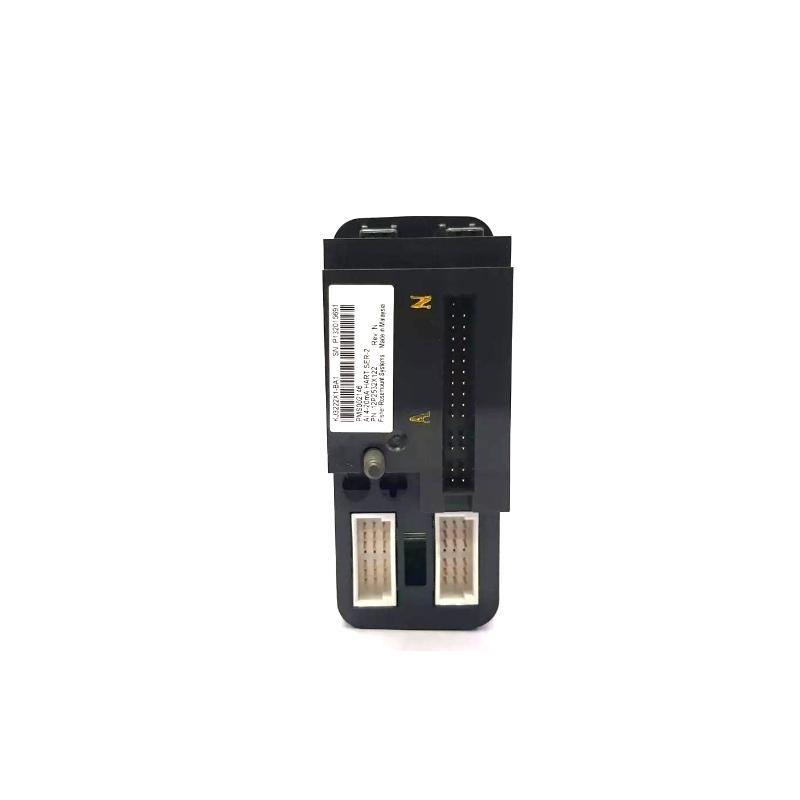

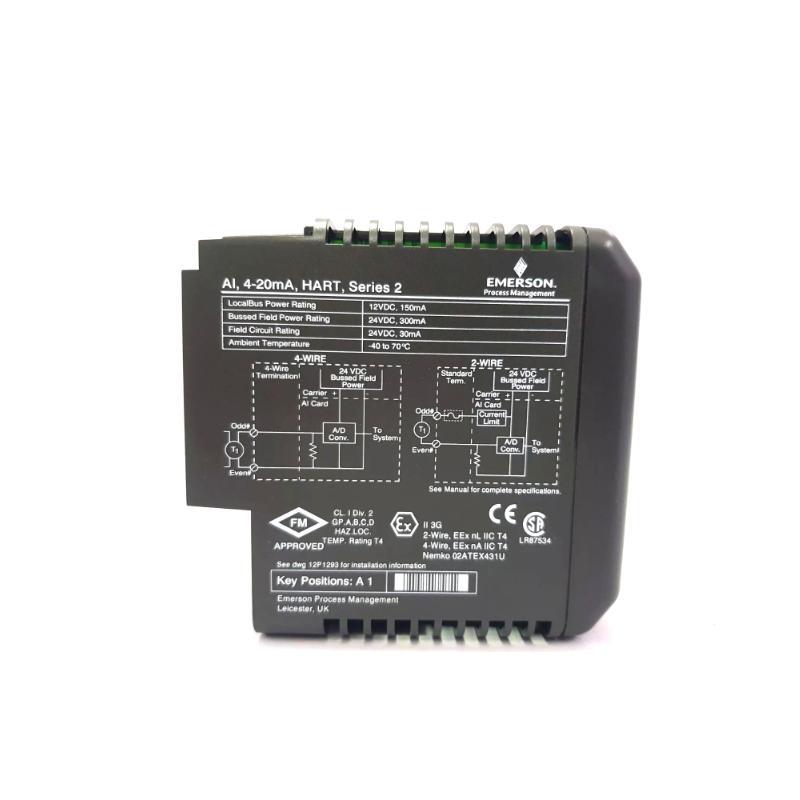

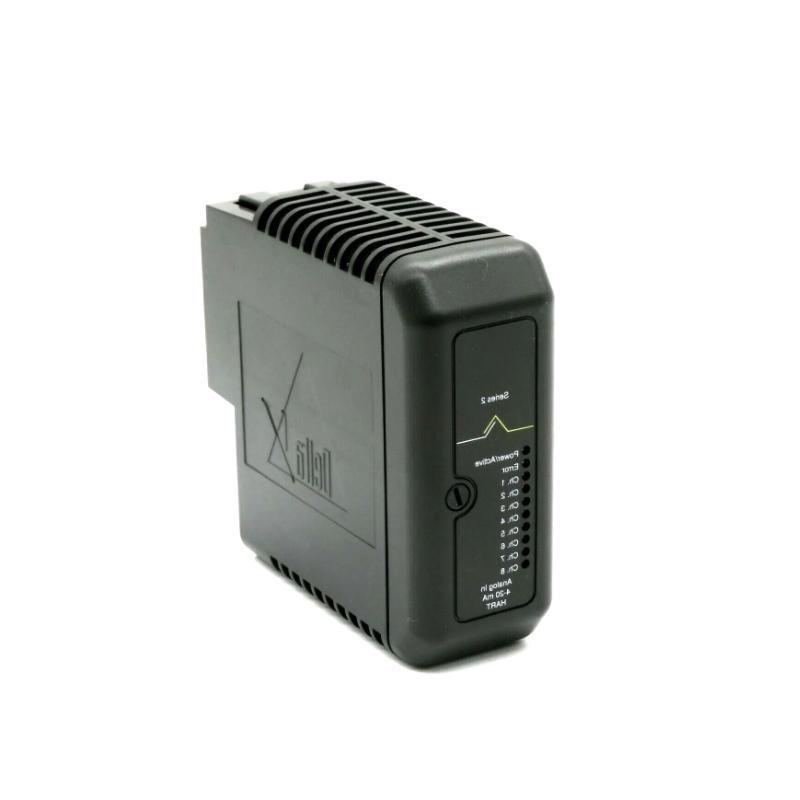

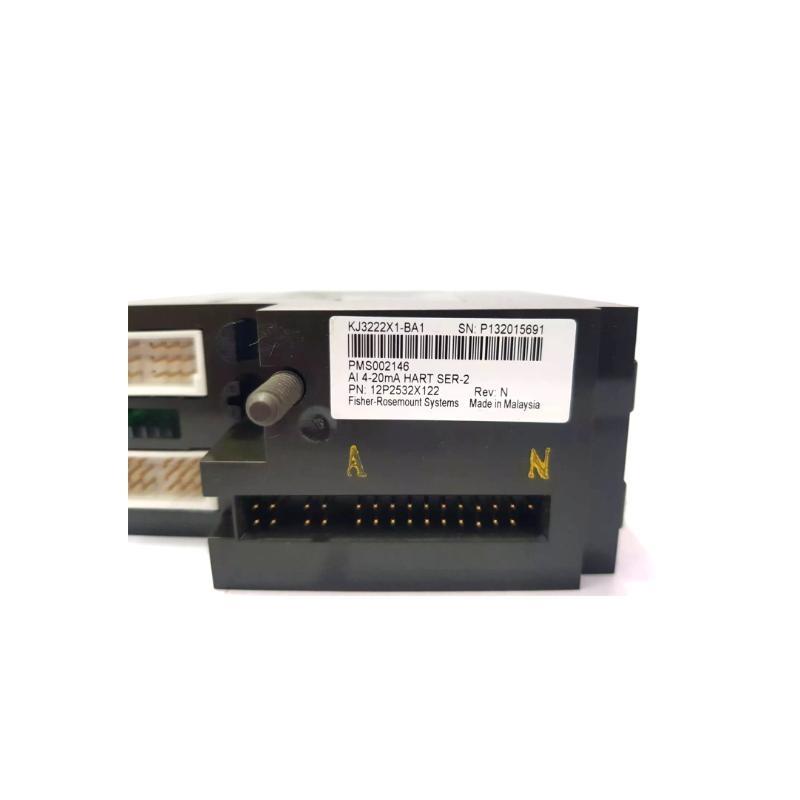

Emerson KJ3222X1-BA1 12P2532X122 Analog Input Module

Product Introduction

The Emerson KJ3222X1-BA1 Analog Input Module is designed for use within Emerson’s DeltaV™ Distributed Control System (DCS), providing high-accuracy and reliable signal processing for analog input signals. This module supports the collection of data from various field devices like temperature, pressure, and flow sensors, converting their analog signals into digital form for further processing and control within the system.

By offering up to 12 input channels, the KJ3222X1-BA1 provides a flexible solution for systems that need to integrate a range of field devices, making it ideal for use in industries such as chemical processing, power generation, and manufacturing. The module’s precise conversion and handling of analog signals ensure system reliability and accurate process control.

Product Specifications

Product Applications

The Emerson KJ3222X1-BA1 Analog Input Module is used in a wide range of industrial applications where precise analog signal measurement and processing are required:

• Process Control Systems: It collects and processes signals from sensors in various industrial environments, such as temperature, pressure, level, and flow measurements.

• Manufacturing Automation: It plays a critical role in controlling machinery, monitoring equipment performance, and ensuring safety standards in automated production lines.

• Chemical Processing: In industries where chemical reactions need to be monitored and controlled, this module ensures accurate data acquisition for precise process management.

• Power Generation: Used in power plants to monitor critical parameters such as pressure, temperature, and flow in boilers, turbines, and generators.

• Water Treatment: Ensures proper regulation and monitoring of fluid parameters in water treatment plants, ensuring high-quality output.

Product Advantages

• High Accuracy: The module offers precise signal conversion with an accuracy of 0.1% of full scale, ensuring reliable data for process control.

• Multiple Input Types: The KJ3222X1-BA1 supports both voltage and current inputs, making it adaptable to a wide range of field devices and systems.

• High Channel Density: With 12 input channels, it maximizes available space and reduces the need for multiple modules, making it an efficient solution for systems with numerous analog signals.

• Robust Construction: Designed to handle industrial environments, the module offers reliable performance across a wide operating temperature range of -40°C to +70°C.

• Compact Design: Despite its high channel count, the module is compact and can be easily mounted on a DIN rail, saving valuable panel space.

• Compliance with Standards: The module meets CE, UL, and RoHS certifications, ensuring safety and environmental compliance.

• Flexible Signal Conditioning: Programmable for both voltage and current signal types, it offers flexibility in connecting various types of field sensors.

• Energy Efficient: With a low power consumption of just 3.3W, it helps to optimize the overall energy usage in your control system.

Frequently Asked Questions (FAQ)

1. What is the primary function of the KJ3222X1-BA1 module?

   • This module serves as an analog input module for Emerson’s DeltaV™ control systems, converting analog signals from field devices into digital signals for processing and control.

2. How many channels does the KJ3222X1-BA1 module have?

   • It has 12 input channels.

3. What is the input signal range supported by the module?

   • The module supports both voltage (0-10 V) and current (4-20 mA) input signals.

4. What is the accuracy of the analog input signals?

   • The module provides an accuracy of 0.1% of full scale.

5. Can this module be used with any sensor?

   • It can be used with sensors that output either a voltage or current signal in the supported ranges (0-10 V or 4-20 mA).

6. What is the operating temperature range of the module?

   • The module operates in temperatures ranging from -40°C to +70°C.

7. Is this module compliant with safety and environmental standards?

   • Yes, the KJ3222X1-BA1 module is CE, UL, and RoHS certified.

8. How is the module mounted?

   • The module is designed for easy DIN rail mounting.

9. What is the power consumption of the module?

   • The power consumption is 3.3W.

10. What industries is the KJ3222X1-BA1 module commonly used in?

    • It is commonly used in process control, manufacturing, chemical processing, power generation, and water treatment industries.
