Product Introduction

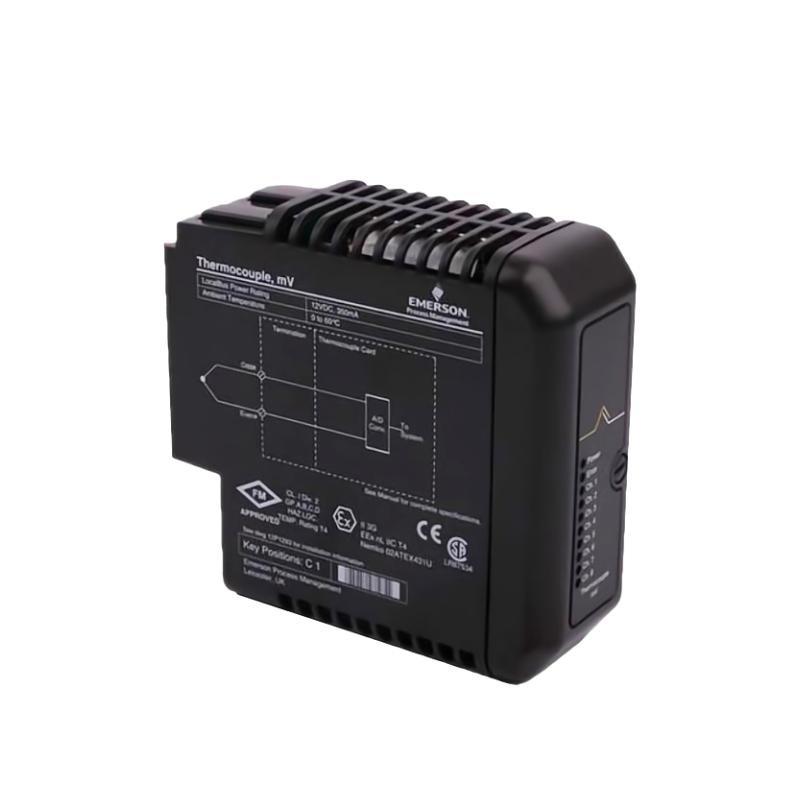

The Emerson CE4003S2B6 Standard I/O Termination Block is a vital component designed to facilitate reliable and organized wiring connections between field instruments and Emerson DeltaV distributed control system (DCS) I/O modules. This termination block ensures secure signal termination, effective isolation, and streamlined wiring management, critical for maintaining system integrity and minimizing wiring errors.
Engineered for industrial environments, the CE4003S2B6 provides robust electrical connections, supports both analog and digital signals, and integrates seamlessly within DeltaV I/O assemblies. Its modular design and rugged construction make it suitable for demanding process control applications across various industries including oil & gas, power generation, chemical processing, and pharmaceuticals.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | Emerson CE4003S2B6 |
| Product Type | Standard I/O Termination Block |
| Compatibility | Emerson DeltaV I/O Modules |
| Connection Type | Screw terminal block |
| Number of Channels | Supports multiple I/O signals per block |
| Voltage Rating | Up to 250 V AC/DC |
| Current Rating | Up to 10 A per terminal |
| Isolation | Channel-to-channel isolation |
| Mounting Type | DIN-rail or panel mounting |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Material | Industrial grade plastic and metal contacts |
| Dimensions (H x W x D) | 80 x 120 x 25 mm |
| Weight | 0.18 kg |
| Certifications | UL, CE, CSA, IEC |
Product Applications
The CE4003S2B6 Standard I/O Termination Block is widely used in process control and automation systems to:
-
Field Wiring Interface: Provides a secure and organized termination point for signals from field instruments to DeltaV I/O modules.
-
Signal Isolation and Distribution: Helps prevent cross-channel interference by providing channel-to-channel isolation.
-
Industrial Process Control: Used in oil & gas, chemical, pharmaceutical, and power plants for reliable signal routing.
-
Modular I/O Systems: Fits within DeltaV I/O subsystems to facilitate easy maintenance and wiring management.
-
Control Panel Assembly: Used in control cabinets for tidy and efficient wiring termination.
Product Advantages
-
Reliable Electrical Connections: Screw terminals ensure stable, vibration-resistant wiring.
-
Compact and Modular Design: Saves panel space and supports neat wiring layouts.
-
Robust Construction: Durable materials withstand industrial environments and temperature variations.
-
Channel Isolation: Minimizes signal interference, enhancing measurement and control accuracy.
-
Easy Installation: DIN-rail or panel mounting offers flexible installation options.
-
Seamless Integration: Fully compatible with Emerson DeltaV I/O modules, simplifying system design.
FAQ
-
What types of signals can the CE4003S2B6 termination block handle?
It supports both analog and digital signals within DeltaV systems. -
What is the maximum voltage rating per terminal?
Each terminal supports up to 250 V AC/DC. -
How many I/O channels can this termination block accommodate?
It supports multiple I/O channels; exact number depends on system wiring design. -
Does the termination block provide electrical isolation?
Yes, it offers channel-to-channel isolation to reduce interference. -
Is the block compatible with DeltaV I/O modules?
Yes, it is specifically designed for Emerson DeltaV I/O systems. -
What mounting options are available for this termination block?
It supports DIN-rail and panel mounting configurations. -
What is the current rating for each terminal?
Each terminal can handle up to 10 A of current. -
Is the termination block suitable for hazardous environments?
It complies with industry safety standards but must be installed in suitable enclosures for hazardous areas. -
What materials are used in the construction of this block?
It uses industrial-grade plastics and corrosion-resistant metal contacts. -
Can the block be used for both field and control room wiring?
Yes, it is designed for flexible use in field junctions and control cabinets.
