Product Introduction

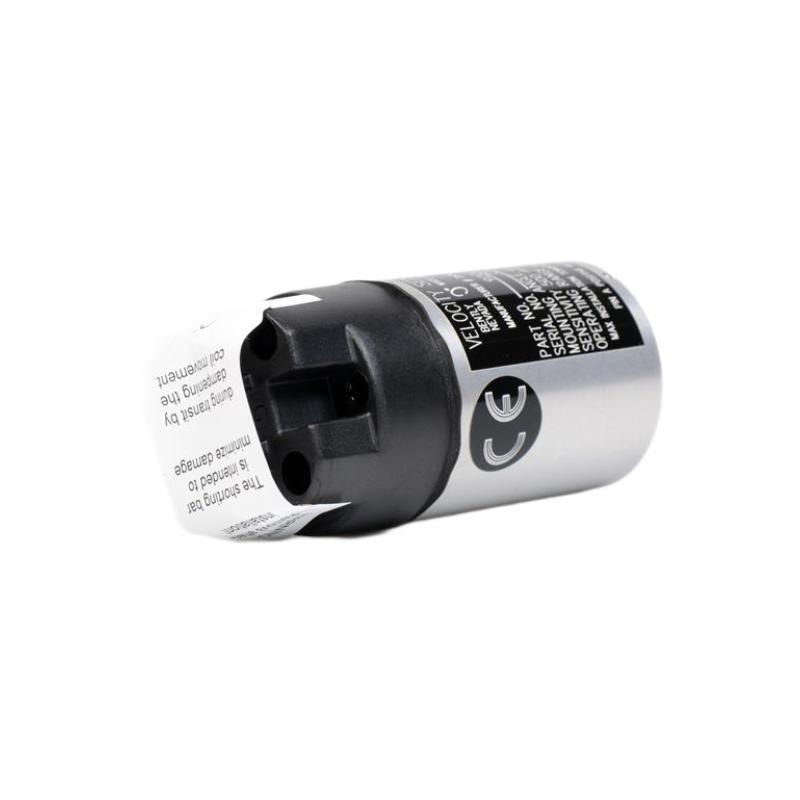

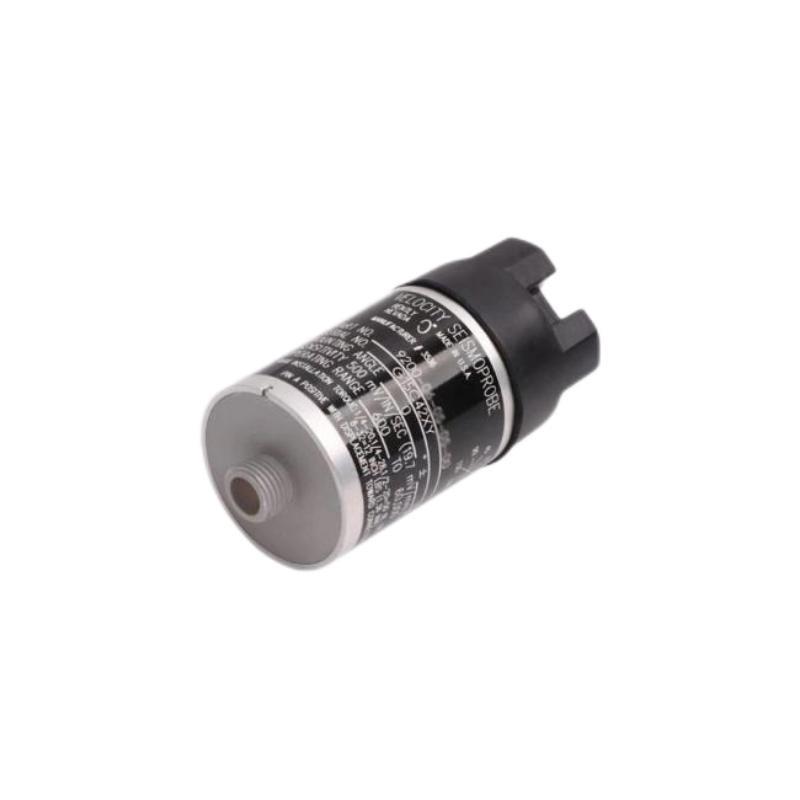

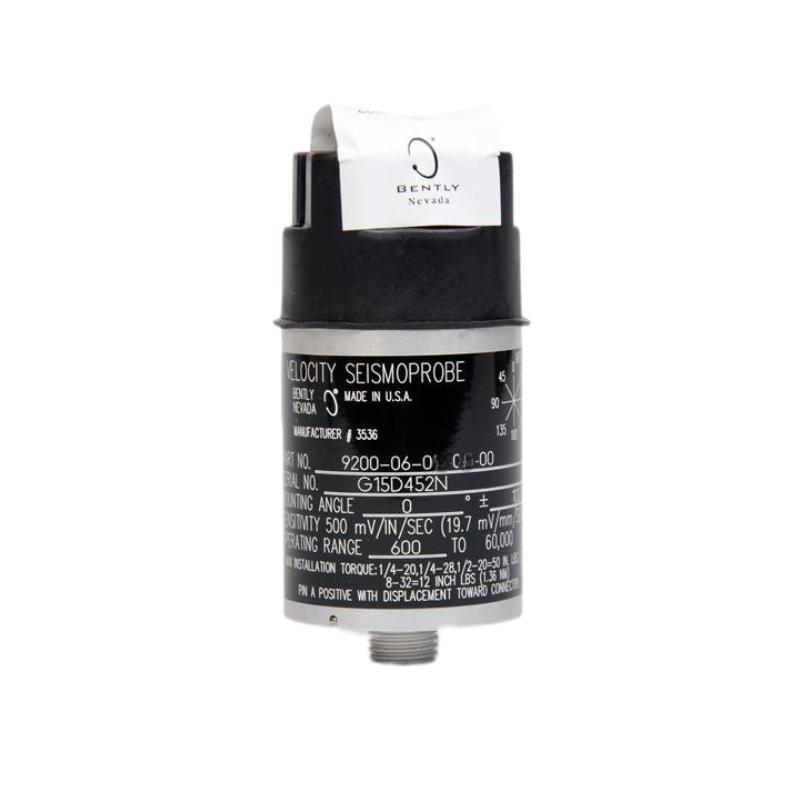

The Bently Nevada 9200-03-06-10-00 is a dual-line velocity seismic sensor designed for industrial vibration monitoring. It is widely used in rotating machinery such as turbines, compressors, pumps, and motors. The sensor provides accurate velocity measurements, which help operators detect mechanical issues early and prevent costly equipment failures.
This model is built to perform in harsh operating environments, offering durability, long-term stability, and compatibility with monitoring systems. Its compact size and reliable design make it suitable for both new installations and retrofit applications where precise vibration monitoring is required.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | Bently Nevada 9200-03-06-10-00 |
| Type | Dual-line velocity seismic sensor |
| Measurement Range | ±50 mm/s (typical, depending on configuration) |
| Frequency Response | 4.5 Hz to 5,000 Hz |
| Sensitivity | 20 mV/mm/s (nominal) |
| Output Signal | Velocity, dual-line |
| Operating Temperature | -29 °C to +93 °C |
| Storage Temperature | -40 °C to +100 °C |
| Humidity | 95% RH, non-condensing |
| Enclosure Rating | IP65 (typical, dust-tight and water-resistant) |
| Electrical Connection | Two-wire system, shielded cable |
| Mounting | Stud or base mount |
| Housing Material | Stainless steel |
| Sensor head diameter | 41.4mm |
| Weight | 0.3 kg |
| Power Supply | 18–24 VDC (through monitoring system interface) |
Product Applications
The Bently Nevada 9200-03-06-10-00 sensor is primarily used in machinery protection and predictive maintenance programs. Typical applications include:
-
Turbines: Monitoring vibration levels for safe operation and to prevent rotor imbalance or bearing damage.
-
Compressors: Ensuring mechanical stability during high-pressure operations.
-
Pumps: Detecting cavitation, misalignment, and mechanical wear.
-
Motors and Generators: Monitoring vibration to identify early signs of mechanical looseness or misalignment.
-
Industrial Fans and Blowers: Protecting equipment from unexpected failures.
By integrating this sensor with a Bently Nevada monitoring system, plant operators can reduce downtime and optimize maintenance schedules.
Product Advantages
-
High Accuracy: Provides precise velocity measurements for reliable machine diagnostics.
-
Wide Frequency Range: Capable of detecting both low- and high-frequency vibration issues.
-
Rugged Construction: Stainless steel housing ensures durability in harsh industrial environments.
-
Compact Size: Easy installation even in space-limited applications.
-
Compatibility: Seamlessly integrates with Bently Nevada monitoring systems and other industrial platforms.
-
Long-Term Reliability: Proven design with stable performance over extended operation.
FAQ
Q1: What type of signal does the 9200-03-06-10-00 sensor provide?
A1: It provides a dual-line velocity output, designed for use with industrial vibration monitoring systems.
Q2: Can this sensor be used outdoors?
A2: Yes, it has an IP65-rated enclosure, which makes it resistant to dust and moisture.
Q3: How should the sensor be mounted?
A3: It can be mounted using a stud or a base mount, depending on the application requirements.
Q4: What is the typical sensitivity of the sensor?
A4: The sensitivity is around 20 mV per mm/s.
Q5: What monitoring systems is this sensor compatible with?
A5: It is fully compatible with Bently Nevada monitoring systems and can also integrate with other industrial condition monitoring platforms.
Q6: Does it require external power?
A6: The sensor is powered via the monitoring system interface, typically operating at 18–24 VDC.
Q7: What industries commonly use this sensor?
A7: Power generation, oil & gas, chemical processing, and manufacturing industries frequently use this model.
Q8: What is the operating temperature range?
A8: The sensor operates reliably between -29 °C and +93 °C.
Q9: How heavy is the sensor?
A9: It weighs 0.3 kg.
Q10: Can it be retrofitted into existing systems?
A10: Yes, due to its standardized design and compatibility, it can easily be retrofitted into existing monitoring setups.
