Product Introduction

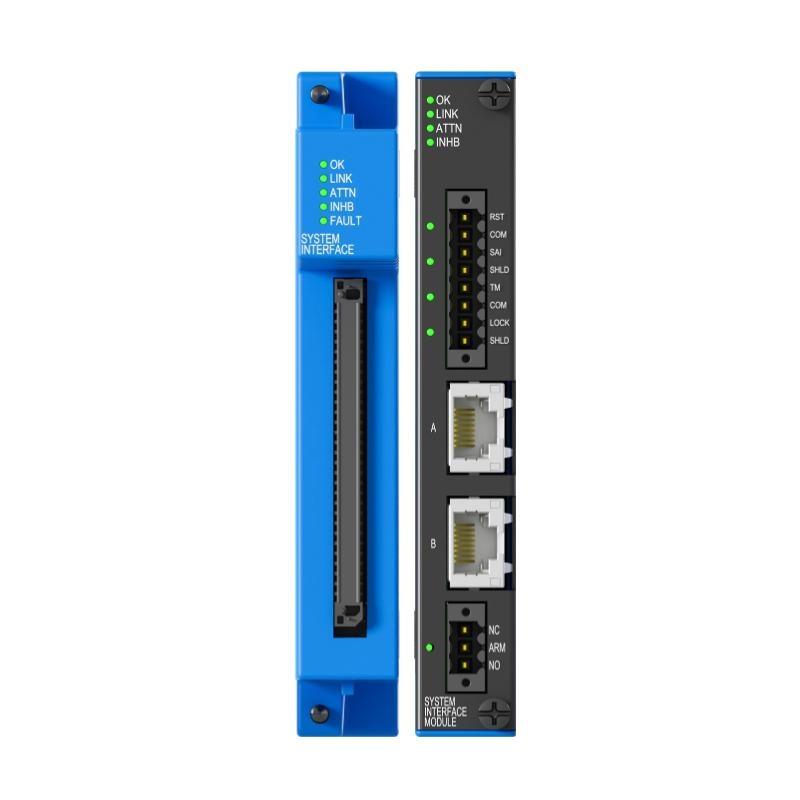

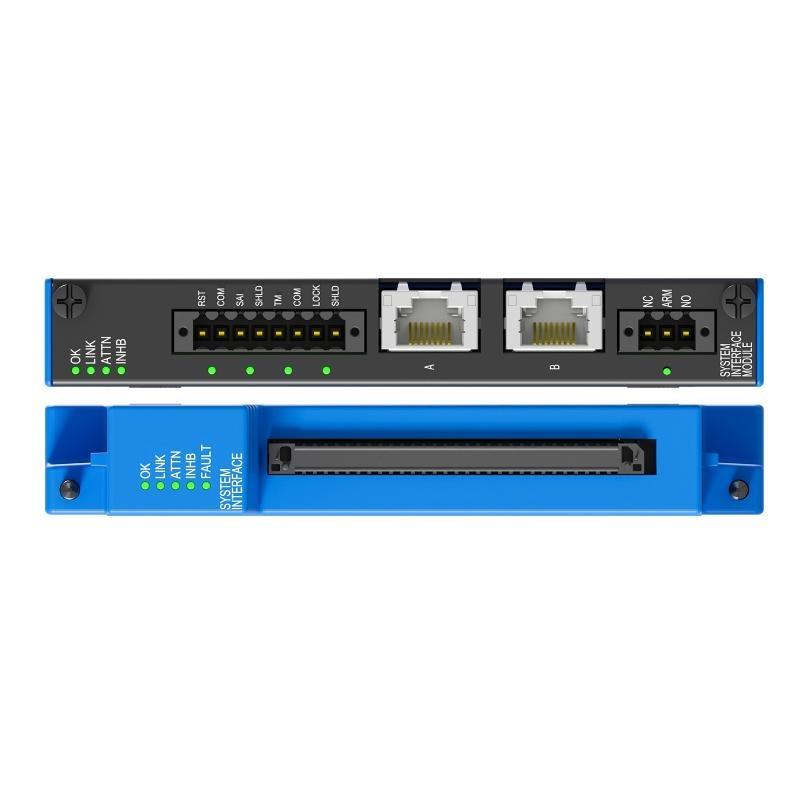

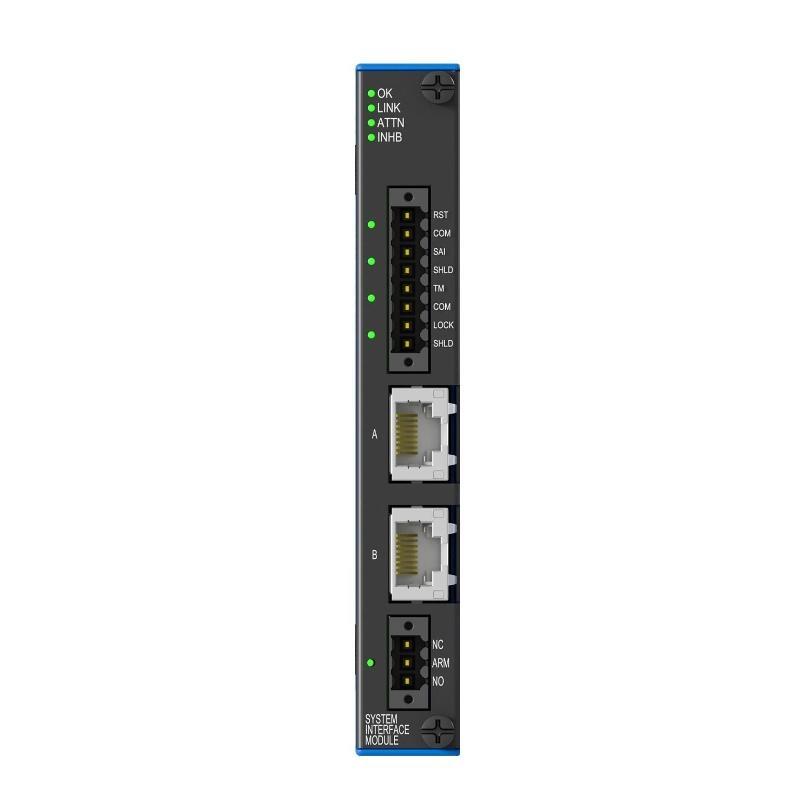

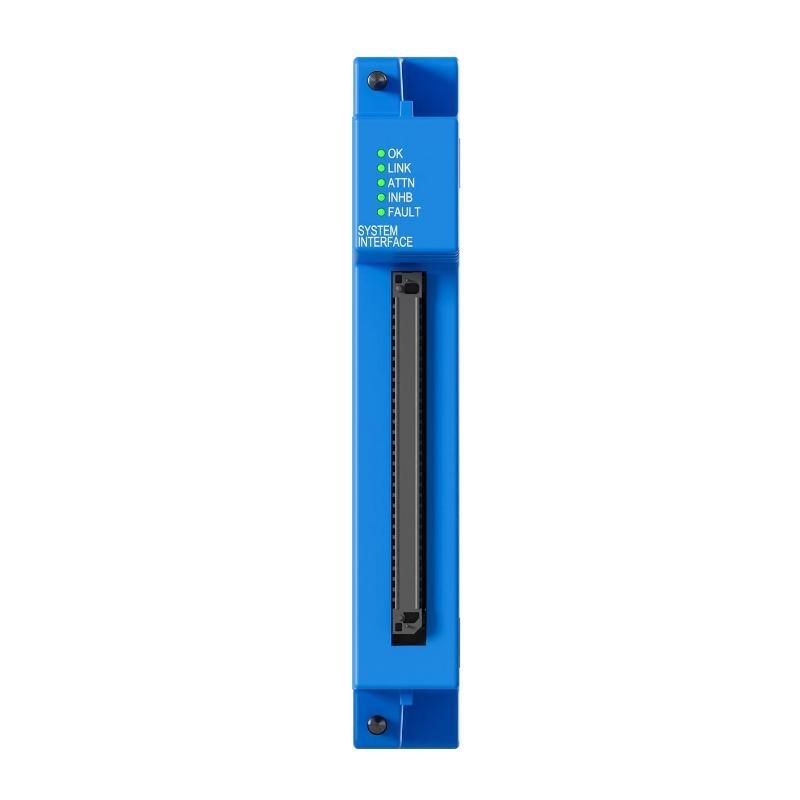

The Bently Nevada 60R/SIM01-00-0 System Interface Module is an essential communication and integration component for the 60R Series machinery protection and condition monitoring platform. Designed as the central bridge between the 60R rack and external plant networks, it provides high-speed data exchange, configuration management, and supervisory control capabilities. With support for country-specific compliance codes and optional SIL (Safety Integrity Level) certification, this module ensures global compatibility and adherence to stringent safety standards. Its rugged 3U design, redundant communication channels, and advanced diagnostics make it ideal for power generation, petrochemical, and heavy industrial environments where uninterrupted connectivity and secure data flow are critical.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | System Interface & Communication Module |
| Model Number | 60R/SIM01-00-0 |
| System Platform | Bently Nevada 60R Series |
| Network Protocols | Modbus TCP/IP, OPC UA, Ethernet/IP, SNMP |
| Redundancy | Dual Ethernet ports with hot-standby capability |
| Data Throughput | Up to 100 Mbps |
| Configuration Interface | Web-based and local serial console |
| Event Logging | 10,000 events with time-stamped records |
| Power Supply Requirement | 24 VDC nominal (18–36 VDC operating range) |
| Isolation Voltage | 2500 Vrms channel-to-ground |
| Operating Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Humidity Range | 5%–95% non-condensing |
| Shock Resistance | 30 g, 11 ms half-sine |
| Vibration Resistance | 5 g, 5–2000 Hz |
| Compliance | CE, UL, RoHS, FCC Part 15 |
| Country-Specific Codes | Options for EU, North America, Asia-Pacific regions |
| SIL Certification Options | SIL 1 or SIL 2 (order-specific) |
| Dimensions (W × H × D) | 132.1 x 20.3 x 245.6 mm |
| Weight | 1.2 kg |
Applications
-
Central Communication Hub: Serves as the primary interface between the 60R rack and plant-wide SCADA/DCS systems.
-
Real-Time Data Acquisition: Enables high-speed transmission of vibration, temperature, and process variables to monitoring stations.
-
System Configuration: Allows secure remote configuration and firmware updates for all connected 60R modules.
-
Event Logging and Diagnostics: Provides comprehensive historical records for system analysis and troubleshooting.
-
Safety-Critical Operations: Integrates with SIL-rated protection systems for critical machinery shutdown logic.
-
Remote Monitoring: Facilitates web-based access to machine health data from local or remote locations.
Advantages
-
High-Speed Networking: Dual Ethernet ports and 100 Mbps throughput ensure low-latency data transmission.
-
Redundant Connectivity: Hot-standby Ethernet capability provides continuous communication in case of network failure.
-
Advanced Security: Built-in authentication and encryption options protect against unauthorized access.
-
Extensive Protocol Support: Modbus TCP/IP, OPC UA, and Ethernet/IP enable easy integration with diverse control systems.
-
Rugged Industrial Design: Resistant to vibration, shock, and temperature extremes for harsh plant environments.
-
Flexible Configuration: Supports web-based setup and local console access for easy deployment and updates.
-
Event Storage: Large 10,000-event buffer ensures accurate historical logging for diagnostics and compliance.
-
Global Compliance: Country-specific code options and SIL certification meet worldwide safety and regulatory needs.
-
Scalable Integration: Seamlessly expands to support additional racks or modules within large installations.
-
Low Maintenance: Designed for long service intervals and simple firmware upgrade procedures.
FAQ
-
Which communication protocols does the 60R/SIM01-00-0 support?
It supports Modbus TCP/IP, OPC UA, Ethernet/IP, and SNMP, ensuring compatibility with most industrial control networks. -
Can the module provide redundant Ethernet connections?
Yes, it features dual Ethernet ports with hot-standby capability for uninterrupted communication. -
How many events can be stored in the internal log?
The module can store up to 10,000 time-stamped events for comprehensive historical analysis. -
Is the module compatible with SIL-certified safety systems?
It is available with SIL 1 or SIL 2 certification options to meet stringent functional safety requirements. -
What is the typical data throughput?
The module supports data rates up to 100 Mbps for real-time condition monitoring. -
How is system configuration performed?
Configuration can be managed through a secure web interface or a local serial console. -
What type of power supply does it require?
It operates on a 24 VDC nominal power supply, with an acceptable range of 18–36 VDC. -
Does the module provide electrical isolation?
Yes, it offers 2500 Vrms isolation between channels and ground to prevent interference. -
Can it be integrated with existing SCADA or DCS systems?
Absolutely, its protocol support and flexible interfaces enable easy integration with most plant automation systems. -
How does it handle harsh industrial environments?
The rugged design tolerates vibrations up to 5 g, shocks up to 30 g, and a wide temperature range of –20 °C to +70 °C.
