Product Overview

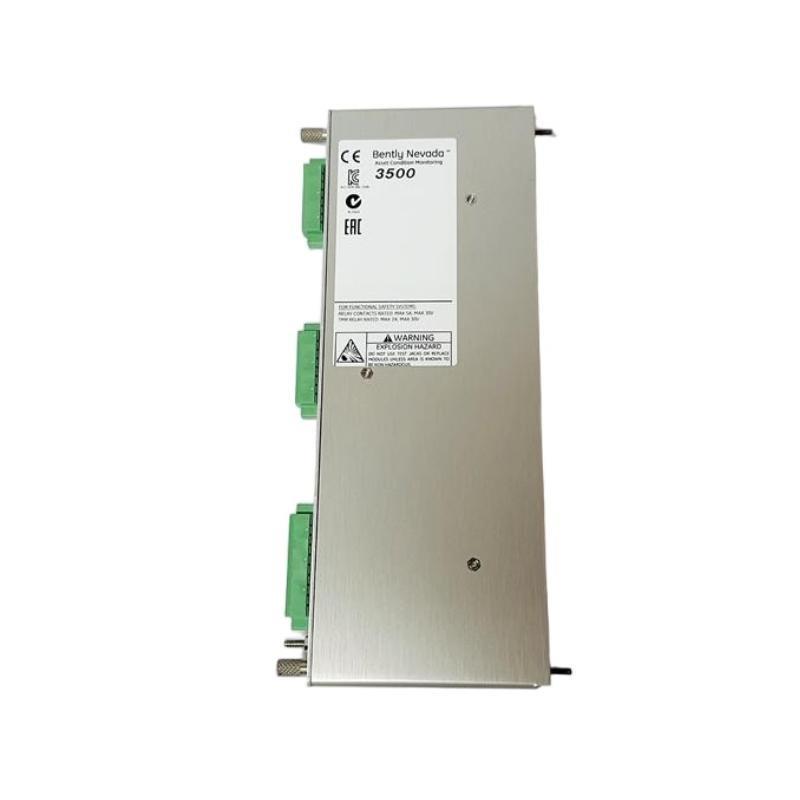

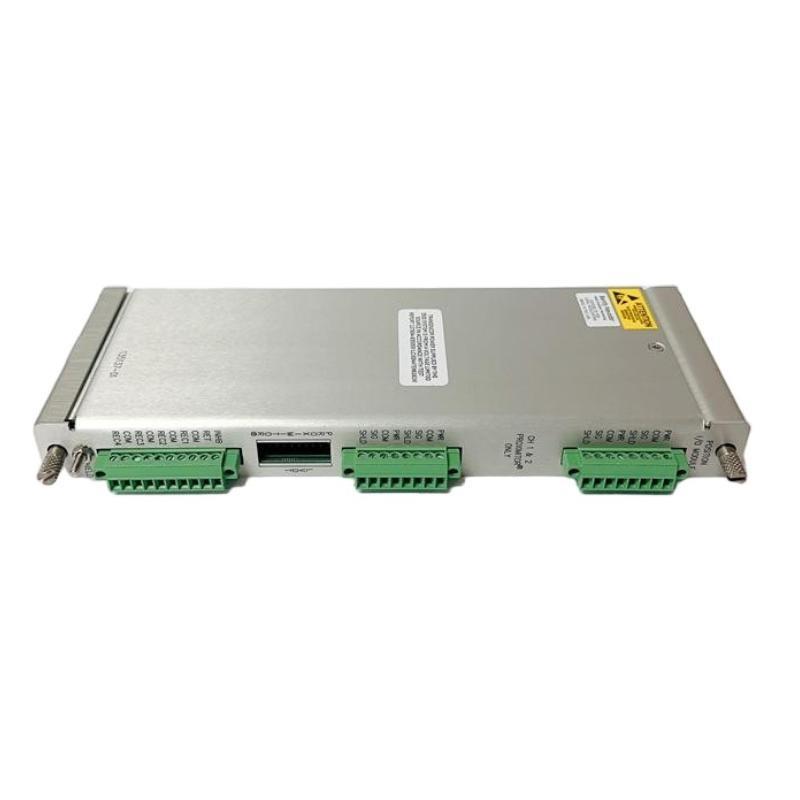

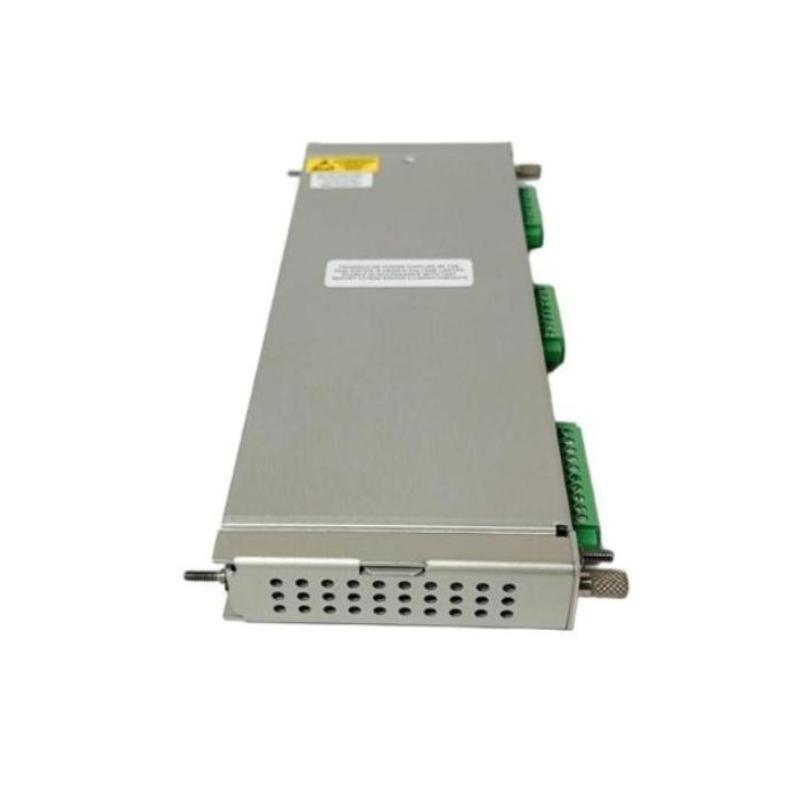

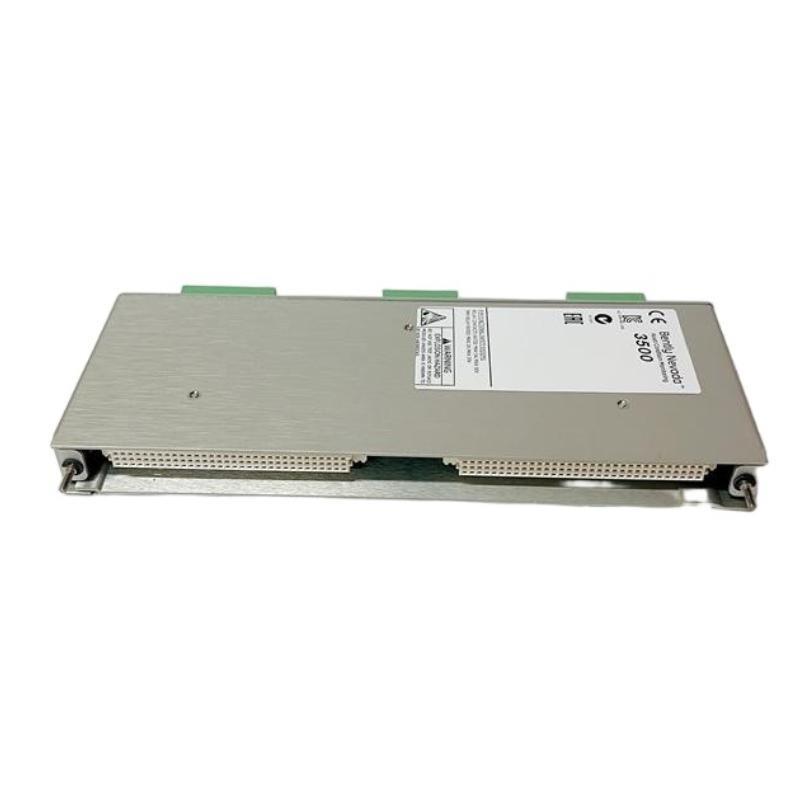

The Bently Nevada 3500/91 161216-01 is an EGD Communication Gateway Module designed to integrate Bently Nevada 3500 monitoring system data with Ethernet Global Data (EGD) networks. It enables real-time transfer of vibration, temperature, and machinery monitoring data to plant control and diagnostic systems, supporting effective monitoring, analysis, and protection of critical industrial equipment.
Key Features
-
Interfaces 3500 system data with EGD networks
-
Real-time data transfer for SCADA and DCS systems
-
Supports high-speed Ethernet connectivity
-
Robust industrial-grade design for reliable operation
-
Provides diagnostic indicators for network and module status
-
Simplifies integration and maintenance
-
Facilitates secure and continuous communication
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | EGD Communication Gateway Module |
| Model Number | 161216-01 |
| System Compatibility | Bently Nevada 3500 Series |
| Communication Protocol | Ethernet Global Data (EGD) |
| Network Speed | 100/1000 Mbps, full-duplex |
| Data Latency | Low-latency, system dependent |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.39 kg |
| Indicators | Link, activity, and module status LEDs |
Industry Applications
-
Power Generation – Integration of machinery monitoring data into plant control systems
-
Oil & Gas – Real-time monitoring of turbines, compressors, and pumps
-
Chemical & Petrochemical – Data transfer for process monitoring and control
-
Mining & Metals – Ethernet-based monitoring of critical industrial machinery
-
Marine & Offshore – EGD communication for engine and process monitoring
-
Pulp & Paper – Linking vibration and temperature monitoring systems to control networks
Frequently Asked Questions (FAQ)
Q1: What is the function of the 3500/91 161216-01 module?
It provides EGD network communication for 3500 system data to control and diagnostic systems.
Q2: Which systems is it compatible with?
It is compatible with Bently Nevada 3500 Series monitoring systems.
Q3: What communication protocol does it use?
It uses the Ethernet Global Data (EGD) protocol.
Q4: What is the operating temperature range?
-20°C to 70°C.
Q5: What are the module dimensions?
241.3 mm x 24.4 mm x 99.1 mm.
Q6: How much does the module weigh?
Approximately 0.39 kg.
Q7: Can it integrate with SCADA or DCS systems?
Yes, it supports seamless integration.
Q8: What indicators are included for diagnostics?
Link, activity, and module status LEDs.
Q9: Is it suitable for harsh industrial environments?
Yes, it is built for reliable industrial operation.
Q10: What network speed does it support?
100/1000 Mbps, full-duplex.
