Product Overview

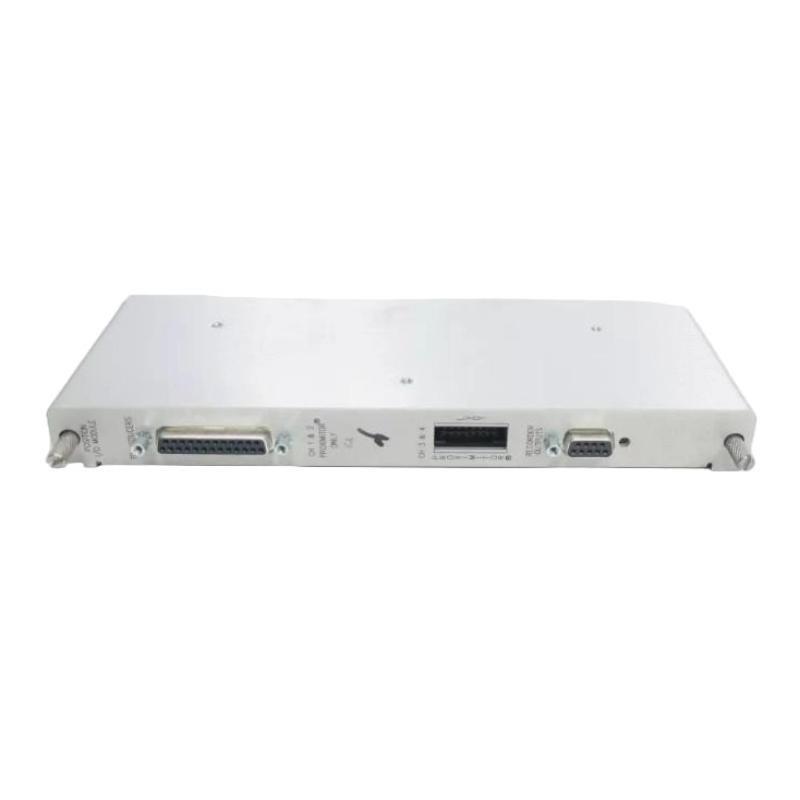

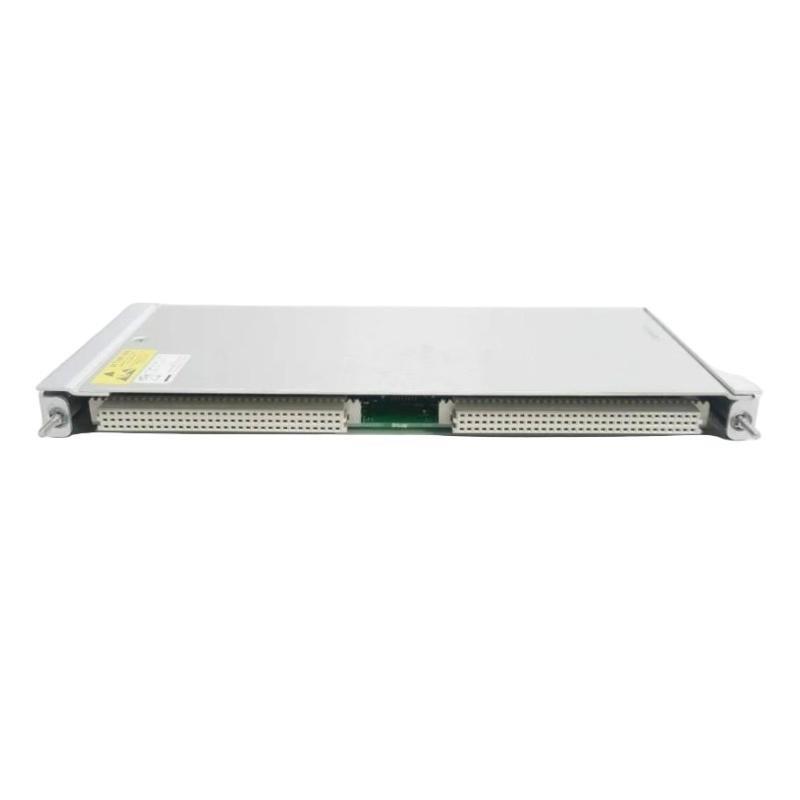

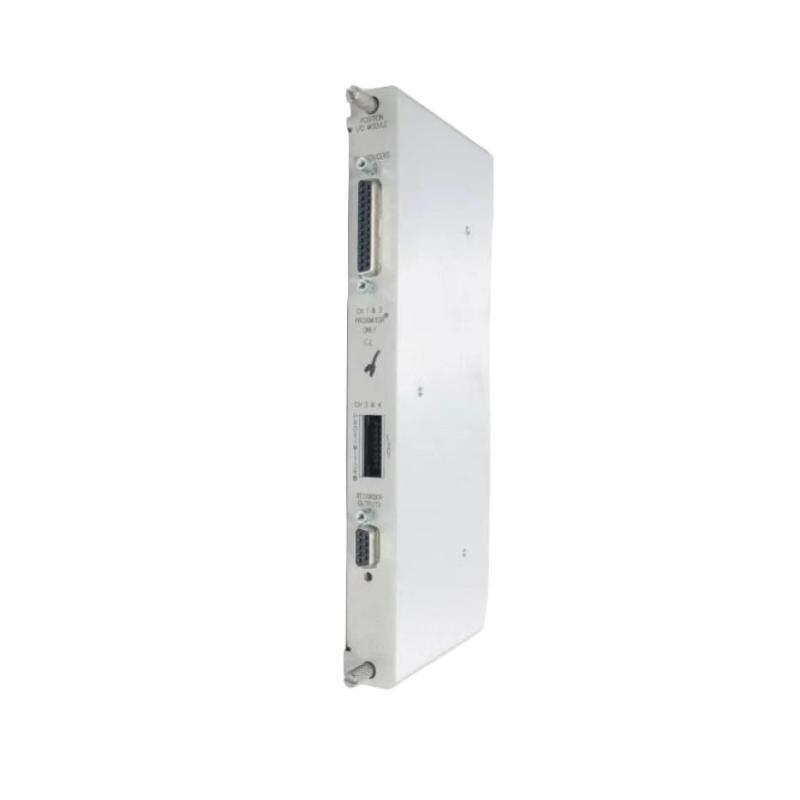

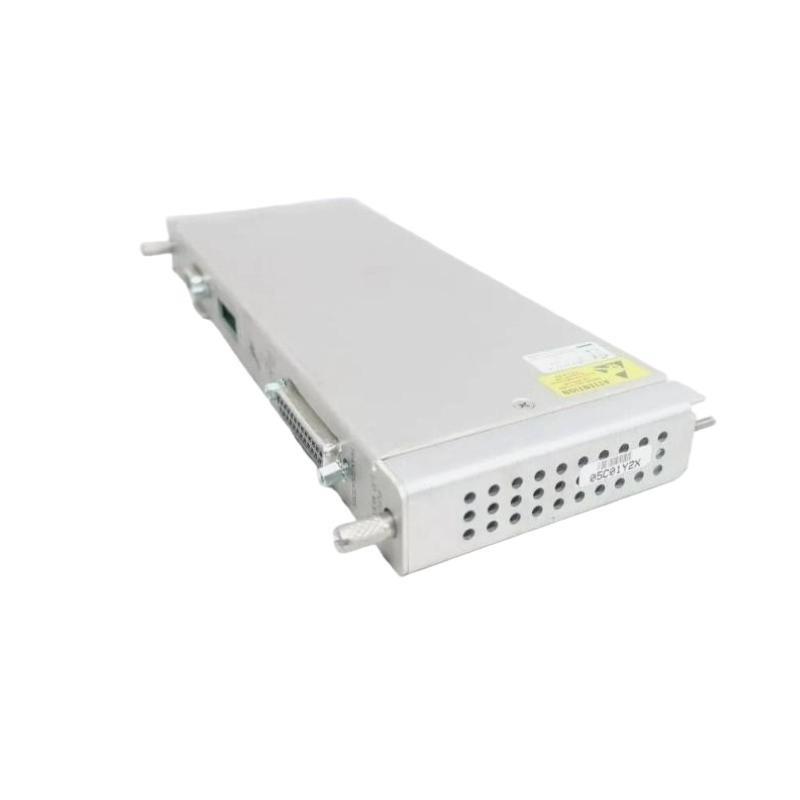

The Bently Nevada 3500/45 135145-01 Position Monitor I/O Module is designed for accurate shaft position monitoring and machinery protection within the 3500 series system. It processes signals from proximity probes or compatible transducers, providing real-time data for alarm and trip functions. The module integrates seamlessly with other 3500 system components, offering reliable performance for critical rotating equipment in industrial environments.
Key Features
-
High-precision shaft position monitoring
-
Supports multiple transducer and proximity probe types
-
Configurable alarm and trip outputs per channel
-
Hot-swappable for minimal downtime
-
Rack-mounted for 3500 series systems
-
Real-time data output compatible with System 1®
-
Rugged design suitable for harsh industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3500/45 135145-01 |
| Module Type | Position Monitor I/O Module |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Function | Shaft position and machinery monitoring |
| Input Channels | 2 channels (transducer/proximity probe inputs) |
| Output Channels | Configurable alarm and trip outputs |
| Alarm/Trip Capability | Configurable per channel |
| Communication | Via 3500 rack backplane |
| Mounting Type | Rack-mounted (3500 rack) |
| Power Supply | From 3500 rack backplane |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 0% to 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.2 kg |
| Certifications | CE, CSA, ATEX, IECEx |
Industry Applications
-
Turbine and compressor shaft position monitoring
-
Pump and rotating machinery protection
-
Oil & gas, petrochemical, and refining plants
-
Power generation and heavy industry
-
Integration with System 1® for condition monitoring and predictive maintenance
Frequently Asked Questions (FAQ)
Q1: How many input channels does this module have?
It has two independent transducer/proximity probe channels.
Q2: Can it provide alarm and trip outputs?
Yes, outputs are configurable for each channel.
Q3: Is the module hot-swappable?
Yes, it can be replaced without shutting down the rack.
Q4: What types of transducers does it support?
Standard proximity probes and compatible position transducers.
Q5: What is the operating temperature range?
0°C to 65°C.
Q6: Can it integrate with System 1®?
Yes, it provides real-time data compatible with System 1®.
Q7: What are the module’s dimensions and weight?
It measures 241.3mm x 24.4mm x 99.1 mm and weighs 0.2 kg.
Q8: Is it suitable for hazardous environments?
Yes, it meets CE, CSA, ATEX, and IECEx certifications.
Q9: Can it be used with all 3500 series racks?
Yes, it integrates seamlessly into the 3500 series rack system.
Q10: Can it process multiple signal types?
Yes, it handles inputs from standard proximity probes and compatible transducers.
Related Models
| Model Number | Description |
|---|---|
| 3500/45 135137-01 | Position Monitor I/O Module (Earlier Version) |
| 3500/25M 149369-01 | Enhanced Keyphasor Module |
| 3500/32 125720-01 | 4-Channel Relay Module |
| 3500/32 149370-01 | 16-Channel Relay Module |
| 3500/05 | 3500 System Rack |
