Product Introduction

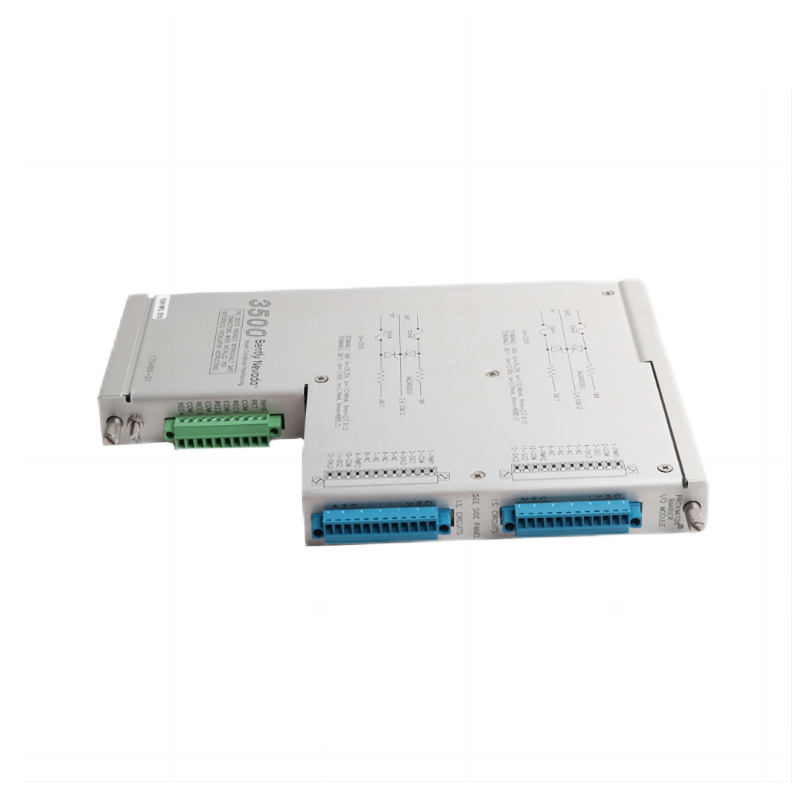

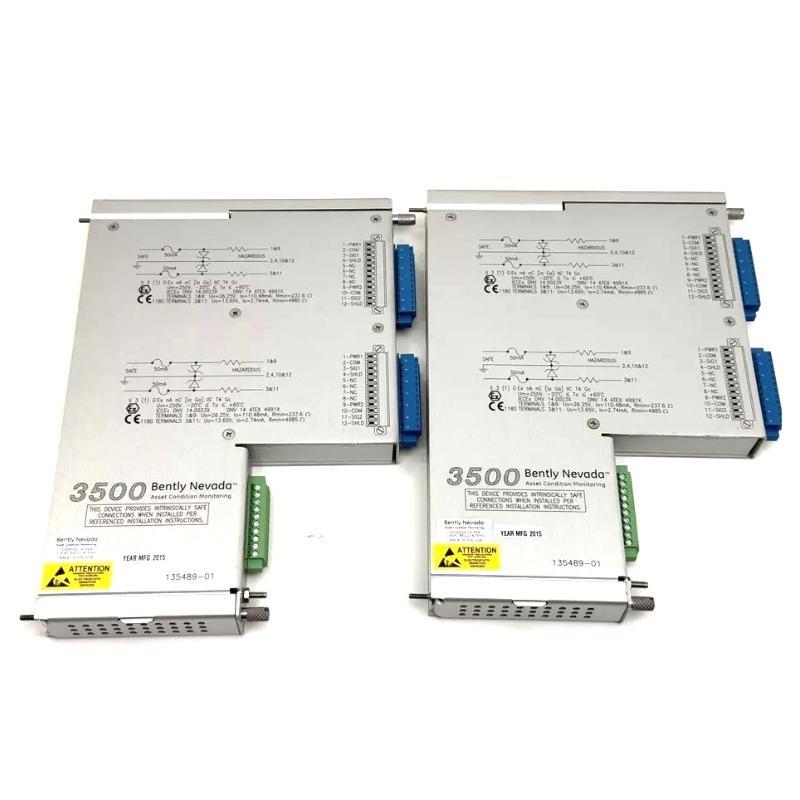

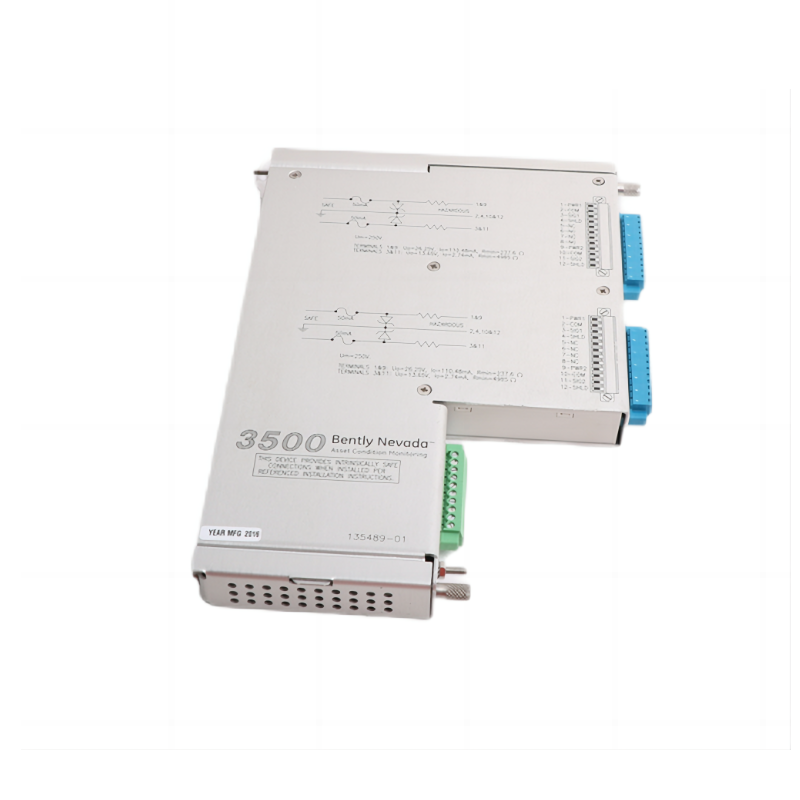

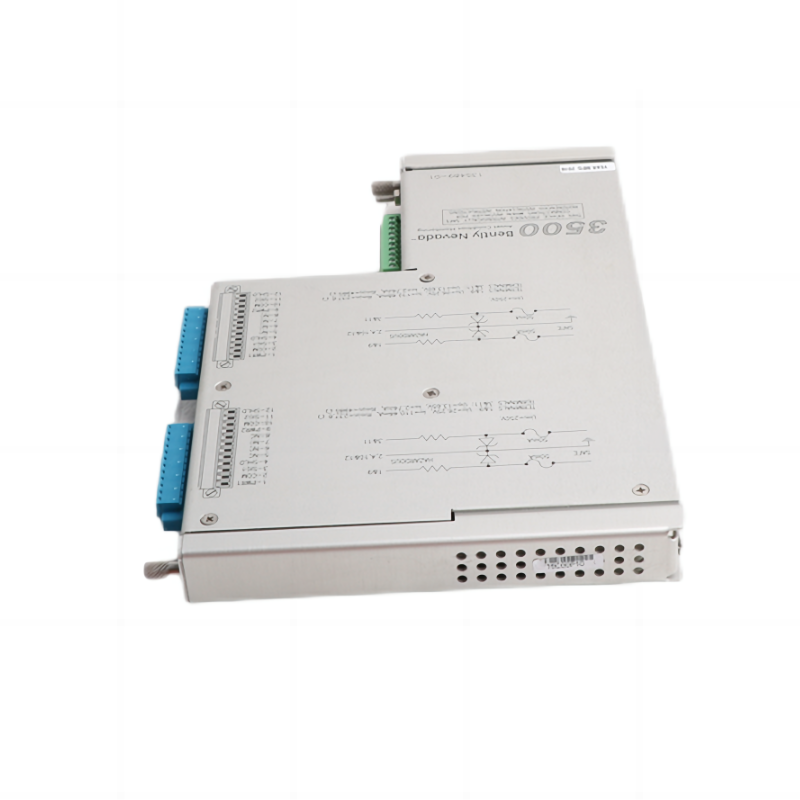

The Bently Nevada 3500/42M-04-00 135489-01 is a seismic monitoring I/O module used in industrial machinery monitoring systems. This module is designed for high-performance vibration and seismic monitoring, ensuring early detection of equipment anomalies and potential faults. By integrating seismic sensors into control systems, the 3500/42M module enables real-time monitoring of machine health, improving overall system reliability and uptime.
The 3500/42M-04-00 module is part of the Bently Nevada 3500 series, known for its high-precision measurement and ease of integration into existing systems. With advanced features for signal conditioning, processing, and analysis, the module can detect even minor seismic activity, making it a valuable tool in industries such as power generation, oil & gas, and manufacturing. It is particularly essential in environments where early detection of machine misalignment, imbalance, or other mechanical issues can prevent major failures and costly downtime.
Product Parameters
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 241.3 × 24.4 × 163.1 mm |
| Weight | 0.46 kg |
| Operating Voltage | 24 V DC |
| Seismic Frequency Range | 0.1 Hz to 10 kHz |
| Signal Output | 4-20 mA, 0-10 V |
| Temperature Range | -40°C to +85°C |
| Mounting Type | Rail-mounted |
| Input Type | Differential / Single-ended |
| Compliance | CE, UL certified |
Applications
The Bently Nevada 3500/42M-04-00 seismic monitoring I/O module is designed for a range of critical industrial applications, including:
-
Machinery Monitoring: Continuously monitors vibrations and seismic activity in rotating machinery, providing early warnings of mechanical issues such as misalignment, imbalance, and bearing failure.
-
Power Generation: Used in power plants to monitor the health of critical machinery such as turbines, compressors, and pumps, ensuring continuous operation and minimizing unplanned shutdowns.
-
Oil & Gas: In offshore and onshore oil rigs, the module helps monitor seismic activity and machinery conditions, enabling proactive maintenance and ensuring the safe operation of equipment in harsh conditions.
-
Mining: Used in mining operations to monitor the seismic vibrations of equipment such as crushers and conveyor systems, preventing potential failures that could cause costly delays.
-
Manufacturing: Helps maintain the health of industrial machinery, including motors, gearboxes, and conveyors, by detecting anomalies early and preventing downtime.
-
Marine: Applied in the monitoring of seismic activity in marine vessels, where vibration data can predict the failure of essential systems such as pumps and engines.
Advantages
-
High Precision Monitoring: The 3500/42M-04-00 module provides highly accurate seismic data to ensure the early detection of faults, improving overall equipment reliability and reducing downtime.
-
Wide Frequency Range: The module’s frequency range (0.1 Hz to 10 kHz) allows it to detect both low-frequency and high-frequency seismic activity, making it suitable for a broad spectrum of industrial applications.
-
Flexible Output Options: With both 4-20 mA and 0-10 V output options, the module is compatible with a wide variety of control and monitoring systems.
-
Temperature Resilience: The 3500/42M-04-00 module operates effectively across a wide temperature range of -40°C to +85°C, making it suitable for extreme industrial environments.
-
Compact and Easy to Install: With compact dimensions and rail-mounting capability, the module can be easily integrated into existing systems with minimal space requirements.
-
Signal Conditioning: The module provides effective signal conditioning, ensuring that seismic data is clean and reliable, enabling accurate fault detection and system diagnostics.
-
Enhanced Reliability: By continuously monitoring vibrations and seismic activity, the module reduces the risk of catastrophic failures, extends the life of machinery, and ensures continuous operation.
FAQs
-
What is the frequency range of the Bently Nevada 3500/42M-04-00 module?
The module supports a seismic frequency range of 0.1 Hz to 10 kHz. -
What is the weight of the 3500/42M-04-00 module?
The module weighs 0.46 kg. -
What output options does the 3500/42M-04-00 module support?
The module supports 4-20 mA and 0-10 V output options for seamless integration with control systems. -
What is the operating temperature range of the module?
The module operates in a temperature range from -40°C to +85°C. -
What industries can benefit from the 3500/42M-04-00 seismic monitoring module?
It is suitable for use in power generation, oil & gas, mining, manufacturing, and marine industries, among others. -
How is the module mounted?
The module is designed for rail mounting, making it easy to integrate into existing systems. -
What is the input type of the 3500/42M-04-00 module?
It supports both differential and single-ended inputs for flexibility. -
Is the Bently Nevada 3500/42M-04-00 module certified?
Yes, the module is CE and UL certified, ensuring it meets international safety and quality standards. -
Can the 3500/42M-04-00 module detect low-frequency vibrations?
Yes, the module can detect seismic activity in the low-frequency range starting from 0.1 Hz. -
How does the 3500/42M-04-00 module improve equipment reliability?
By continuously monitoring seismic and vibration data, the module helps detect faults early, preventing major failures and reducing downtime.
Recommended Models (Same Series or Related Models)
| Model | Description | Dimensions (L x W x H) | Weight |
|---|---|---|---|
| 3500/42M | Seismic monitoring module | 241.3 × 24.4 × 163.1 mm | 0.46 kg |
| 3500/41 | Vibration monitoring module | 241.3 × 24.4 × 163.1 mm | 0.46 kg |
| 3500/44 | Dynamic vibration monitor | 241.3 × 24.4 × 163.1 mm | 0.46 kg |
| 3500/45 | Rotor monitoring module | 241.3 × 24.4 × 163.1 mm | 0.46 kg |
| 3500/46 | Expansion module for seismic monitoring | 241.3 × 24.4 × 163.1 mm | 0.46 kg |
| 3500/47 | Temperature and vibration module | 241.3 × 24.4 × 163.1 mm | 0.46 kg |
Popular Bently Nevada Models
| Model | Description | Dimensions (L x W x H) | Weight |
|---|---|---|---|
| 3300 XL | Proximity sensor | 96.5 × 25.4 × 25.4 mm | 0.5 kg |
| 3300 | Vibration sensor | 100 × 50 × 50 mm | 0.6 kg |
| 330010-00-02 | Seismic sensor | 100 × 50 × 50 mm | 0.6 kg |
| 3500/22 | Monitor for vibration | 241 × 244 × 164 mm | 0.8 kg |
| 3500/50 | Monitoring module | 241 × 244 × 164 mm | 0.8 kg |
| 3500/53 | Accelerometer module | 241 × 244 × 164 mm | 0.8 kg |
