Product Introduction

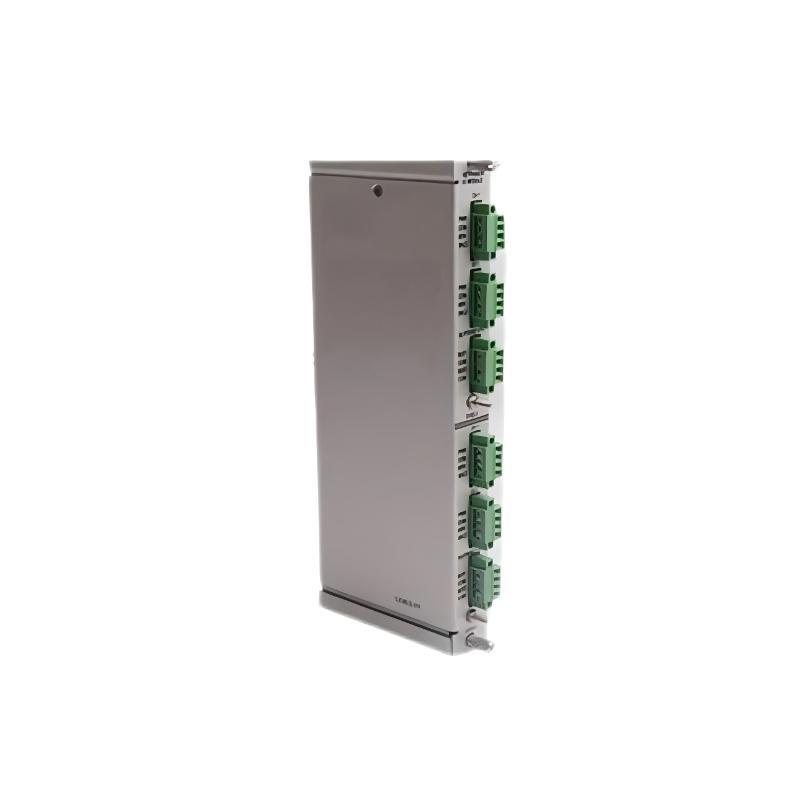

The Bently Nevada 3500/40M-02-00 126615-01 Pre-Amplifier I/O Module is a high-performance signal processing unit designed to support the Bently Nevada 3500 Series machinery monitoring system. This module serves as an essential component for amplifying and conditioning the signals from vibration, proximity, and acceleration transducers, allowing for accurate real-time data collection and machine health diagnostics.
The 3500/40M-02-00 I/O module provides signal conditioning, noise filtering, and amplification to ensure reliable and high-quality signals are sent to the monitoring system. It is specifically designed for industrial machinery, including turbines, motors, compressors, and pumps, where early detection of mechanical issues such as imbalance, misalignment, and bearing damage can help prevent costly downtime and improve predictive maintenance strategies.
With a compact design of 241.3 x 24.4 x 99.1 mm and weighing just 0.2 kg, the 3500/40M-02-00 module is easy to integrate into existing control systems, offering high reliability and performance in harsh industrial environments.
Product Parameters
The technical specifications of the Bently Nevada 3500/40M-02-00 126615-01 Pre-Amplifier I/O Module are as follows:
| Parameter | Details |
|---|---|
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.2 kg |
| Power Supply | 24V DC ± 20% |
| Input Type | Vibration, proximity, or acceleration transducers |
| Output Type | Analog output, conditioned signals |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | Rack-mounted, compatible with Bently Nevada 3500 Series |
| Power Consumption | 5W |
| Signal Conditioning | High-gain amplification and filtering |
| Compatibility | Compatible with Bently Nevada 3500 Series modules |
Product Applications
The 3500/40M-02-00 Pre-Amplifier I/O Module is designed for a variety of industrial applications requiring precise amplification and conditioning of signals. Key applications include:
-
Turbine Monitoring: The module is used in turbine monitoring systems to amplify and condition signals from vibration sensors, helping detect issues such as imbalance, misalignment, and bearing faults early.
-
Compressor Monitoring: In compressors, the 3500/40M-02-00 amplifies and processes sensor signals to identify mechanical issues like cavitation, misalignment, and excessive wear.
-
Pump Systems: The pre-amplifier module ensures proper signal conditioning for pump systems, allowing operators to monitor mechanical conditions and detect faults like cavitation or misalignment before they lead to system failure.
-
Motor Monitoring: Used in motors to monitor vibration and proximity signals, this module helps detect motor-related issues such as imbalance or bearing degradation, ensuring continuous operation.
-
Power Generation: The module is integral to power plants for monitoring turbines, generators, and other critical machinery. It enables the early detection of potential issues, helping to reduce unplanned downtime.
-
Industrial Equipment: The 3500/40M-02-00 is ideal for monitoring a wide range of industrial machinery, ensuring that issues are detected early and preventing costly repairs and shutdowns.
Product Advantages
-
High-Performance Signal Conditioning: The 3500/40M-02-00 module provides high-gain amplification, filtering, and conditioning of sensor signals, ensuring accurate and reliable data for machinery health monitoring.
-
Compact and Lightweight: With a compact design of 241.3 x 24.4 x 99.1 mm and a weight of only 0.2 kg, the module is easy to integrate into existing systems without taking up much space.
-
Energy Efficient: The 3500/40M-02-00 operates with minimal power consumption (5W), making it an energy-efficient choice for continuous signal monitoring in industrial environments.
-
Robust and Reliable: Designed for harsh industrial environments, the module can operate in temperatures ranging from -40°C to +70°C and withstand high humidity levels, ensuring long-term reliability in challenging conditions.
-
Easy Integration with 3500 Series: The module is compatible with the full range of Bently Nevada 3500 Series components, allowing for seamless integration and enhanced functionality.
-
Versatile Application: The module supports a variety of sensor types, including vibration, proximity, and acceleration transducers, making it suitable for a wide range of machinery monitoring applications.
-
Advanced Diagnostics: By conditioning the sensor signals, the module enhances diagnostic capabilities, enabling early detection of mechanical faults and helping improve predictive maintenance.
-
Reduced Downtime: Early detection of issues allows for proactive maintenance, minimizing unplanned downtime and ensuring the smooth operation of critical machinery.
FAQs
-
What is the main function of the Bently Nevada 3500/40M-02-00 Pre-Amplifier I/O Module?
The module amplifies and conditions the signals from vibration, proximity, and acceleration transducers to provide accurate machinery health monitoring and diagnostics. -
What types of sensors are compatible with the 3500/40M-02-00 module?
The module is compatible with vibration, proximity, and acceleration transducers, making it suitable for a wide range of applications. -
What is the temperature range for the 3500/40M-02-00?
The module operates within a temperature range of -40°C to +70°C, making it ideal for use in harsh industrial environments. -
How is the 3500/40M-02-00 module powered?
The module requires a 24V DC power supply with a tolerance of ± 20%. -
What type of output does the 3500/40M-02-00 provide?
The module provides an analog output with conditioned signals, suitable for integration with other monitoring systems. -
What is the power consumption of the 3500/40M-02-00?
The module consumes only 5W of power, making it an energy-efficient solution for continuous monitoring. -
How is the 3500/40M-02-00 mounted?
The module is rack-mounted and is fully compatible with other components of the Bently Nevada 3500 Series. -
What is the weight of the 3500/40M-02-00?
The module weighs only 0.2 kg, making it lightweight and easy to handle. -
Can the 3500/40M-02-00 be used in power generation systems?
Yes, the module is commonly used in power generation systems to monitor turbines, generators, and other critical machinery. -
How does the 3500/40M-02-00 help with predictive maintenance?
By amplifying and conditioning the sensor signals, the module enables early detection of faults, allowing operators to plan maintenance and prevent unplanned downtime.
