Product Introduction

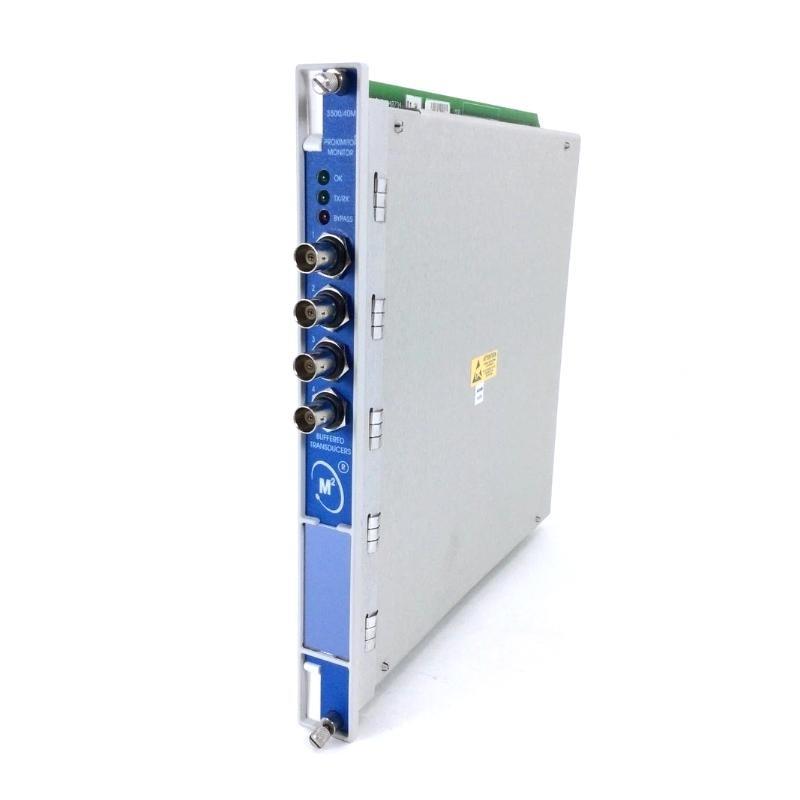

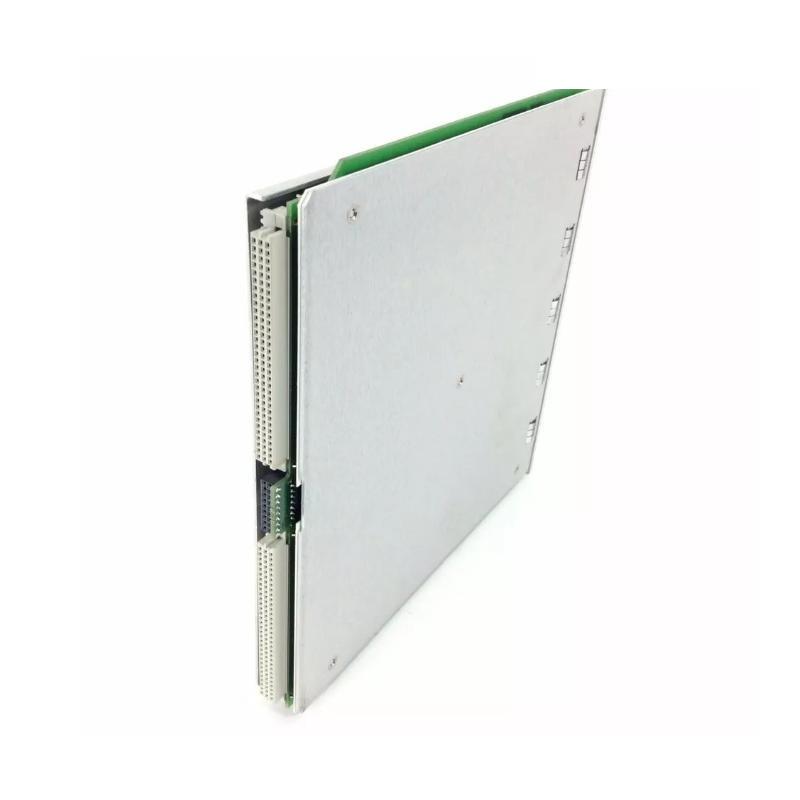

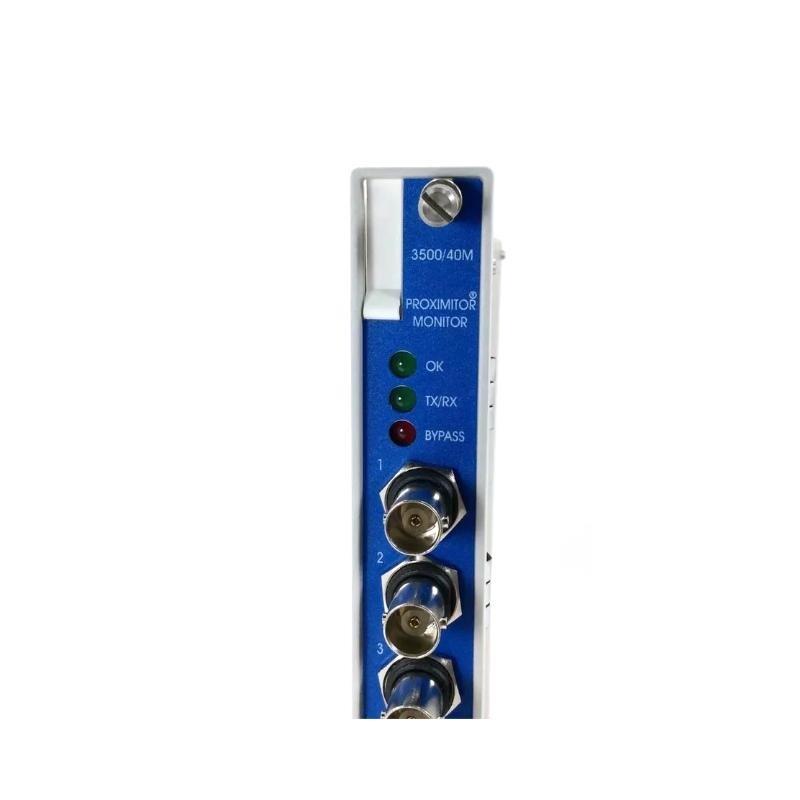

The Bently Nevada 3500/40M-01 Pre-Amplifier Monitor is an advanced monitoring module designed for vibration, acceleration, and proximity transducers in critical machinery applications. It plays a pivotal role in the Bently Nevada 3500 Series, offering high-performance amplification and signal conditioning for vibration sensors, enabling reliable real-time machinery health monitoring.
The 3500/40M-01 Pre-Amplifier Monitor is engineered to provide robust protection, high sensitivity, and accurate signal processing even in the harshest industrial environments. It serves as an essential component for monitoring machinery performance and ensuring the early detection of issues like imbalance, misalignment, bearing failures, and cavitation.
With a compact design and efficient signal processing capabilities, the 3500/40M-01 enhances the performance and reliability of Bently Nevada’s condition monitoring systems, offering users a proactive approach to predictive maintenance and minimizing the risk of unexpected downtime in critical industrial operations.
Product Parameters
The technical specifications of the Bently Nevada 3500/40M-01 Pre-Amplifier Monitor are as follows:
| Parameter | Details |
|---|---|
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Power Supply | 24V DC ± 20% |
| Input Type | Vibration, proximity, or acceleration transducers |
| Output Type | Analog output, conditioned signals |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | Rack-mounted, compatible with Bently Nevada 3500 Series |
| Power Consumption | 5W |
| Signal Conditioning | High-gain signal amplification and filtering |
| Compatibility | Compatible with Bently Nevada 3500 Series modules |
Product Applications
The 3500/40M-01 Pre-Amplifier Monitor is ideal for applications that require reliable signal amplification for vibration and proximity transducers. Common applications include:
-
Turbine Monitoring: The pre-amplifier is used in turbine monitoring systems to amplify signals from vibration sensors, enabling early detection of mechanical issues such as imbalance, misalignment, and bearing damage.
-
Compressor Monitoring: In compressor systems, it conditions signals from vibration and proximity transducers, helping identify faults like cavitation, imbalance, or excessive wear.
-
Pump Systems: Used in critical pump systems to monitor vibration and proximity transducer signals, ensuring that potential failures like cavitation or misalignment are detected early.
-
Motor Health Monitoring: The module processes signals from vibration sensors to detect motor-related issues such as imbalance, misalignment, or bearing faults, helping optimize motor performance and lifespan.
-
Industrial Machinery: Applied across a range of industrial machinery applications, where vibration, acceleration, and proximity data are used for condition monitoring and predictive maintenance.
-
Power Generation: Integrated into power plant systems, the module helps to monitor turbines, generators, and other rotating machinery to detect early signs of failure, preventing unplanned downtime.
Product Advantages
-
High-Performance Signal Conditioning: The 3500/40M-01 provides high-gain signal amplification, filtering, and conditioning for accurate and reliable data collection from vibration and proximity sensors.
-
Robust and Reliable Design: The module is engineered to withstand harsh industrial environments, with an operating temperature range of -40°C to +70°C, making it ideal for use in demanding conditions.
-
Compact and Space-Efficient: With dimensions of 241.3 x 24.4 x 241.8 mm and a weight of 0.91 kg, the 3500/40M-01 is compact enough to integrate into tight spaces without compromising on performance.
-
Energy Efficient: The module operates with a power consumption of only 5W, providing an energy-efficient solution without excessive power requirements.
-
Easy Integration: Designed to be compatible with the Bently Nevada 3500 Series system, the 3500/40M-01 integrates seamlessly into existing machinery health monitoring setups.
-
Enhanced Diagnostics: By amplifying and conditioning transducer signals, it enables the early detection of mechanical issues, helping improve predictive maintenance and reducing the likelihood of unplanned downtime.
-
Wide Compatibility: The 3500/40M-01 works with a variety of vibration, proximity, and acceleration transducers, making it versatile and adaptable for various industrial applications.
-
Durable for Harsh Environments: The module’s construction and design ensure long-lasting operation even in environments with high levels of vibration, temperature fluctuation, and humidity.
FAQs
-
What is the function of the Bently Nevada 3500/40M-01 Pre-Amplifier Monitor?
The module amplifies and conditions the signals from vibration, proximity, or acceleration transducers, allowing for accurate and reliable machinery health monitoring. -
What is the operating temperature range for the 3500/40M-01?
The module operates in temperatures ranging from -40°C to +70°C, making it suitable for harsh industrial environments. -
What is the input type for the 3500/40M-01 module?
The module accepts inputs from vibration, proximity, or acceleration transducers. -
What type of output does the 3500/40M-01 provide?
It provides analog output, conditioned signals that can be used for further analysis and monitoring. -
How is the 3500/40M-01 mounted?
The module is designed for rack mounting and is compatible with the Bently Nevada 3500 Series system. -
What is the power supply requirement for the 3500/40M-01?
The module requires a 24V DC power supply with a ± 20% tolerance. -
What is the power consumption of the 3500/40M-01?
The module consumes only 5W of power, which contributes to its energy efficiency. -
What types of machinery can be monitored using the 3500/40M-01?
The module is ideal for monitoring turbines, compressors, pumps, motors, and other rotating machinery. -
How does the 3500/40M-01 help with predictive maintenance?
By amplifying and conditioning sensor signals, the module enables the early detection of mechanical issues, allowing for proactive maintenance planning. -
What is the weight of the 3500/40M-01?
The module weighs 0.91 kg, making it easy to handle and integrate into existing systems.
