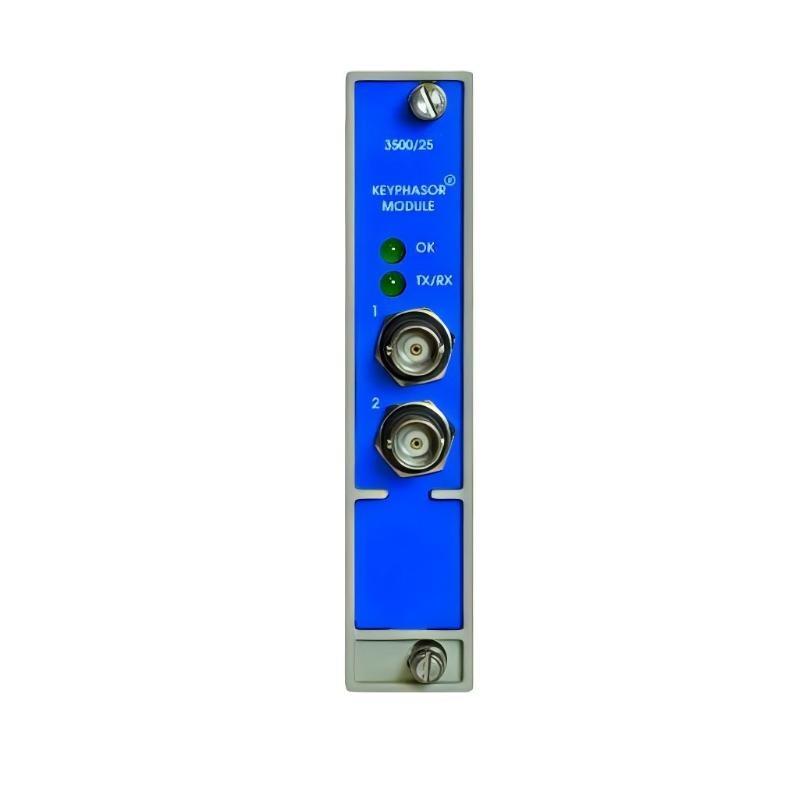

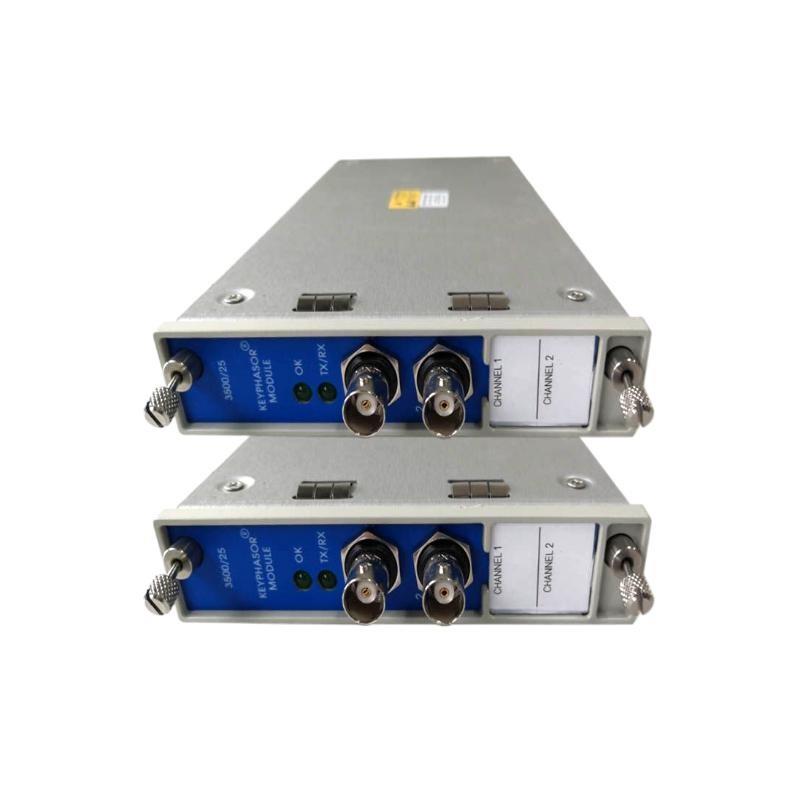

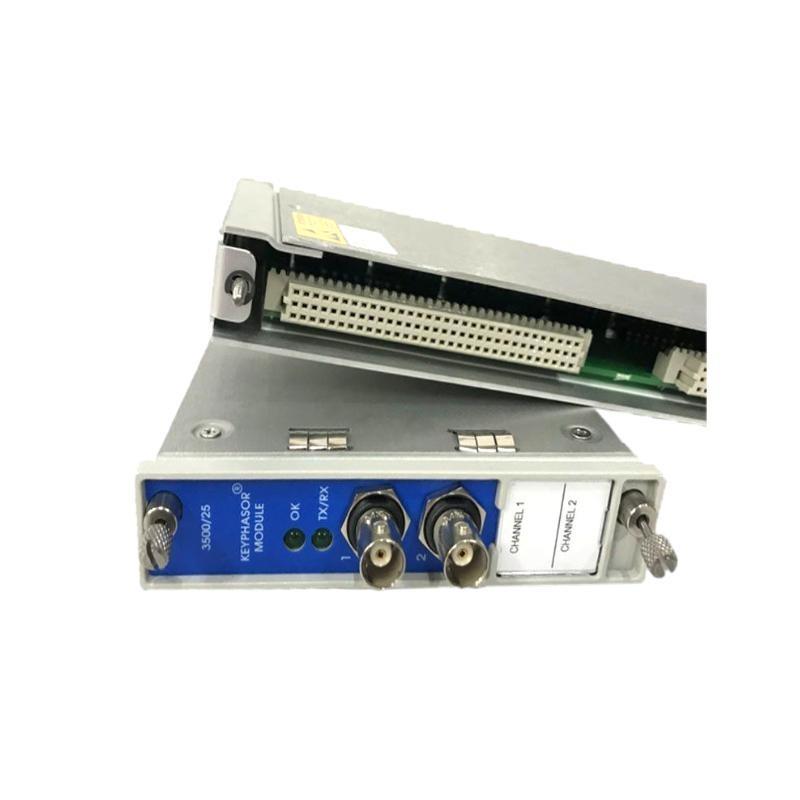

Bently Nevada 3500/25 126648-02 + 128718-01 Enhanced Keyphasor Module

Product Introduction

The Bently Nevada 3500/25 126648-02 + 128718-01 Enhanced Keyphasor Module is a critical component for precision monitoring in industrial machinery. It is designed to monitor and measure the rotational speed, phase, and keyphasor signals of rotating equipment. This module integrates seamlessly with the 3500 Series machinery protection system, enabling continuous and real-time monitoring of critical assets such as turbines, compressors, pumps, motors, and generators.

Accurate synchronization of machinery is vital for efficient operations and preventing damage due to misalignment or imbalance. The 3500/25 Enhanced Keyphasor Module captures rotational speed data with exceptional accuracy, which is then used for further diagnostics, predictive maintenance, and overall machinery health analysis. By identifying irregularities or early signs of failure, this module helps reduce unplanned downtime, optimize maintenance schedules, and prolong the life of expensive industrial equipment.

With its reliable data acquisition capabilities, the 3500/25 is suitable for use in demanding industries such as power generation, oil and gas, petrochemical, aerospace, and manufacturing.

Product Specifications

Product Applications

The 3500/25 126648-02 + 128718-01 Enhanced Keyphasor Module is designed for applications that require accurate rotational speed and phase data for machinery synchronization. Some of the common industries and applications include:

1. Power Generation
   In power plants, turbines, compressors, and generators are integral to plant operations. The 3500/25 module helps ensure that these machines are precisely synchronized, reducing the likelihood of malfunctions due to misalignment and imbalance.

2. Oil and Gas
   In the oil and gas sector, equipment such as pumps, compressors, and drilling rigs are critical to operations. The 3500/25 module captures keyphasor signals to monitor these assets, detecting any signs of irregularities before they lead to failures or unplanned downtime.

3. Chemical Processing
   In chemical plants, accurate monitoring of machinery like pumps, fans, and mixers is crucial for safe and efficient operations. The 3500/25 module enables operators to monitor the synchronization of these components, preventing costly breakdowns and ensuring smooth production.

4. Automotive Manufacturing
   In automotive manufacturing, the synchronization of high-precision machines is necessary for maintaining the efficiency of production lines. The 3500/25 module ensures that machinery operates within optimal parameters, reducing the risk of errors and improving overall throughput.

5. Marine and Aerospace
   For marine vessels and aerospace applications, where safety and reliability are paramount, the 3500/25 module helps ensure that turbines, engines, and other rotating components function correctly. It provides precise rotational data that is critical for the reliability and performance of high-precision systems.

Product Advantages

1. High Precision Monitoring
   The 3500/25 module delivers highly accurate monitoring of rotational speed and phase, which is crucial for the early detection of issues such as misalignment, imbalance, or wear. This allows operators to take corrective actions before more severe problems occur.

2. Wide Frequency Range
   With a frequency range of 1 Hz to 50 kHz, the 3500/25 module can monitor a broad spectrum of machinery, from slow-moving to high-speed equipment. This makes it a versatile solution for a variety of industrial applications.

3. Reliable Signal Conditioning
   The module is equipped with differential signal conditioning, which ensures that the data captured is both accurate and free from noise. This is essential for applications where the highest quality of data is required for precise machinery health monitoring.

4. Compact and Lightweight Design
   The 3500/25 module features a compact and lightweight design (119.9 x 24.4 x 256.5 mm and 0.34 kg), allowing for easy installation in tight spaces. Its small form factor makes it ideal for environments where space is at a premium.

5. Durability and Protection
   With an IP20 protection rating, the 3500/25 module is resistant to dust and other contaminants, ensuring reliable performance in harsh industrial environments. Its robust design ensures that it can handle the demanding conditions found in industrial applications.

6. Seamless Integration
   The 3500/25 module is designed for easy DIN rail mounting, enabling quick and straightforward integration into existing control panels or systems. This flexibility helps reduce installation time and costs.

7. Predictive Maintenance Capabilities
   By monitoring keyphasor signals in real-time, the 3500/25 module supports predictive maintenance strategies. It enables operators to identify early signs of machine problems, such as misalignment or imbalance, which helps in reducing unplanned downtime and costly repairs.

8. Versatile Applications
   The 3500/25 module is suitable for a wide range of industrial applications, from power generation to automotive manufacturing. Its versatility makes it a reliable solution for any industry that requires precise monitoring and synchronization of rotating machinery.

FAQ

Q1: What is the function of the 3500/25 Enhanced Keyphasor Module?
A1: The 3500/25 module provides keyphasor input and output signals to monitor the rotational speed and phase of rotating machinery, ensuring precise synchronization and facilitating predictive maintenance.

Q2: How many input and output channels does the module have?
A2: The module supports 1 differential input channel and 1 differential output channel for accurate monitoring and synchronization of rotating machinery.

Q3: What is the frequency range of the 3500/25 module?
A3: The 3500/25 module supports a frequency range of 1 Hz to 50 kHz, allowing it to monitor a wide range of machinery speeds.

Q4: What is the temperature range in which the 3500/25 module can operate?
A4: The module operates in a temperature range of -40°C to +85°C, making it suitable for use in both cold and hot industrial environments.

Q5: Can the 3500/25 module be mounted easily?
A5: Yes, the 3500/25 module is designed for DIN rail mounting, which makes installation straightforward and quick.

Q6: What protection does the module offer?
A6: The 3500/25 module has an IP20 rating, which protects it from dust and other environmental contaminants, ensuring reliable performance in industrial environments.

Q7: What industries use the 3500/25 module?
A7: The 3500/25 module is used in various industries, including power generation, oil and gas, chemical processing, automotive manufacturing, and aerospace.

Q8: How does the 3500/25 module help with predictive maintenance?
A8: By providing real-time monitoring of rotational speed and phase, the 3500/25 module helps identify potential issues such as misalignment and imbalance, enabling early detection of faults before they result in equipment failure.

Q9: What is the weight of the 3500/25 module?
A9: The 3500/25 module weighs 0.34 kg, making it lightweight and easy to handle during installation and maintenance.

Q10: Is the 3500/25 module compatible with other Bently Nevada products?
A10: Yes, the 3500/25 module is fully compatible with other Bently Nevada products, providing an integrated solution for machinery monitoring and protection.
