Product Overview

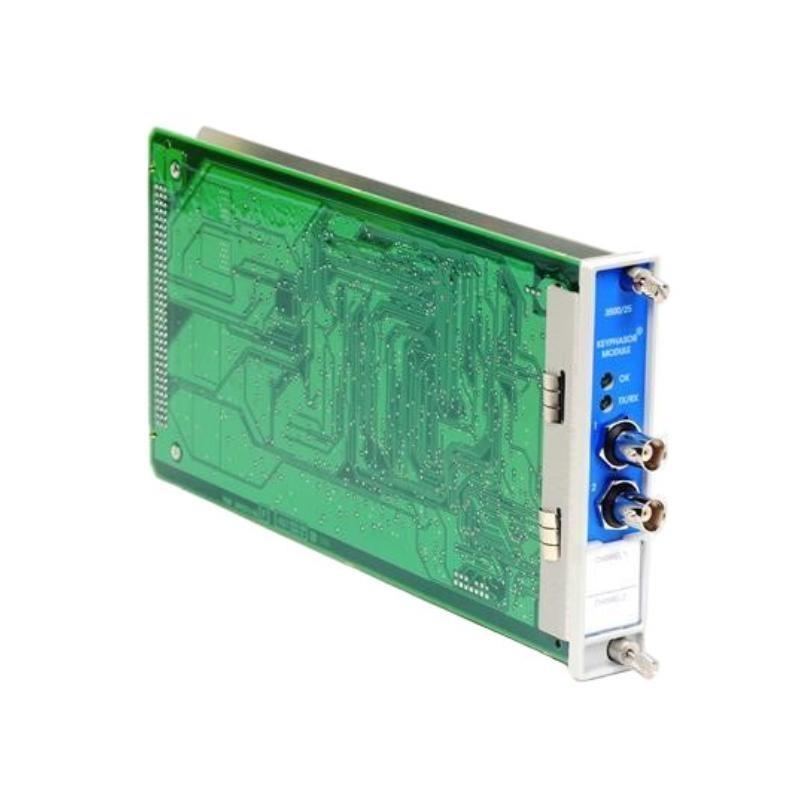

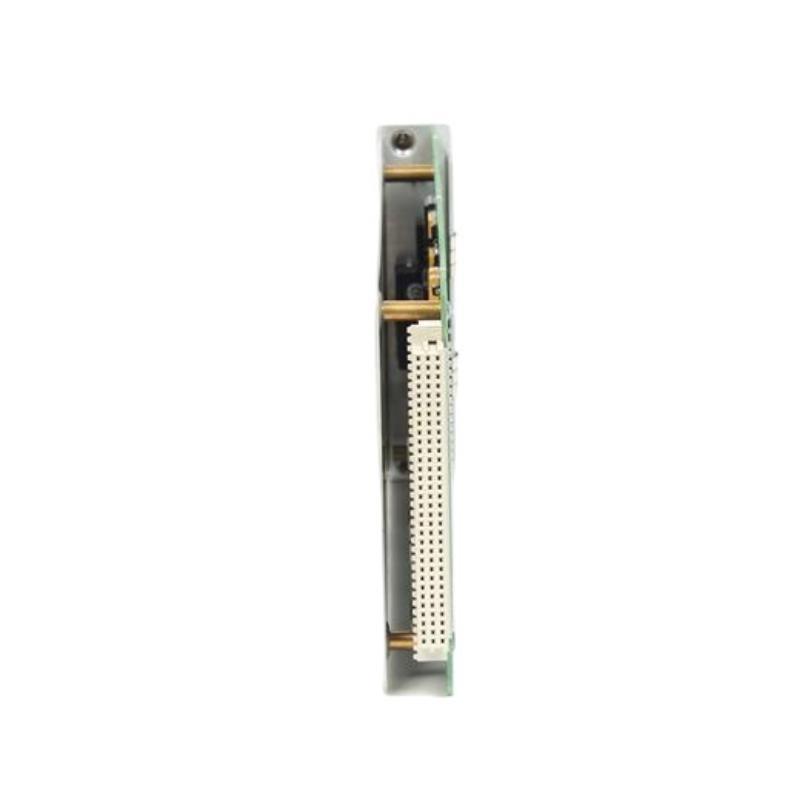

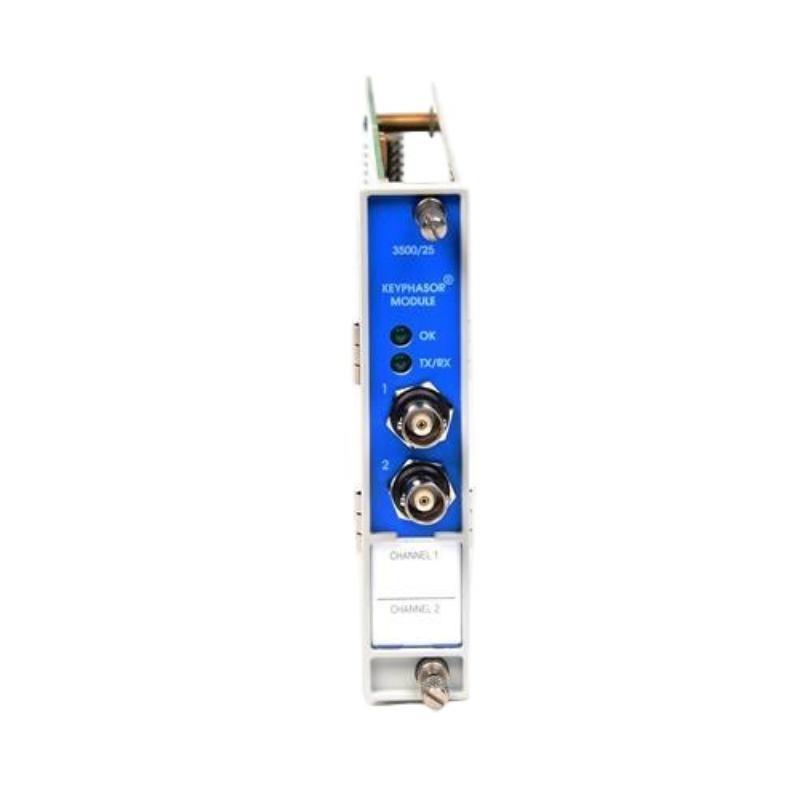

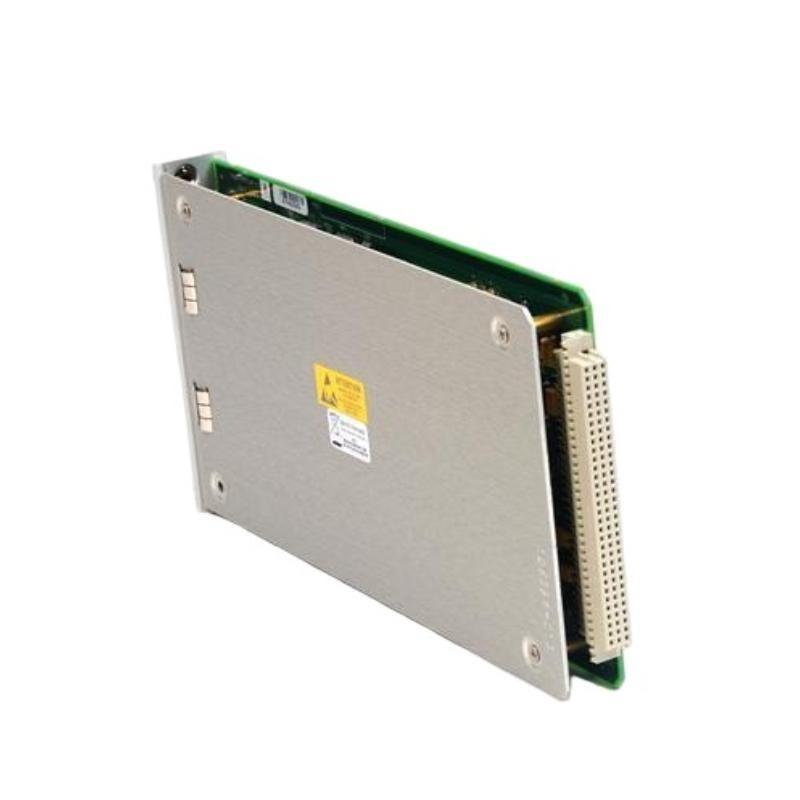

The Bently Nevada 3500/25-03-01-01 Enhanced Key Phase Module is a high-performance module for the 3500 Series Machinery Protection System. It provides advanced keyphasor input processing for dual-channel shaft vibration and speed monitoring, ensuring precise machinery protection and reliable operation.
Key Features
-
Dual-channel keyphasor input processing for shaft vibration and speed detection
-
Part of the 3500 Series Machinery Protection System
-
High reliability for critical rotating machinery applications
-
Supports integration with multiple 3500 series modules
-
Enhanced signal filtering and pulse shaping for precise measurements
-
Compact, rack-mounted design for easy installation
-
Suitable for harsh industrial environments
Technical Specifications
| Specification | Details |
|---|---|
| Model | 3500/25-03-01-01 |
| Type | Enhanced Key Phase Module |
| Compatible System | Bently Nevada 3500 Series Machinery Protection System |
| Input Signal Type | Keyphasor / Tachometer input |
| Number of Channels | 2 |
| Signal Processing | Enhanced filtering and pulse shaping |
| Output | Processed keyphasor pulses for system use |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Indicators | Module OK, Input Fault |
| Mounting | 3500 series rack |
| Dimensions | 119.9 x 24.4 x 256.5 mm |
| Weight | 0.34 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the 3500/25-03-01-01 module?
It provides dual-channel keyphasor input processing for shaft vibration and speed monitoring.
2. Which system is this module compatible with?
It is designed for the Bently Nevada 3500 Series Machinery Protection System.
3. How many channels does it support?
It supports two keyphasor input channels.
4. What type of input signal does it process?
It processes keyphasor or tachometer input signals.
5. What is the operating temperature range?
It operates reliably between 0 °C and +60 °C.
6. Can this module integrate with other 3500 series modules?
Yes, it can fully integrate with other 3500 series modules.
7. What output does the module provide?
It outputs processed keyphasor pulses for use in the 3500 system.
8. What mounting options are available?
It mounts directly into a 3500 series rack.
Related Bently Nevada Modules
| Model | Description |
|---|---|
| 3500/25-01-00 | Enhanced Key Phase Module |
| 3500/25-02-01-02 | Enhanced Key Phase Module (alternate version) |
| 3500/25-02-03-RU | Enhanced Key Phase Module |
| 3500/25-04-01 | Key Phase Module with advanced filtering |
| 3500/25-05-01-RU | Key Phase Module with redundant input |
| 3500/25-06-01 | Key Phase Module for extended diagnostics |
Popular Bently Nevada Modules
| Model | Description |
|---|---|
| 3500/33-01-00 | Proximity Transducer Module |
| 3500/46-00-00 | Vibration Monitoring Module |
| 3500/40-00-00 | Overspeed Trip Module |
| 3500/25-03-01-01 | Enhanced Key Phase Module |
| 3500/25-01-01 | Key Phase Module with extended diagnostics |
| 3500/30-00-00 | Monitor Module for Shaft Position |
