Product Introduction

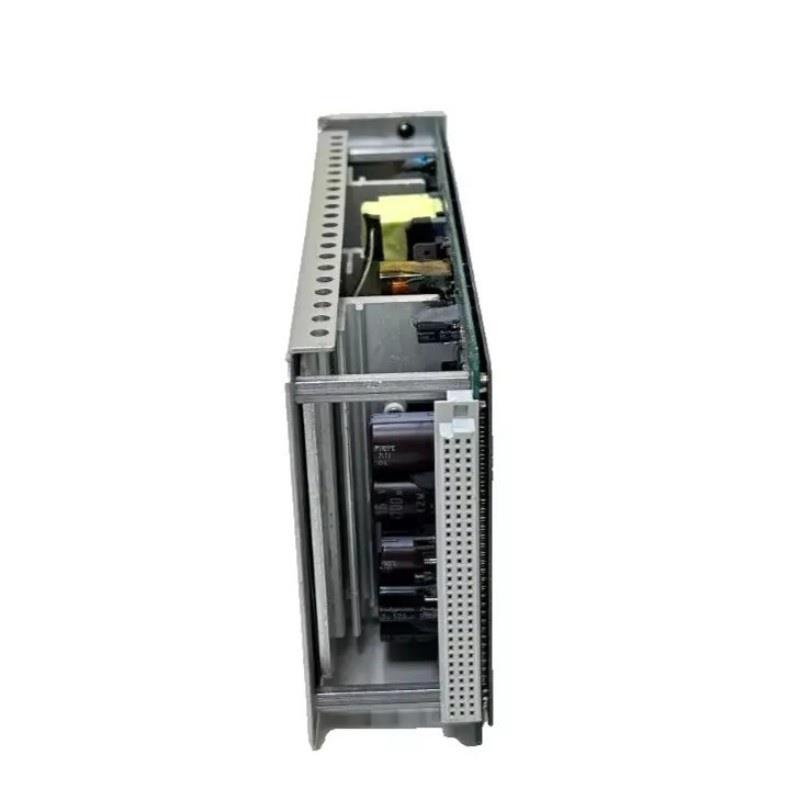

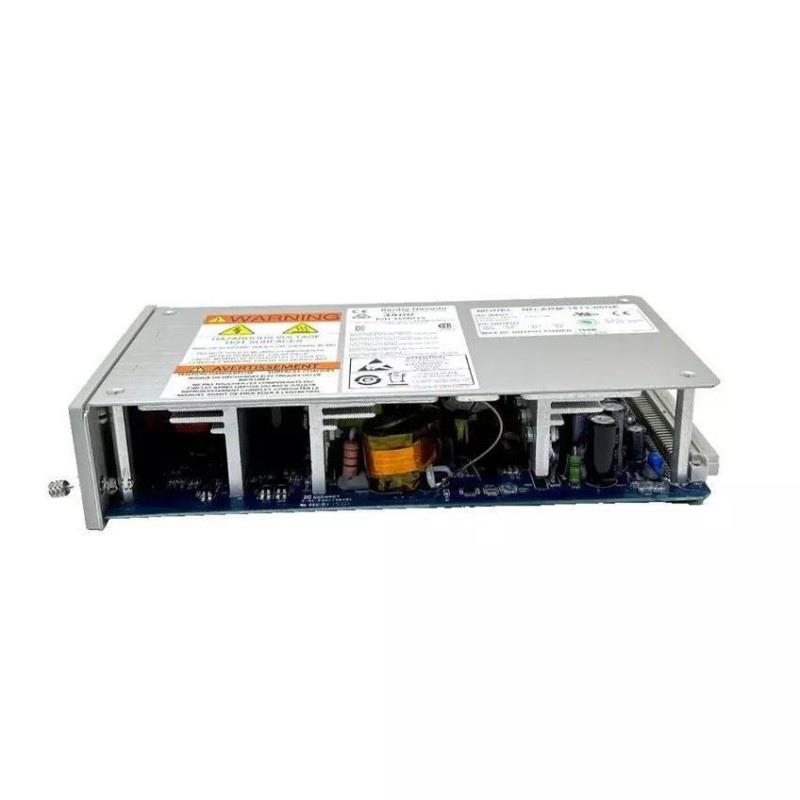

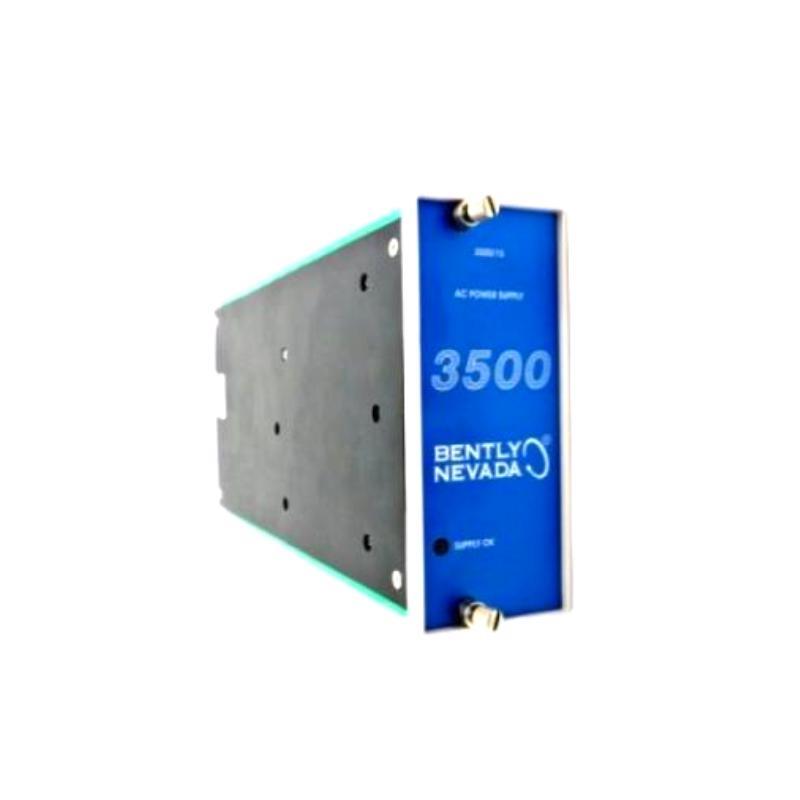

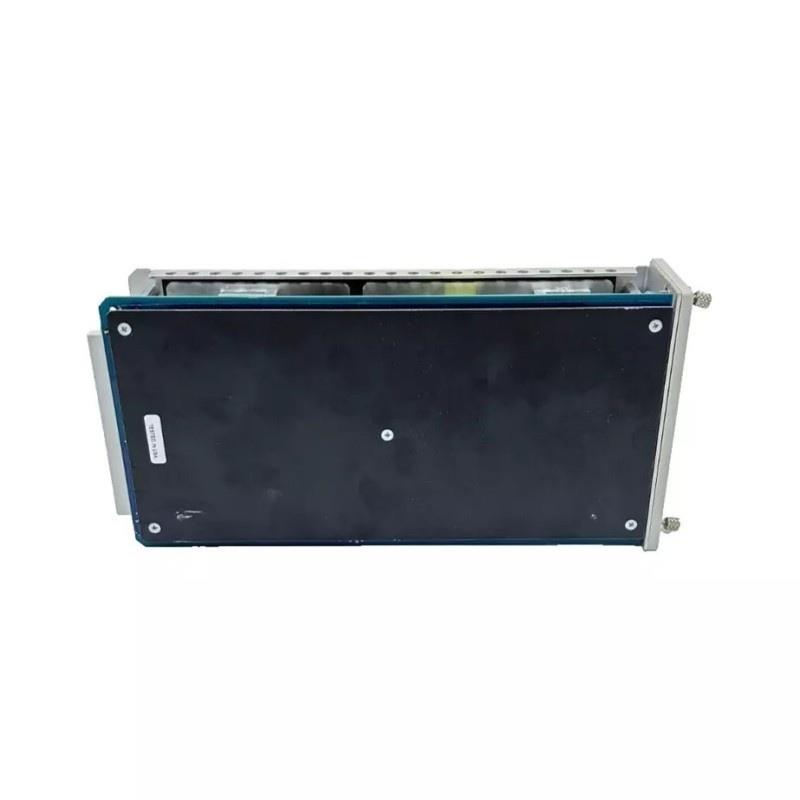

The Bently Nevada 3500/15-05-00-00 Power Supply Module is a critical component within the Bently Nevada 3500 Machinery Protection System, serving as the primary power input for the system’s monitoring and protection modules. Designed to deliver reliable, stable, and filtered power, the 3500/15 Power Supply is essential in high-availability environments such as rotating machinery monitoring in power generation, oil & gas, and process industries.
The module fits into designated slots of the 3500 rack chassis, with the ability to support redundant power configurations for increased reliability. It automatically shares load in redundant configurations, and in the event of a primary supply failure, the secondary takes over without interrupting system operation.
The 3500/15-05-00-00 version accepts AC input power, making it suitable for most global industrial installations. With high Mean Time Between Failure (MTBF) and compatibility with all other 3500 modules, this power supply forms the backbone of a resilient, continuous-monitoring solution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 3500/15 Power Supply Module |
| Part Number | 3500/15-05-00-00 |
| Module Type | AC Power Supply |
| Input Voltage Range | 85 to 264 VAC, 47–63 Hz |
| Output Voltage | +24 VDC nominal |
| Power Rating | 140 watts maximum |
| Redundancy Support | Yes (dual module configuration) |
| Power Fail Protection | Seamless switchover with dual modules |
| Efficiency | >85% |
| Hot Swappable | Yes (without shutting down rack) |
| LED Indicators | Power status, health/fault diagnostics |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0–95% RH non-condensing |
| Shock/Vibration Rating | Designed for industrial environments |
| Certifications | CE, UL, CSA, ATEX Zone 2, RoHS |
| Mounting | Occupies left-most slot(s) in 3500 rack |
| Dimensions (H × W × D) | 120.7 x 50.8 x 251.5 mm |
| Weight | 1.39 kg |
Applications
The Bently Nevada 3500/15-05-00-00 is widely used in systems where continuous machine protection and monitoring is essential. It delivers stable, interference-free power to critical sensing and analysis modules across various industrial environments:
-
Gas and Steam Turbines – Vibration and bearing temperature monitoring
-
Compressors and Pumps – Providing uninterrupted power to proximity, pressure, and phase modules
-
Hydroelectric and Thermal Power Plants – Ensures long-term power reliability in turbine halls
-
Petrochemical Processing Plants – Safety-critical machinery monitoring in explosive atmospheres
-
Refineries and Offshore Platforms – Zone 2 certified power supply for hazardous area monitoring
-
Cement and Pulp Mills – Rugged design suited for dusty and vibration-heavy environments
Product Advantages
-
Redundant Power Architecture: Supports primary and backup modules with seamless switchover.
-
Industrial Reliability: Proven high MTBF design ensures long-term uptime in mission-critical systems.
-
Hot-Swappable Module: Can be inserted or replaced while the system is running—no need for shutdowns.
-
Compact Design: Occupies minimal rack space (single slot per module), leaving room for additional channels.
-
Robust Input Range: Handles a wide global voltage range from 85–264 VAC, suitable for international use.
-
Diagnostic LED Indicators: Provides visual health checks at a glance, aiding quick troubleshooting.
-
Certified for Hazardous Environments: Fully compliant with ATEX and UL standards.
-
Plug-and-Play Compatibility: Works seamlessly with all Bently Nevada 3500 monitoring modules.
-
Superior Filtering and Noise Immunity: Ensures clean, isolated power to sensitive electronics.
-
Global Field Proven: Thousands of installations across oil & gas, power, and aerospace industries.
Frequently Asked Questions (FAQ)
1. What type of power does the 3500/15-05-00-00 accept?
It accepts AC power, ranging from 85 to 264 VAC at 47–63 Hz.
2. Can I use two power supply modules for redundancy?
Yes. The 3500 rack can host dual power supplies, enabling redundant configurations.
3. What happens if the primary power module fails?
The secondary module takes over automatically, ensuring continuous operation.
4. Is this module hot-swappable?
Yes. It can be installed or removed without powering down the entire system.
5. Does it require a specific rack slot?
Yes, it must be installed in the left-most slot(s) of the 3500 rack.
6. How much power does it deliver?
It supplies up to 140 watts of DC power to the system.
7. Is it compatible with other Bently Nevada modules?
Yes. It supports all 3500 Series monitoring modules.
8. Is the module suitable for explosive or hazardous environments?
Yes. It is ATEX Zone 2 certified and approved for use in hazardous areas.
9. What status indicators are available on the module?
It includes LED indicators showing power status and fault diagnostics.
10. How heavy is the module?
It weighs 1.39 kg.
Related Models (Same Series or Function Category)
| Model | Description | Power Type | Compatibility |
|---|---|---|---|
| 3500/15-01-00-00 | Standard AC Power Supply Module | AC | 3500 Series Racks |
| 3500/15-02-00-00 | Wide-Range AC Power Supply | AC | Extended voltage range |
| 3500/15-03-00-00 | High-Temp AC Power Supply | AC | Harsh environments |
| 3500/15-04-00-00 | 24 VDC Power Supply Module | DC | DC-powered applications |
| 3500/15-06-00-00 | High-Reliability Redundant PSU | AC | Dual configurations |
| 3500/15-07-00-00 | 125 VDC Power Supply Module | DC | Power station use cases |
Popular Bently Nevada Models (Same Brand – Other Categories)
| Model | Type | Main Function | Weight |
|---|---|---|---|

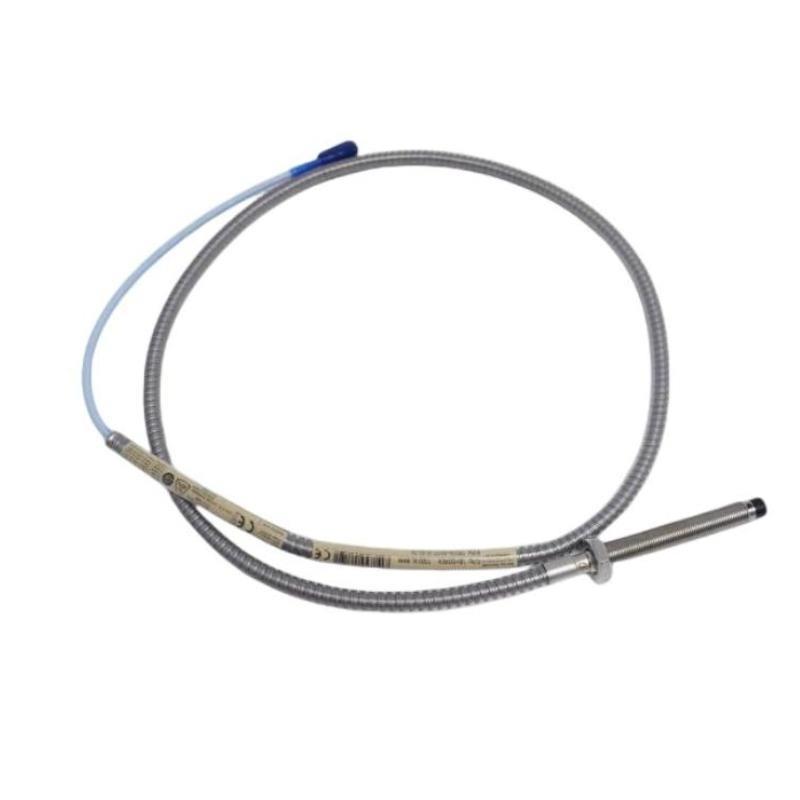

| 330104-00-05-10-02-00 | Proximity Probe | Shaft vibration monitoring | ~0.1 kg |
| 330180-91-05 | Proximitor Sensor Module | Signal conditioning for proximity probes | ~0.5 kg |
| 3500/42M | Vibration Monitor Module | Measures radial, axial, and thrust movement | ~0.8 kg |
| 3500/22M | Transient Data Interface Module | Data connection via Ethernet | ~0.9 kg |
| 3500/94 | Display Interface Module | Local rack data display | ~1.0 kg |
| 125840-01 | Sensor Power Supply Module | Powers proximity probe and transducer systems | ~0.6 kg |
