Product Introduction

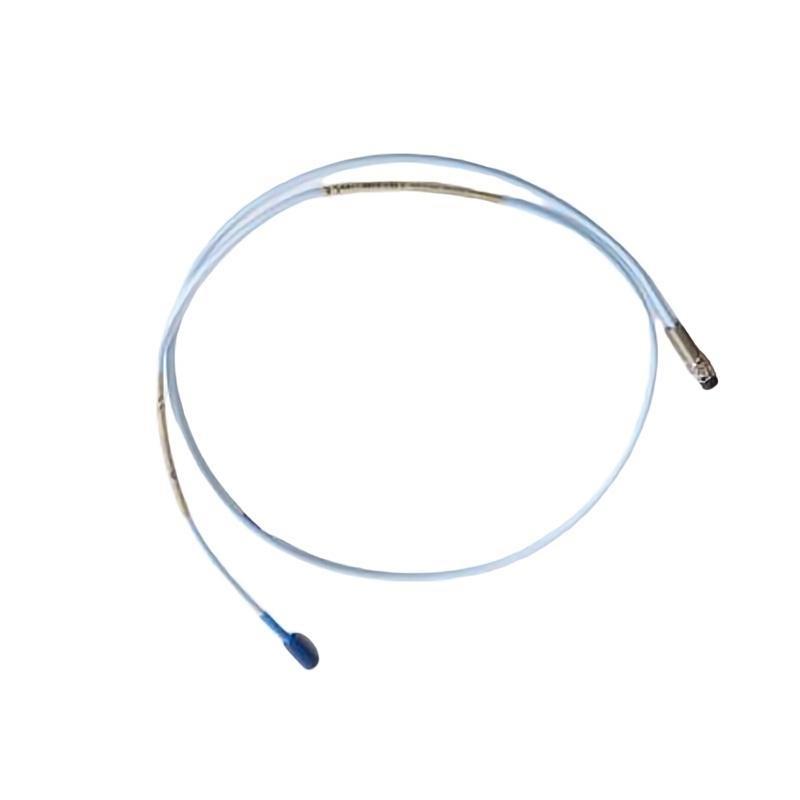

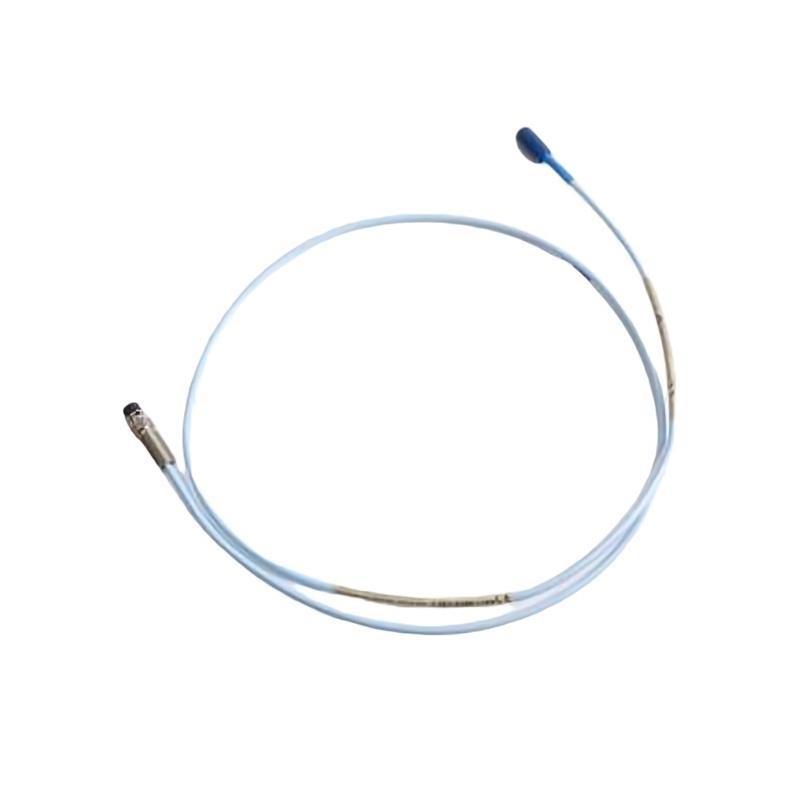

The Bently Nevada 330909-00-60-10-01-00 3300 NSv Proximity Probe is a high-precision eddy current sensor designed for machinery vibration and shaft position monitoring in compact or restricted spaces. As part of the 3300 NSv (Narrow Side-view) series, it delivers the proven accuracy of Bently Nevada’s proximity measurement technology while fitting into tight installations where standard probes cannot. Its rugged stainless-steel housing, superior EMI shielding, and dependable performance in harsh industrial environments make it an excellent choice for turbines, compressors, and other critical rotating equipment.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 330909-00-60-10-01-00 |
| Series | 3300 NSv |
| Probe Tip Diameter | 8 mm |
| Total Length | 1 meter |
| Measurement Range | 0 – 2.0 mm nominal |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Linear Range | ±1.0 mm around nominal probe-to-target gap |
| Frequency Response | 0 – 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –50 °C to +200 °C |
| Housing Material | Industrial-grade stainless steel |
| Mounting Thread | 1/4–28 UNF or compatible clamp |
| Cable Insulation | PTFE shielded |
| Weight | 0.15 kg |
| Compatible Drivers | 3300 NSv Proximitor and other Bently Nevada 3300 monitoring systems |
Applications
-
Gas and Steam Turbines – Real-time vibration and shaft position monitoring for early fault detection.
-
Compressors and Pumps – Accurate radial displacement measurements to prevent bearing failures.
-
Generators and Motors – Continuous surveillance of rotor behavior for predictive maintenance.
-
Fans and Gearboxes – Detects imbalance or misalignment that could lead to downtime.
-
Petrochemical Equipment – Designed to withstand corrosive and high-temperature industrial conditions.
-
Space-Limited Installations – Optimized for equipment with minimal clearance for probe mounting.
Advantages
-
Slim 8 mm Probe Design – Enables installation in narrow areas without loss of performance.
-
High Measurement Precision – Delivers stable and repeatable displacement and vibration data.
-
Wide Temperature Tolerance – Operates reliably from –35 °C to +177 °C.
-
Durable Stainless-Steel Housing – Provides long-term resistance to corrosion and mechanical stress.
-
Excellent EMI/RFI Shielding – Maintains clean signal integrity in electrically noisy environments.
-
Seamless System Integration – Fully compatible with Bently Nevada 3300 NSv Proximitor drivers.
-
Fast Dynamic Response – Supports vibration analysis up to 10 kHz for high-speed machinery.
-
Low Maintenance – Requires only initial calibration and minimal ongoing service.
FAQ
-
What sensing principle does this probe use?
It operates on an eddy current principle to measure shaft vibration and static position without physical contact. -
What is the typical output sensitivity?
The output sensitivity is approximately 7.87 V/mm (200 mV/mil) for accurate displacement measurements. -
Which monitoring systems are compatible with this probe?
It integrates with Bently Nevada 3300 NSv Proximitor drivers and all 3300 series monitoring systems. -
How should the probe be mounted for best results?
Use a 1/4–28 UNF threaded hole or an appropriate clamp while maintaining the recommended probe-to-target gap. -
What is the linear measurement range?
It provides a linear range of ±1.0 mm around the nominal probe-to-target gap. -
What is the maximum supported frequency response?
The probe supports a frequency response up to 10 kHz, suitable for high-speed vibration monitoring. -
Is periodic recalibration required?
Only initial calibration with the Proximitor driver is necessary; thereafter, it requires minimal recalibration. -
Can the probe operate in environments with strong electromagnetic interference?
Yes, the probe features excellent EMI/RFI shielding to ensure stable signal output. -
Is the probe capable of measuring both dynamic and static signals?
Yes, it accurately captures dynamic vibration and static shaft position simultaneously. -
What type of cable insulation is used?
The cable is PTFE shielded, offering durability and resistance to high temperatures.
Recommended Related Models (Same Series)
| Model | Description |
|---|---|
| 330909-00-20-10-02 | NSv probe with 1 m cable for standard installations |
| 330909-00-24-70-02-05 | NSv probe with 7 m cable for long routing distances |
| 330909-00-25-10-02 | NSv probe with 1.5 m cable |
| 330909-00-30-10-02 | NSv probe with 2 m cable for extended installations |
| 330908-24-37-05-02 | Compact NSv probe for restricted spaces |
| 330908-00-18-05-02 | High-sensitivity NSv probe for demanding conditions |
