Product Overview

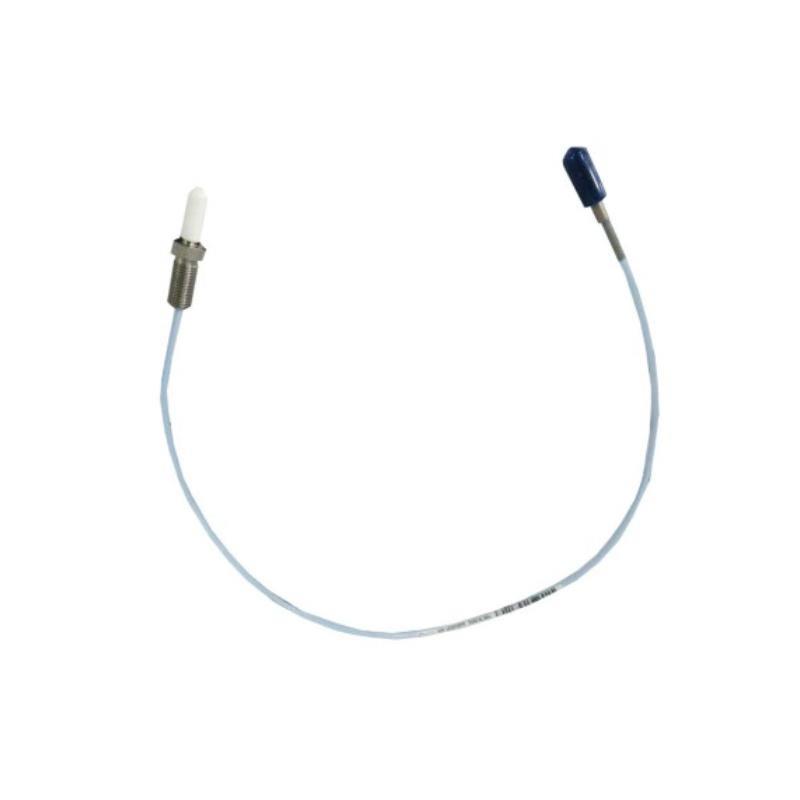

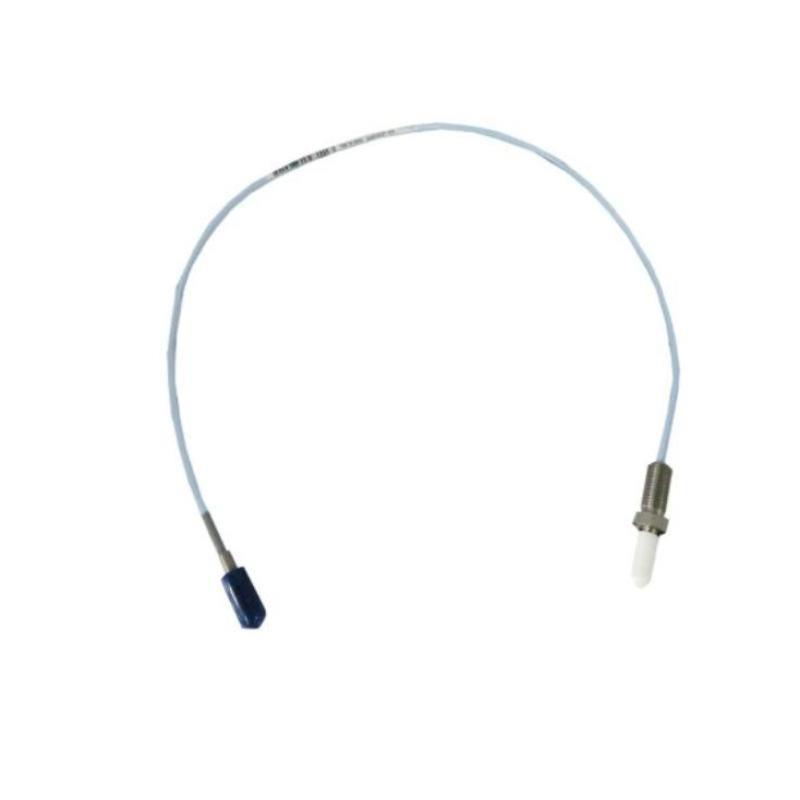

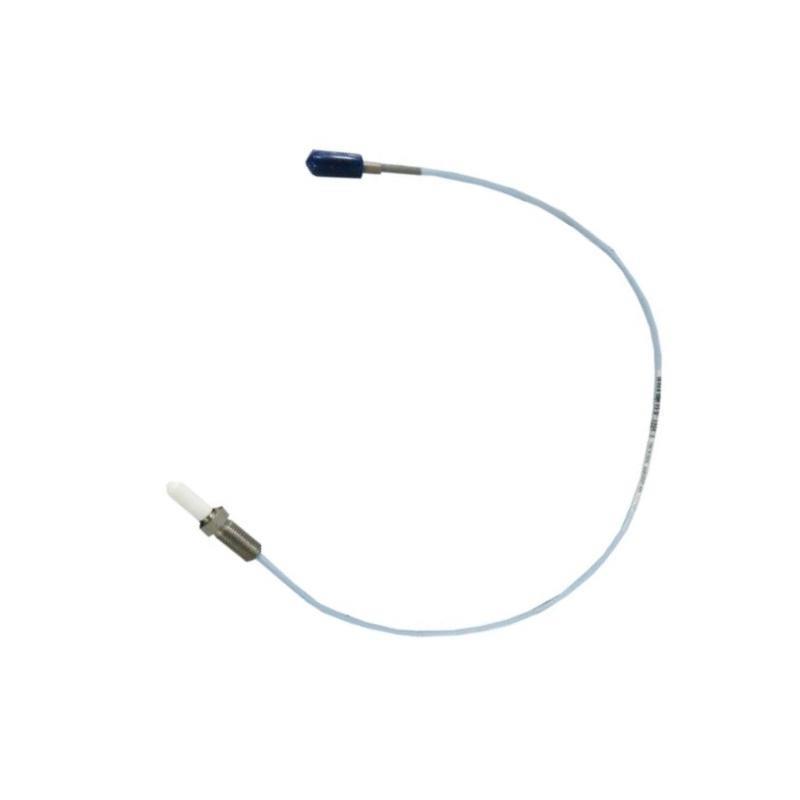

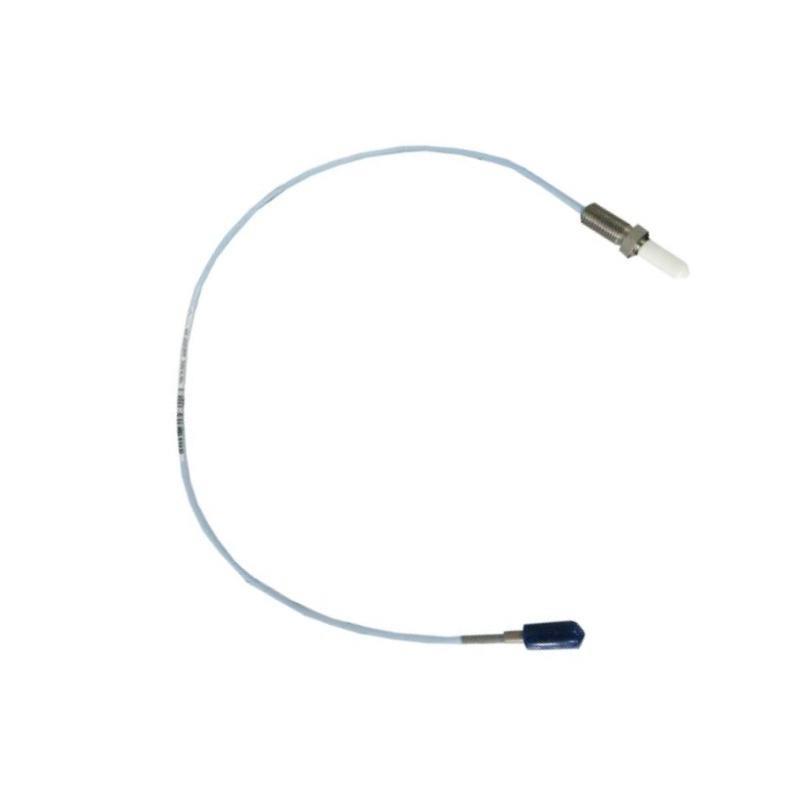

The Bently Nevada 330906-02-12-05-12-00 3300 NSv Reverse Mount Probe is a high-precision sensor designed for monitoring shaft vibration and displacement in industrial machinery. Its reverse mount configuration allows installation in tight spaces while maintaining accurate measurement performance. Using eddy-current technology, it provides reliable data for predictive maintenance, condition monitoring, and machinery protection systems.
Key Features
-
Reverse mount design for confined space installation
-
Eddy-current technology for precise shaft displacement and vibration measurement
-
Rugged stainless steel construction for industrial durability
-
High-frequency response for accurate monitoring of fast-rotating machinery
-
Miniature coaxial connector for secure electrical connections
-
Compatible with 3300 NSv monitoring systems
-
Designed for harsh environmental conditions
-
Facilitates predictive maintenance and machine protection
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330906-02-12-05-12-00 |
| Probe Type | Reverse Mount NSv |
| Measurement Range | 0–10 mm |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0–10 kHz |
| Output Signal | 4–20 mA |
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -40 °C to +100 °C |
| Connector Type | Miniature Coaxial ClickLoc |
| Thread Type | 3/8-24 UNF |
| Material | Stainless Steel |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.15 kg |
Industry Applications
-
Gas and steam turbines
-
Compressors and blowers
-
Electric motors and drives
-
Pumps and industrial fans
-
Oil & gas machinery
-
Power generation rotating equipment
Frequently Asked Questions (FAQ)
Q1: What is the measurement range of this probe?
A: It measures shaft displacement up to 10 mm.
Q2: What type of output signal does it provide?
A: It provides a 4–20 mA output signal.
Q3: Can it be installed in confined spaces?
A: Yes, its reverse mount design is ideal for tight installations.
Q4: What is the operating temperature range?
A: -40 °C to +85 °C.
Q5: What is the connector type?
A: Miniature coaxial ClickLoc connector.
Q6: Is it suitable for harsh industrial environments?
A: Yes, it is built with stainless steel and designed for durability.
Q7: What thread type is used for mounting?
A: 3/8-24 UNF thread.
Q8: Which industries commonly use this probe?
A: It is commonly used in oil & gas, power generation, and industrial machinery monitoring.
Related Bently Nevada Modules
| Model | Description |
|---|---|
| 330906-02-12-05-02-00 | 3300 NSv Reverse Mount Probe |
| 330906-02-12-10-02-05 | 3300 NSv Reverse Mount Probe |
| 330906-02-12-10-12-00 | 3300 NSv Reverse Mount Probe |
| 330906-02-12-05-02-05 | 3300 NSv Reverse Mount Probe |
| 330905-00-05-10-02-00 | 3300 NSv Proximity Probe |
| 330905-00-07-10-02-00 | 3300 NSv Proximity Probe |
Popular Bently Nevada Modules
| Model | Description |
|---|---|
| 330104-00-11-10-01-00 | 3300 XL 8 mm Proximity Probe |
| 330104-00-12-10-02-05 | 3300 XL 8 mm Proximity Probe |
| 330104-01-05-50-02-00 | 3300 XL 8 mm Proximity Probe |
| 330130-045-01-05 | 3300 XL Standard Extension Cord |
| 330980-50-CN | 3300 XL NSv Front Sensor |
| 990-10-XX-01-05 | 990 Vibration Transmitter |
